Fellowes Chicago accessories through-desk attachment (100136992)
Highlights
- Suitable for Fellowes Chicago monitor mounts
- Sturdy through-desk mounting (Grommet Mount)
- For tabletops up to approx. 70 mm thickness
- Suitable for holes Ø 8.5–100 mm
- Robust M8 threaded rod with star knob
Through-desk Mount for Fellowes Chicago Monitor Arms
The through-desk mount for Fellowes Chicago monitor arms enables an especially stable and space-saving installation of the monitor arm directly through the desktop. This type of mounting is ideal for workstations where a classic desk clamp cannot be used or where a particularly secure installation is desired. With through-desk mounting, the monitor arm is passed through an existing or newly drilled opening in the desktop and securely fastened from below. This creates an extremely robust connection between the desk and the monitor arm. At the same time, the desk edge remains free, which is particularly advantageous for modern office workspaces or desks with cable grommets.

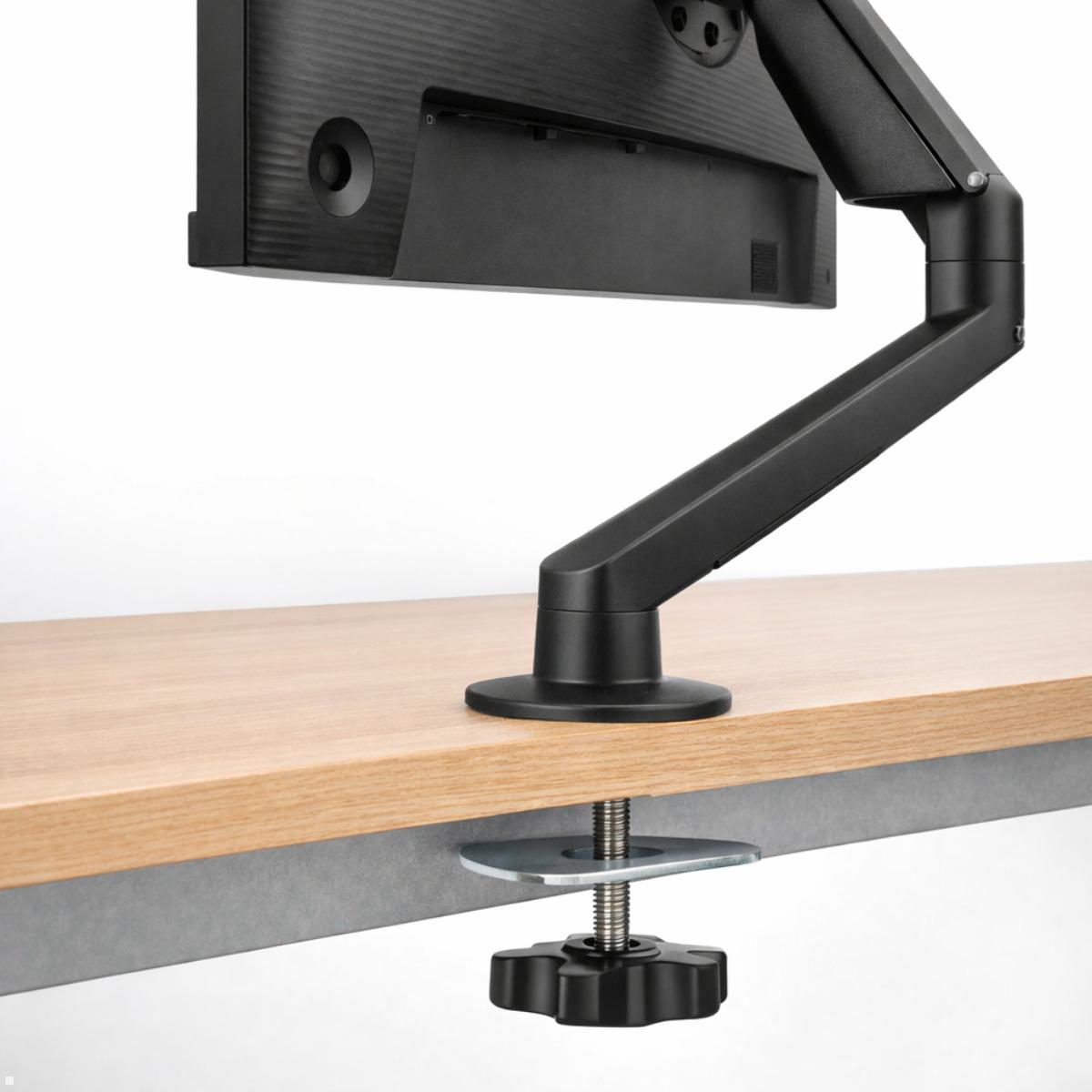

Installation is simple and quick. The mounting unit is placed on the desktop from above, while the sturdy counterplate is attached from below and then fixed with a threaded rod and star knob. By tightening the screw, the mount is clamped securely against the desktop, ensuring a stable hold of the monitor arm. The through-desk mount was specially developed for monitor arms of the Fellowes Chicago series and offers a clean, ergonomic, and durable installation solution for office workspaces and home office environments. Particularly in professional work environments, this mounting type provides maximum stability and a tidy appearance for the workstation. Thanks to the robust metal components, this mount is excellently suited for ergonomic monitor workstations with Chicago monitor arms and offers a reliable alternative to the classic desk clamp.
Technical Details of the Through-desk Mount from Fellowes
- Suitable for Fellowes Chicago monitor arms
- Mounting type: through-desk mount / grommet mount
- Threaded rod: M8
- Length of threaded rod: approx. 160 mm
- Suitable for desktops up to approx. 70 mm thickness
- Required hole diameter: Ø 8.5 – 100 mm
- Ideal for single- and dual-monitor mounts of the Chicago series
- Clean and space-saving installation without a visible desk clamp
- Easy installation with few assembly steps
- Fixing via star knob hand screw

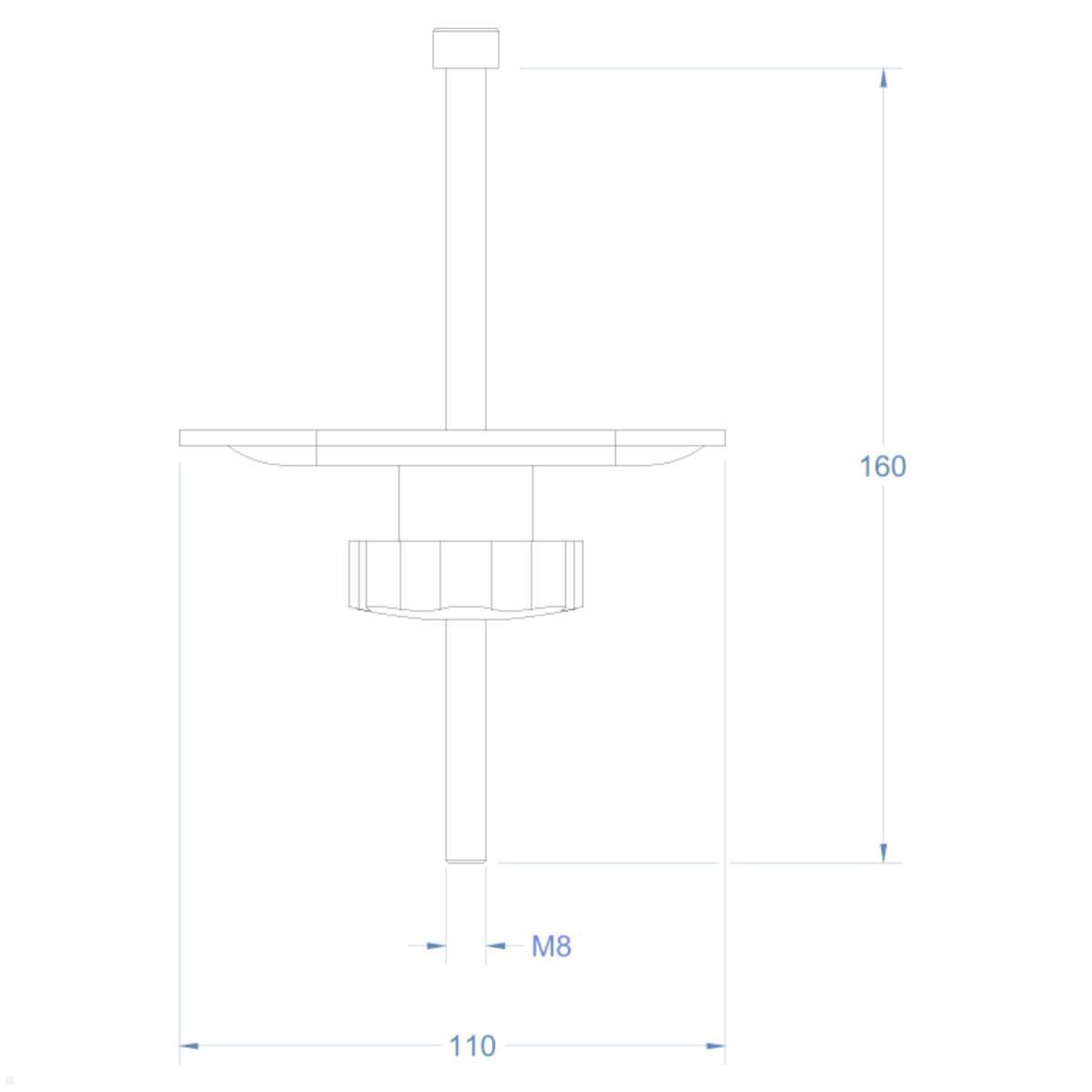

| Technical drawing: |  [pdf] |
|---|---|
| Installation manual: | [pdf] |
| Thickness of table (mm): | bis ca. 70 |
| Special features: | Zubehör Durchschraubbefestigung für Fellowes Chicago Monitorhalterungen |
| Suitable for: | Fellowes Chicago monitor mounts |
| Accessories: | Fellowes Chicago Monitorhalterungen Single & Dual |

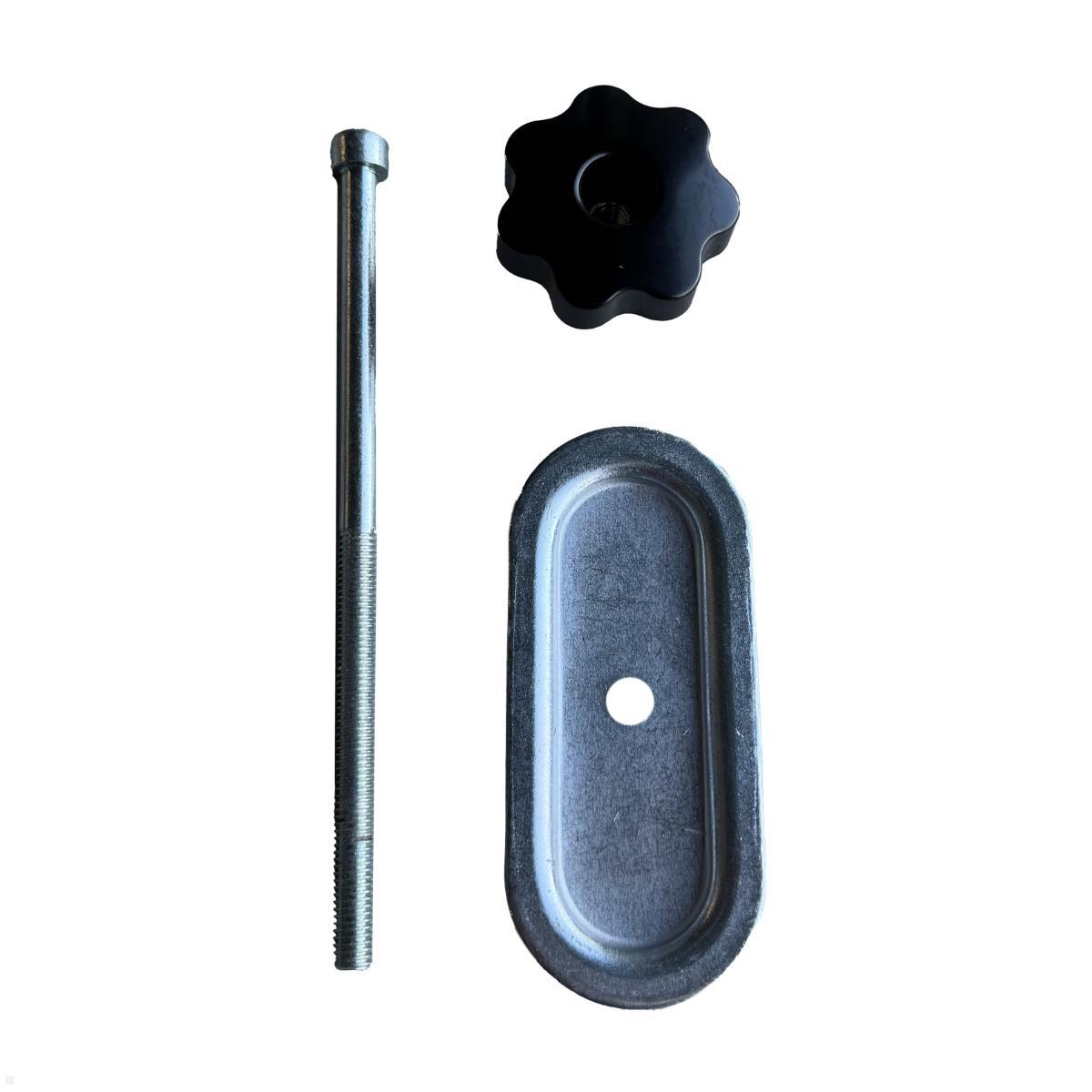

| Scope of delivery: | 1x through-table mounting |
| Manufacturer/Importer: | Fellowes GmbH, Fliegerstr. 1, D-30179 Hannover, cs-germany@fellowes.com |
| Mounting type: | desk - drill screw fastening |
| color: | Silver/Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Through-Desk Mount for Fellowes Chicago monitor arms?
A stable, space-saving mounting that lets you route the monitor arm through the desk surface for a secure connection, designed for Fellowes Chicago monitor arms.
-
Which monitor arms is it compatible with?
Compatible with Fellowes Chicago Monitor Arms; ideal for single- and dual-monitor setups in the Chicago series.
-
How does the installation work?
The mounting unit sits on top of the desk, the counter plate is attached underneath, and the assembly is fixed with a threaded rod and a star knob. Tightening the screw clamps the mount securely to the desk.
-
What are the benefits?
Provides a robust desk-to-monitor connection, is space-saving, and delivers a clean look without a visible desk clamp. It is ideal when a desk clamp cannot be used or a secure installation is required.
-
What are the key technical specs?
Threaded rod M8, about 160 mm long; suitable for desk tops up to about 70 mm thick; required hole diameter Ø 8.5–100 mm.
-
What mounting types are supported?
Mounting type: Through-desk mount / desk-hole mount / Grommet Mount; simple installation with a few steps; secured with a star-handled screw.
-
Where is it suitable?
Ideal for office and home office environments; robust metal components ensure maximum stability and a tidy look.
What is a through-desk mount for Fellowes Chicago monitor arms?
The through-desk mount for Fellowes Chicago monitor arms enables a particularly stable and space-saving installation of the monitor arm directly through the desktop. This type of mounting – also called through-desk mounting or grommet mount – is frequently used in modern office environments because it allows a secure and visually clean installation.
Unlike a classic desk clamp, the mount is guided through an existing or newly drilled opening in the desktop and then firmly screwed from underneath. This creates a stable connection between the desk and the monitor arm.
The through-desk mount provides a professional appearance at the workstation while offering maximum stability for the mounted monitor arm.
For which monitor arms is the mount suitable?
This through-desk mount was specifically developed for monitor arms of the Fellowes Chicago series. It is therefore ideal as an alternative mounting option for Chicago monitor arms when attachment via a desk clamp is not desired or possible.
The mount is particularly suitable for:
- workstations with an existing cable pass-through in the desk
- modern height-adjustable desks
- ergonomic monitor workstations
- installations with high stability requirements
The firm screwing under the desktop ensures a particularly secure and durable mounting.
How does the Chicago through-desk mount installation work?
Installation is quick and straightforward. First, the mounting base of the monitor arm is placed on the desktop from above and guided through the existing hole. Then a sturdy backplate is attached from underneath.
The mount is tightened using an M8 threaded rod with a convenient star knob. When tightened, the mount is clamped securely against the desktop, creating a stable connection.
Thanks to this mounting method the desk edge remains free, making the workstation look tidier and providing more space on the desktop.
What advantages does a through-desk mounting offer for Chicago monitor arms?
A through-desk mount for Fellowes Chicago monitor arms offers several advantages over a classic desk clamp. The direct screwing to the desktop results in an especially stable and secure mounting.
Additionally, this mounting method provides a minimalist and tidy appearance for the workstation. Since no clamp is visible on the desk edge, the monitor arm appears harmoniously integrated into the desk design.
Through-desk mounting is therefore an ideal solution for professional office workspaces, modern workstations, or home office setups.
