future automation picture lift split 60

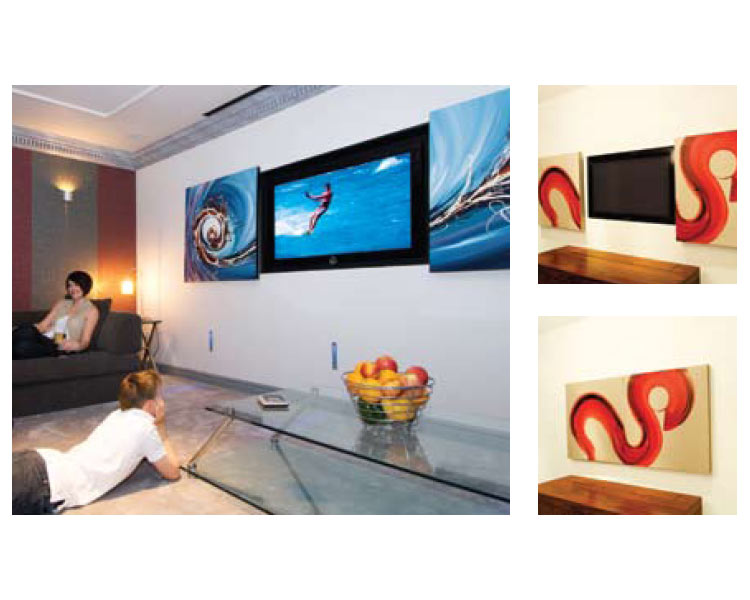

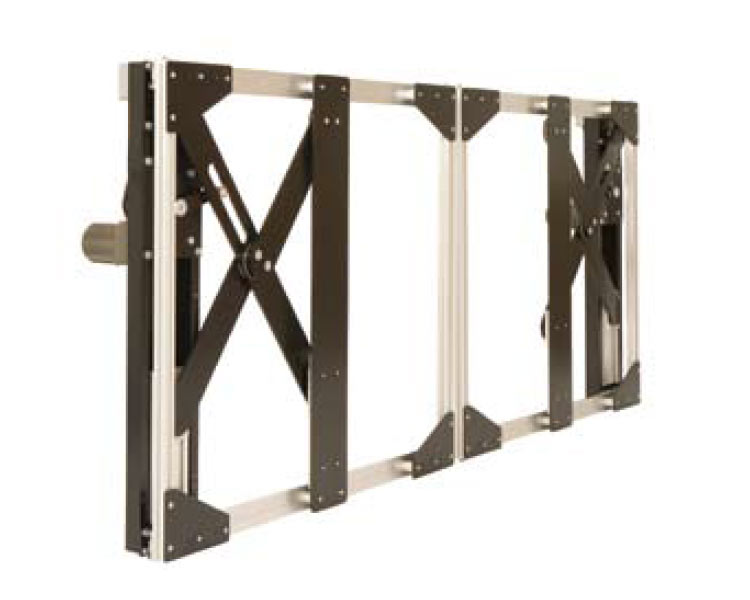

The Picture Split Mechanism is a dual horizontal moving panel mechanism that allows a flat screen to be concealed behind two pictures or panels.
Ideal for when vertical height is not available, the Picture Split Mechanism drives two panels left and right to reveal the screen. A superb alternative to a single picture – the Picture Split opens up a wide range of design options to add to any interior decoration.
Design Highlights:
- Range of Sizes of Mechanism
- Smooth quiet motion
- Optional to combine with a motorised bracket
- Complete sheet metal cassette ensures simple installation
- Range of panel designs available
Specification:
- Depth in Wall: 157mm
- Maximum Weight of Moving Panel: 15kg
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Technical drawing: | [pdf - Englisch] |
| Installation manual: |  [pdf, 1,2 MB] |
| Capacity: | 15kg |
| Screen size: | 37 - 65" |
| Contains installation material: | + |
| Inch size: | 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
