Future Automation sliding panel system SPS800

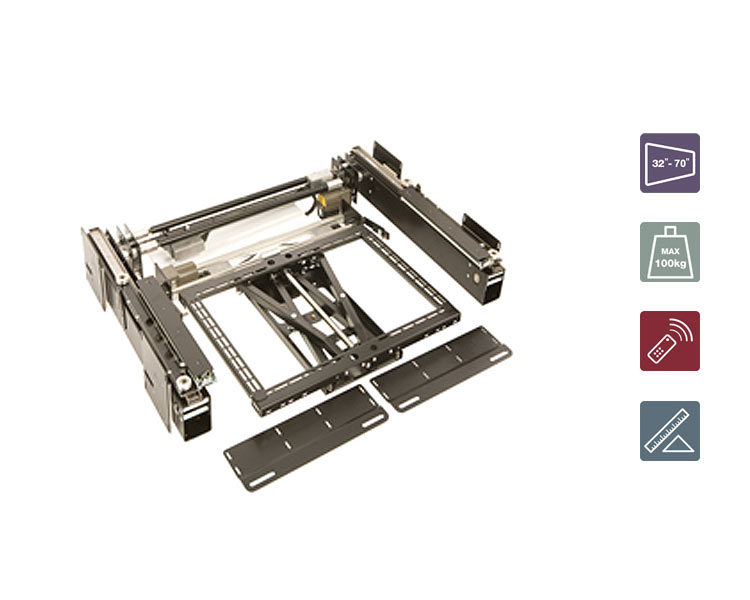

The Sliding Panel Mechanism is our reference moving panel mechanism and allows completed concealment of a flat screen television.

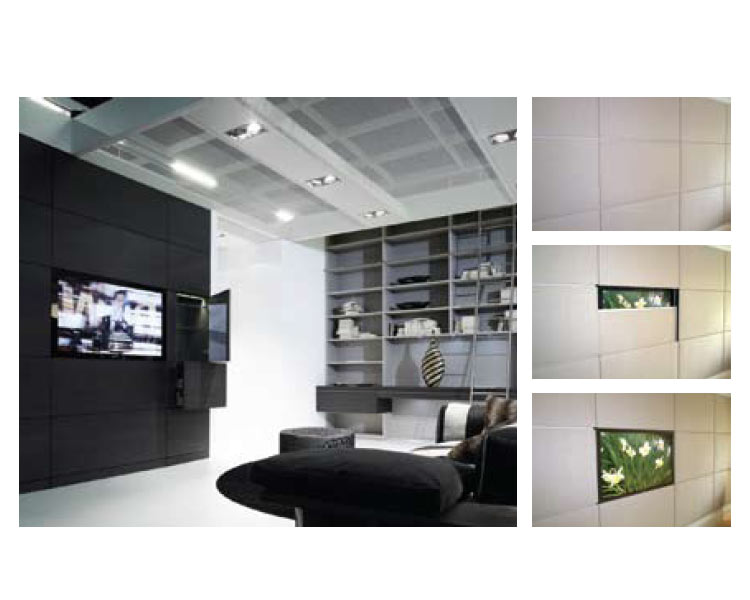

The mechanism takes a panel inwards and moves it out of sight behind the surrounding panel work before advancing the screen to sit flush with the wall. A distinctively brilliant design, this one of a kind mechanism offers the ultimate in look, functionality and wow factor. Available in a host of options, the Sliding Panel Mechanism allows you to design a wall or cabinet with complete freedom.
Design Highlights:
- Range of single panel and split panel options
- Space efficient design
- Wide range of cabinetry and wall design
- options
- Unique Functionality
Specification:

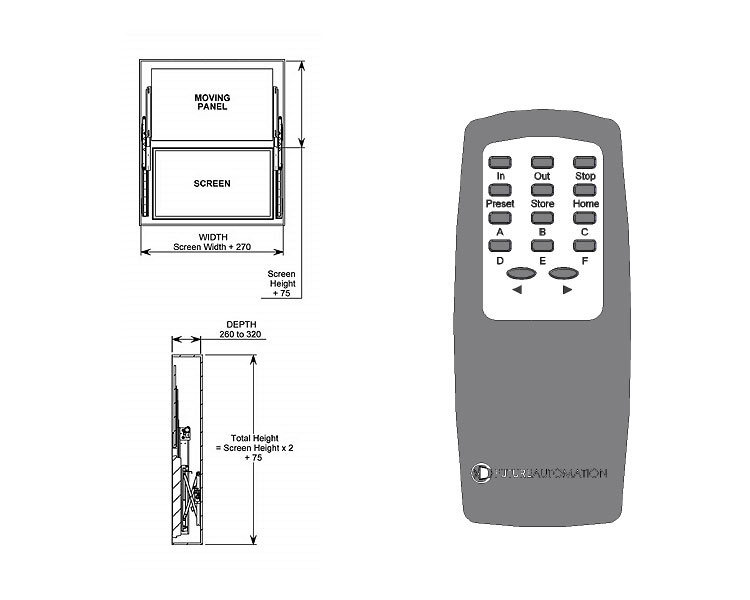

- Depth in Wall: 260 - 320mm
- Maximum Weight of Moving Panel: 30kg
- Maximum Weight : 100kg
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 102 kb] |
|---|---|
| Technical drawing: | [pdf, 448 kb ] |
| Installation manual: | [pdf, 2,3 MB] |
| Capacity: | Monitor holder: 100kg, Panel: 30kg |
| Screen size: | 32 - 50" |
| Contains installation material: | + |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
