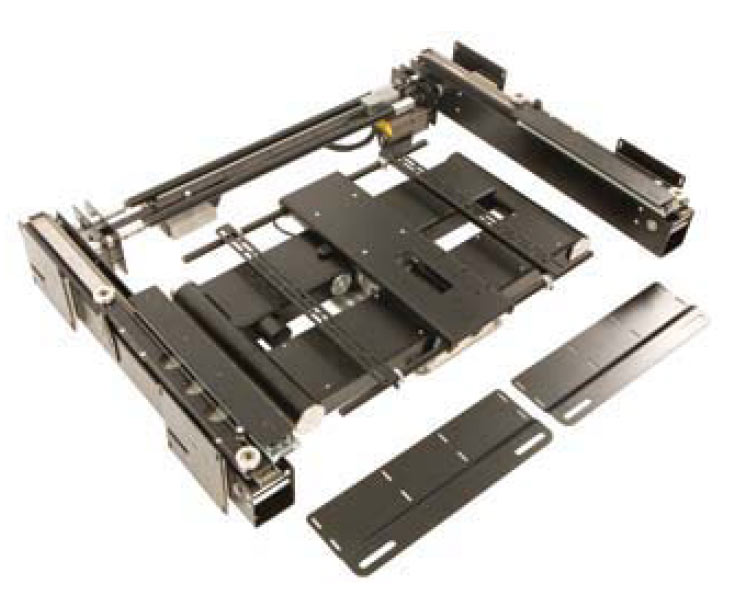

Future Automation sliding panel with monitor arm SPS800-QA
The Sliding Panel Mechanism with Quad Arm adds further functionality and flexibility to a standard SPS mechanism.

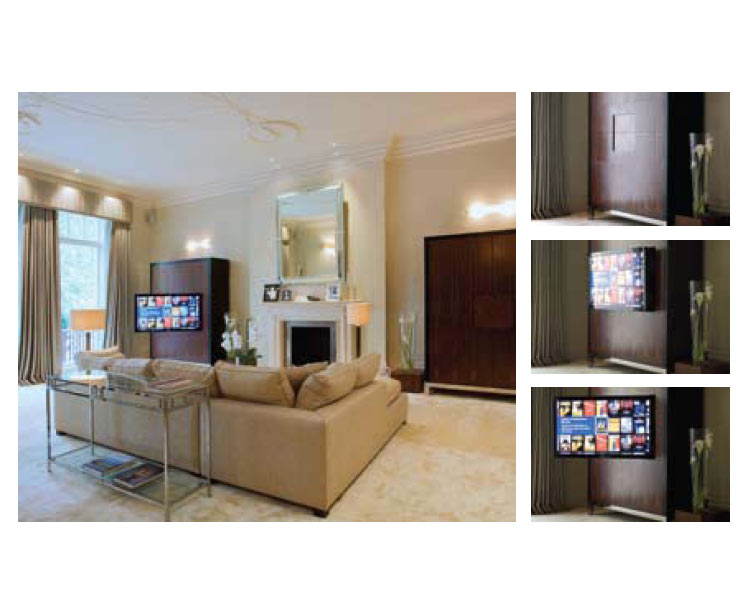

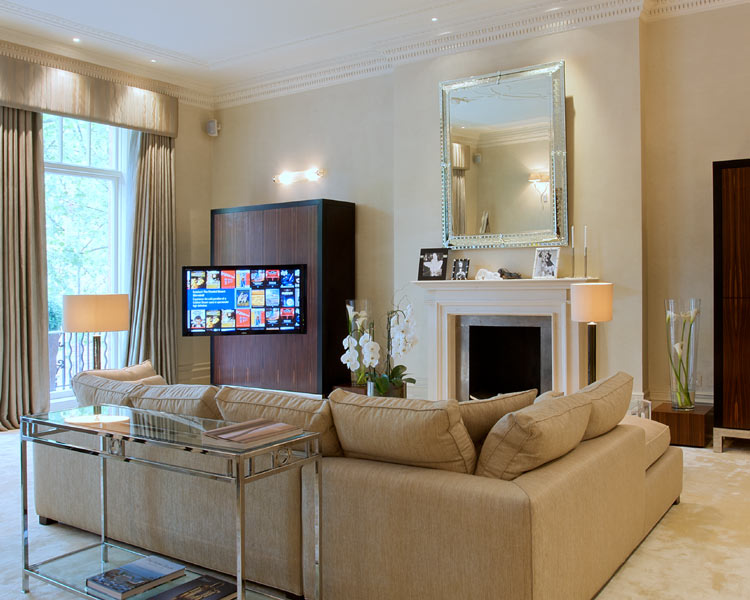

Allowing the screen to move forward from the recess and rotate either direction up to 45 degrees this mechanism creates a solution that solves the most complicated of design problems with simplicity and style. A distinctively brilliant design, this one of a kind mechanism offers the ultimate in look, functionality and wow factor.
Design Highlights:
- Range of single panel and split panel options
- Space efficient design
- Wide range of cabinetry and wall design options
- Unique Functionality
- Multiple preset positioning
- Rotation up to 45 degrees in either direction
Specification:
- Depth in Wall: 320mm
- Maximum Weight of Moving Panel: 30kg
- Maximum Weight: 50kg
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 124 kb] |
|---|---|
| Technical drawing: | [pdf, 271 kb] |
| Capacity: | Monitor holder: 50kg, Panel: 30kg |
| Swivelling range: | +/- 45° |
| Screen size: | 32 - 50 " |
| VESA Standard: | 200x200; 300x300; 400x400; VESA MIS-F (max. 667x503 mm) (www.vesa-standard.com) |
| Contains installation material: | + |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch |
| VESA (in mm): | VESA 100x100, VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400, VESA 800x400, VESA 800x600 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
