Humanscale M2 Lite monitor desk mount bolt-through (M2BSES) silver
With the Humanscale M2 Lite M2BSES desk mount with swivel arm as a bolt-through bracket in the color silver-grey for light monitors with a weight of 1.5 to 6.4 kg can be easily adjusted in height and depth. Humanscale - for a completely flexible and ergonomic work environment.
Humanscale M2 Lite angled bolt-through desk mount M2BSES up to 6,4kg
The next generation monitor arm

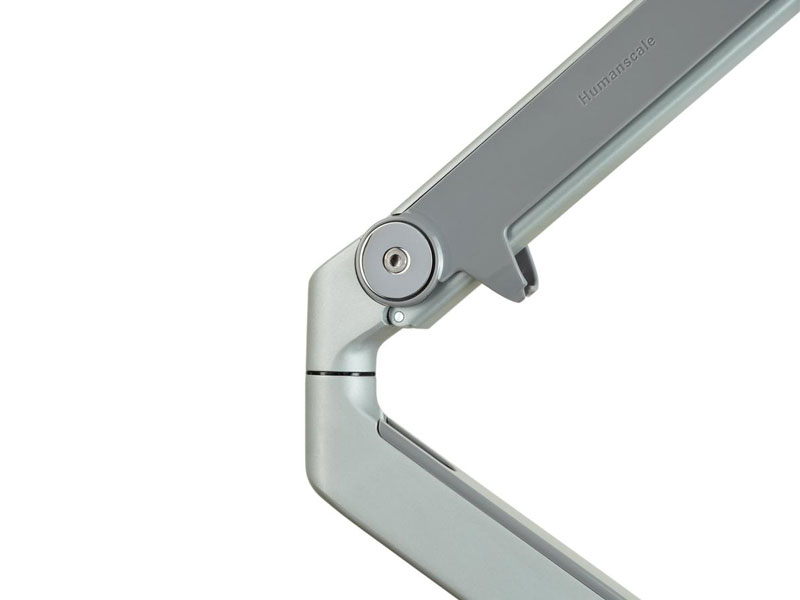

The Humanscale M2 Lite M2BSES for light monitors with max. 6.4kg weight redefines high performance monitor arms by providing all the advantages of a traditional dynamic monitor arm - but without the known limitations. Monitor generators of the present generation use a large, fault-prone gas cylinder to support the weight of the monitor. Instead, the Humanscale M2 Lite uses an innovative mechanical spring to achieve exceptional performance and durability with a light, ultra-thin design.
Key features Humanscale M2 Lite angled M2BSES swivel monitor desk mount
- Finish: silver with grey trim

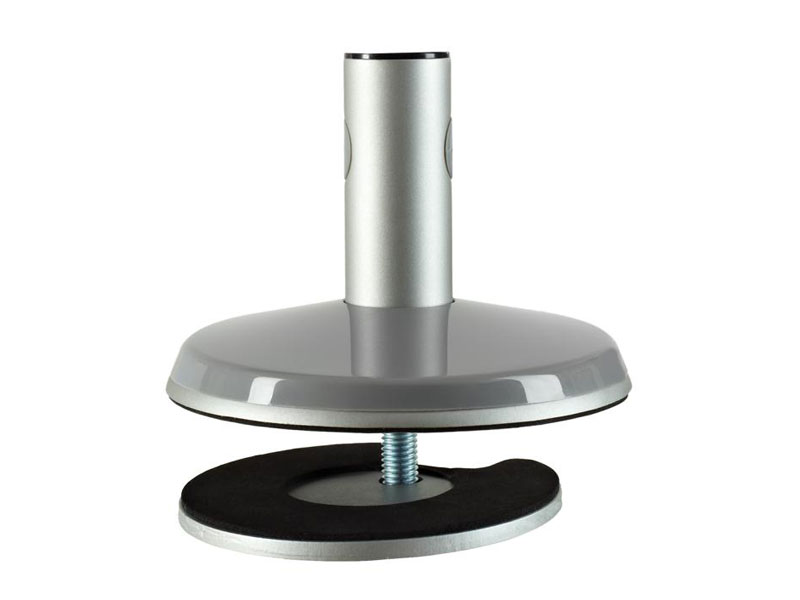

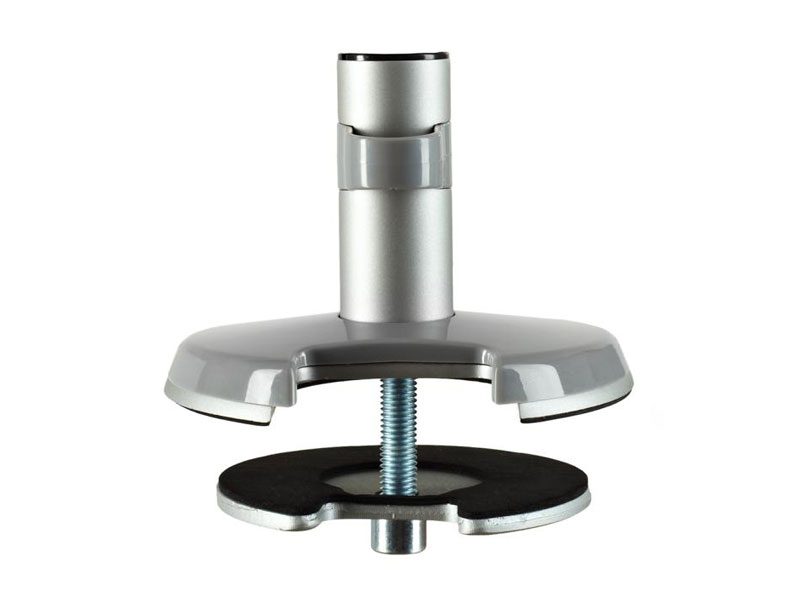

- Fastening: Bolt-through mount
- Load capacity of the monitor holder 1,5 - 6,4 kg

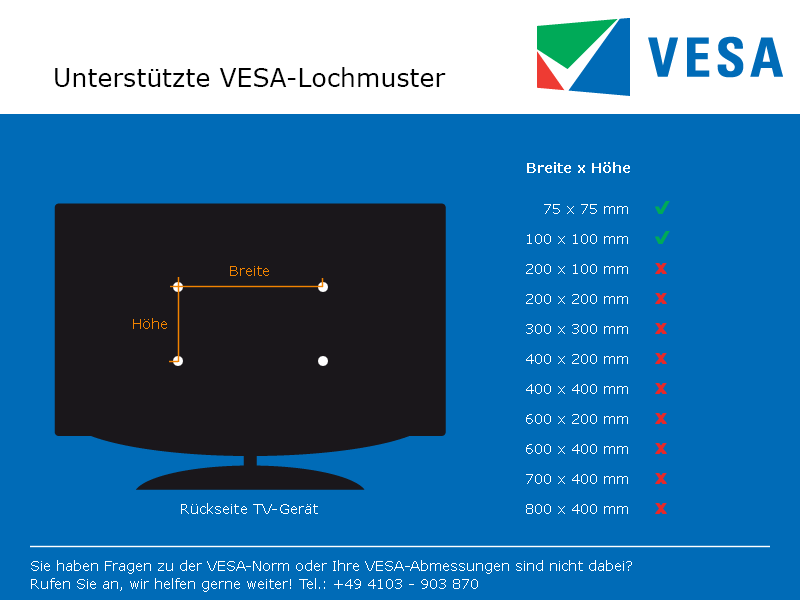

- VESA mount standard 75x75 and 100x100mm
- Delivery with bolt-through mount (table top up to 76mm)

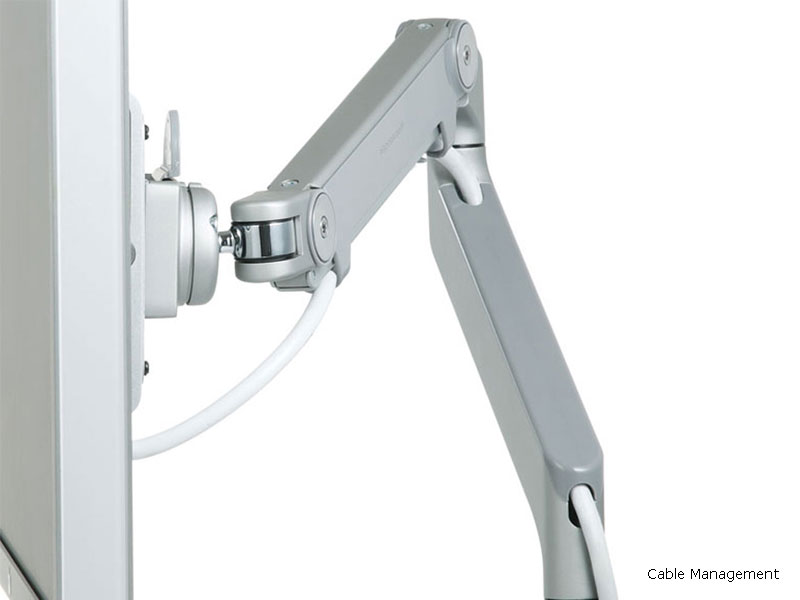

- Integrated cable management conceals the cables in the monitor arm.
- Swivel: 360°
- Tilt: 80°

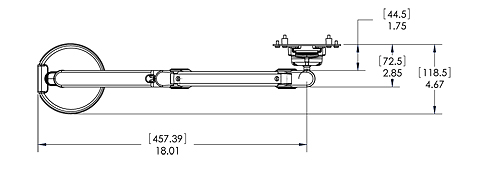

- Range of the swivel arm: 508 mm

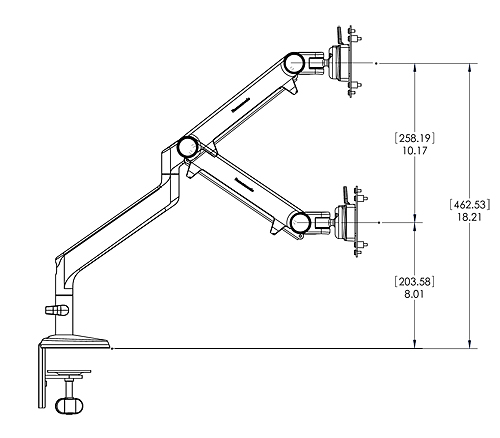

- Height adjustment: 254 mm
- Weight: 2,3 kg
- Consists mainly of recycled aluminum.
- 52% recycled and 99% recyclable material
- Can contribute to various LEED-CI, -NC and -EB credits.
- 10 years warranty
Does your TV, monitor or display fit?
We are happy to check if your TV is suitable for this Humanscale M2 Lite M2BSES mount. Simply send us your model (manufacturer + model no.) At the end of the order process. We then check for you whether the TV, monitor or display fits and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 337 kb] |
|---|---|
| Technical drawing: | [pdf, 236 kb] |
| Installation manual: | [pdf, 676 kb] |
| Minimum weight: | 1,5 kg |
| Capacity: | 1,5 - 6,4 kg |
| Rotate: | 90° |
| Height range (mm): | 254 |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 508 |
| Screen size: | max. 24" |
| Thickness of table (mm): | max. 75 |
| Special features: | Besteht hauptsächlich aus recyceltem Aluminium. 52% recyceltes und 99% wiederverwertbares Material |
| VESA Standard: | 75x75mm, 100x100mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Humanscale International Holdings, IDA Industrial Estate, Poppintree Finglas, Dublin D11 XY42, DACH@humanscale.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
