Humanscale M2 Wall Mount angled, black
The Humanscale M2 Wall Mount angled, black is the perfect match between function and design. A masterpiece of todays monitor arms
Humanscale M2 wall mount angled, black
Offering all the benefits of a traditional dynamic monitor arm - with none of the shortcomings - the M2 redefines high-performance monitor arms. Current-generation monitor arms utilize a bulky, failure-prone gas cylinder to support the weight of the monitor. The M2 instead uses an innovative mechanical spring to achieve exceptional performance and durability in a lightweight, ultra-thin design.
Specifications
- Supports 95% of monitors in use today, up to 9.1kg (20 lbs.)
- Integrated cable management hides cables within the arm
- Removable 180° stop protects walls and panels
- Arm reach: 510mm (20”)
- Height adjustment range: 255mm (10”)
- Weight: 2.3kg (5 lbs.)
- 10 years
Sustainability
For all its advancements, the M2’s most notable achievement is that it treads lightly where the environment is concerned.
- Made predominantly of aluminum, followed by steel and plastic
- Contains 52% recycled content (46% post-consumer, 6% pre-consumer)
- 99% recyclable
- Lighter weight means less material to source, process, dispose of, and ship
- Fewer parts mean fewer manufacturing processes
- Slim profile enables less wasteful packaging
- Durable design means it won’t need to be replaced for a very, very long time
- No gas cylinders, which are difficult to recycle
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 337 kb] |
|---|---|

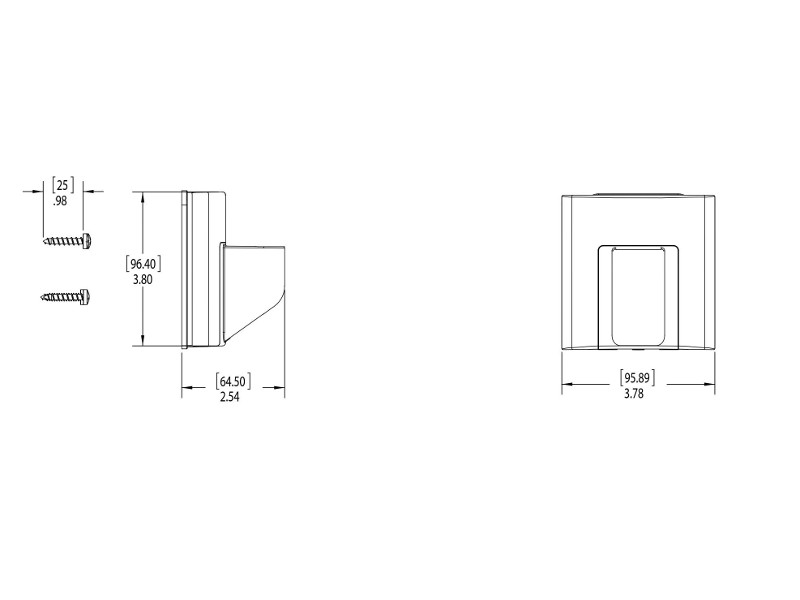

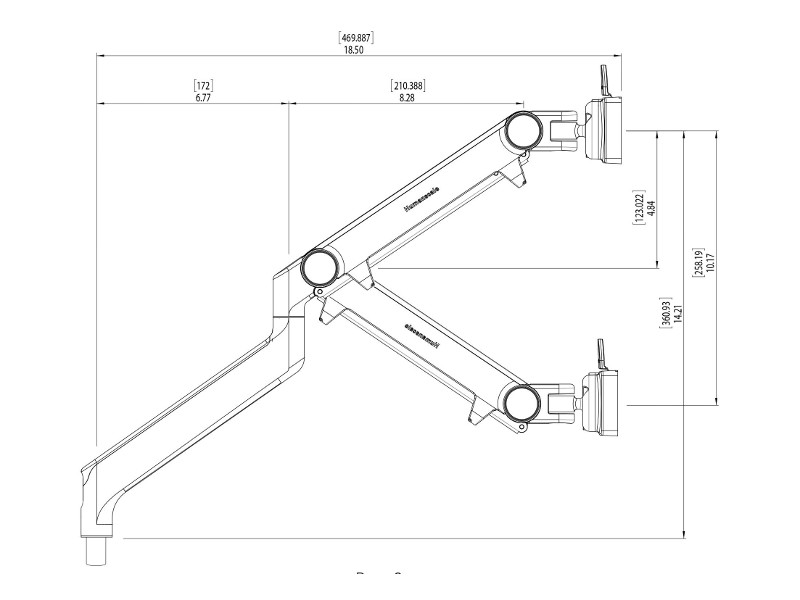

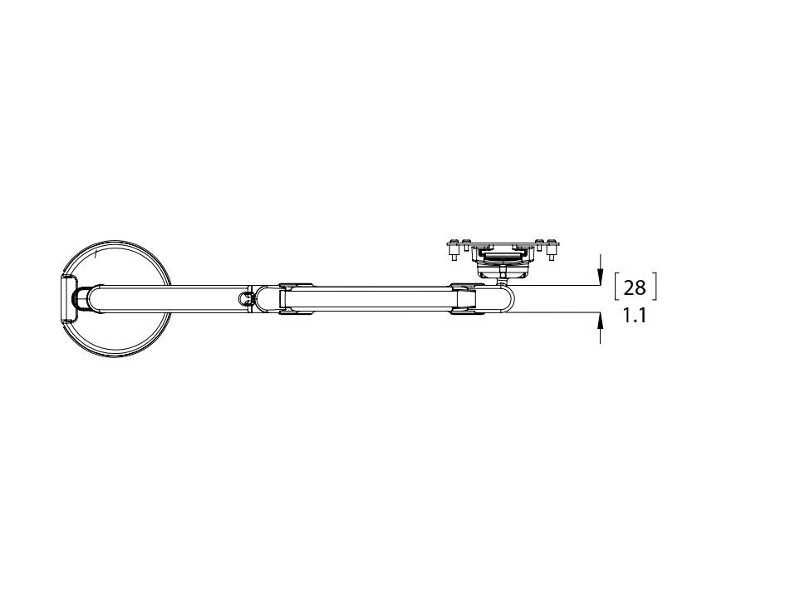

| Technical drawing: | [pdf, 241 kb] |
| Installation manual: | [pdf, 242 kb] |
| Minimum weight: | 3,6 kg |
| Capacity: | 3,6 kg - 9 kg |
| Height range (mm): | 254 |
| Swivelling range: | 180° |
| Length of the swivel arm: | 508 |
| Screen size: | max. 24" |
| Special features: | 52% recyceltes und 99% wiederverwertbares Material. |
| VESA Standard: | 75x75mm, 100x100mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Humanscale International Holdings, IDA Industrial Estate, Poppintree Finglas, Dublin D11 XY42, DACH@humanscale.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | wall mount |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
