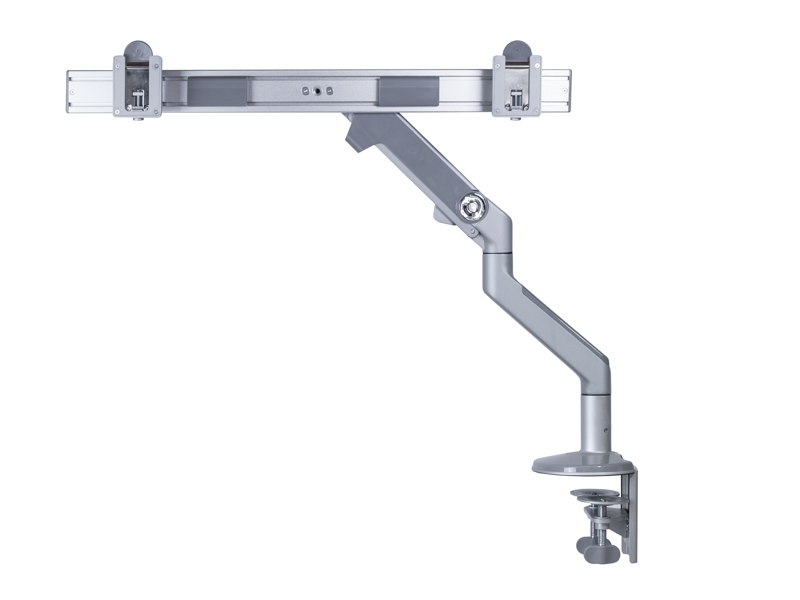

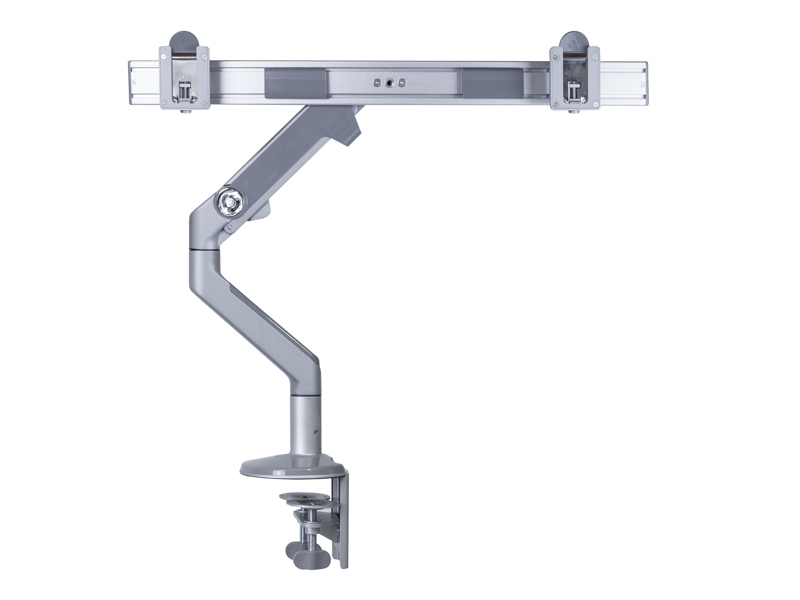

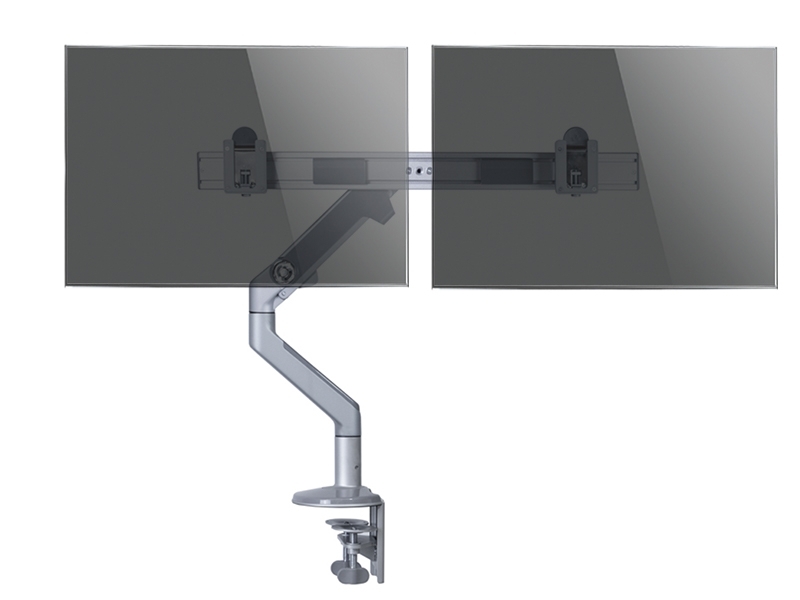

Humanscale M8 Dual Tabel Mount (Clamp) Crossbar, silver/grey
The Humanscale M8 Dual Table Mount (Clamp) Crossbar, silver/grey convinces through his simple and elegant design and the extreme weight capacity makes it ideal for supporting dual-monitor applications.

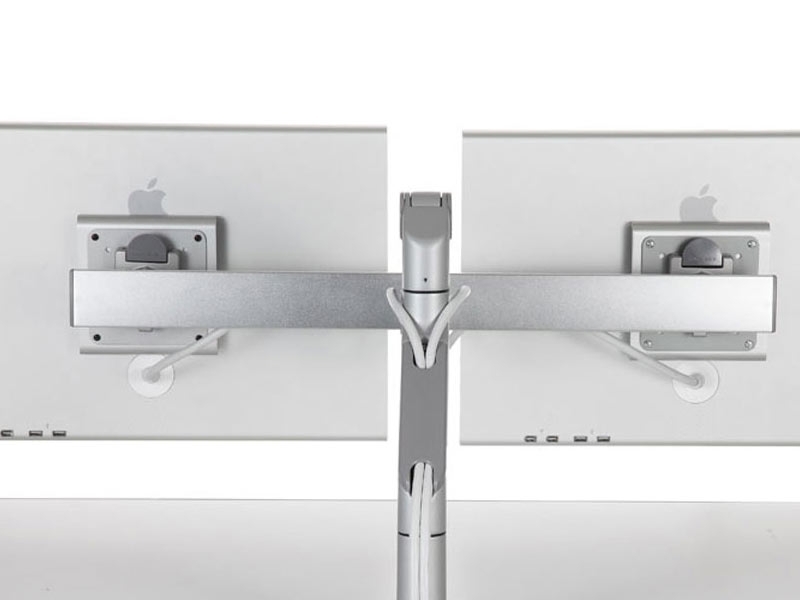

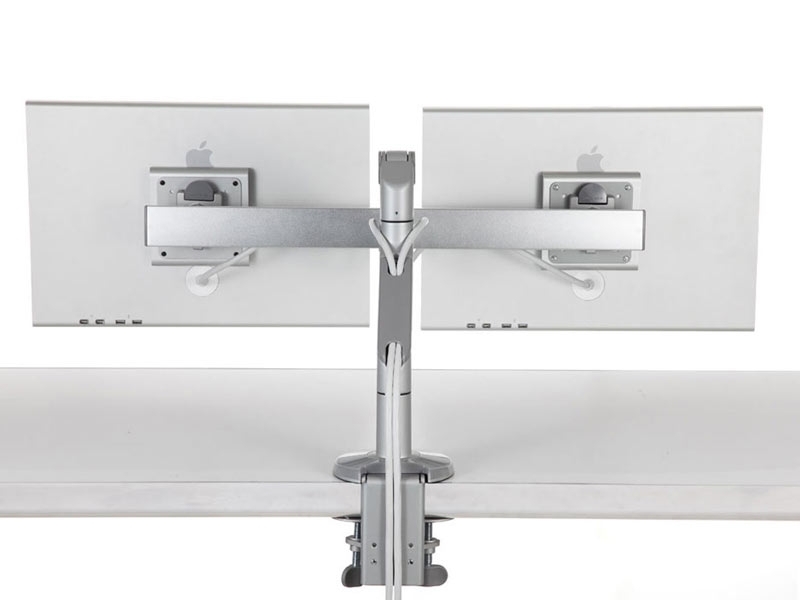

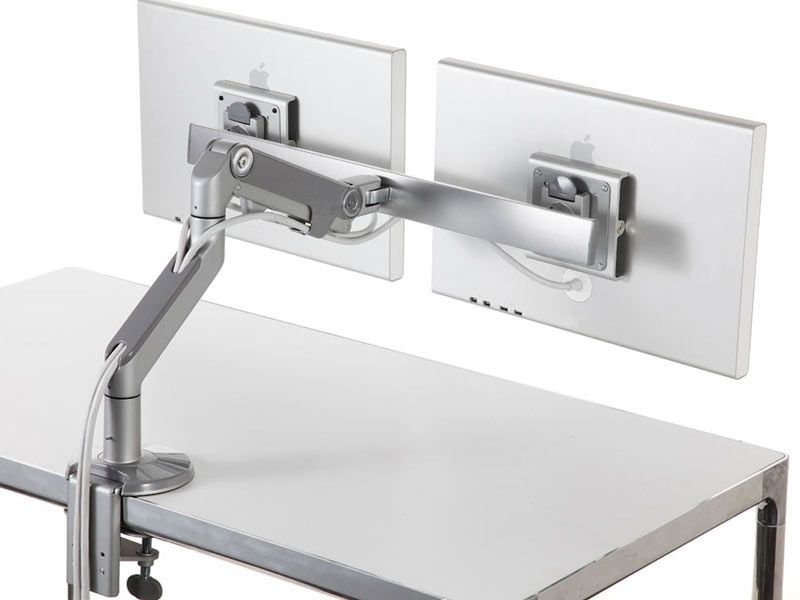

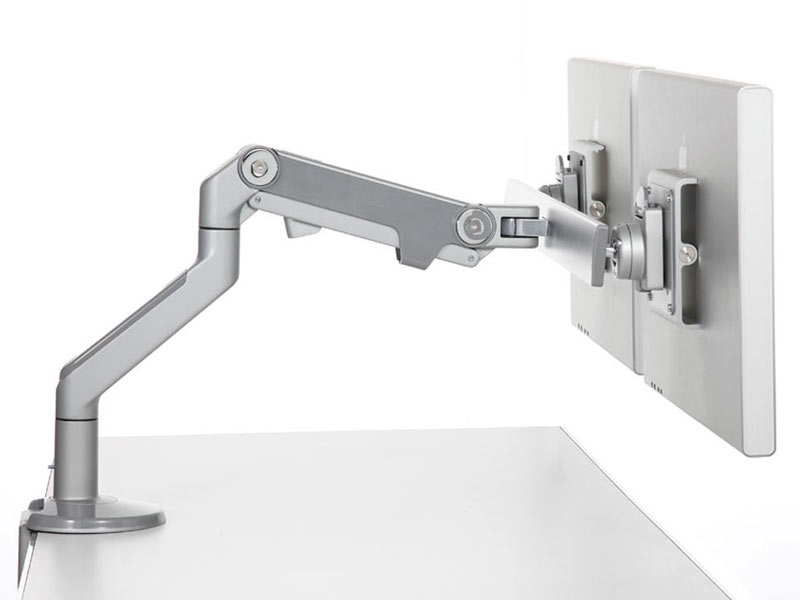

The M8’s high weight capacity allows it to easily accommodate dual-monitor applications. Using an optional crossbar, the M8 supports two monitors—each weighing up to 9kg (20 lbs.) —arranged side-by-side. With a built-in fine-tune adjustor, each monitor can be adjusted for perfect alignment, creating easy viewing and a smooth aesthetic. Monitors mounted to the crossbar adjust simultaneously, allowing the user to easily re-position the entire configuration and improving the ergonomics of multiple-user workstations.
Humanscale M8 Dual Tabel Mount (Clamp) Crossbar, silver/grey
- Dual Screen application

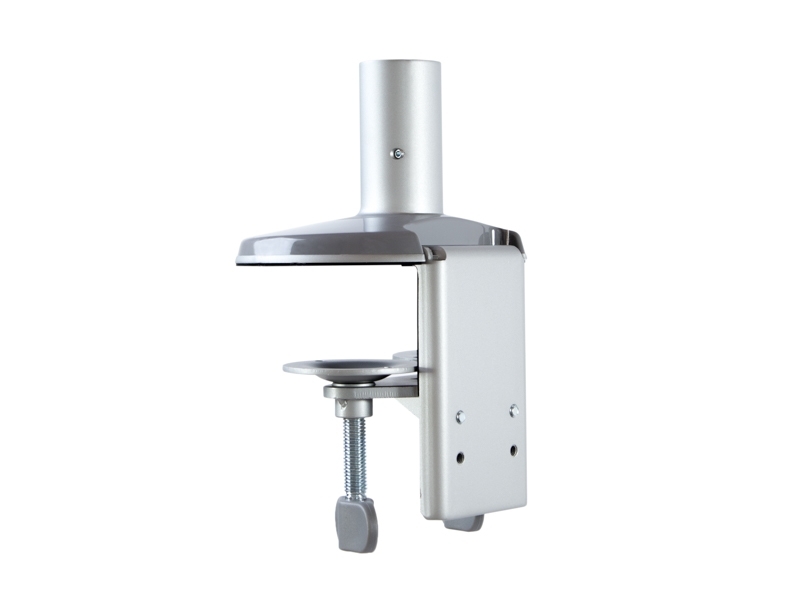

- Table thickness: 11 - 68 mm
- Accommodates dual-monitor configurations weighing up to 18kg (40 lbs.)
- Offers 290mm (11.5”) of dynamic height adjustment
- Offers up to 560mm (22”) of depth adjustment
- VESA Plate supports all monitors with 75mm and 100mm VESA hole patterns (Larger VESA plates also available)
- VESA Plate stores two hex keys for instant access to adjustment tools
Key Features
- Rugged, high-capacity construction supports dual-monitor applications with optional crossbar
- Built-in fine-tune adjustment ensures that double monitors line up perfectly
- Sleek, modern aesthetic complements any contemporary workstation

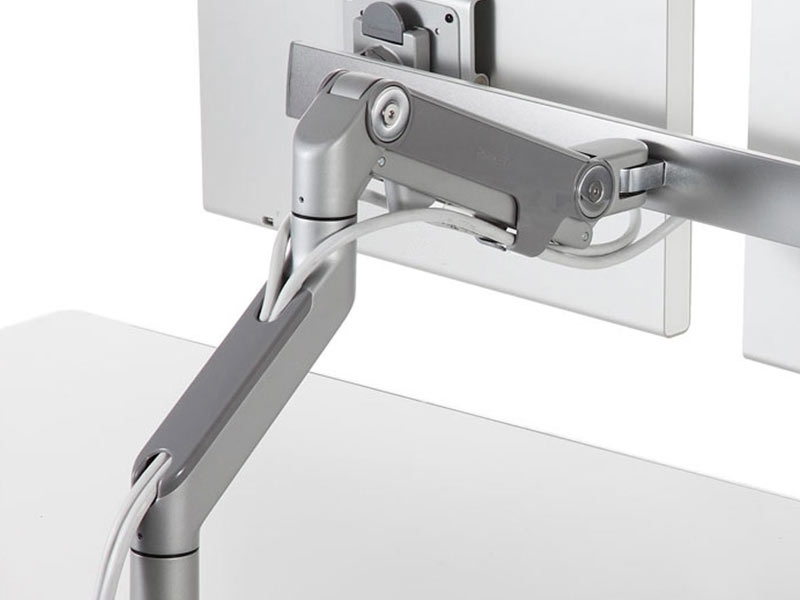

- Integrated cable management reduces unsightly cable clutter
- 180º stop mechanism prevents wall damage from over-rotation
- Counterbalances monitor(s) with simple hex screw adjustment
- Quick Release ball joint facilitates fast and easy monitor installation and removal
- Built-in security system provides effective theft-deterrent for public areas
Sustainability
The M8 is a great example of Humanscale's environmental purpose:
- Made predominantly of steel and recycled aluminum
- Contains 62% recycled content (43% post-consumer, 19% pre-consumer)
- 99% recyclable
- Fewer parts mean fewer manufacturing processes
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 229 kb] |
|---|---|
| Installation manual: | [pdf, 785 kb] |
| Minimum weight: | 3,6 kg |
| Capacity: | 3,6 kg - 18 kg (9 kg per Screen) |

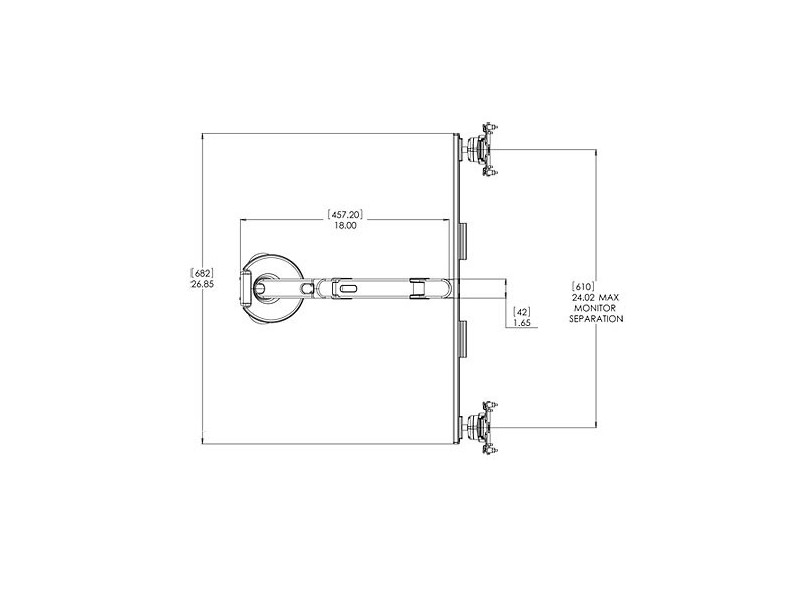

| Height range (mm): | 292 mm |
| Swivelling range: | 180° |
| Length of the swivel arm: | 558 |
| Screen size: | max. 24" |

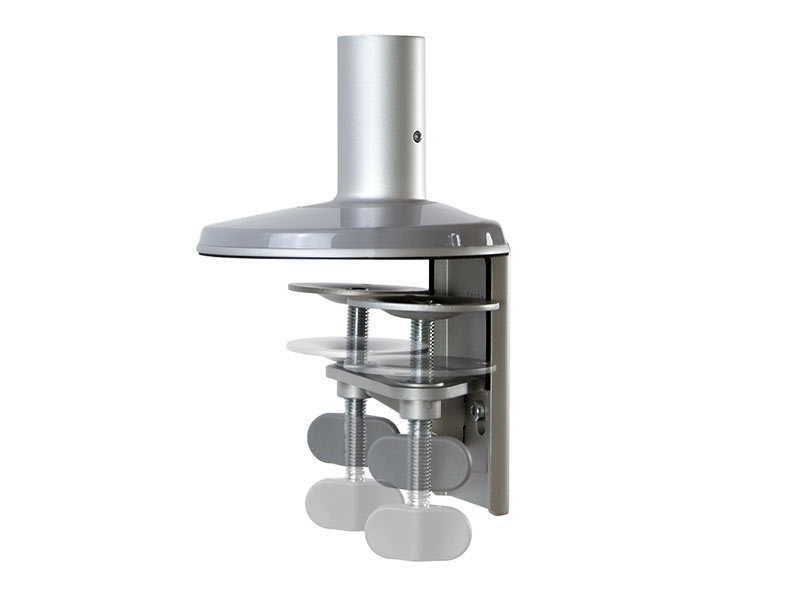

| Thickness of table (mm): | 11 - 68 mm |
| Special features: | Contains 62% recycled content (43% post-consumer, 19% pre-consumer) 99% recyclable |
| VESA Standard: | 75x75mm, 100x100mm (www.vesa-standard.com) |
| Accessories: | Humanscale M8 Crossbar Handle |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Humanscale International Holdings, IDA Industrial Estate, Poppintree Finglas, Dublin D11 XY42, DACH@humanscale.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
