i3 Technologies beamer mount up to 100 inches (VSV0004502)

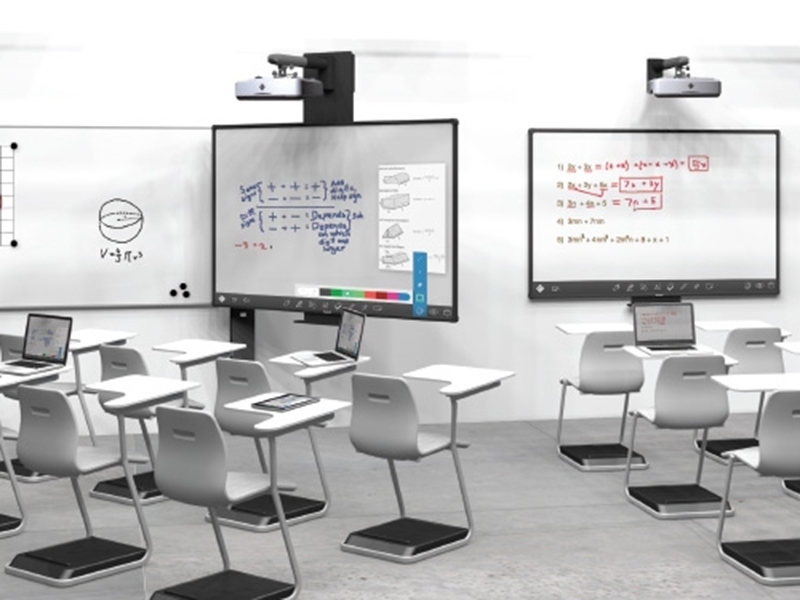

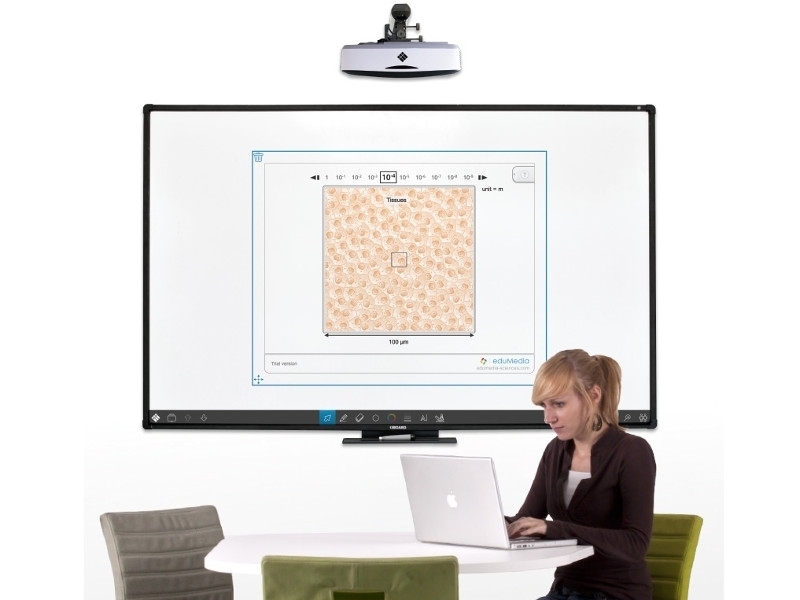

The i3PROJECTOR projector wall mount short is perfect for attaching a projector up to max. 15 kg over a whiteboard or other projection screen up to 100 inches in size.
i3 Technologies i3PROJECTOR projector mount short (VSV0004502)
The i3 Technologies beamer wall mount short is perfect for positioning an i3PROJECTOR over a whiteboard or other projection screen up to 100 inches in size. The wall distance of the projector mount can be flexibly adjusted from 310 to a maximum of 540mm.
Key features i3 Technologies projector bracket short
- Projector mount for projection screens up to 100 inches
- External dimensions (WxHxD): 183 x 215 x 637,5 mm
- Wall distance: 310 - 540 mm
- Capacity: 15 kg
- Swivel range: +/- 10°
- Material: steel, aluminum and plastic
- Net weight: 2.9 kg
| Product sheet: |  [pdf, 79 kb] |
|---|---|

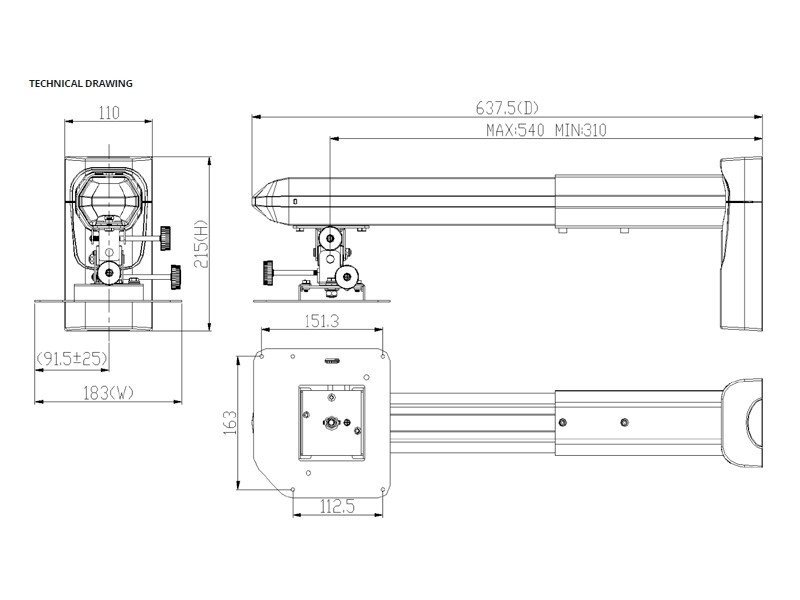

| Technical drawing: | [pdf, 51 kb] |
| Tilt: | +/-5° |
| Rotate: | - |
| Height range (mm): | - |
| Swivelling range: | - |
| Old model no.: | VSV0004502 |
| Suitable for: | i3PROJECTOR |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | i3-Technologies GmbH, Lyrenstr. 13, 44866 Bochum, info@i3-technologies.com |
| Mobility: | fixed |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
