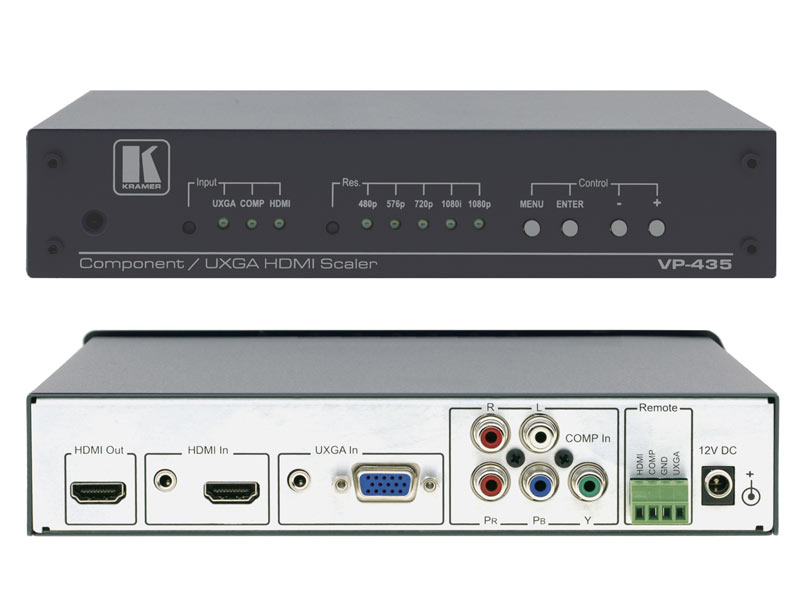

Kramer VP-435 HDMI Component & VGA XGA UXGA to HDMI ProScal Digital Scaler
The Kramer VP−435 is a high−quality format converter for component video, computer graphics video, HDMI video and unbalanced stereo audio signals. It scales the selected video signal to a computer graphics or HDTV output resolution, embeds the audio and outputs an HDMI signal.
Kramer VP-435 HDMI Component & VGA XGA UXGA to HDMI ProScal Digital Scaler
- HDTV Compatible.
- HDCP Compliant.
- Output Resolutions (Front Panel) - 480p, 576p, 720p, 1080i, and 1080p.
- Output Resolutions (On-Screen Menu) - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA, WUXGA, NATIVE.
- ProcAmp Controls - Brightness, contrast, hue, saturation & sharpness.
- HDMI Input - Embedded audio or 3.5mm connector for stereo audio.
- HDTV Compatible Component Input.
- Computer Graphics Video Input - 15−pin HD connector and 3.5mm connector for stereo audio.
- Multiple Aspect Ratio Selections - Full, overscan, underscan, letter box & panscan.
- Control - Front panel and contact closure switching. Front panel and IR remote (included) for on−screen menu.
- Desktop Size - Compact size. 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−1 rack kit.
Spezification Kramer VP-435 HDMI Component & VGA XGA UXGA to HDMI ProScal Digital Scaler
- INPUT: 1 HDMI connector; 1 UXGA on a 15−pin HD (F) connector; 1 component video on 3 RCA connectors; 1 unbalanced stereo audio on a 3.5mm mini jack connector (for the HDMI input); 1 unbalanced stereo audio on a 3.5mm mini jack connector (for the UXGA input); 1 unbalanced stereo audio (left and right) on RCA connectors, 4dBu nominal.
- OUTPUT: 1 HDMI connector.
- OUTPUT RESOLUTION: 1080i, 1080p, 576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA, WUXGA, 1280x800, WXGA+, SXGA+, NATIVE, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p.
- OUTPUT REFRESH RATE: 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions.
- CONTROLS: Front panel buttons, contact closure and infrared remote for menu driven OSD control.
- ADDITIONAL CONTROLS: Contrast, brightness, hue, saturation and sharpness; red, green and blue; resolution, image size.
- POWER SOURCE: 12V DC, 800mA.
- DIMENSIONS: 21.5cm x 16.1cm x 4.36cm (8.46” x 6.34” x 1.7”) W, D, H.
- WEIGHT: 1.1kg (2.43lb) approx.
- ACCESSORIES: Power supply, IR remote control.
- OPTIONS: RK−1 19" rack adapter.
| Product sheet: |  [pdf, 89 kb] |
|---|---|
| Installation manual: | [pdf, 906 kb] |
| Contains installation material: | + |
| Warranty: | 7 years |
| Manufacturer/Importer: | Kramer Germany GmbH, Gladbacher Str. 17, 52525 Heinsberg, info_de@kramerav.com |
| color: | Others |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
