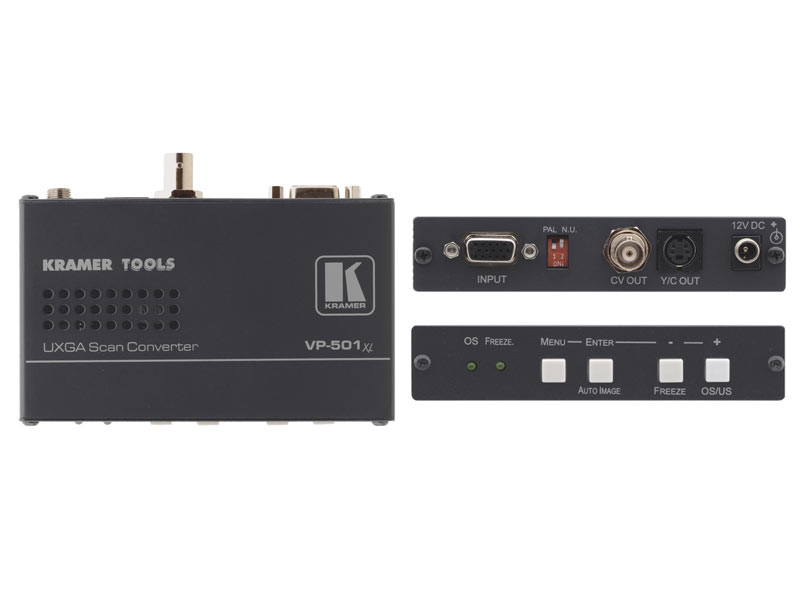

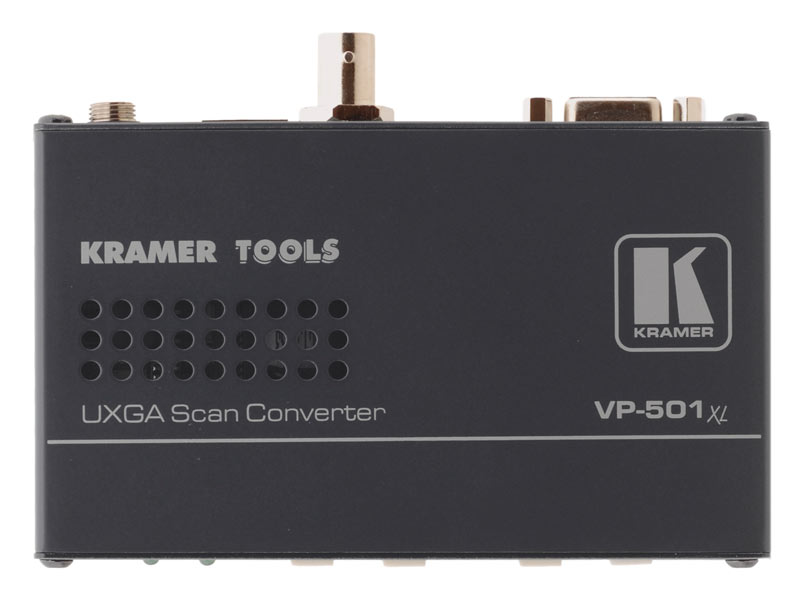

Kramer VP-501XL UXGA Scan Converter
Article number:
53053321
Manufacturer:
Kramer
Manufacturernumber:
VP-501N
EAN:
7291063053321

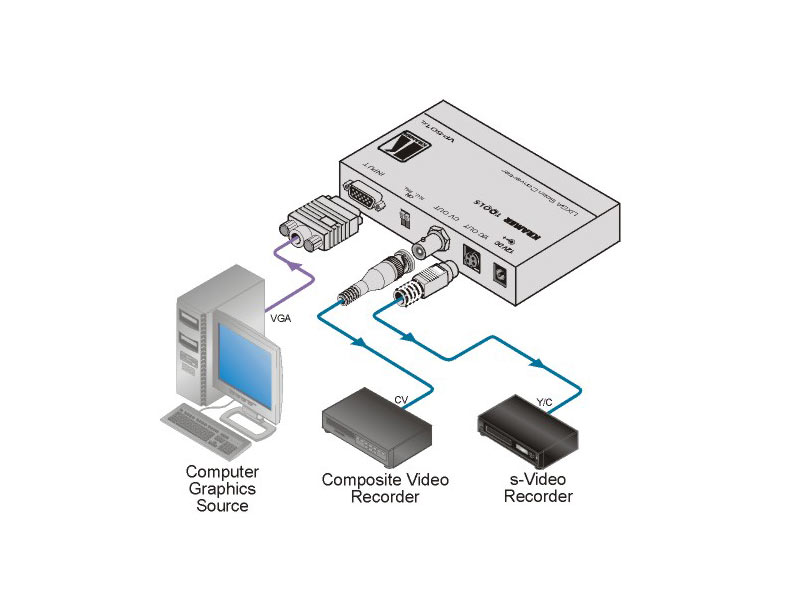

The Kramer VP-501xl is a scan converter for computer graphics video signals. It converts computer graphics video signals up to UXGA (1600x1200) to composite and s−Video (Y/C) signals simultaneously in either PAL or NTSC formats.
Kramer VP-501XL UXGA Scan Converter
- Input Compatibility - Up to 1600x1200.
- AutoTrak™ Auto Set Up Technology - One−button auto setup that automatically sizes, shifts, and centers any input image on the display device.
- ProcAmp Control - Color, hue, sharpness, contrast, and brightness controls.
- Multi-Standard - PAL or NTSC (selectable).
- Multi-Format Capability - Composite video and s−Video (Y/C) simultaneously.
- Control - Front panel with on screen display.
- Multiple Memory Locations - Store and recall up to 4 presets (ProcAmp, input, output, zoom, and no input test pattern).
- Flicker Reduction.
- Built-in Test Patterns - Select 1 of 7 test patterns to display when no input signal is detected.
- Over Scan or Under Scan (selectable) with LED indicator.
- Freeze Frame with LED indicator.
- Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Spezification Kramer VP-501XL UXGA Scan Converter
- INPUT: 1 VGA/SVGA/XGA/UXGA on a 15−pin HD (F) connector.
- OUTPUT: 1 composite video 1Vpp/75Ω on a BNC connector; 1 Y/C (s−Video) 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C) on a 4−pin connector.
- OUTPUT STANDARD: PAL, NTSC (user−selectable).
- MAX. OUTPUT LEVEL: 1Vpp.
- INPUT RESOLUTION: VGA up to UXGA.
- S/N RATIO: 49dB.
- CONTROLS: Front panel and OSD: ProcAmp video controls, freeze, underscan/overscan, auto−image, 8 color bars.
- POWER SOURCE: 12V DC, 270mA.
- DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H.
- WEIGHT: 0.3kg (0.67lbs) approx.
- ACCESSORIES: Power supply, mounting bracket.
- OPTIONS: 19" rack adapters RK−T1, RK−T3; VGA to 3 RCA breakout cable C−GM/3RVF.
| Product sheet: |  [pdf, 67 kb] |
|---|---|
| Installation manual: | [pdf, 1,1 MB] |
| Contains installation material: | + |
| Warranty: | 7 years |
| Manufacturer/Importer: | Kramer Germany GmbH, Gladbacher Str. 17, 52525 Heinsberg, info_de@kramerav.com |
| color: | Others |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
