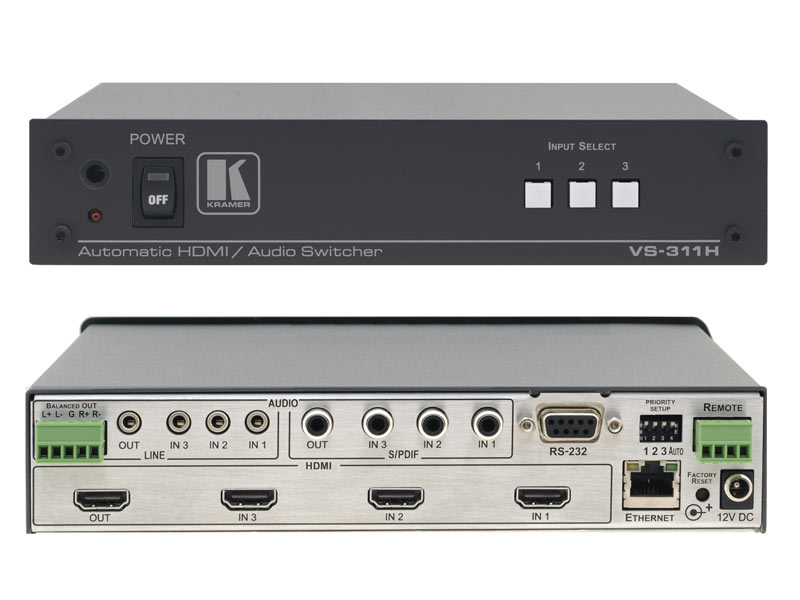

Kramer VS-311H 3x1 HDMI, Stereo & S/PDIF Audio Standby Switcher
Article number:
53446090
Manufacturer:
Kramer
Manufacturernumber:
VS-311H
EAN:
7291063013530
The Kramer VS−311H is a high−performance switcher for HDMI video and balanced, unbalanced and S/PDIF audio signals. When configured as a standby switcher, it switches to a selectable secondary input upon loss of the primary input.
Kramer VS-311H 3x1 HDMI, Stereo & S/PDIF Audio Standby Switcher
- Max. Data Rate - Up to 2.25Gbps.
- HDTV Compatible.
- HDCP & HDMI Compliant.
- Flexible Control Options - Automatic (standby), RS−232, Ethernet, contact closure & IR (included).
- Input Priority - Selectable via DIP−switches.
- Desktop Size - Compact size. 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−1 adapter.
Spezification Kramer VS-311H 3x1 HDMI, Stereo & S/PDIF Audio Standby Switcher
- INPUTS: 3 HDMI connectors; 3 S/PDIF digital audio on RCA connectors; 3 unbalanced stereo audio +4dBu on 3.5mm mini jacks.
- OUTPUTS: 1 HDMI connector; 1 S/PDIF digital audio on an RCA connector; 1 unbalanced stereo audio +4dBu on a 3.5mm mini jack; 1 balanced stereo audio on a 5−pin detachable terminal block.
- DATA RATE: Up to 2.25Gbps.
- POWER SOURCE: 12V DC, 270mA.
- CONTROLS: Front panel buttons, infrared remote control transmitter, RS−232, Ethernet.
- DIMENSIONS: 21.6cm x 16.1cm x 4.4cm (8.5” x 6.3” x 1.7”) W, D, H.
- WEIGHT: 1.2kg (2.6lbs) approx.
- ACCESSORIES: Power supply.
- OPTIONS: RK−1 19" rack adapter.
| Product sheet: |  [pdf, 89 kb] |
|---|---|
| Installation manual: | [pdf, 1,4 MB] |
| Contains installation material: | + |
| Manufacturer/Importer: | Kramer Germany GmbH, Gladbacher Str. 17, 52525 Heinsberg, info_de@kramerav.com |
| color: | Others |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
