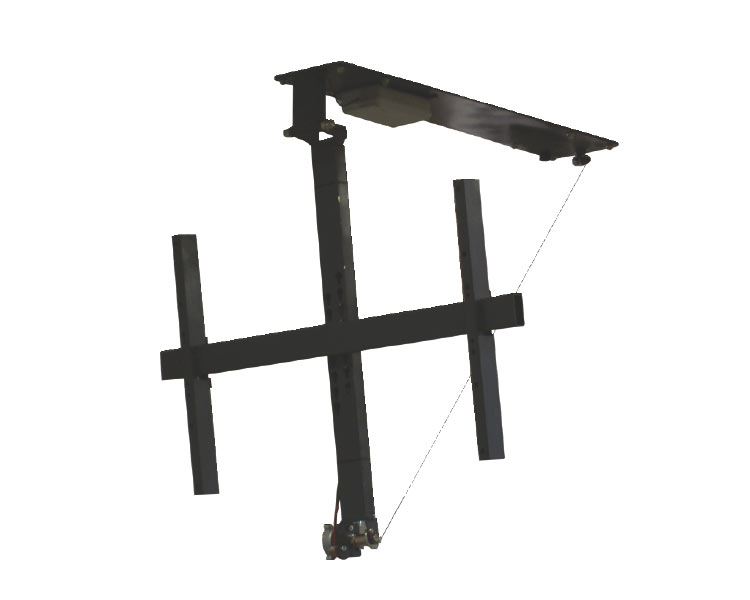

Mecatronica Book 50 - electric ceiling mount

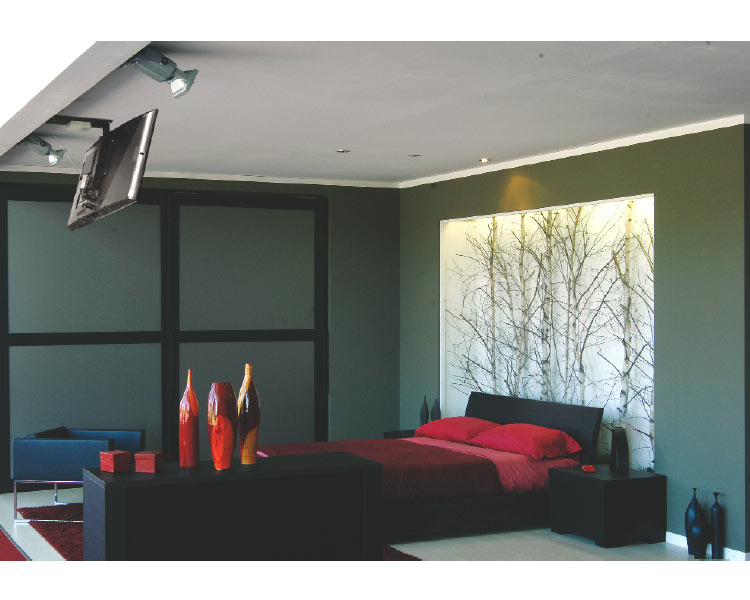

The electric ceiling mount Mecatronica Book 50 makes TV viewing in bed a real pleasure.
The Book series is an exclusive series of swiveling motorized ceiling supports with remote control, unique qualities in the whole market of supports. The Book series products are particularly appropriate for bedrooms and installations in mansard rooms. Three storable positioons can be programmed by the user.
Features Mecatronica Book 50
- Max. load of the mount: 50 kg
- VESA mount: VESA Standard 100x100, 200x200
- Distance from the ceiling: 8,5 cm
- LED / LCD / Plasma Dimension: 26" - 37"

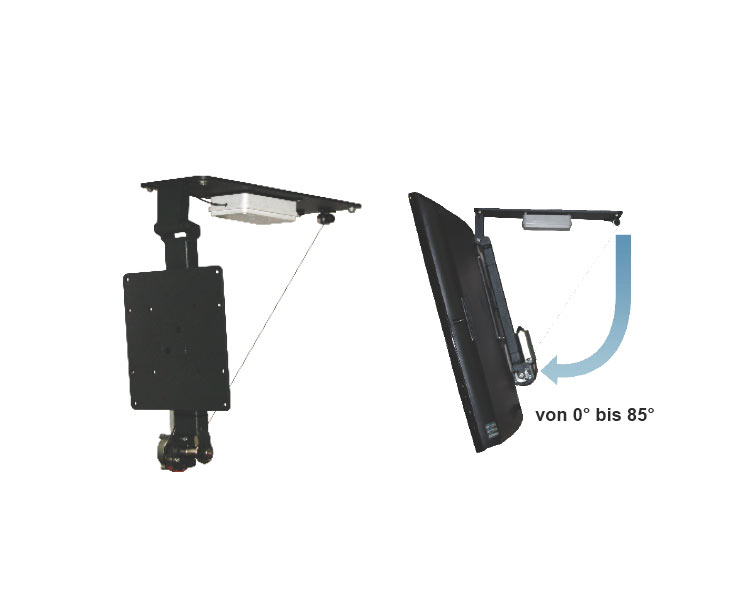

- Slope from the ceiling: 0° bis 85°
- Colour: anthracite
- Storable position: yes
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: | [pdf, 256 kb] |
|---|---|
| Technical drawing: |  [pdf, 55 kb] |
| Installation manual: | [pdf, 280 kb] Bedienungsanleitung |
| Capacity: | 50 kg |
| Tilt: | 0° - 85° |
| Screen size: | 26 - 37" |
| VESA Standard: | 100x100, 200x100, 200x200 (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Inch size: | 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch |
| Mounting type: | Ceiling mount |
| VESA (in mm): | VESA 100x100, VESA 200x100, VESA 200x200 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
