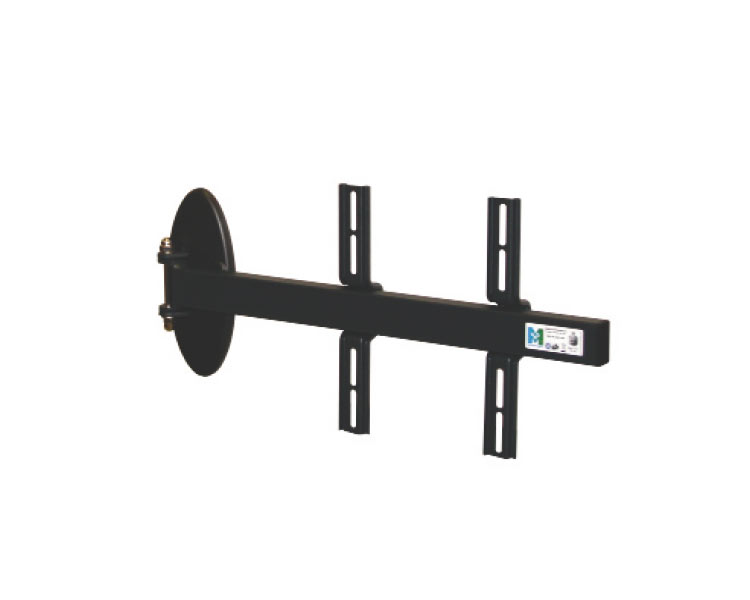

Mecatronica FLAG 30 - LCD TV wall mount

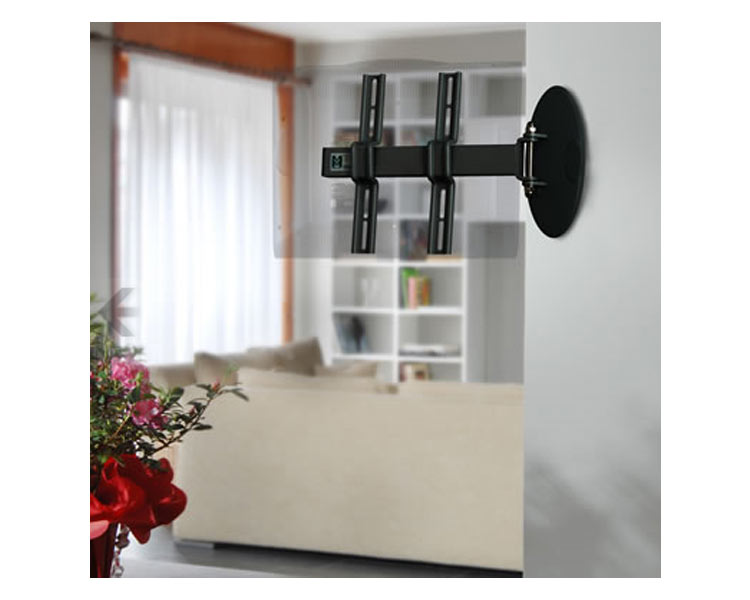

Wall mount for LCD and Plasma TV. can be swiveled up to 180° left or right and enables viewing from different angles.
The Flag series is a range of motorized and manual supports, unique of its kind. The products of the Flag series are perfect to be applied on columns or angle walls and allow the TV screening in more rooms of the house. Innovative and reliable, the motorized models with movement by means of remote control, equipped with inner friction guarantee complete safety in the rooms. The products of the Flag range are adjustable till 180° on the right or on the left and reclining from 0° to 12° according to the necessity.
Features Mecatronica Flag 30
- usable for LCD's from 15" to 24"
- universal wall mount
- max. load 30 kg

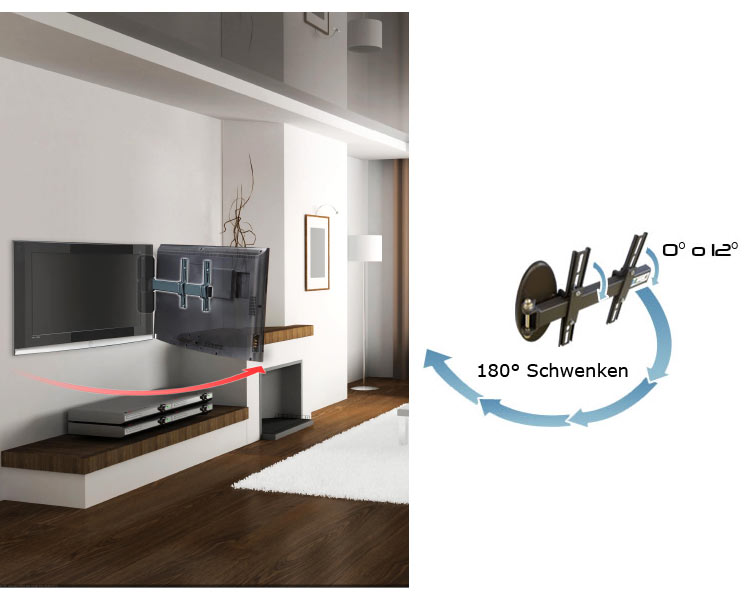

- max. rotation 180° left or right

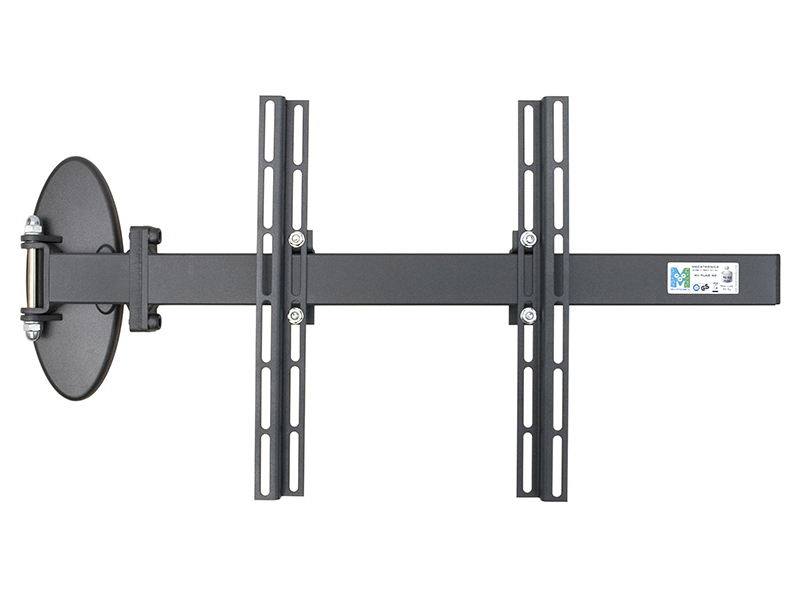

- length of arm: 430 mm

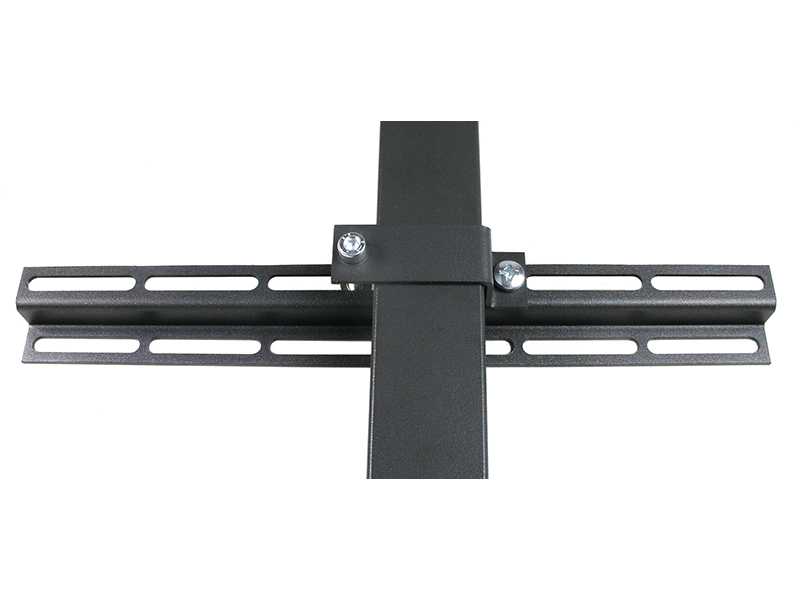

- width of TV possible from 380 mm to 600 mm.

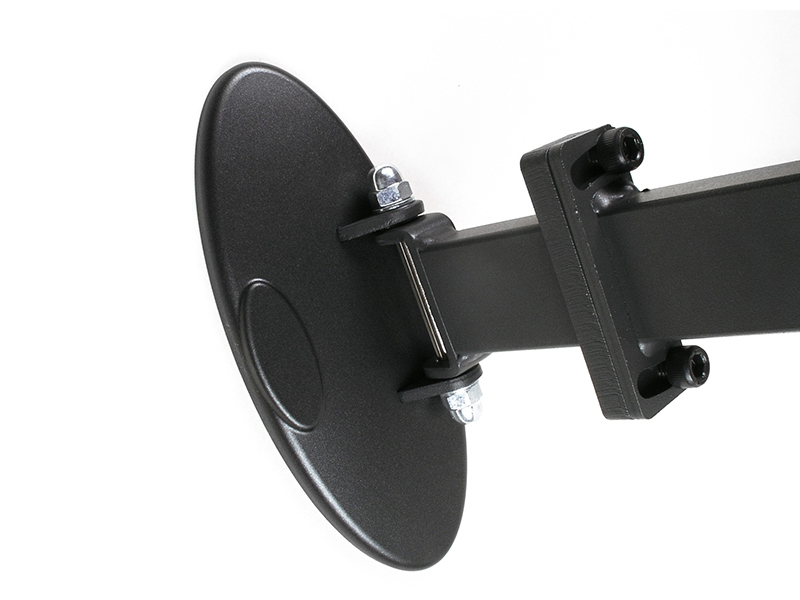

- inclination 12°
- colour black
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: | [pdf, 255 kb] |
|---|---|
| Installation manual: |  [pdf, 2,5 MB] |
| Capacity: | 30 kg |
| Tilt: | 12° |
| Height range (mm): | 90 |
| Swivelling range: | 180° |
| Length of the swivel arm: | 380 |
| Screen size: | 15" - 24'' |
| Material: | Steel |
| VESA Standard: | 100x100, 200x100, 200x200, VESA MIS-F (max. 300x280 mm) (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mounting type: | wall mount |
| VESA (in mm): | VESA 75x75, VESA 100x100, VESA 200x100, VESA 200x200 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
