miniBatt MB-FI80 invisible wireless charger for furniture installation
The miniBatt MB-FI80 built-in battery charger can be visibly mounted on the table or glued invisibly under the table. The charging station is equipped with a protection system that protects against moisture.
miniBatt MB-FI80 invisible wireless charger furniture installation

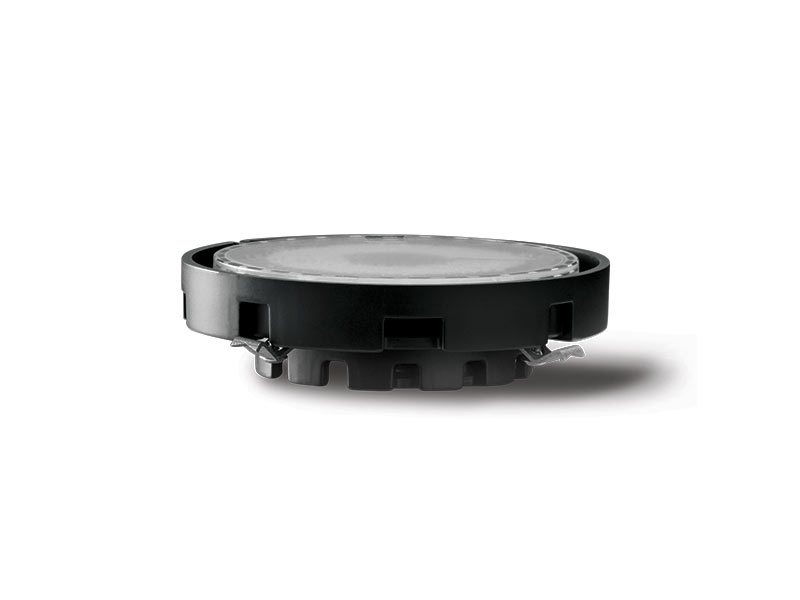

The miniBatt MB-FI80 is a built-in battery charger that can be installed visibly or invisibly into any piece of furniture or any surface to charge all 5V and 9V devices. Thanks to the patented built-in system, the wireless charger can be easily stuck under any plastic, glass or wood surface.
Qi charging station

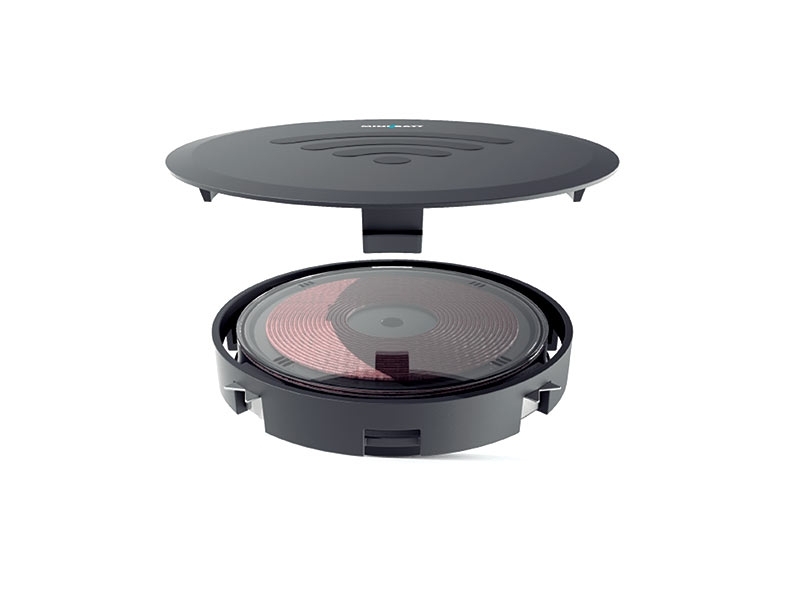

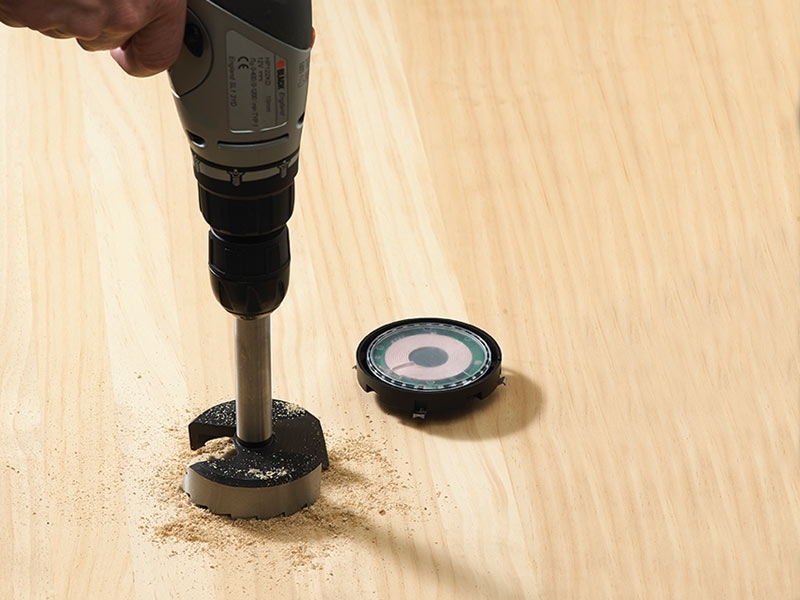

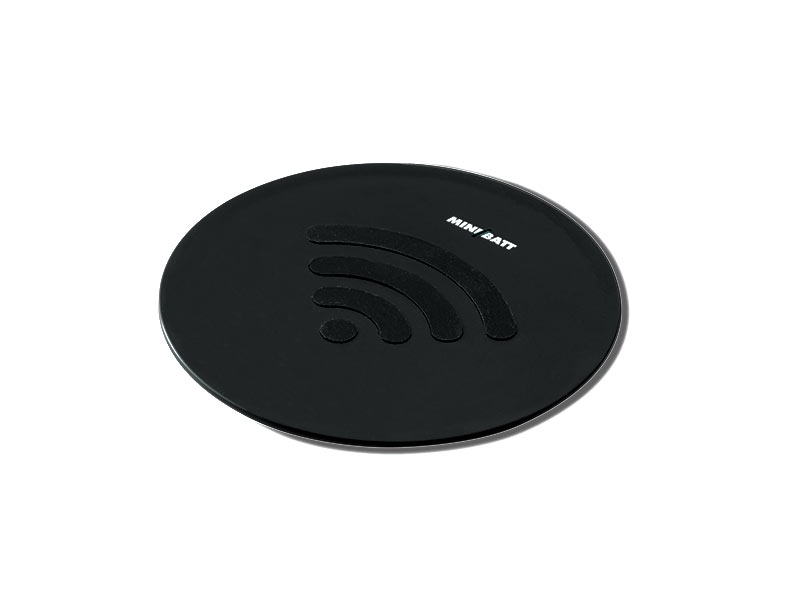

In the case of visible installation, the module is inserted into an 80 mm recess and the cables are lowered. For this type of installation, the miniBatt MB-FI80 provides a protection system against moisture and comes with a cover in elegant design with integrated LED.
Key features miniBatt MB-FI80 invisible wireless charger
- Coil Type: One Coil Qi-STANDARD: Version 1.2
- Loading method: Individually
- Input voltage: 5V - 9V
- Input current: max. 1.6A
- Wireless output: 5W - 10W
- Loading distance: 8-12 mm
- Efficiency: 9 V-80% / 5 V-72%
- Operating frequency: 110-205 kHz
- Working surface: 324 mm
- Dimensions: ø 80 x 16 mm
- Mounting: visible or invisible
- Patented furniture installation system
- Overload protection
- Compatible with all Qi devices and Qi receivers
- Included:
Wireless Charger
Wireless Label
Mikro-USB Cable
User Guide
Is this Invisible Qi Charger compatible with your device?
We will gladly check if your device is suitable for this miniBatt MB-FI80 invisible Qi charger. Simply send us your model at the end of the ordering process in the comment field (Manufacturer + Model No.). We then check for you whether the device fits the charging station and if not, we will contact you.
| Product sheet: |  [pdf, 114 kb] |
|---|---|
| Installation manual: | [pdf, 425 kb - German] |
| Contains installation material: | + |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
