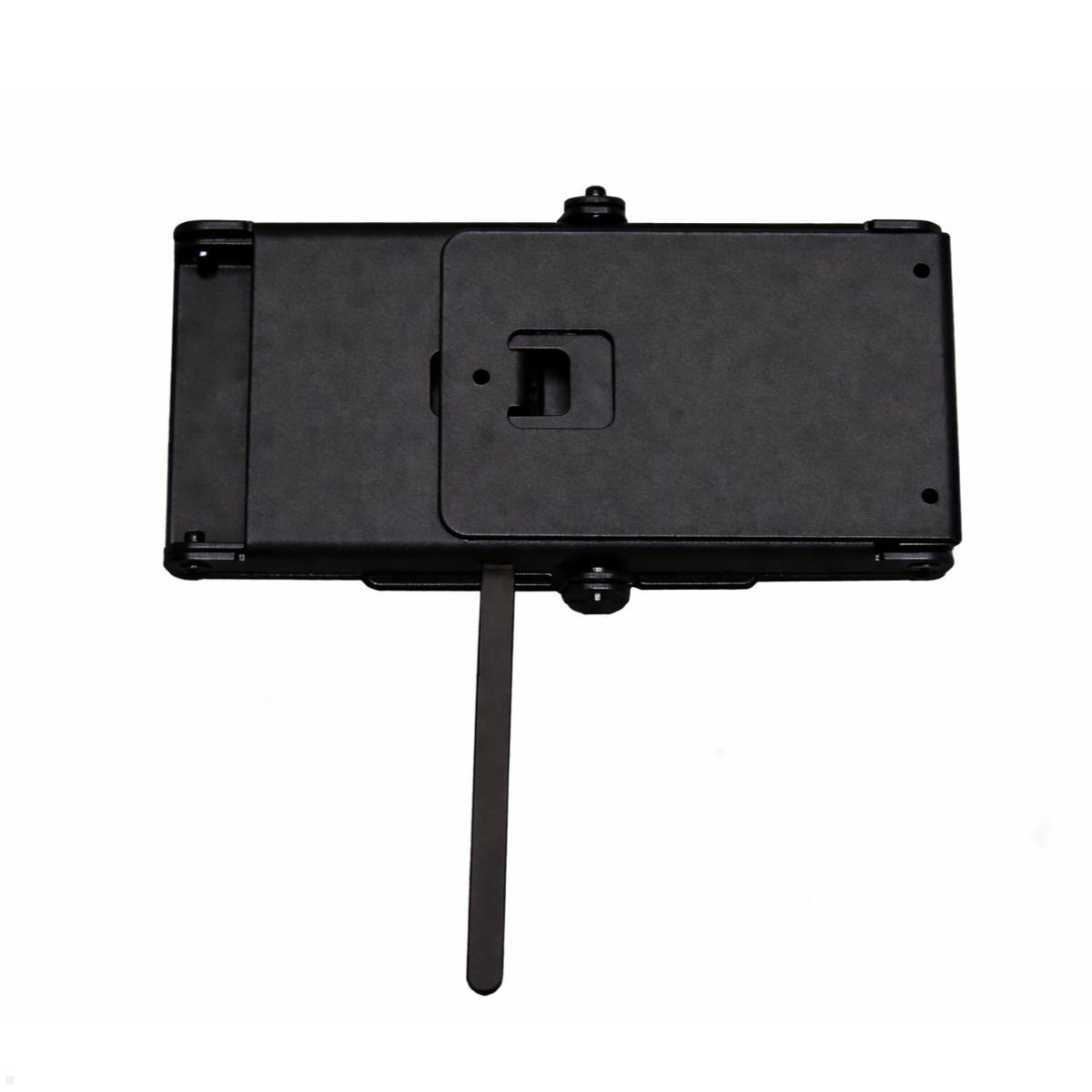

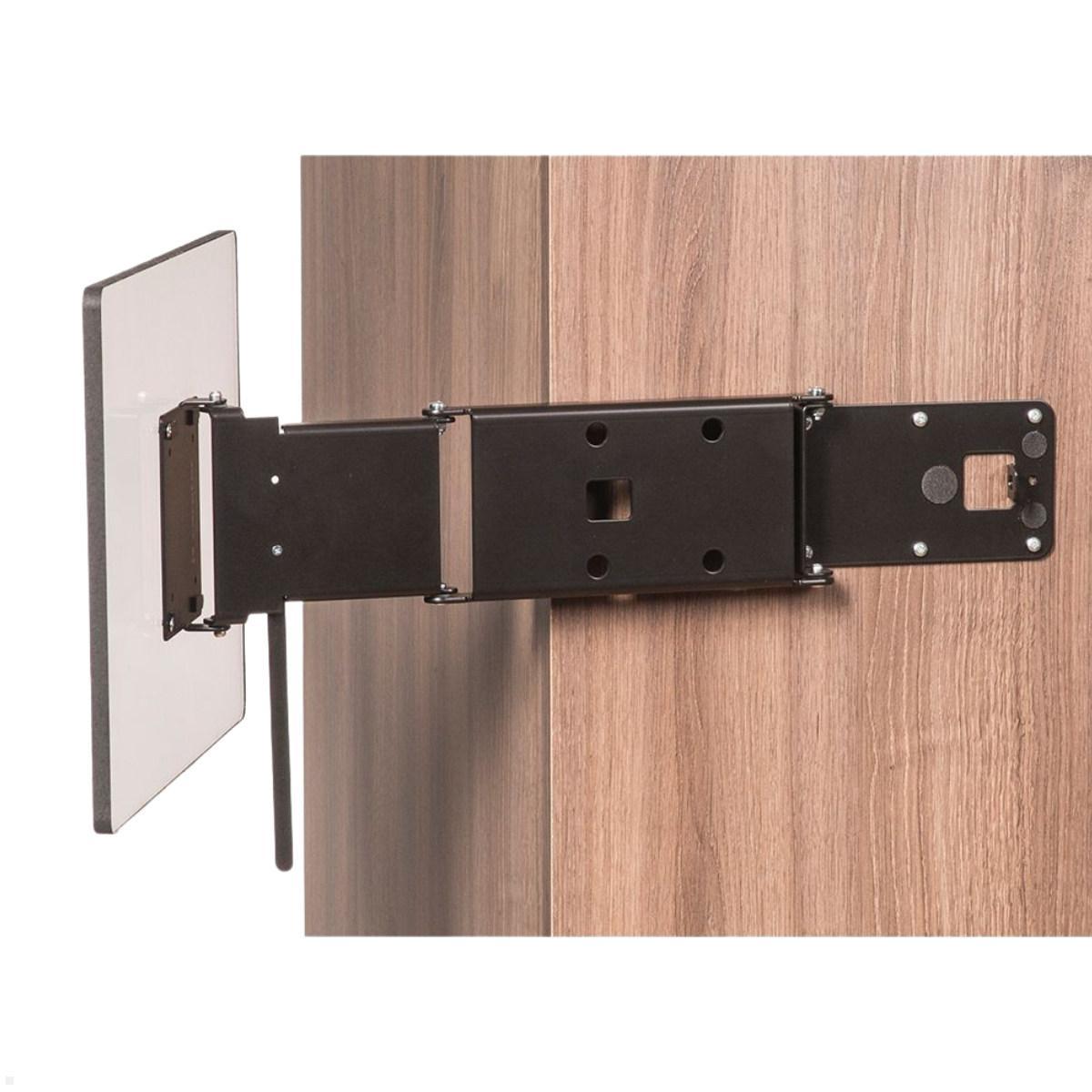

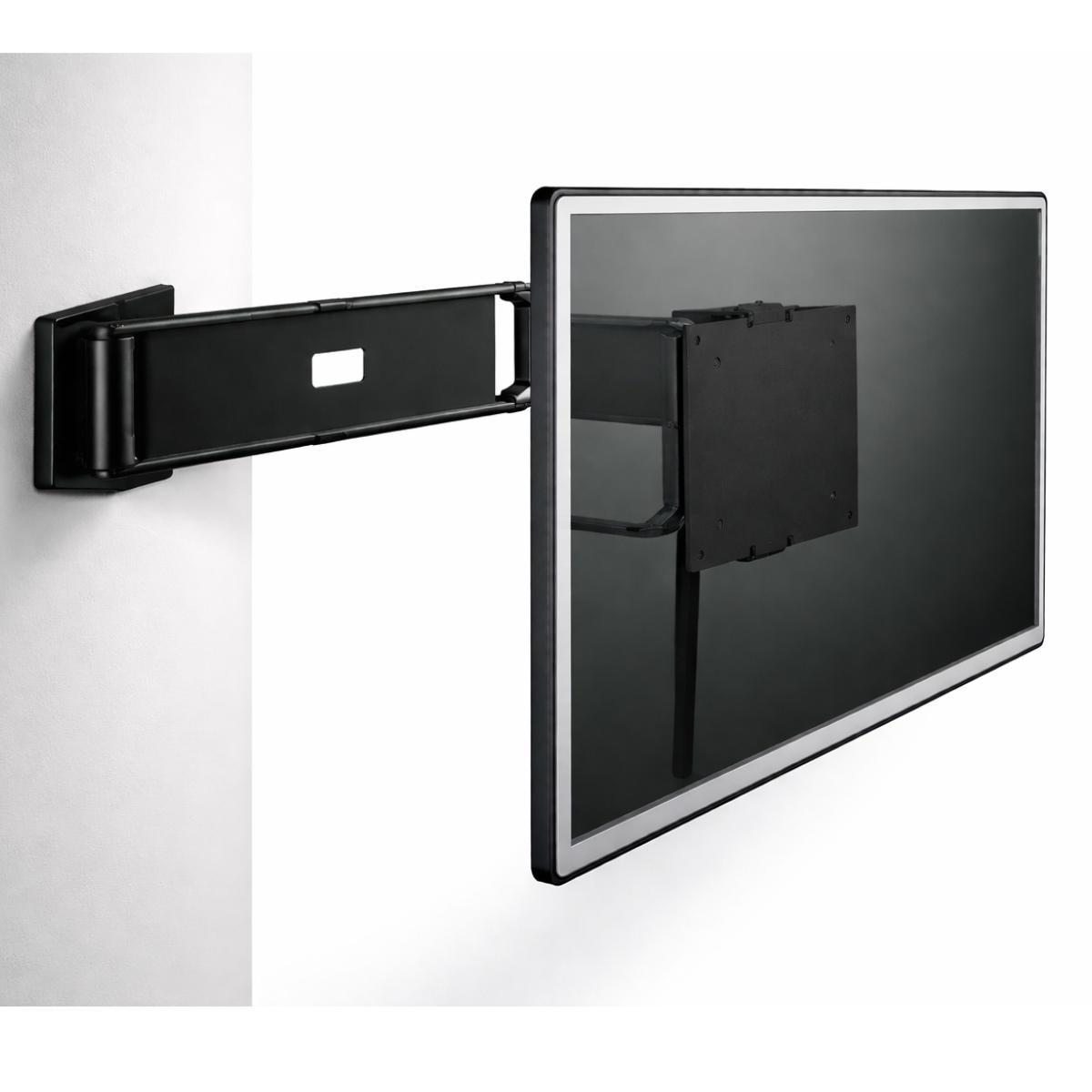

Monlines LCD TV wall mount for residential mobility
Highlights
- Für 15–24 Zoll Bildschirme geeignet
- Drei Drehpunkte für maximale Flexibilität
- Sicher verriegelbar – ideal für Wohnmobile
- Platzsparende, wandnahe Montage
- VESA-kompatibel (75×75 & 100×100 mm)
- Mounting: side cabinet installation
- Capacity: 8 kg monitor holder
- Monitor mount: VESA mounting 75x75mm and 100x100mm
- Minimum compartment size width 220mm - depth 33mm + monitor depth - height 135mm
- Length of rail: 430mm
- With the lock button
- Stepless adjustment of the swivel monitor mount
Optional
- Special sizes and special colors
- individual production according to customer requirements
- Single part and series production
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Capacity: | 6,5 kg |
| Swivelling range: | 180° |
| Length of the swivel arm: | 370 |
| Material: | Aluminium, Steel |
| Old model no.: | 67029092 |
| VESA Standard: | 75/100 (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Mobility: | swivelling |
| Mounting type: | wall mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
7 January 2026 22:43
Alles top: Shop-Erlebnis, spitze Erfahrung
Endlich mal ehrlich beschriebene Ware. So macht Online-Shopping Spaß.
Questions & Answers
-
What is the MonLines MWM007B?
The MonLines MWM007B is a flexible TV wall mount with multiple pivot points for wall-mounting TVs and monitors (15–24 inches). It offers stepless tilt and swivel adjustment and can be folded back to the wall for a slim profile.
-
How much weight can it support?
Payload up to 6.5 kg.
-
Which VESA sizes are supported?
VESA mounting in 75x75 mm and 100x100 mm.
-
How many pivot points does it have?
Three pivot points provide flexible positioning.
-
Is the mount lockable?
Yes, it is lockable to keep the screen in position during travel.
-
How far does it extend from the wall?
Wall distance extended is approximately 370 mm.
-

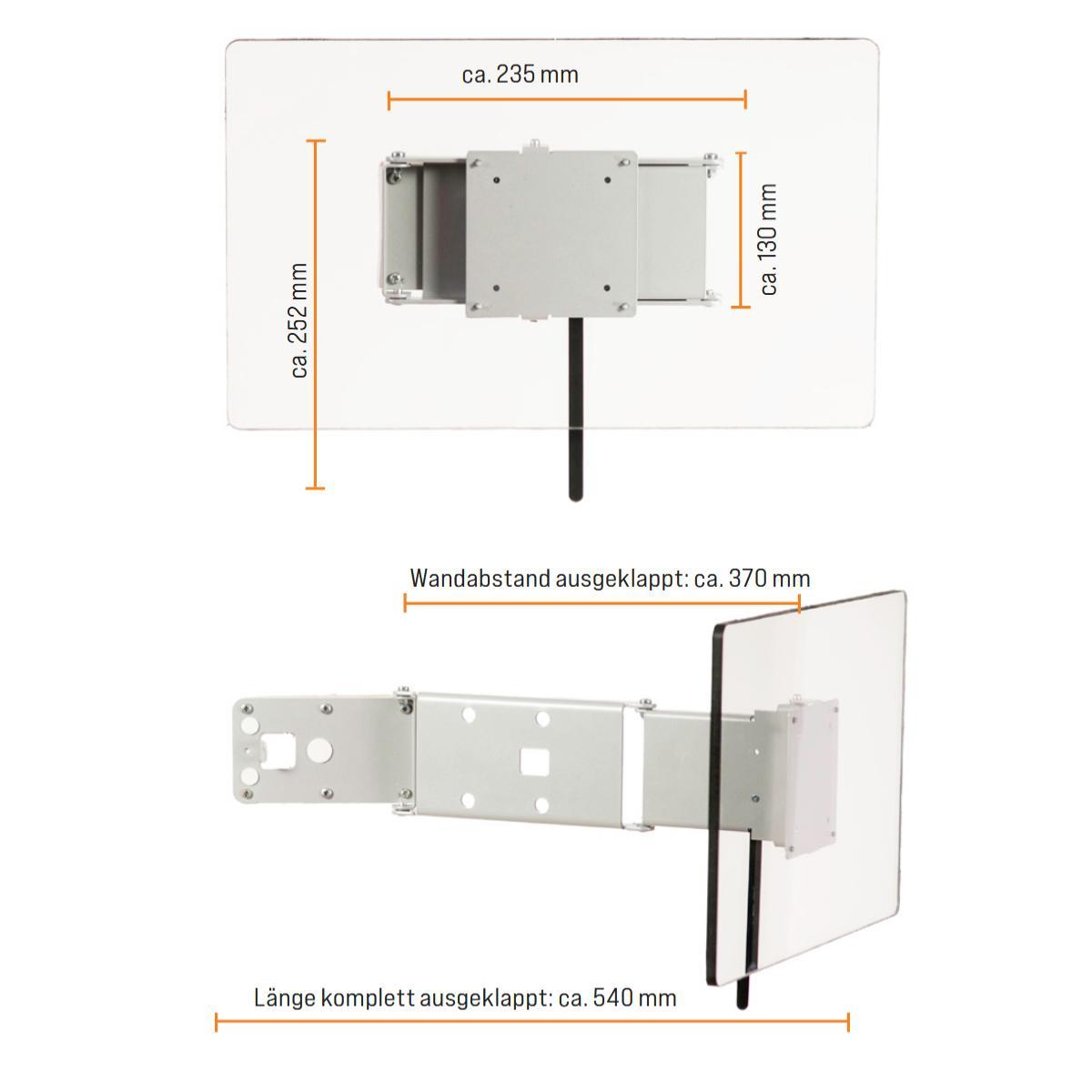

What are the dimensions?
Dimensions are approximately 235 x 250 x 34 mm (W x H x D).
-
What is it suitable for?
Suitable for motorhomes, living spaces, bedrooms, or work areas.
