MonLines MLS039B Built-in TV Lift up to 60 kg, 620-1270 mm stroke, black
The MonLines TV Lift MLS039B is an electric TV lift made of steel for flat screens up to 75 inches. With a remote control, a lift range of 620–1270 mm, and a load capacity of 60 kg, it is ideal for integration into furniture for comfortable, modern TV design.
Electric TV Lift for Furniture – for Flat Screens up to 75 Inches
The MonLines TV Lift MLS039B is the ideal solution for anyone who wants to elegantly, space-efficiently, and comfortably integrate their TV into furniture. With its electric height adjustment, it offers maximum flexibility and allows you to smoothly raise or lower the screen using a remote control. The robust steel housing in RAL 9017 Traffic Black provides stability and a modern, discreet appearance that blends harmoniously into any living or office environment. The lift is suitable for flat screens from 32 to 75 inches and supports a maximum load of 60 kg. Thanks to VESA compatibility up to 600x400, easy and secure mounting is ensured.
For the perfect viewing angle, the MonLines TV Lift can swivel up to 41° and tilt up to 15°. The integrated anti-collision protection reliably safeguards your device during lifting and lowering. Automatic shutdown and energy-saving operation emphasize the modern, sustainable nature of the system. Whether in the living room, conference room, or custom-made furniture – the furniture lift impresses with functionality, design, and long-lasting quality.
Key features Motorized Height-Adjustable TV Mount
- TV Size: 32–75 inches

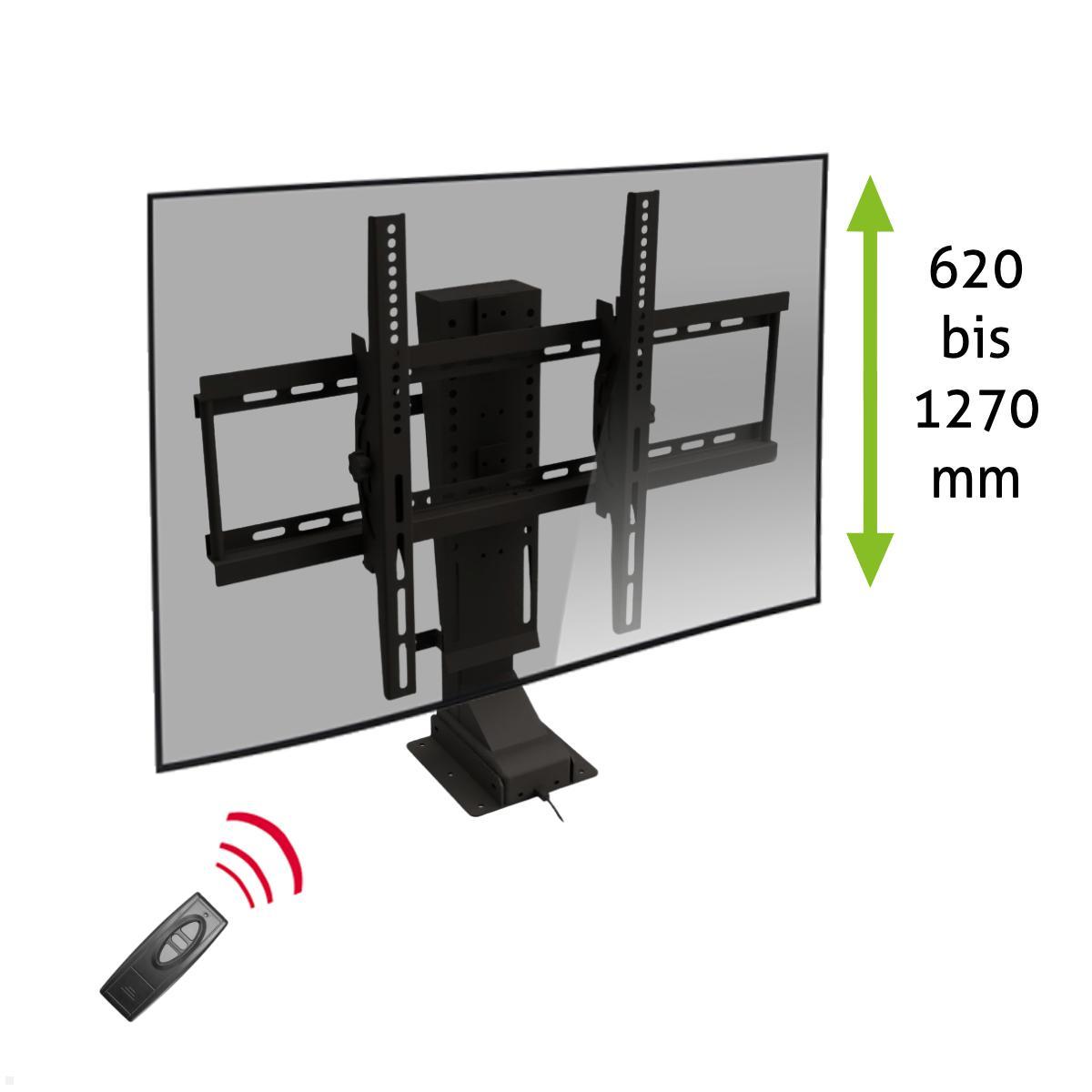

- Lift Range: 620–1270 mm
- Stroke: 650 mm
- Load Capacity: 60 kg

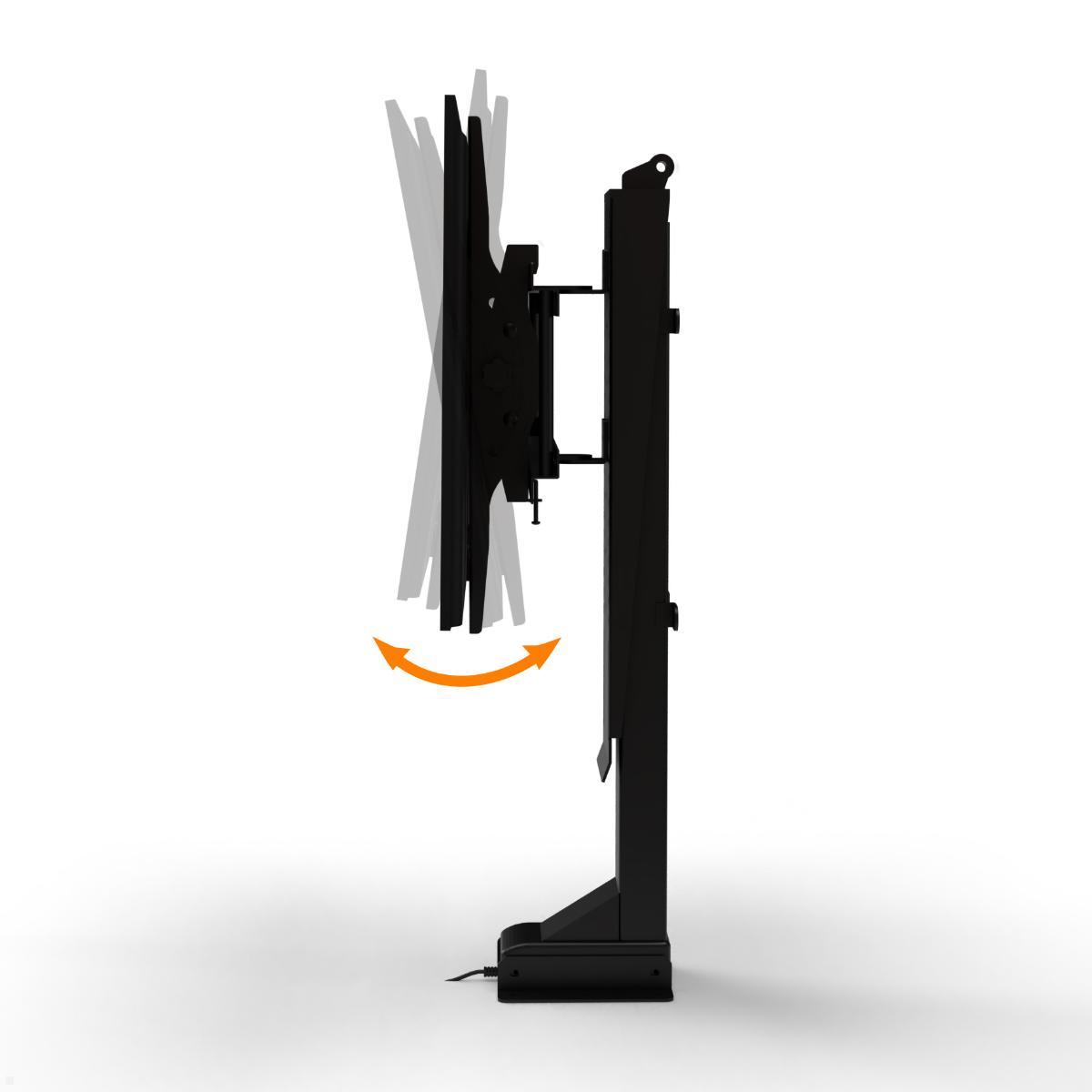

- Tilt: 15°

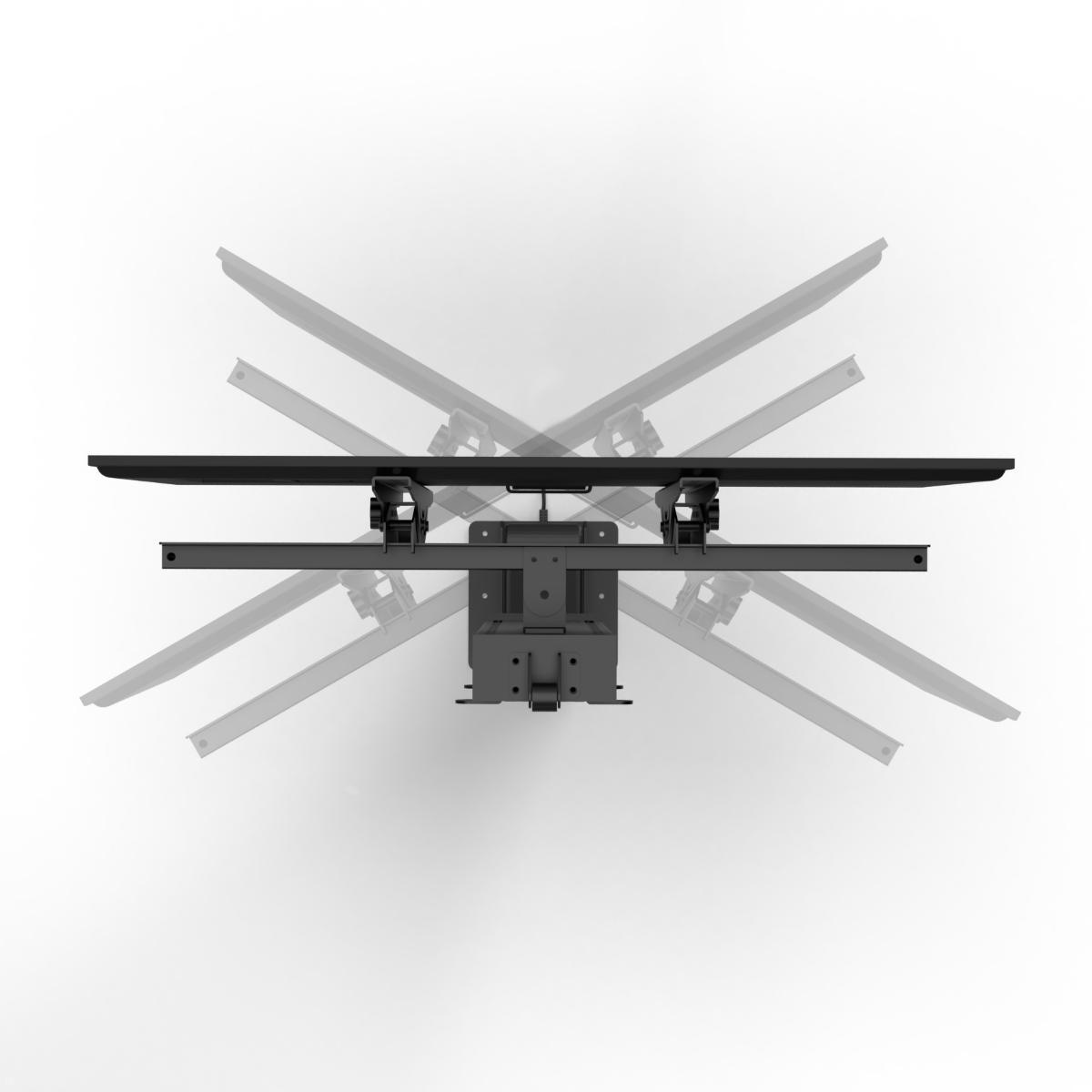

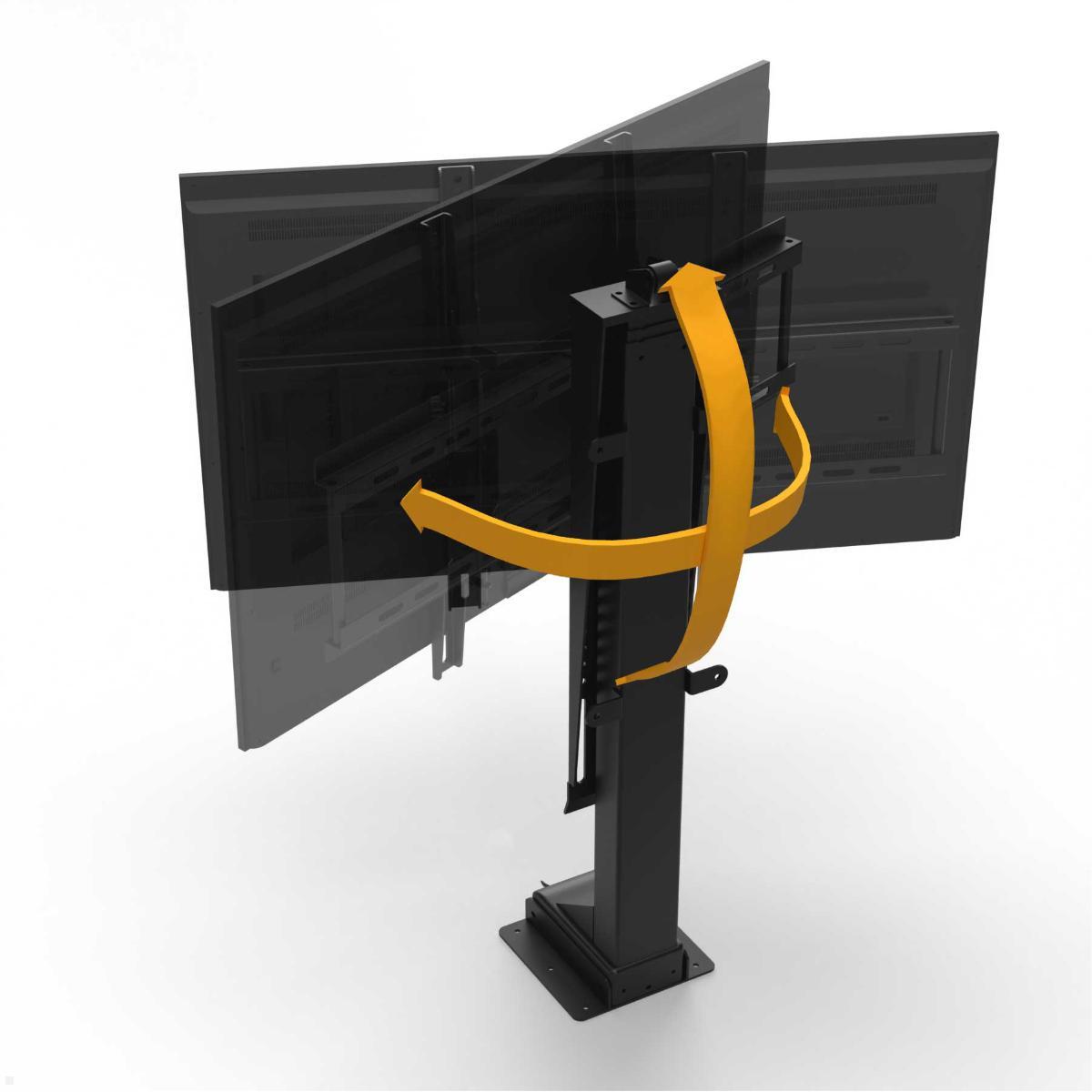

- Swivel Range: 41°
- VESA Standard: 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm
- Speed: 25 mm/s
- Input Voltage: 110–240 V AC
- Output Voltage: 24 V DC
- Duty Cycle: 25% (max. 5 min operation, 18 min pause)
- Anti-Collision Protection: Integrated
- Energy-Saving Mode: Automatic shutdown

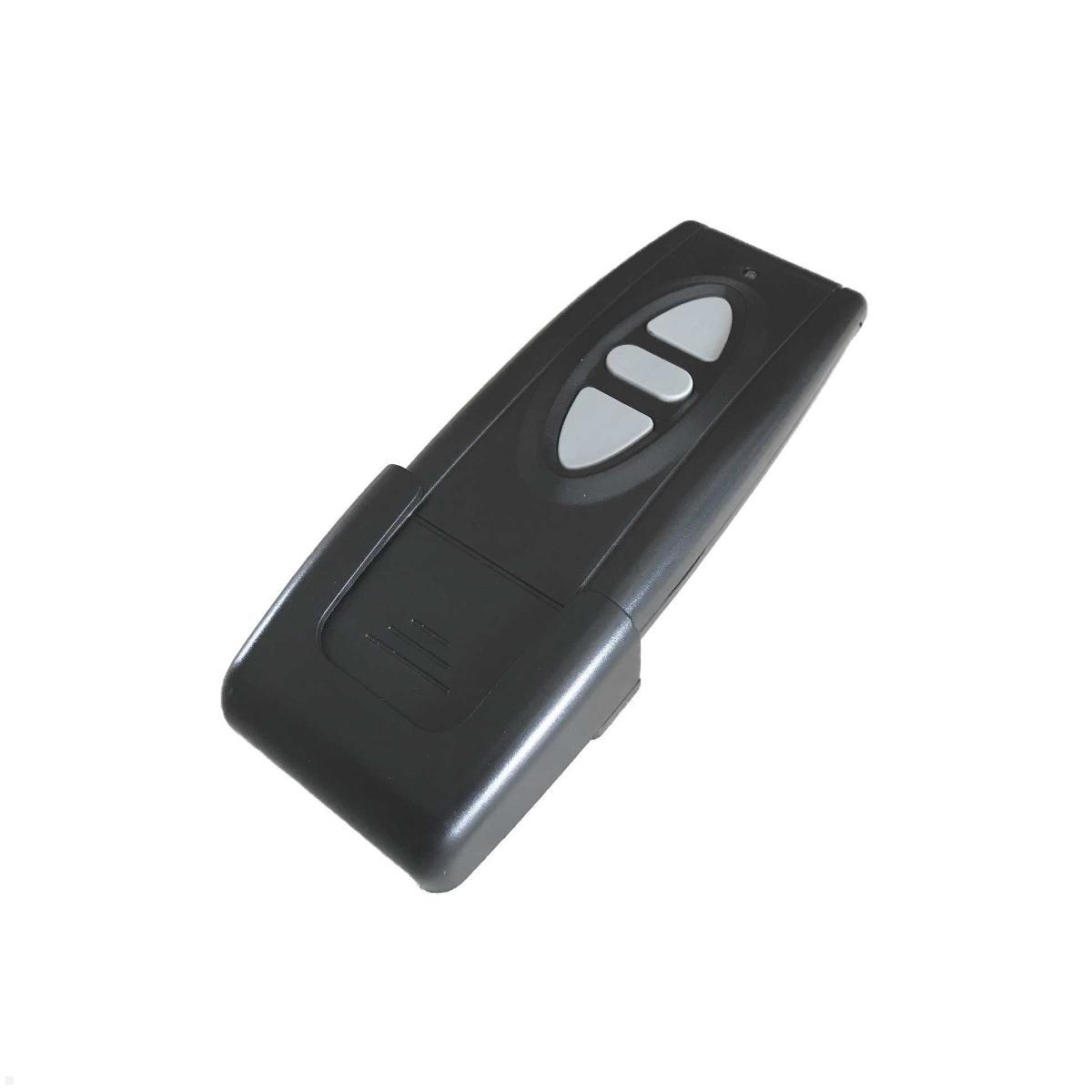

- Operation: Remote control included
- Material: Steel
- Color: RAL 9017, Black
- Mounting Type: For integration into furniture / for flat screens
Does Your TV Fit the TV Lift?
We will gladly check whether your monitor (display, TV, LED, LCD, Plasma, TFT, screen) is suitable for this MonLines TV Lift Mount MLS039B. Simply provide your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then verify whether your TV fits, and if not, we will contact you.
VESA Standard – Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

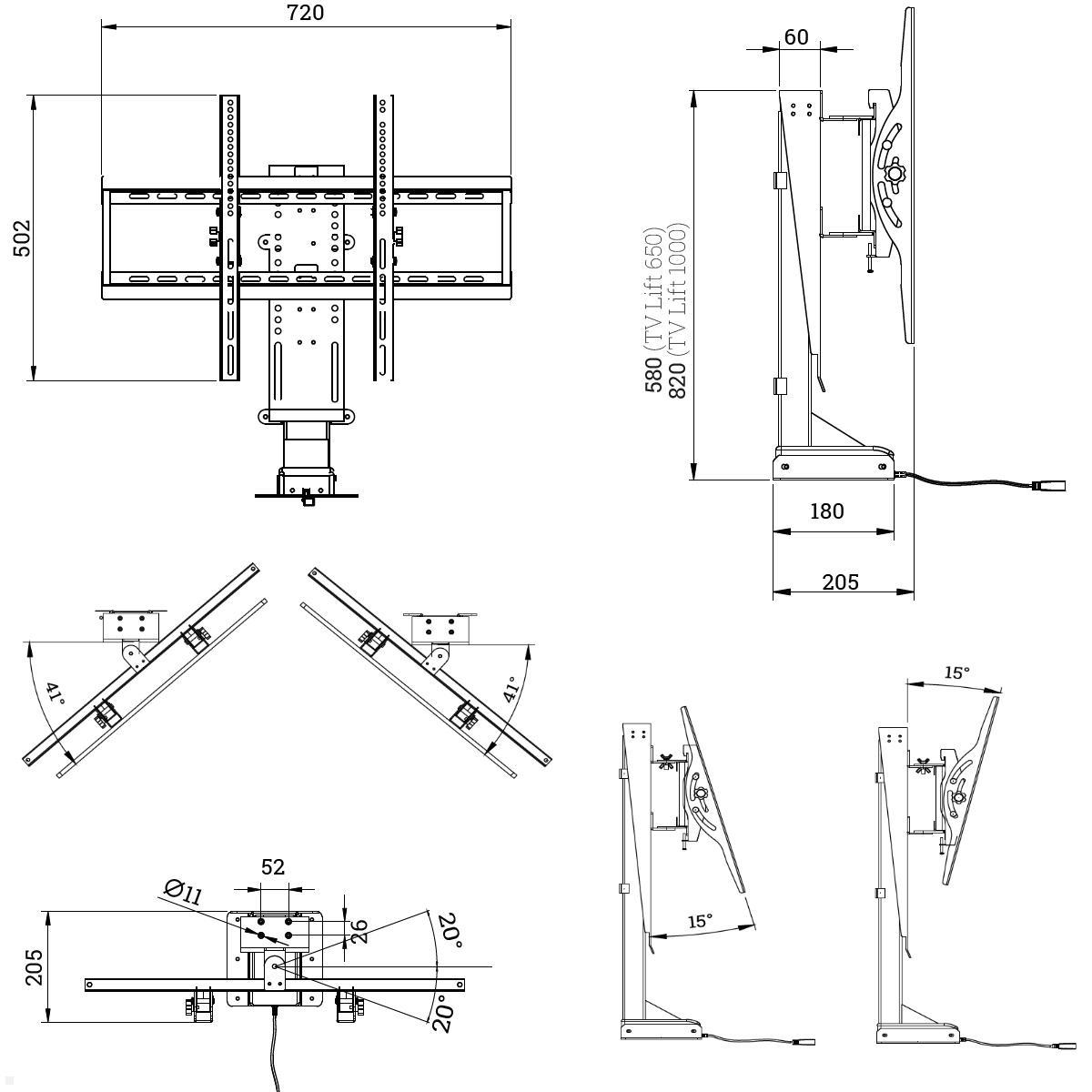

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 60 kg |
| Tilt: | 15° |
| Height range (mm): | 620 - 1270 mm |
| Swivelling range: | 41° |
| Screen size: | 32 - 75 " |
| Depth of the bracket: | 180 mm |
| VESA Standard: | 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 57 Zoll, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch |
| Mobility: | electrical, height adjustable |
| Mounting type: | Lift |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 100x200, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
MonLines MLS039B – Electric TV Lift for Furniture and Flat Screens up to 75 inches
The MonLines MLS039B TV lift is the perfect solution for anyone who wants to integrate their television into furniture comfortably, safely, and in a space-saving way. With its powerful electric motor and a lifting range of 620 to 1270 mm, this high-quality TV lift allows you to raise and lower your flat screen quietly and precisely – simply by remote control. Whether in the living room, bedroom, or conference room – The MonLines MLS039B combines modern design, innovative technology, and high functionality for a comfortable viewing experience at the touch of a button. Comfortable TV lift with precise control The MonLines MLS039B is conveniently operated via the included remote control. The quiet electric motor moves the screen at a speed of 25 mm per second, ensuring smooth and safe operation. Particularly practical: The TV lift features automatic shut-off and energy-saving operation, which not only protects the electronics but also saves electricity. The robust steel construction in RAL 9017 traffic black stands for durability, stability, and an elegant appearance. With a load capacity of up to 60 kg, the MonLines MLS039B is ideally suited for flat screen TVs from 32 to 75 inches. The electric TV lift is specifically designed for installation in furniture and is ideal for sideboards, TV cabinets, or custom-made furniture. Thanks to its VESA compatibility up to 600x400 mm, the lift fits almost all common TV models from leading manufacturers. An integrated collision protection system ensures maximum safety: If the system detects an obstacle, the motor stops automatically. The MonLines MLS039B can also be tilted by 15° and swiveled up to 41°. Enjoy the perfect viewing angle at all times.
Elegant design meets sophisticated technology
With its modern, understated design, the MonLines MLS039B blends harmoniously into any living space. The high-quality black powder coating (RAL 9017) gives the lift an elegant finish and underscores its premium character. This not only positions your television perfectly but also conceals it stylishly when not in use. The combination of robust mechanics, precise electronics, and a sophisticated safety concept makes the MonLines MLS039B a durable companion for discerning users.
Backed by a 60-month warranty, the MonLines MLS039B stands for quality, reliability, and technological innovation. Whether in private homes, hotels, or conference rooms – This electric TV lift combines comfort, safety, and design at the highest level. Anyone looking for a high-quality, motorized TV lift with smart controls and durable construction will find the MonLines MLS039B to be the perfect choice.
