MonLines MLS040B Built-in TV Lift up to 80 kg, 860-1860 mm stroke, black
The MonLines TV Lift MLS040B is an electric TV lift made of steel for flat screens up to 75 inches. With a remote control, a lift range of 860–1860 mm, and a load capacity of 80 kg, it is ideal for integration into furniture for comfortable, modern TV design.
Electric TV Lift for Furniture – for Flat Screens up to 75 Inches
The MonLines MLS040B TV Lift is the perfect solution for stylish, space-saving TV integration into furniture. With its electric height adjustment, it allows you to conveniently and quietly raise or lower your TV – all easily controlled via remote. Made from robust steel in RAL 9017 Traffic Black, the lift impresses with stability, durability, and an elegant design that fits seamlessly into living rooms, offices, or conference areas. The MonLines MLS040B supports flat screens from 32 to 75 inches weighing up to 80 kg and offers a generous lift range of 860 to 1860 mm.

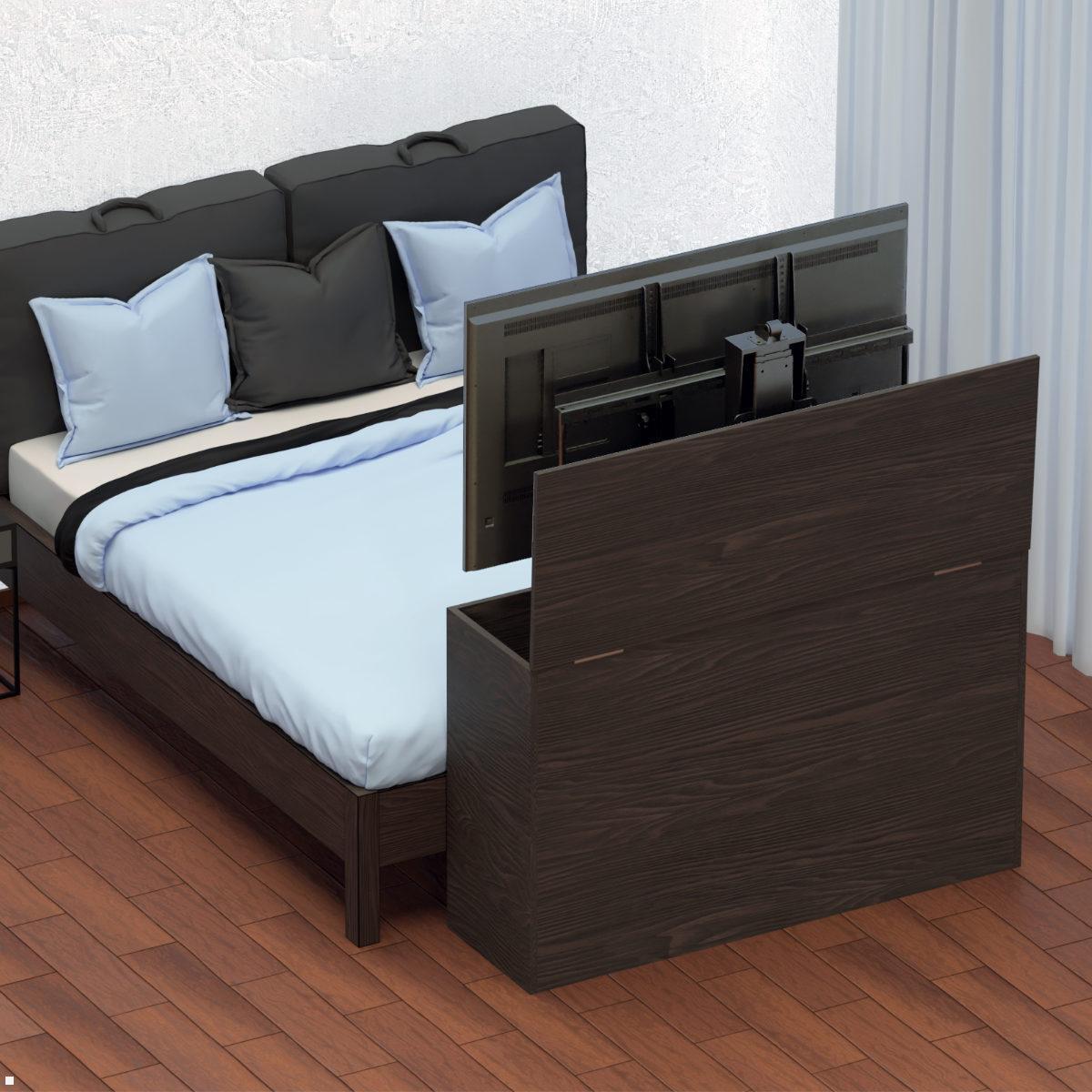

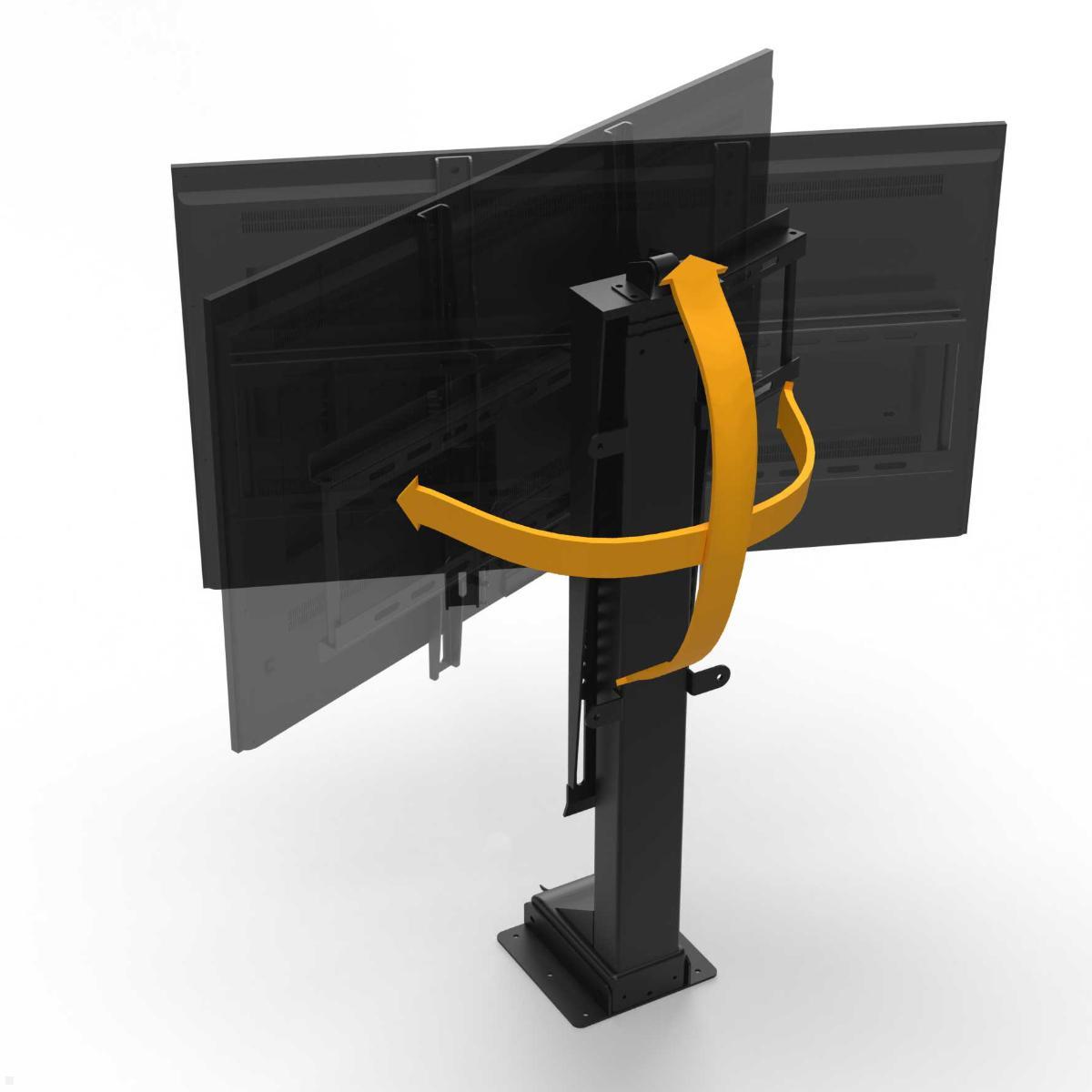

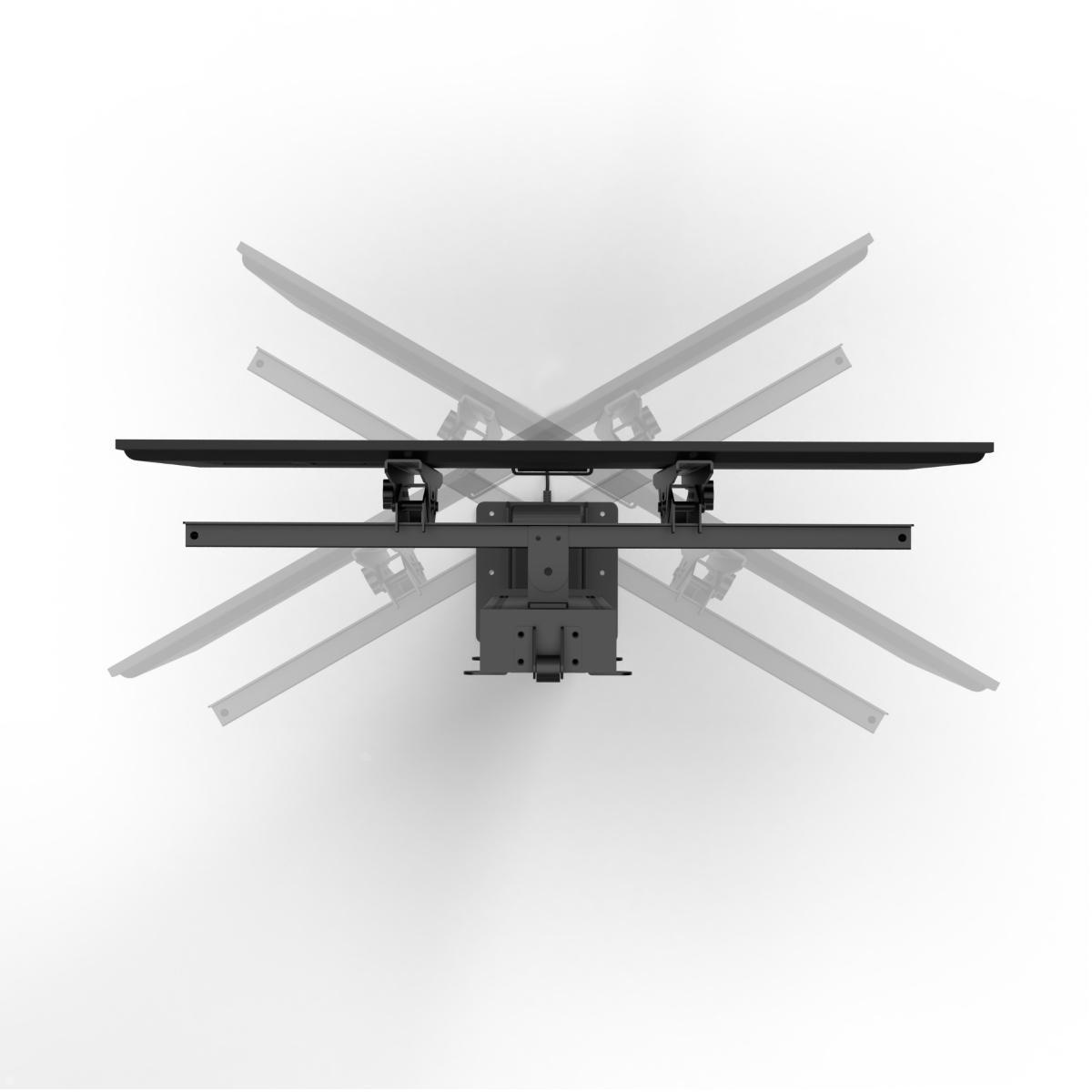

For maximum flexibility, the TV lift can tilt and swivel (15° tilt, 41° swivel) and features an integrated anti-collision protection for added safety. Thanks to automatic shutdown and energy-saving operation, the MonLines MLS040B is as efficient as it is comfortable. Whether in the living room, bedroom, or conference room – the furniture lift combines modern design with innovative technology for a unique viewing experience.
Key features Motorized Height-Adjustable TV Mount
- TV Size: 32–75 inches

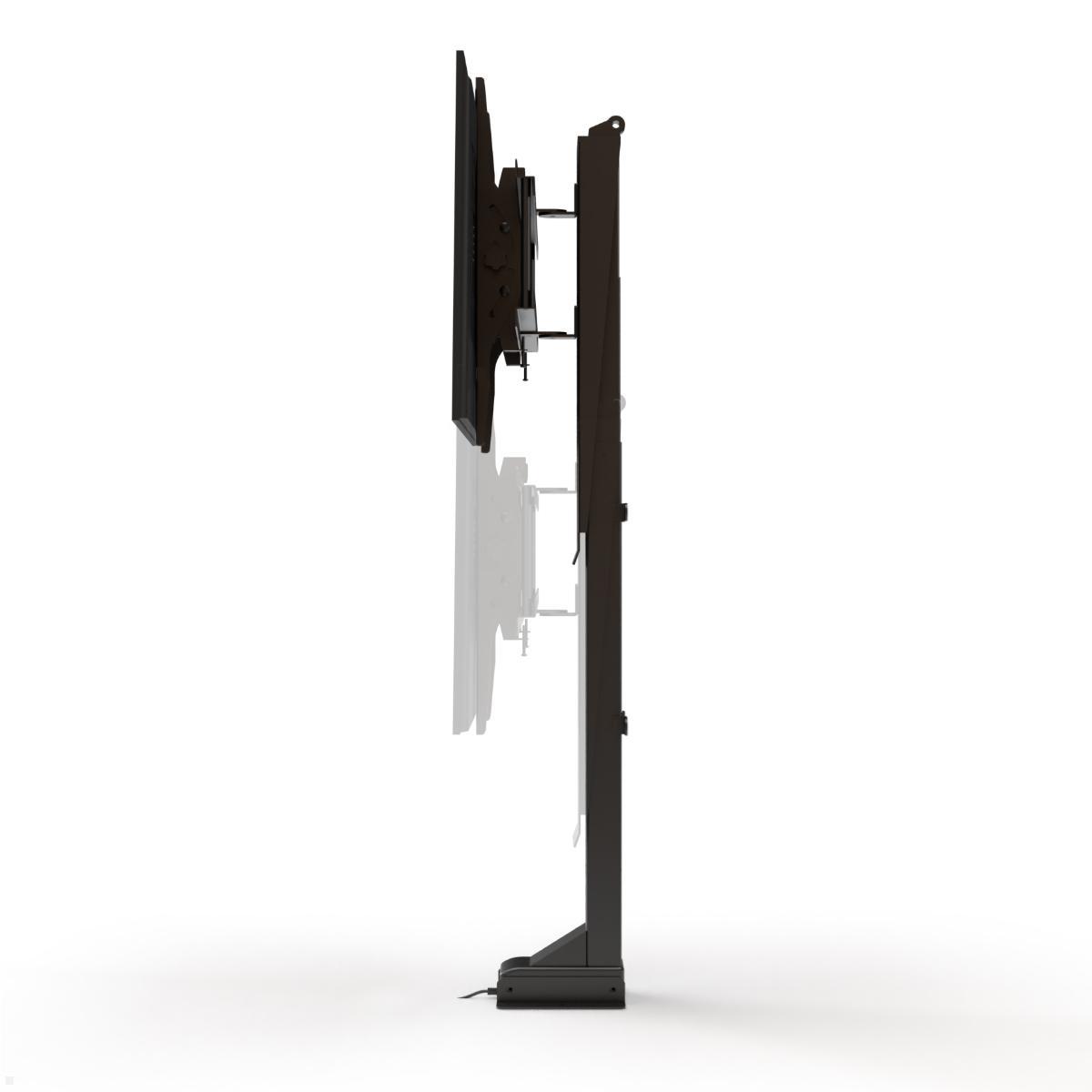

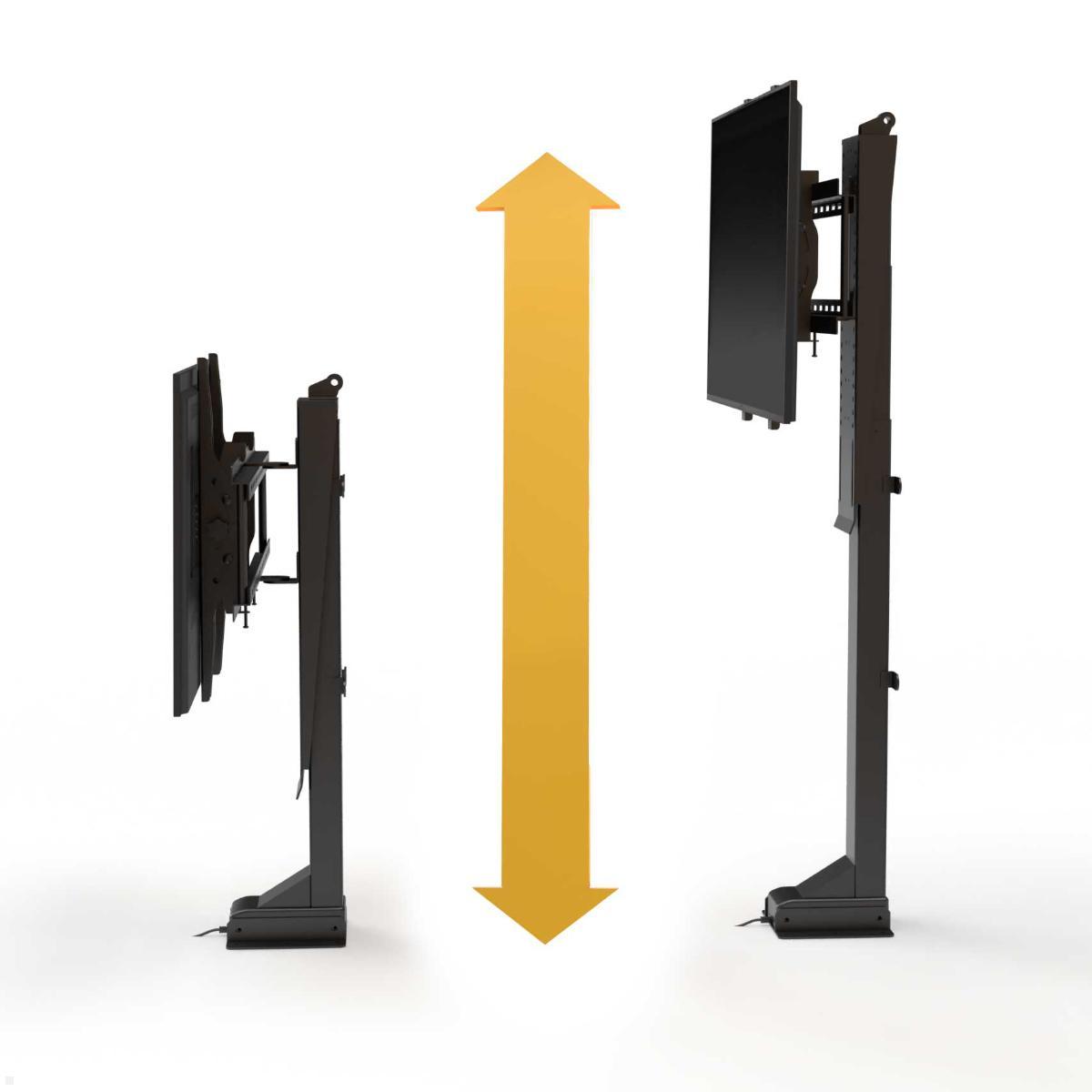

- Lift Range: 860–1860 mm
- Stroke: 1000 mm
- Load Capacity: 80 kg
- Tilt: 15°
- Swivel Range: 41°
- VESA Standard: 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm
- Speed: 25 mm/s
- Input Voltage: 110–240 V AC
- Output Voltage: 24 V DC
- Duty Cycle: 25% (max. 5 min operation, 18 min pause)
- Anti-Collision Protection: Integrated
- Energy-Saving Mode: Automatic shutdown
- Operation: Remote control included
- Material: Steel
- Color: RAL 9017, Black
- Mounting Type: For integration into furniture / for flat screens
Does Your TV Fit the TV Lift?
We will gladly check whether your monitor (display, TV, LED, LCD, Plasma, TFT, screen) is suitable for this MonLines TV Lift Mount MLS040B. Simply provide your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then verify whether your TV fits, and if not, we will contact you.
VESA Standard – Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

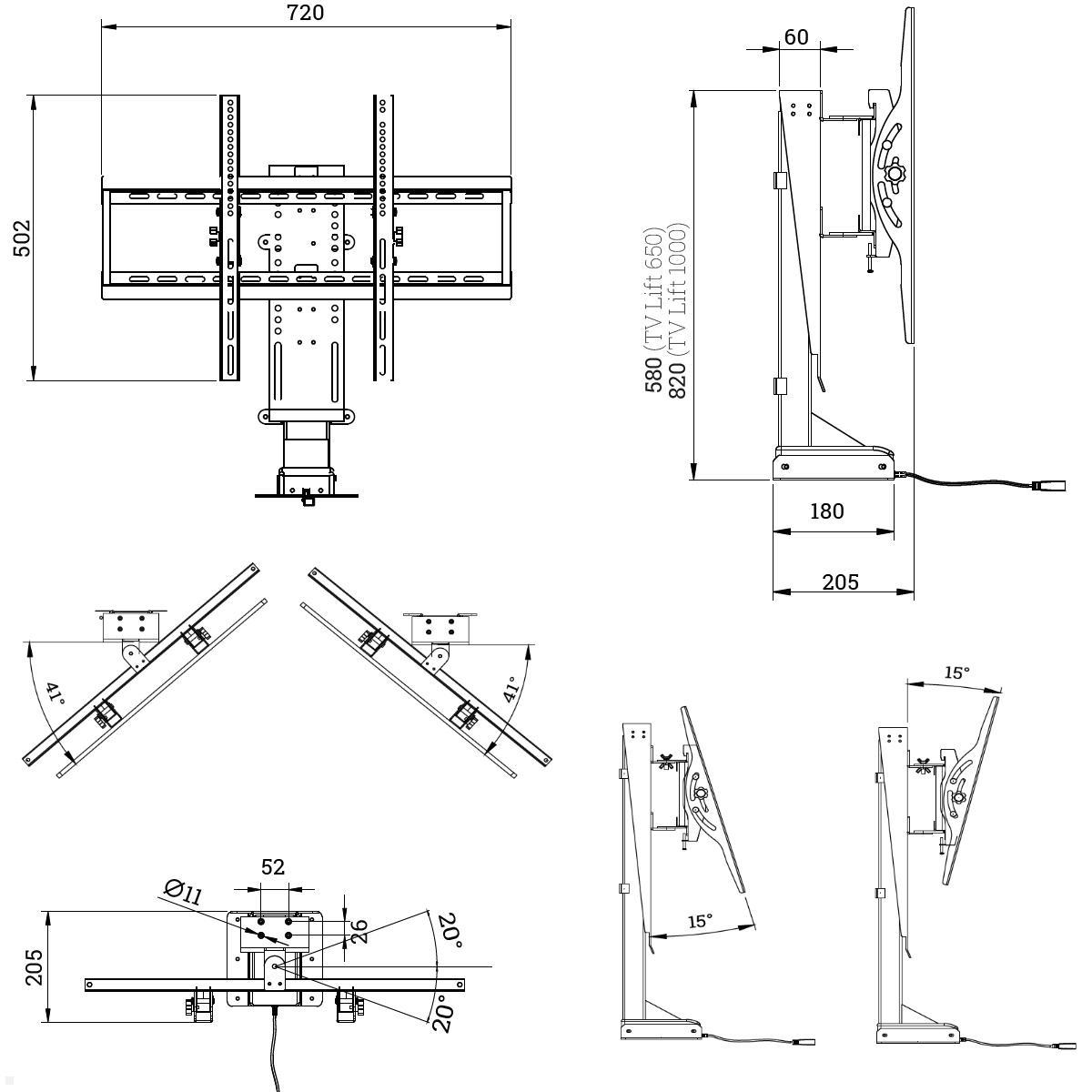

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 80 kg |
| Tilt: | 15° |
| Height range (mm): | 860 - 1860 mm |
| Swivelling range: | 41° |
| Screen size: | 32 - 75 " |
| Depth of the bracket: | 180 mm |
| VESA Standard: | 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 57 Zoll, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch |
| Mobility: | electrical, height adjustable |
| Mounting type: | Lift |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 100x200, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
MonLines MLS040B – Electric TV Lift for Furniture and Flat Screens up to 75 inches
The MonLines MLS040B TV lift is the ideal solution for anyone who wants to integrate their television elegantly, safely, and conveniently into their furniture. With its powerful electric motor and a generous lifting range of 860 to 1860 mm, this high-quality TV lift allows you to raise and lower your flat screen quietly and precisely – simply by remote control. Whether in the living room, bedroom, or conference room – The MonLines MLS040B combines modern design, innovative technology, and maximum functionality for a comfortable viewing experience at the touch of a button. Comfortable TV lift with precise control. Thanks to the included remote control, the MonLines MLS040B is easy to operate. The quiet electric motor moves the screen at a speed of 25 mm per second, gently and safely guiding the TV into the desired position. Particularly practical: The lift is equipped with automatic shut-off and energy-saving operation. This not only protects the device but also reduces energy consumption. The sturdy steel construction in RAL 9017 traffic black ensures a high-quality appearance and exceptional durability. With a load capacity of up to 80 kg, the MonLines MLS040B is ideally suited for large flat screen TVs from 32 to 75 inches. The electric TV lift is designed for installation in furniture and is ideal for sideboards, TV cabinets, or custom-made pieces in residential and commercial settings. With its VESA compatibility up to 600x400 mm, the lift fits almost all common TV models from leading manufacturers. Thanks to the integrated collision protection, safe use is guaranteed at all times – your television is reliably protected from damage if the lifting process is interrupted or an obstacle is detected. Furthermore, the MonLines MLS040B can be tilted by 15° and swiveled up to 41°. This allows you to always find the perfect viewing angle – whether you're sitting comfortably on the couch or want to watch TV from a different perspective. Elegant design meets innovative technology. The MonLines MLS040B impresses not only with its technology but also with its understated, modern design. The black powder coating (RAL 9017) gives the lift an elegant surface that integrates seamlessly into various furniture designs. This allows your TV to be not only perfectly positioned but also stylishly displayed or, if desired, completely concealed within the furniture. With a 60-month warranty, the MonLines MLS040B stands for quality and reliability. The combination of robust steel, precise electronics, and intelligent safety shutdown makes it a long-term investment for modern living spaces and work environments. Whether for private or professional use, the MonLines MLS040B TV lift offers maximum flexibility, the highest level of safety, and elegant design. It is the perfect choice for anyone looking for a high-quality, motorized TV lift with a large lifting range and smart controls.
