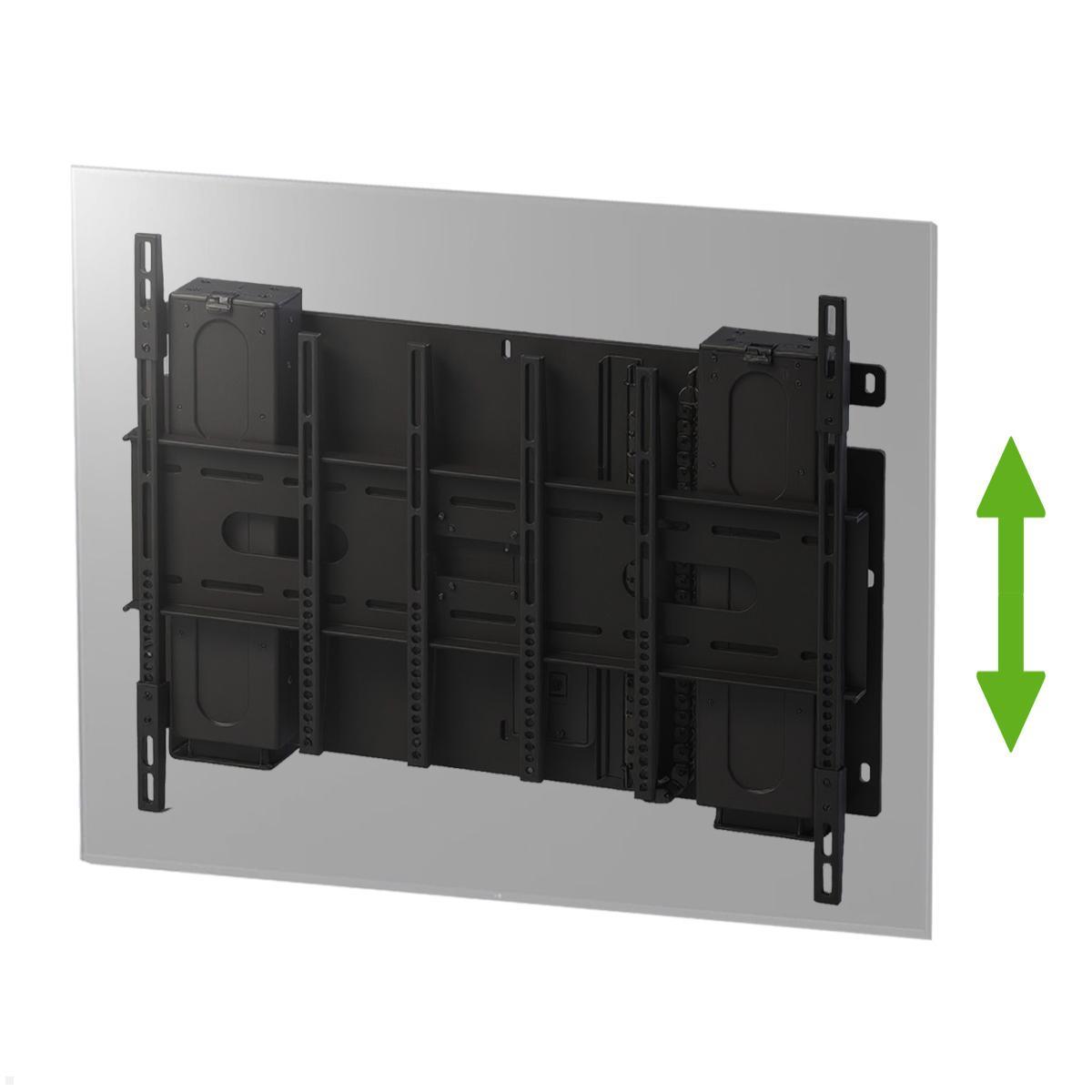

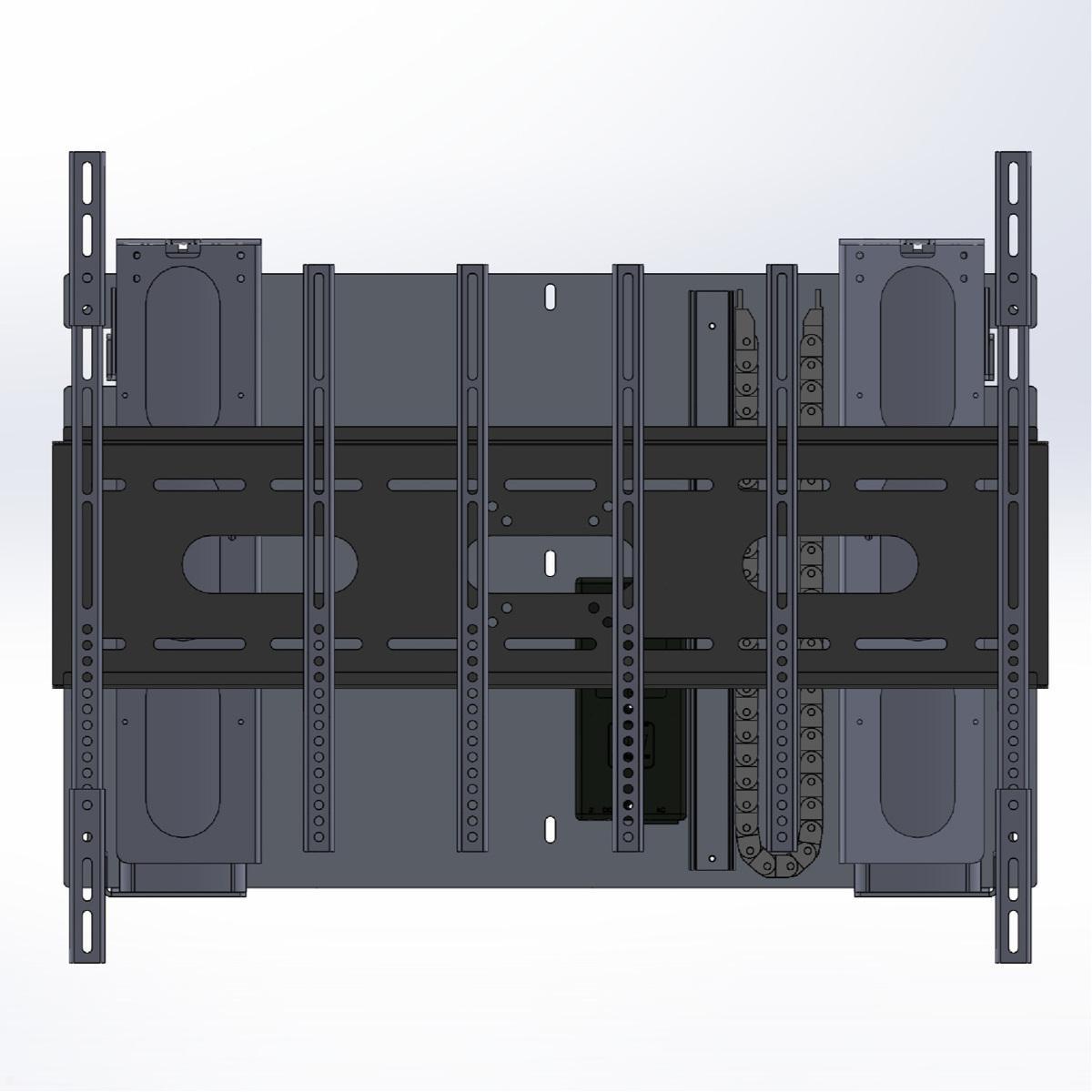

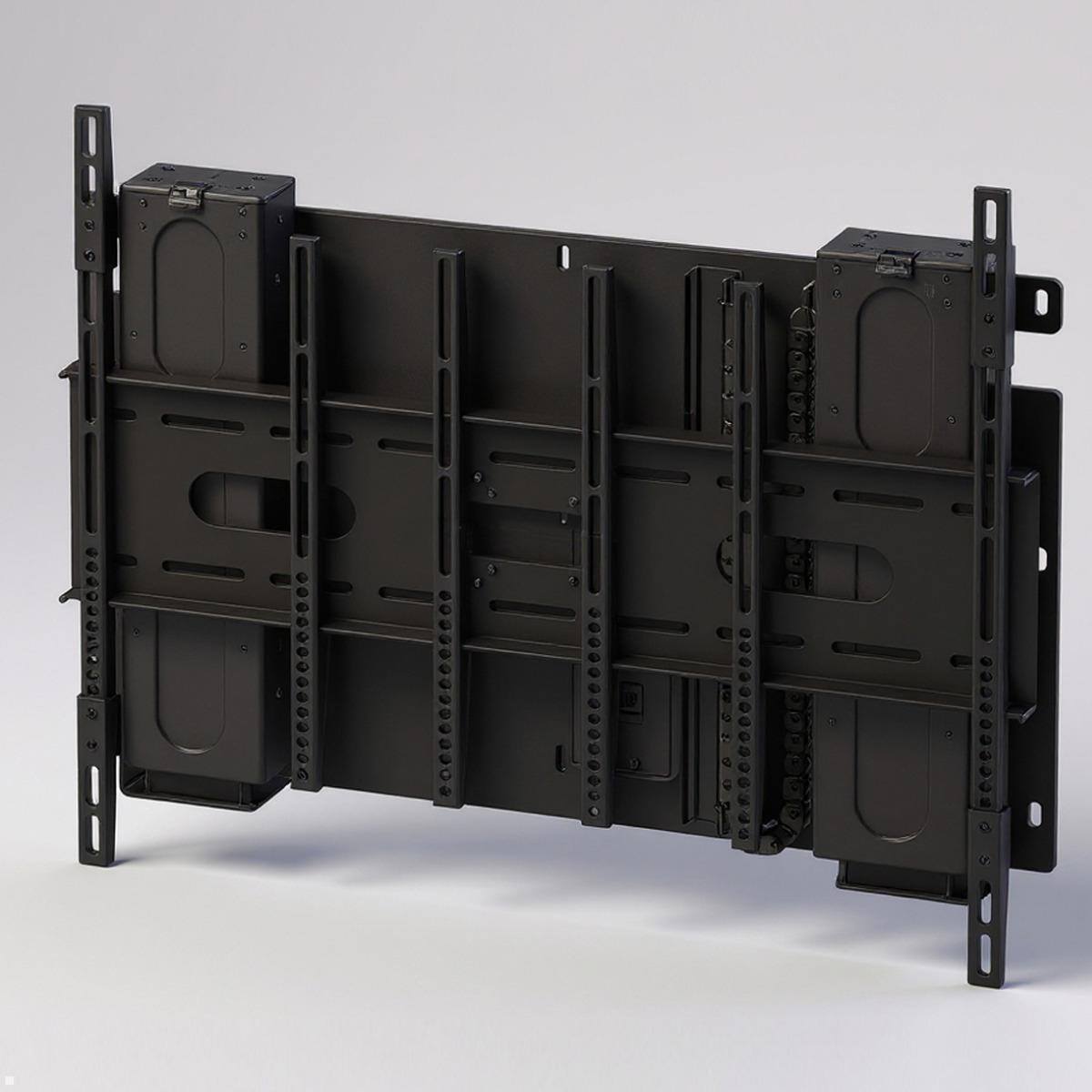

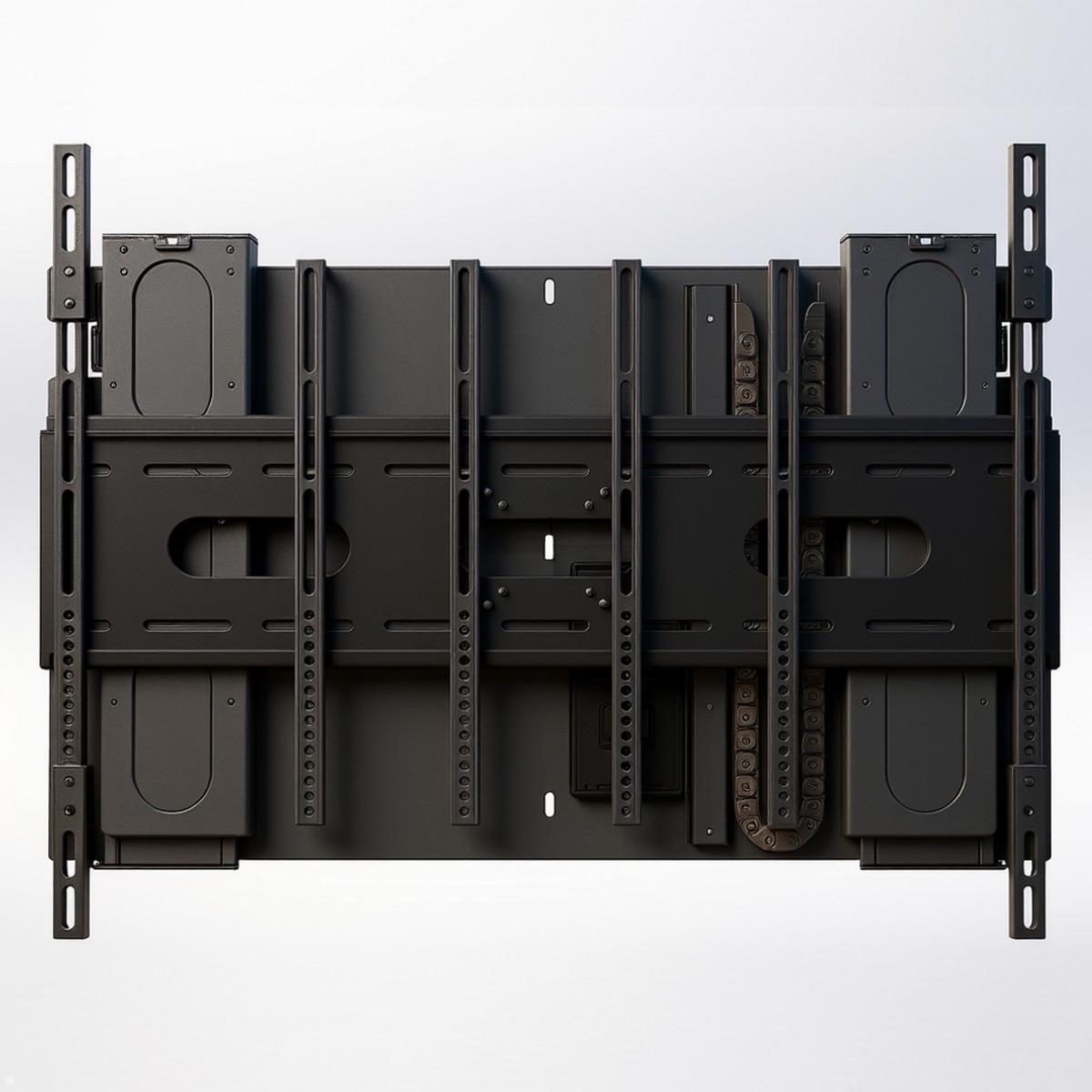

MonLines MLW675B2 TV Lift wall mount electric, 675mm, 98 inch, black
The MonLines MLW675B2 electric wall mount in black is a mount for TVs up to 98 inches with all the benefits of a TV lift. The TV lift can be mounted on any wall or recessed into furniture, offering maximum convenience.
TV Lift Wall Mount
MonLines has developed a stable and sleek TV lift. With a high load capacity of 100 kg and two very stable lifting columns, this MonLines MLW675B2 is considered a classic among electric TV mounts. The high-quality TV lift is particularly characterized by its very low noise level and particularly smooth and continuous height adjustment. The electric wall mount can be easily mounted on the wall or integrated into furniture. If necessary, the TV can be extended and retracted from or behind a piece of furniture. The TV lift can be operated manually or by remote control from a maximum distance of 6 meters. The elegant and simple design allows the lift to be easily integrated into the living environment.
The device can also be used with the voice assistants Amazon Alexa or Google Assistant and thus controlled via home automation. Smart home control is enabled by the subsequent installation of a controllable blind switch/shutter switch (not included). The MonLines MLS029 control cable with an RJ45 socket and three exposed cable ends can be ordered as an optional connection solution for a corresponding switch.
Monitor wall mount 675 mm electrically height-adjustable

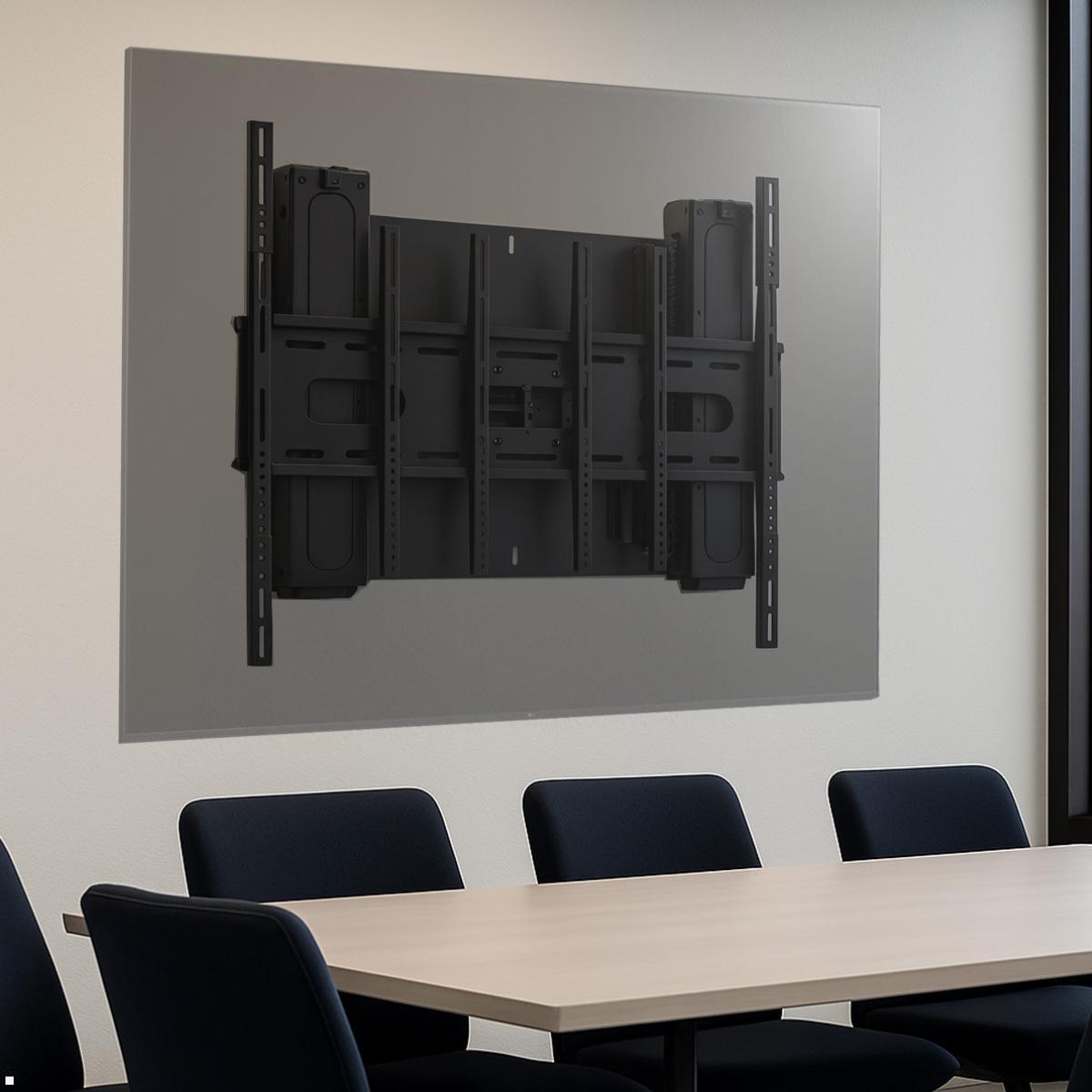

The MLW675B2 TV lift can be moved at a speed of 43 mm per second and is equipped with a double-acting brake for increased self-locking force. Displays up to 98 inches can be easily attached to the TV wall mount. Popular applications include living rooms, meeting rooms and conference rooms, hotels, and boats. The possible uses are endless!
Key features TV Lift
- Mounting: Wall mount
- Screen sizes: 55 inches, 58 inches, 60 inches, 65 inches, 70 inches, 75 inches, 77 inches, 85 inches, 86 inches, 90 inches, 95 inches, 98 inches
- Electrically extendable
- Load capacity: 100 kg
- VESA mount: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 500x400 600x200, 600x400, 800x400, 800x600 mm
- Continuous electric height adjustment: 675 mm
- TV lift speed up to 43 mm/s
- Low and consistent noise level when extending
- Double-acting brake for increased self-locking force
- Ambient temperature: +5°C to +40°C
- High-quality powder coating
- Color: black
- Manual operation via panel or infrared remote control
- Leveling via built-in Spirit level
- Easy installation of the TV by simply hooking it in
- Control box, panel, and remote control are included
- Smart Home control via Google Assistant / Amazon Alexa possible
- Optional accessories:
-
- MonLines MLS029 Control cable for contact switches
- MonLines MLZ001 Bluetooth adapter - Control TV lift via app
- MonLines MUC001B USB configuration cable USB Linak CBD6S
Caution: The TV lift may only be mounted with the extension height upwards. Installation with the extension height downwards is not possible for technical reasons! Improper installation/commissioning will void the warranty.
Key features Control Box Control Unit
The control box ensures that the application has a pleasant and low noise level as well as a constant speed in normal working areas.
- Compact high-performance switching power supply (SMPS)
- Connection option for up to 2 drives/columns
- Mains voltage: 230 V AC, 50 Hz or 120 V AC, 60 Hz
- Lightweight control unit weighing only approx. 400 g
- Power consumption in standby mode is only 0.1 W (ZERO™) Technology)
- Replaceable standard power cable
- Overload protection (EOP) through individual current limitation
- Soft start/stop function
- Strain relief for power cable
- Automatic detection of the number of connected drives/columns
- Automatic detection of the connected drive type
- Duty cycle: max. 10% ~ 6 minutes per hour or 2 minutes of continuous operation at full load
- Tested according to EN 60335-1, EN 13849-1 and UL 962
Key features Panel
The remote control and the panel form the basis for a wireless control system based on infrared transmission. The panel serves as the receiver, while the remote control transmits the signals to the system via the panel. The system is particularly useful in applications such as flat-screen furniture.
- Control element for a single channel or parallel systems
- 1,580 mm straight, black cable with modular jack connector
- Color: black
Key features remote control
- Color: gray
- Wireless with 3 AAA batteries
- Handheld control for controlling 1 or 2 references
- Easy operation for right- and left-handed users
- Distance range is approximately 6 m

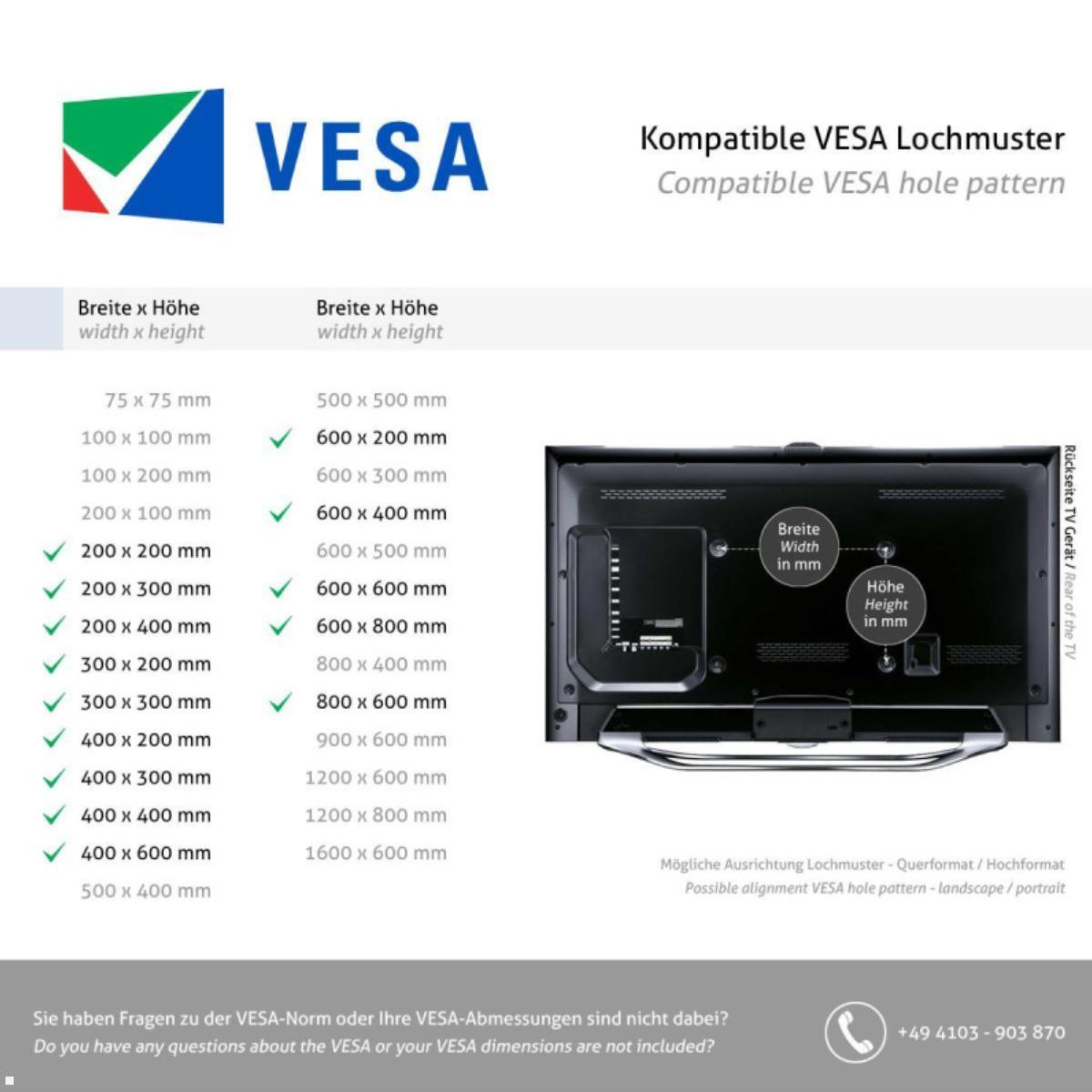

Does your TV fit the VESA Mount?
We'd be happy to check whether your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this MonLines MLW675B2 myTVLift wall mount TV lift for TVs. Simply provide us with your model (manufacturer + model number) in the comments field at the end of the ordering process. We'll then check whether the TV fits, and if not, we'll get back to you.
VESA Standard - Learn more about the VESA Standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

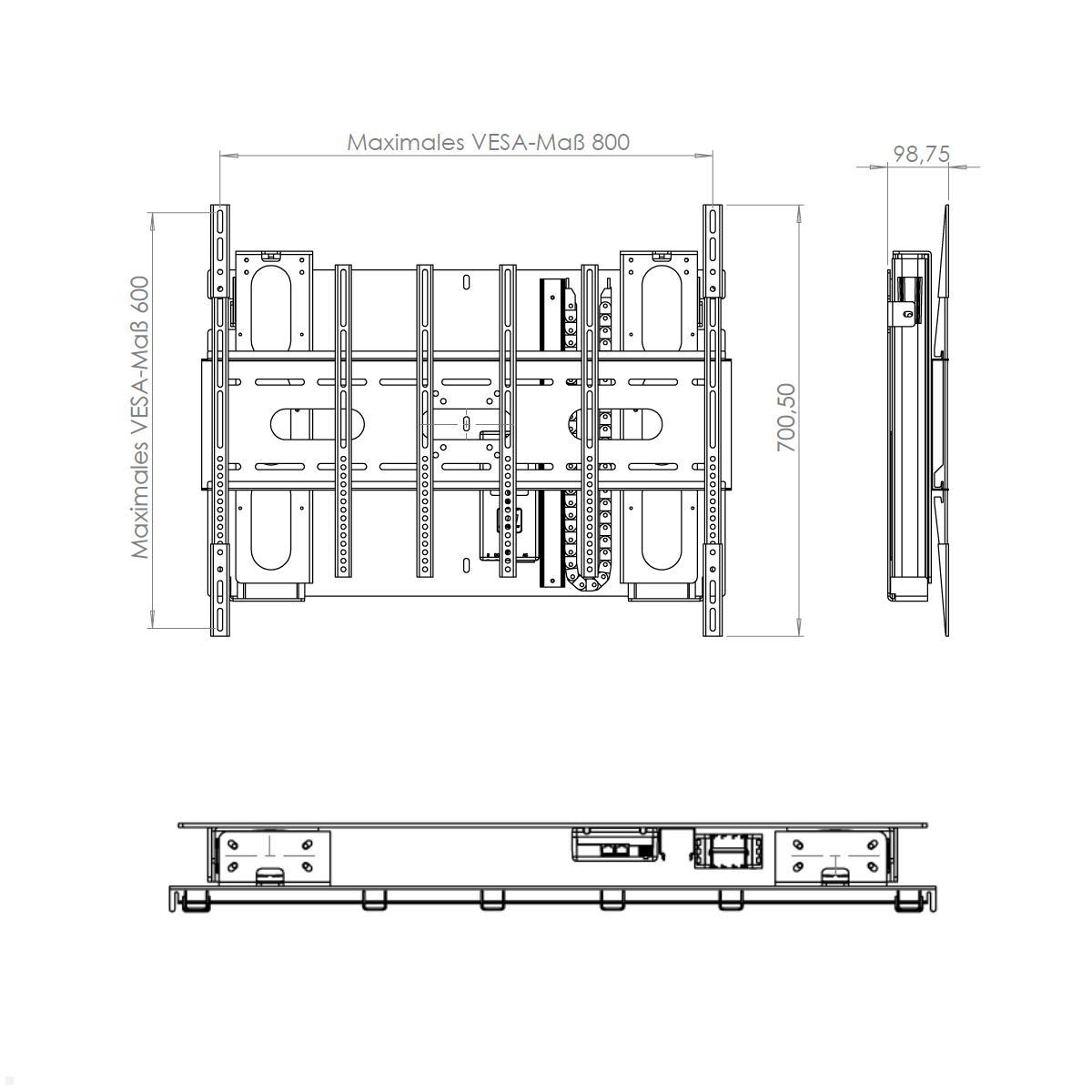

| Technical drawing: | [pdf] |
| Capacity: | 100 kg |
| Height range (mm): | 1000 mm |
| Screen size: | max. 98 " |
| VESA Standard: | 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400, 800x400, 800x600 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch, 80 inch, 82 inch, 83 Zoll, 84 inch, 85 inch, 86 inch, 90 inch, 95 inch, 98 inch |
| Mobility: | electrical, height adjustable |
| Mounting type: | Lift, wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 500x400, VESA 600x200, VESA 600x400, VESA 800x400, VESA 800x600 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
MonLines MLW675B2 TV Lift Wall Mount – Elegance, Power, and Smart Home Convenience
The MonLines MLW675B2 TV Lift wall mount represents the highest quality, maximum stability, and cutting-edge technology. With an impressive load capacity of 100 kg and the ability to safely lift TVs up to 98 inches, this electric TV lift is one of the most powerful models on the market. Whether in the living room, conference room, hotel, or on yachts – the MonLines MLW675B2 offers an elegant, quiet, and precise TV viewing experience at the touch of a button. Thanks to its two robust lifting columns and a lifting height of 675 mm, the TV moves smoothly and continuously up or down. The motor operates quietly and ensures smooth, vibration-free extension. The soft start/stop function guarantees that the lift starts and stops smoothly at all times – ideal for sophisticated interiors and high-quality furniture integration.
Flexible Mounting – Wall or Furniture

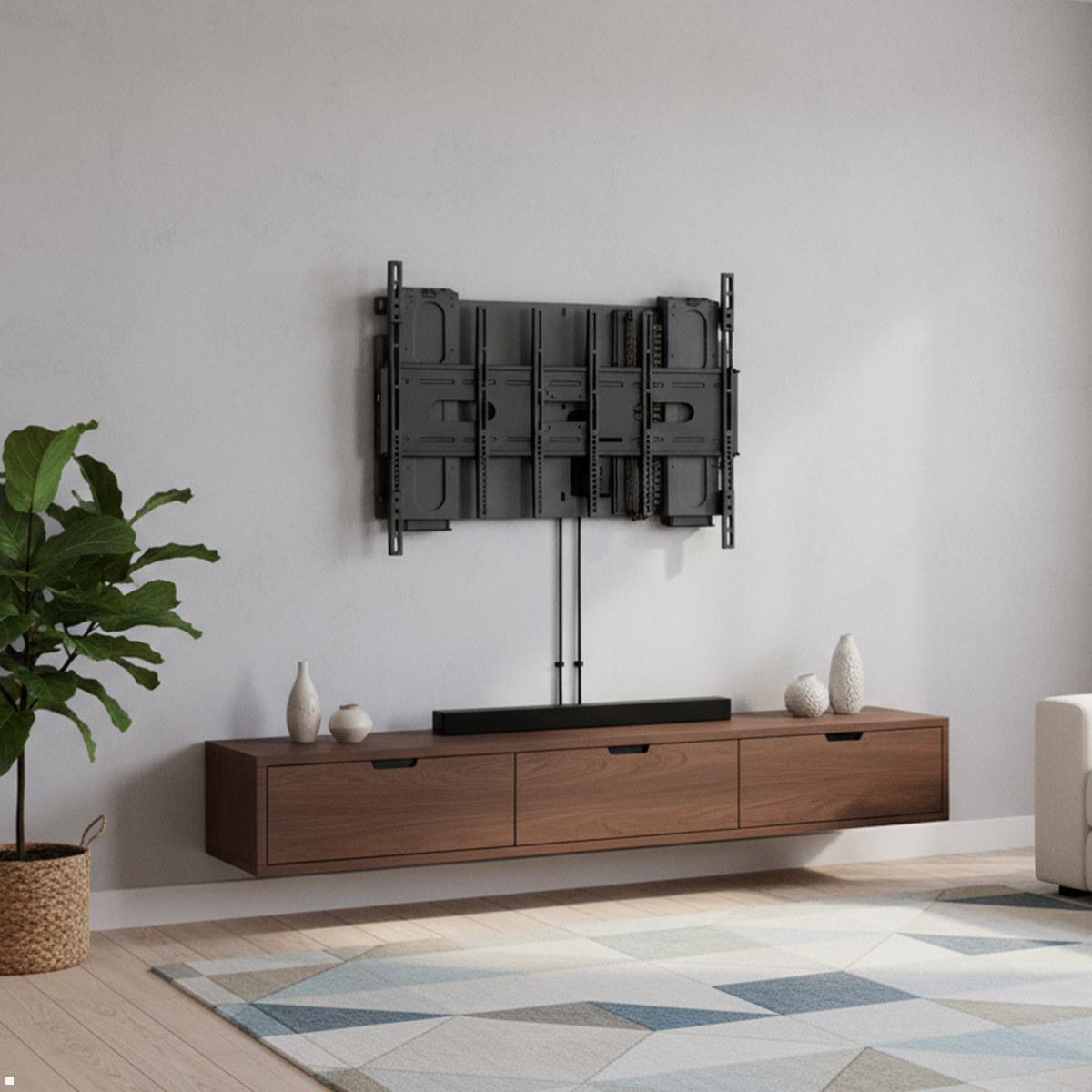

The MonLines MLW675B2 wall mount is particularly versatile. It can be mounted directly to the wall or invisibly integrated into furniture. This allows the TV to be elegantly extended from a lowboard, sideboard, or cabinet when needed – without the need for a separate wall mount. and disappear just as quickly. The modern, black design with high-quality powder coating blends harmoniously into any home or business environment. An integrated spirit level facilitates precise alignment during installation.
