MonLines MTH014B touchscreen desk mount up to 32 inches, height-adjustable
delivery time: Delivery from manufacturer announced for week 32
Highlights
- Suitable for touchscreens and monitors from 17 to 32 inches
- Height adjustable from 260 to 450 mm via a rotary knob
- Compatible with VESA 75x75 and 100x100 mm
- Mounting via desk clamp or screw-through mounting
- Integrated cable management for a tidy desk
Table Mount for Monitors / Touchscreens

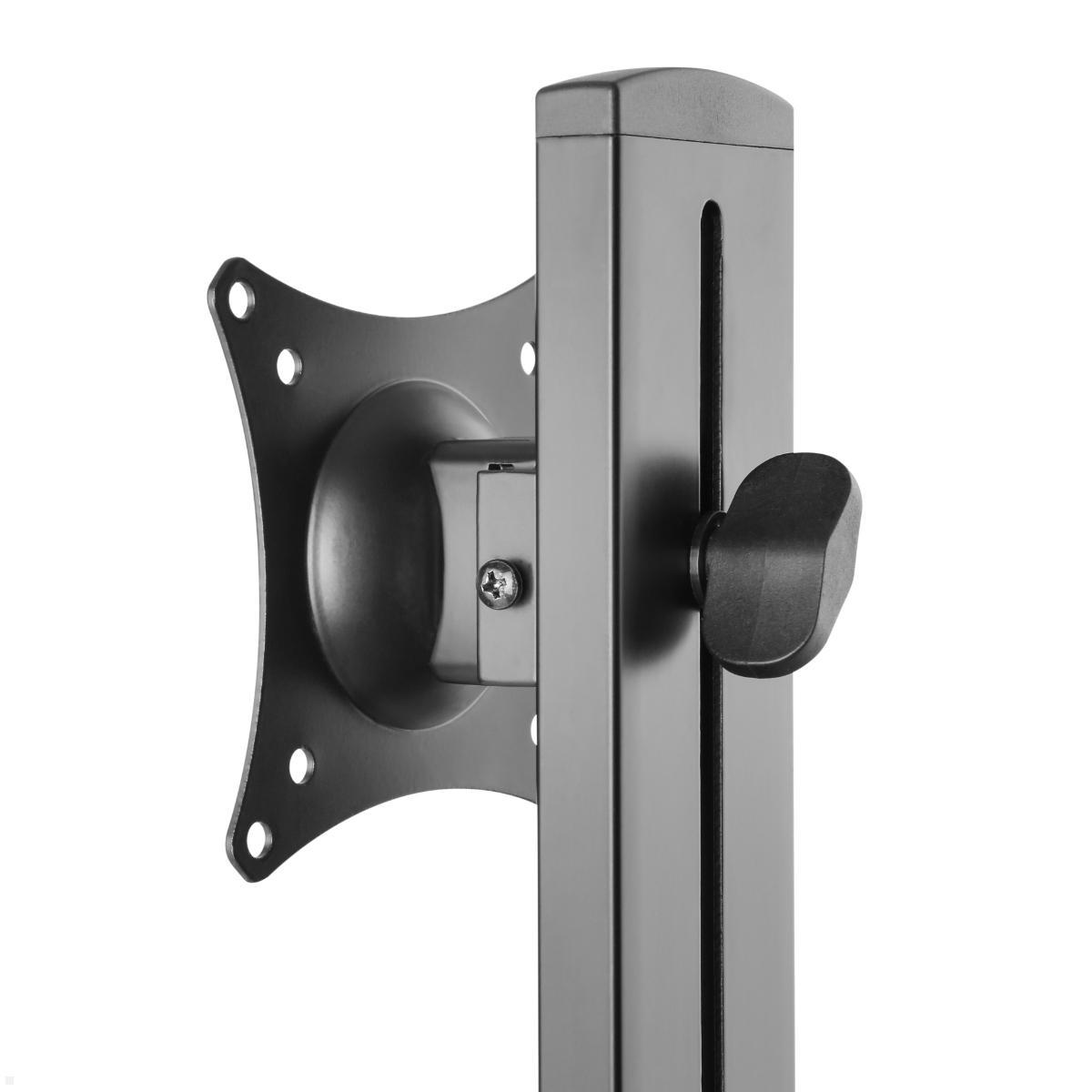

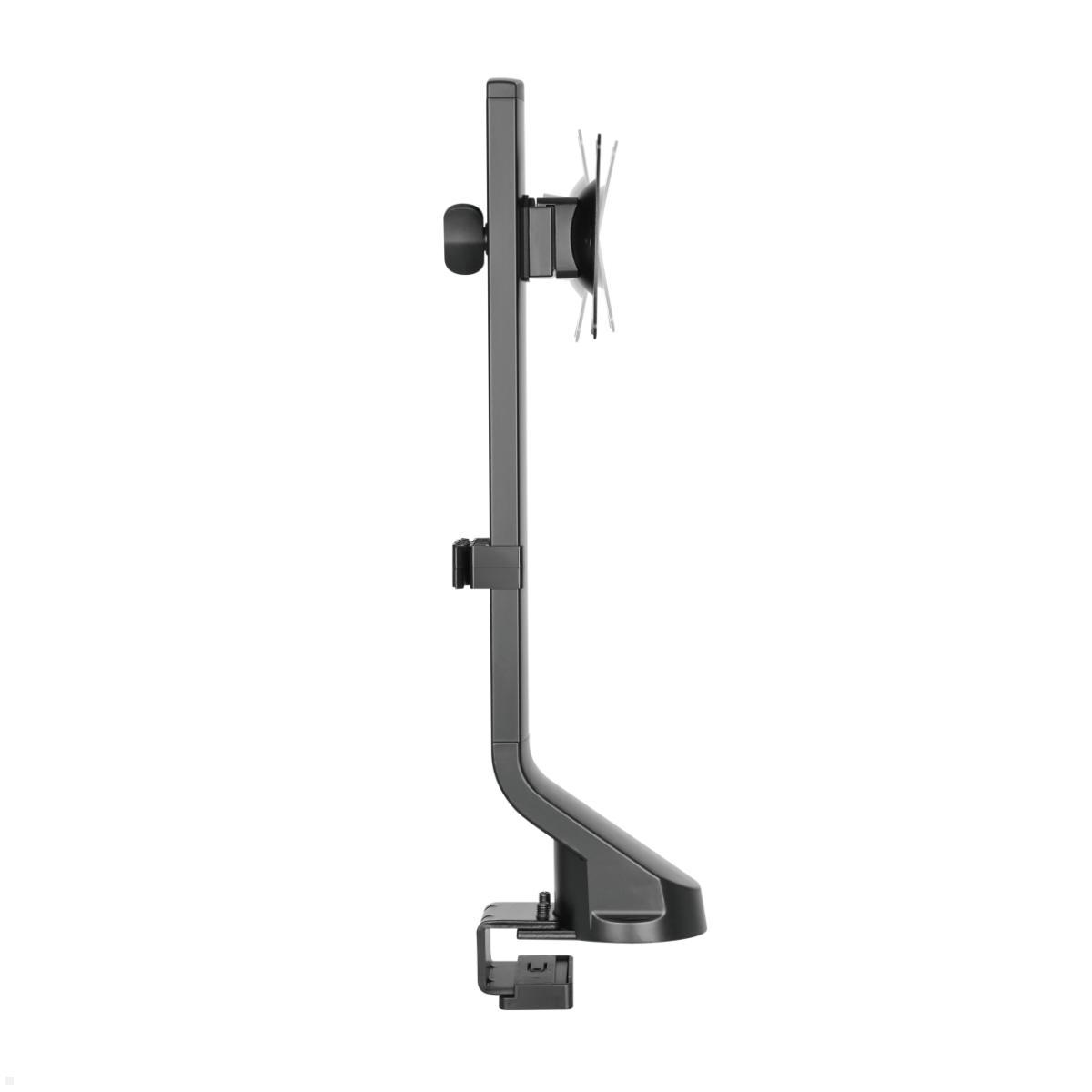

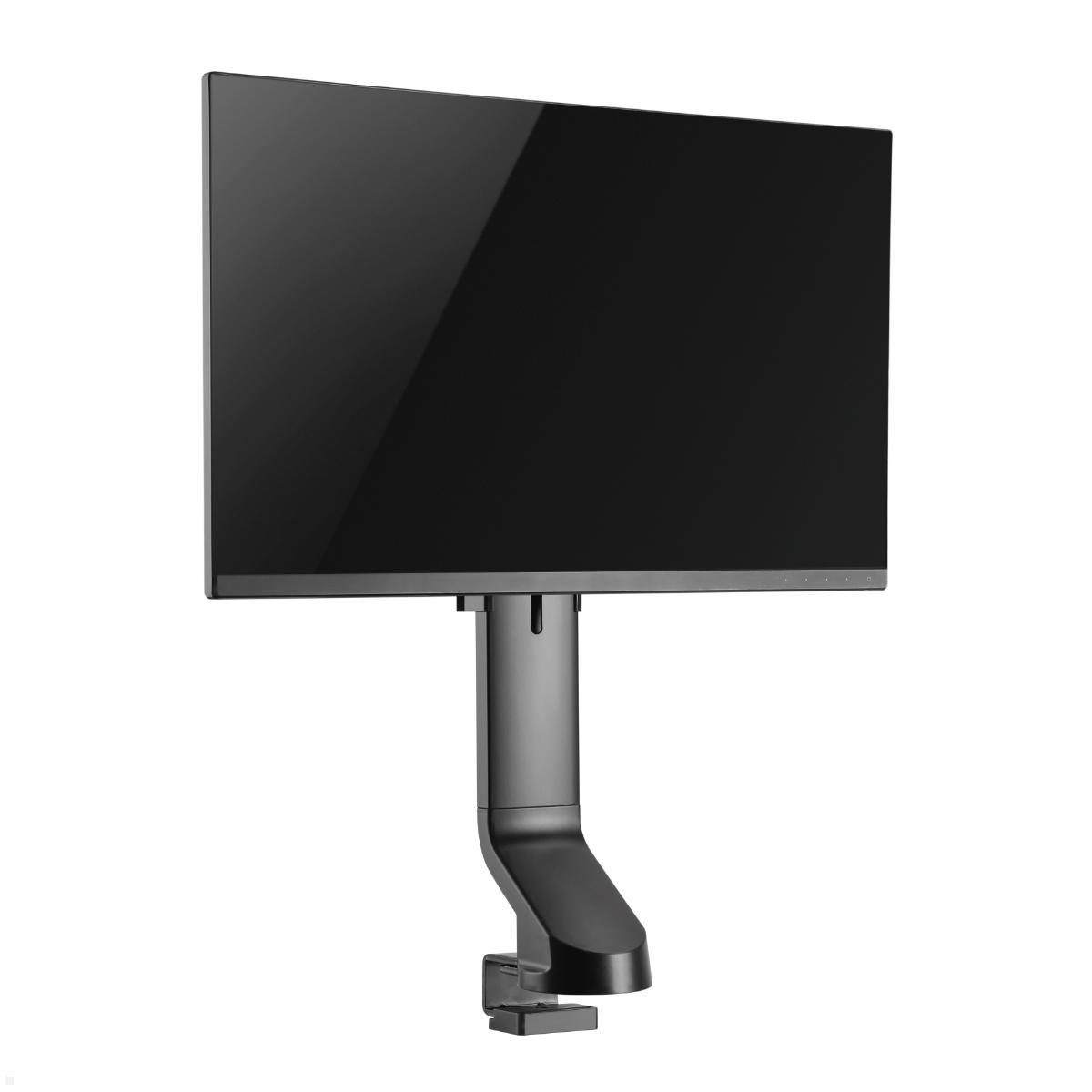

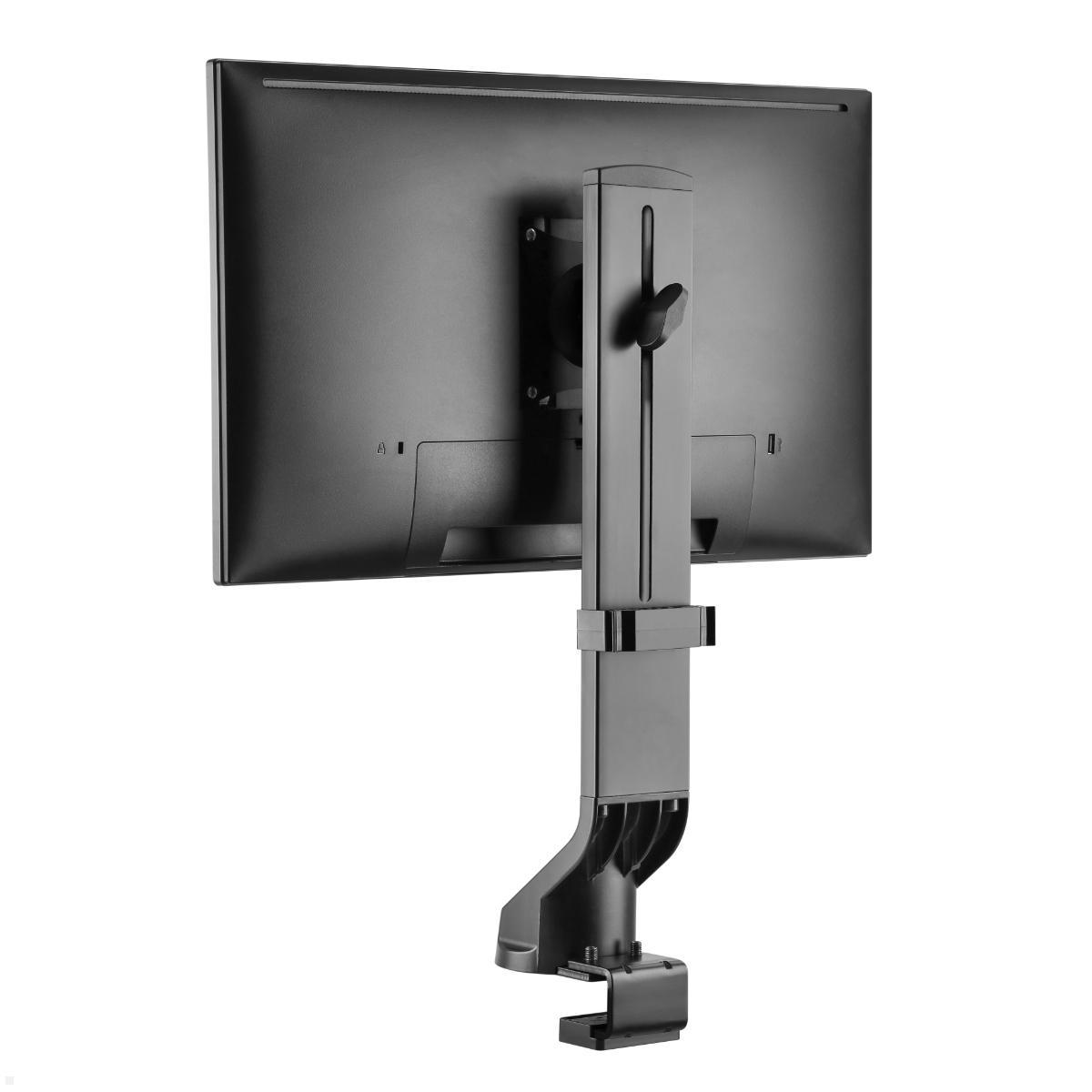

The adjustable desk monitor mount MonLines MTH014B in black is particularly suitable as a table mount for touchscreens. With a load capacity of 8 kg it provides stable support for screens with diagonals up to 32 inches. Using a rotary knob on the back, the monitor desk mount can be height-adjusted by approximately 200 mm to ergonomically optimize the viewing angle. Additionally, the mount can swivel, tilt, and rotate 180° so the screen can be viewed in both landscape and portrait orientation. The attachment to the desk is possible either with the supplied desk clamp or by screw-through mounting. Attaching the monitor is made easier by the removable VESA bracket. On the back of the column there is also an integrated cable management that keeps the desk tidy.
Technical details MonLines MTH014B height-adjustable monitor desk mount
- Flexible desk mount for touchscreens and other displays
- Screen sizes: 17 – 32 inches
- VESA mount: 75x75, 100x100 mm
- Load capacity: 8 kg
- Height adjustable: 260 – 450 mm via rotary knob
- Tilt: +/- 10 degrees
- Swivel: +/- 10 degrees
- Rotatable (Pivot): 90 degrees

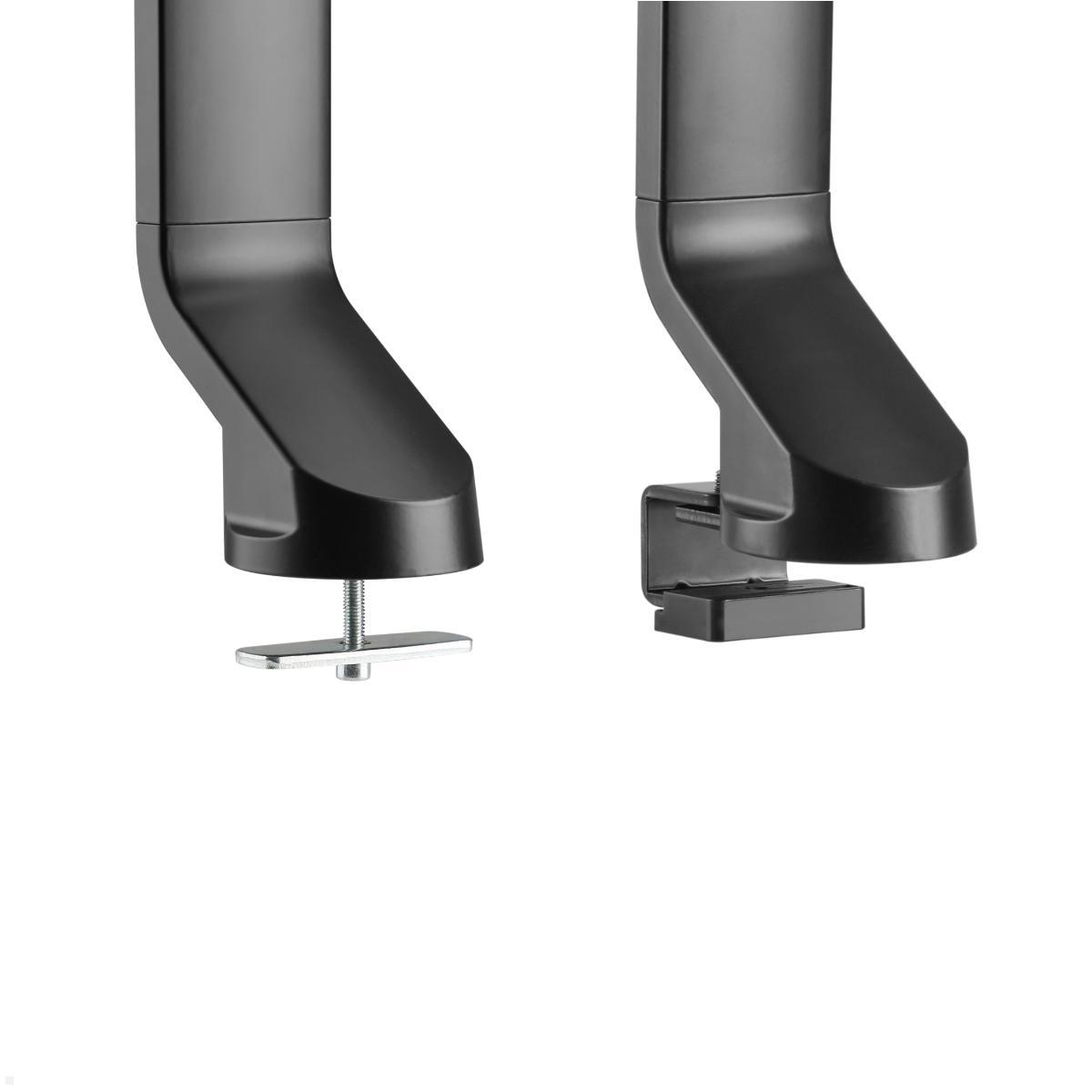

- Mounting via desk clamp with desk thickness: 10 – 25 mm
- Mounting via screw-through fastening with desk thickness: 10 – 40 mm
- Depth of column: 21.8 mm

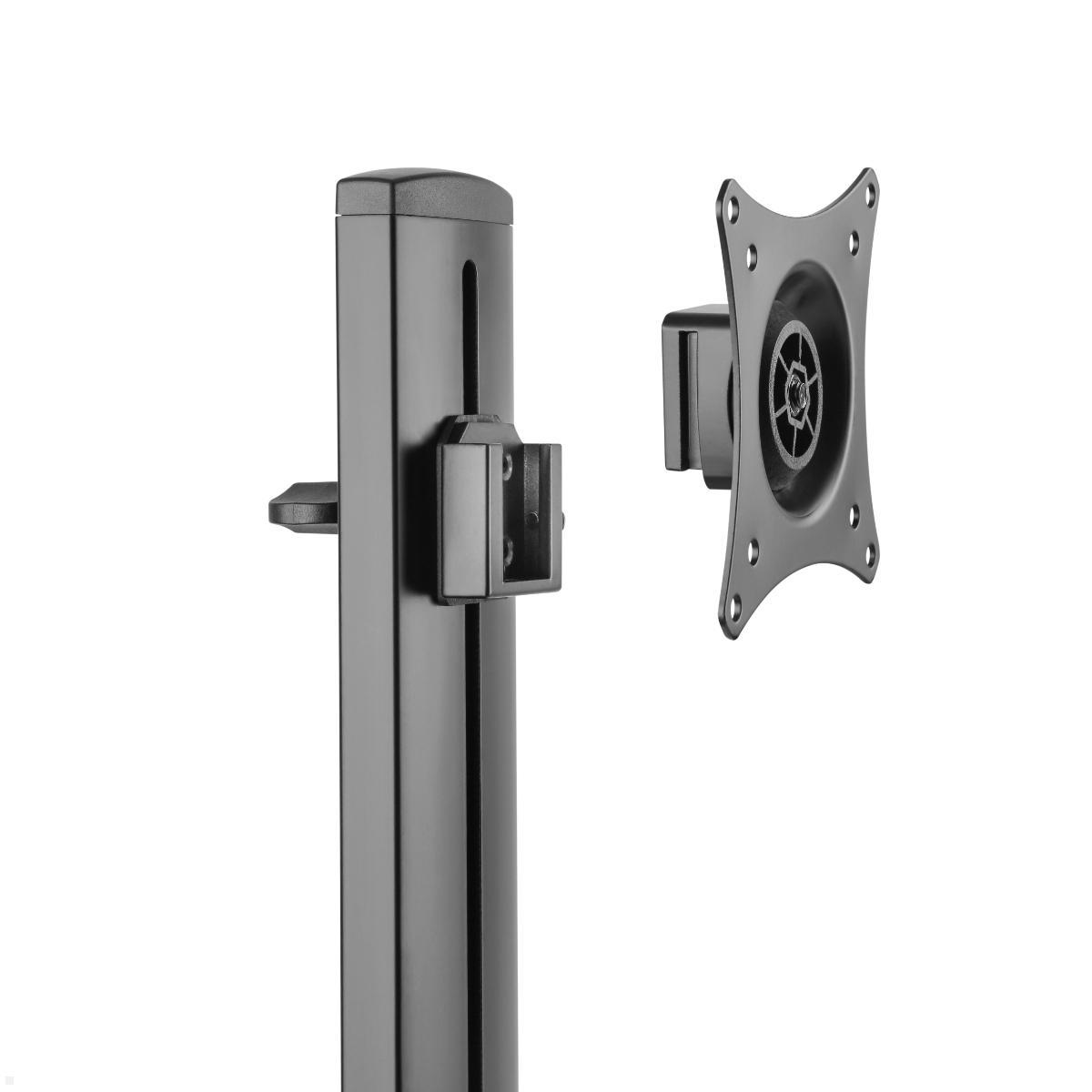

- Easier attachment of the monitor thanks to removable VESA bracket

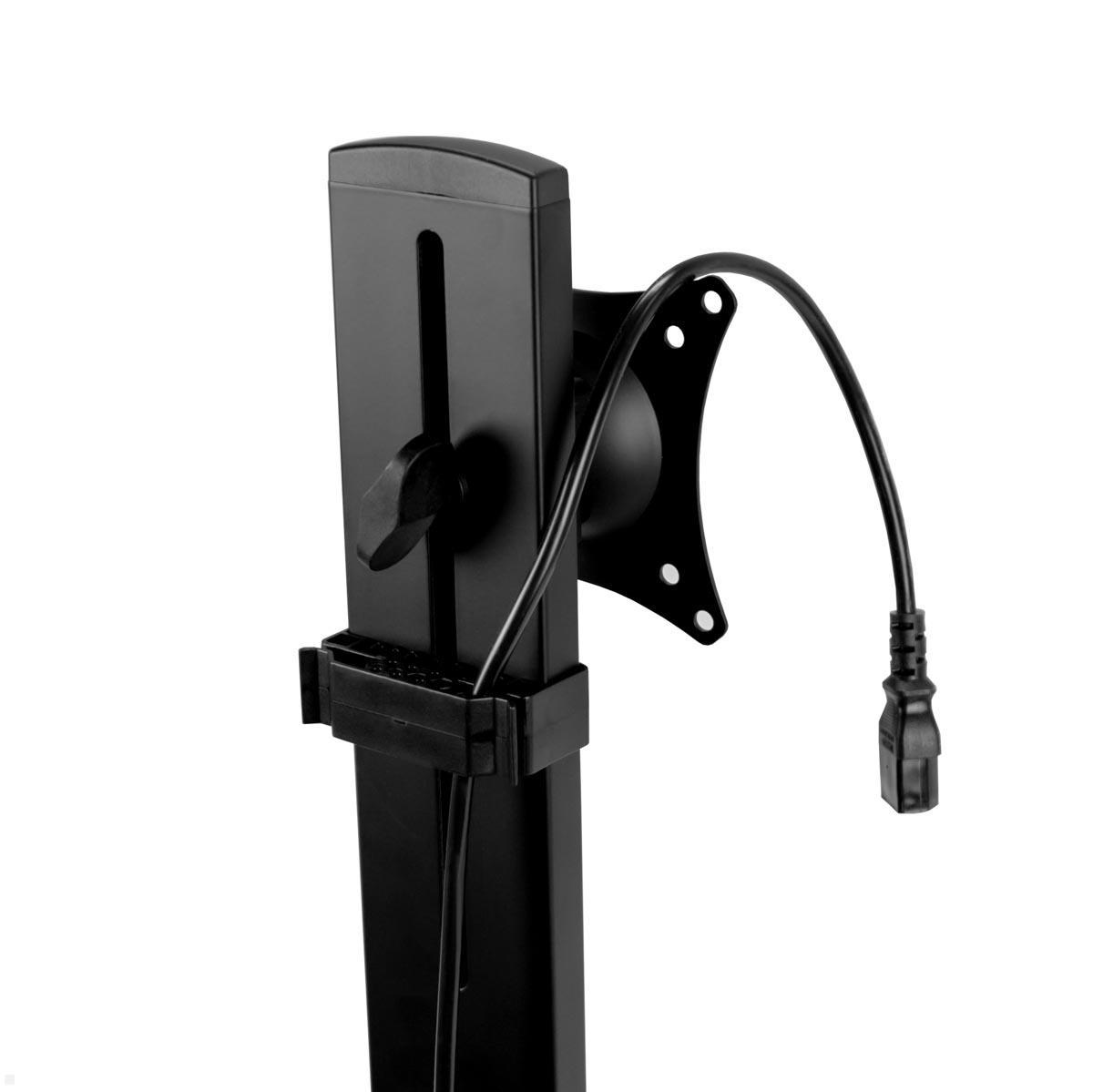

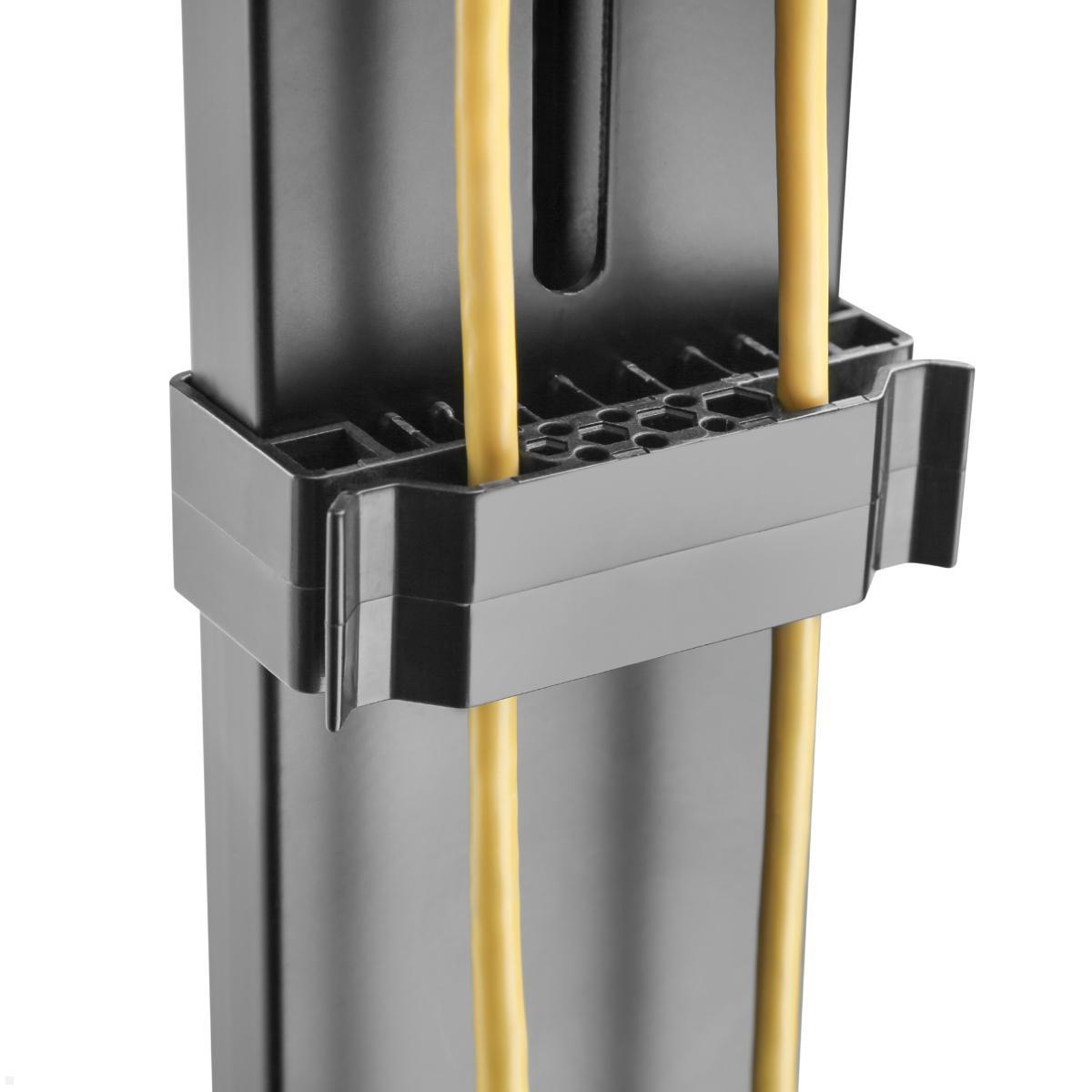

- Integrated cable management
- Color: Black
Does your monitor or display fit the monitor mount?
We will gladly check whether your monitor is suitable for this MonLines MTH014B desk monitor mount. To do so, simply provide your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display fits the mount and if not, we will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

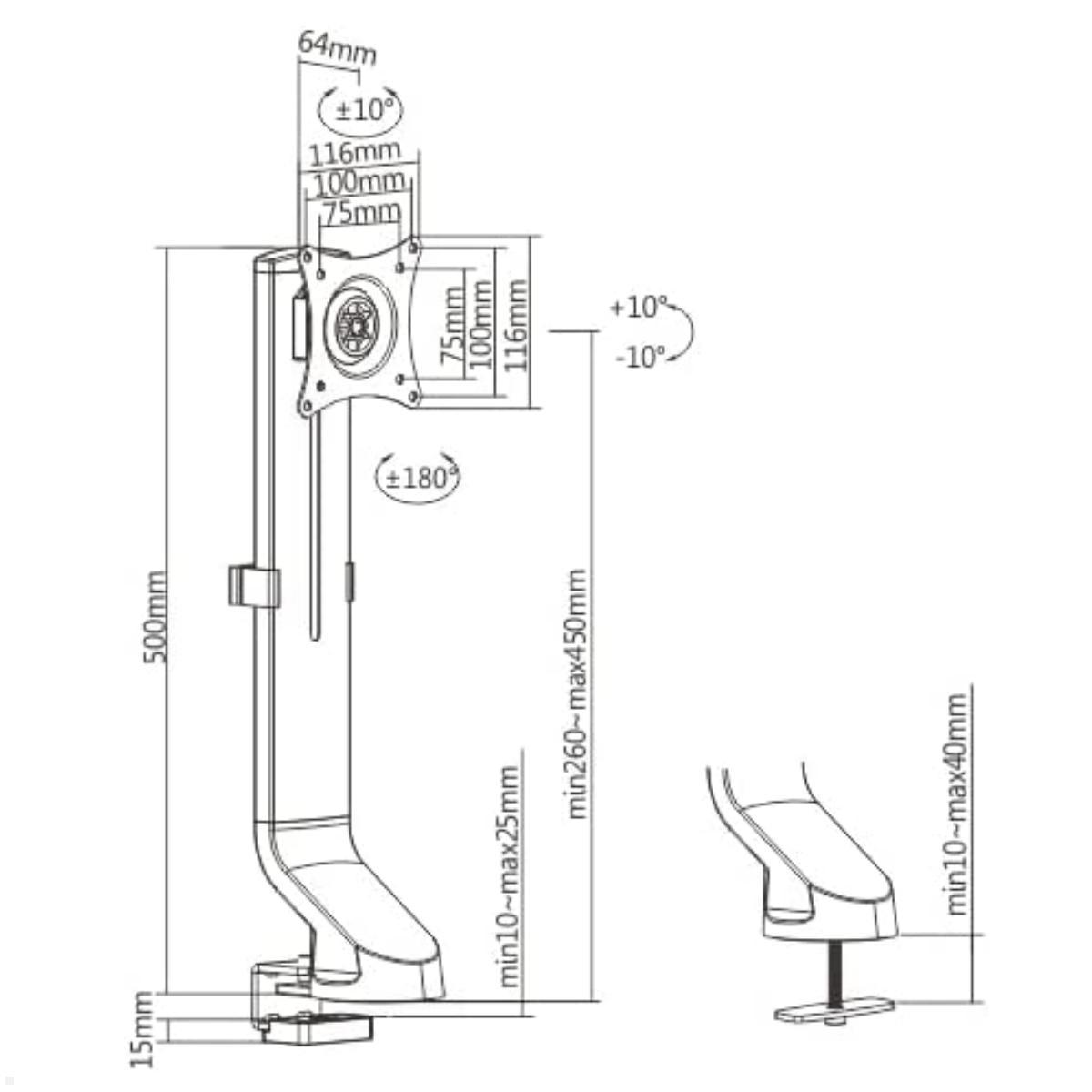

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 8 kg |
| Tilt: | +/-10° |
| Rotate: | 90° |
| Height range (mm): | 260 - 450 |
| Pivot: | 90° |
| Swivelling range: | +/-10° |
| Screen size: | 17 - 32" |
| Thickness of table (mm): | 10-25 mm (desk clamp) | 10-40 mm (drill screw) |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 410 x 138 x 92 |
| Scope of delivery: | 1x monitor desk mount | installation material |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
10 January 2026 12:02
Klare Empfehlung – Versand & spitze Erfahrung
Einfacher Bestellprozess, alles lief glatt. Hier bestelle ich definitiv wieder.
Questions & Answers
-
What screen sizes does the MonLines MTH014B fit?
It fits 17–32 inch displays, with a VESA mount of 75x75 or 100x100 mm and a load capacity of 8 kg.
-
How much weight can it support?
Up to 8 kg.
-
How do you adjust the height?
Height is adjustable via a dial on the back; range 260–450 mm.
-
What movements are possible?
Tilt ±10°, Swivel ±10°, and rotate 90°; supports landscape and portrait orientation.
-
What mounting options are available?
Desk clamp for 10–25 mm tabletop thickness or drilling screws for 10–40 mm.
-
Is the VESA plate removable?
Yes, there is a removable VESA plate for easier monitor attachment.
-
Is there integrated cable management?
Yes, there is integrated cable management on the back of the column.
-
How do I check compatibility with my monitor?
Please provide the manufacturer and model number in the order comments so we can check compatibility; we will contact you if it isn’t a match.
-
What is the maximum load rating of the MonLines MTH014B desk mount?
It supports up to 8 kg.
-
Which VESA sizes does the mount support?
VESA 75x75 mm and 100x100 mm.
-
Which desk thicknesses can be accommodated with the mount?
Clamping for 10–25 mm; drilling fixation for 10–40 mm.
-
How deep is the column of the mount?
Column depth: 21.8 mm.
-
What color is the mount?
Color: Black.
-
Is the mount suitable for touchscreens?
Yes, it is particularly well suited as a desk mount for touchscreens.
Why is the MonLines MTH014B the right desk mount for your touchscreen?
The MonLines MTH014B touchscreen desk mount offers a flexible solution for anyone who wants to position their screen ergonomically at the workplace. Thanks to the stepless height adjustment via a rotary control, the mount can be individually adapted to the user's seating position, which helps prevent neck and back tension. The robust construction supports monitors and touchscreens weighing up to 8 kg and with a screen diagonal of 17 to 32 inches. The VESA-compatible mounting with sizes 75x75 and 100x100 mm ensures that almost all common screens can be attached without problems. Particularly practical is the removable VESA plate, which makes attaching and detaching the monitor much easier.
What mounting options does the MonLines MTH014B monitor desk mount offer?
The mount can be installed either with a desk clamp for table thicknesses of 10 to 25 mm or with a bolt-through mounting for table thicknesses of 10 to 40 mm. This makes it suitable for different desks and workstations in offices, home offices, medical practices, reception areas, or retail. The integrated cable management on the back of the column keeps all cables neatly together and provides a tidy appearance on the desk. Thanks to swivel, tilt, and rotation functions, the screen can be positioned as desired and, if needed, rotated to portrait orientation.
For which applications is the height-adjustable desk mount suitable?
The MonLines MTH014B is especially well suited for interactive applications with touchscreens, since the stable construction provides firm support even with frequent screen operation. In point-of-sale systems in retail, as an information display at reception desks, or as an ergonomic workstation solution in the office, the desk mount shows its strengths. The black color blends unobtrusively into any environment. Thanks to the flexible mounting and compact design, the mount can be installed quickly and, if necessary, disassembled again without leaving marks on the table.
