MonLines MTH305B Para 4+2 monitor table holder stand up to 19 inches, black
The MonLines MTH305B monitor stand Para 4+2 is a multi-monitor mount for the table of 6 monitors on 2 trusses each with a load capacity of 15 kg per monitor mount with VESA standard 75x75 and 100x100mm.

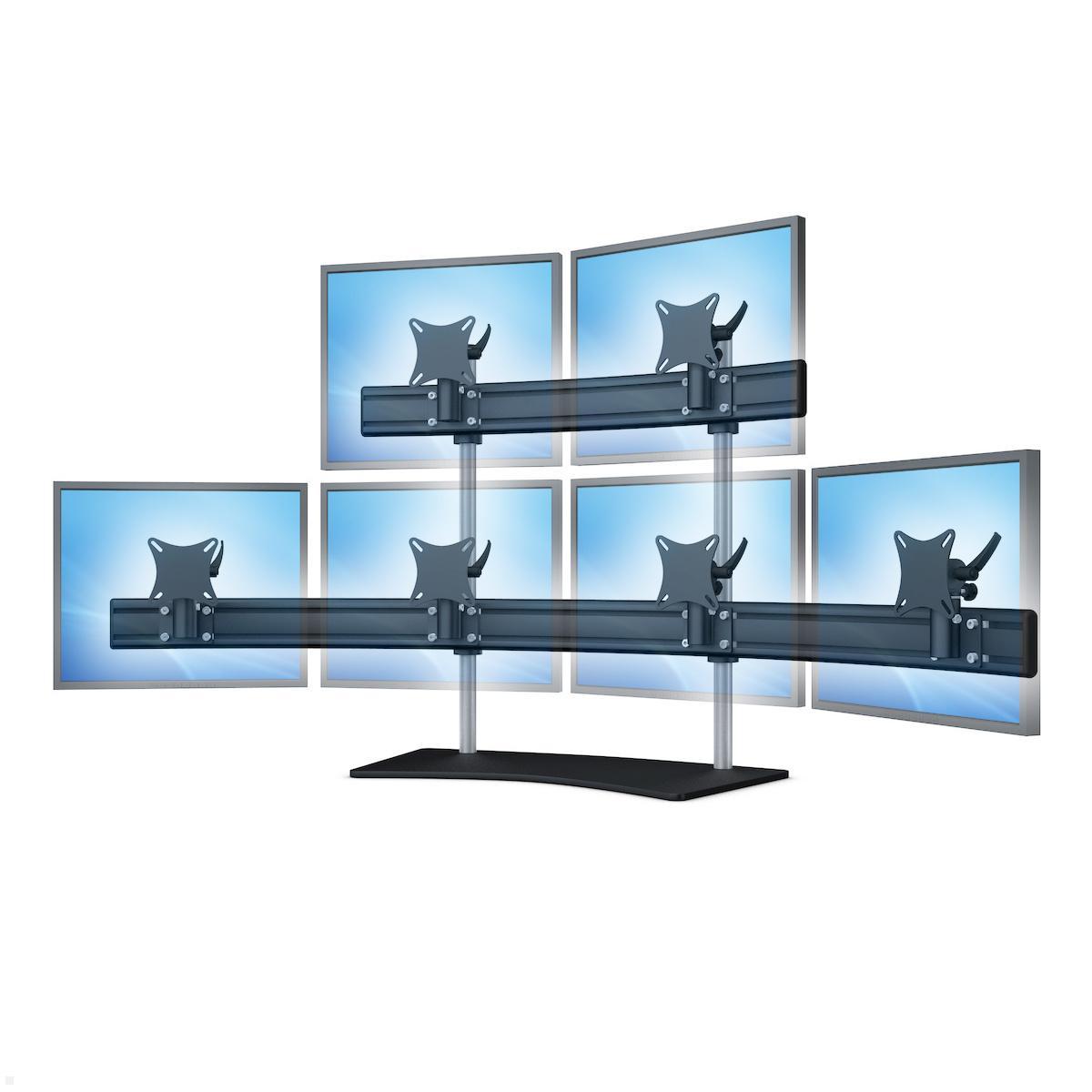

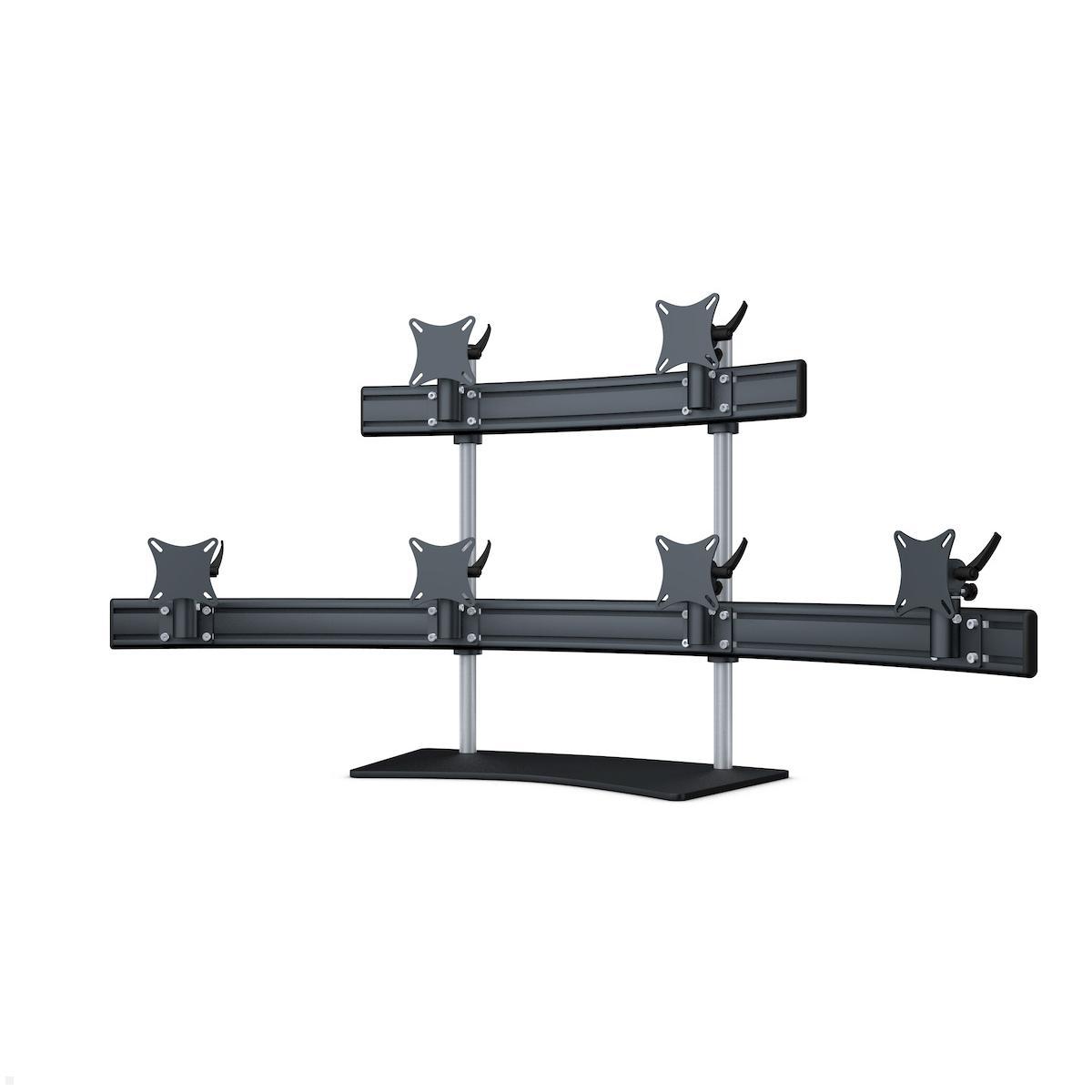

Monitor table stand Para 4+2 in black
The monitor table stand Para 4+2 in black multi-screen solution can be infinitely adjusted horizontally and vertically. The stable metal construction of the holder with high-quality powder coating is available in different colors and mounting options. The Para system for the parabolic arrangement of the monitors offers investment security thanks to its modular expandability and a load capacity of up to 15 kg per monitor. Special sizes are available on request.
Up to 8 TFT monitors can be installed and attached to the wall or ceiling. Table clamps or installation adapters also offer a firm hold, as does the standard version, the table stand, which does not require fixed mounting.
Please note the exact dimensions of the monitors to be fastened with the parabolic arrangement.< /p>
Key features MonLines MTH305B
- Mounting: stand / table stand
- Load capacity: 15 kg per monitor holder
- Monitor mount: 6 VESA mounts 75x75 mm and 100x100mm
- 6 monitors on 2 levels
- 1 truss (parabolic) for 2 monitors each
- 1 truss (parabolic) for 4 monitors each
- Column length 700 mm for 2 levels
- Maximum monitor width 540mm (with the same monitor size) for the traverse with 2 monitors
- Maximum monitor width 480mm (for same monitor size) for the truss with 4 monitors

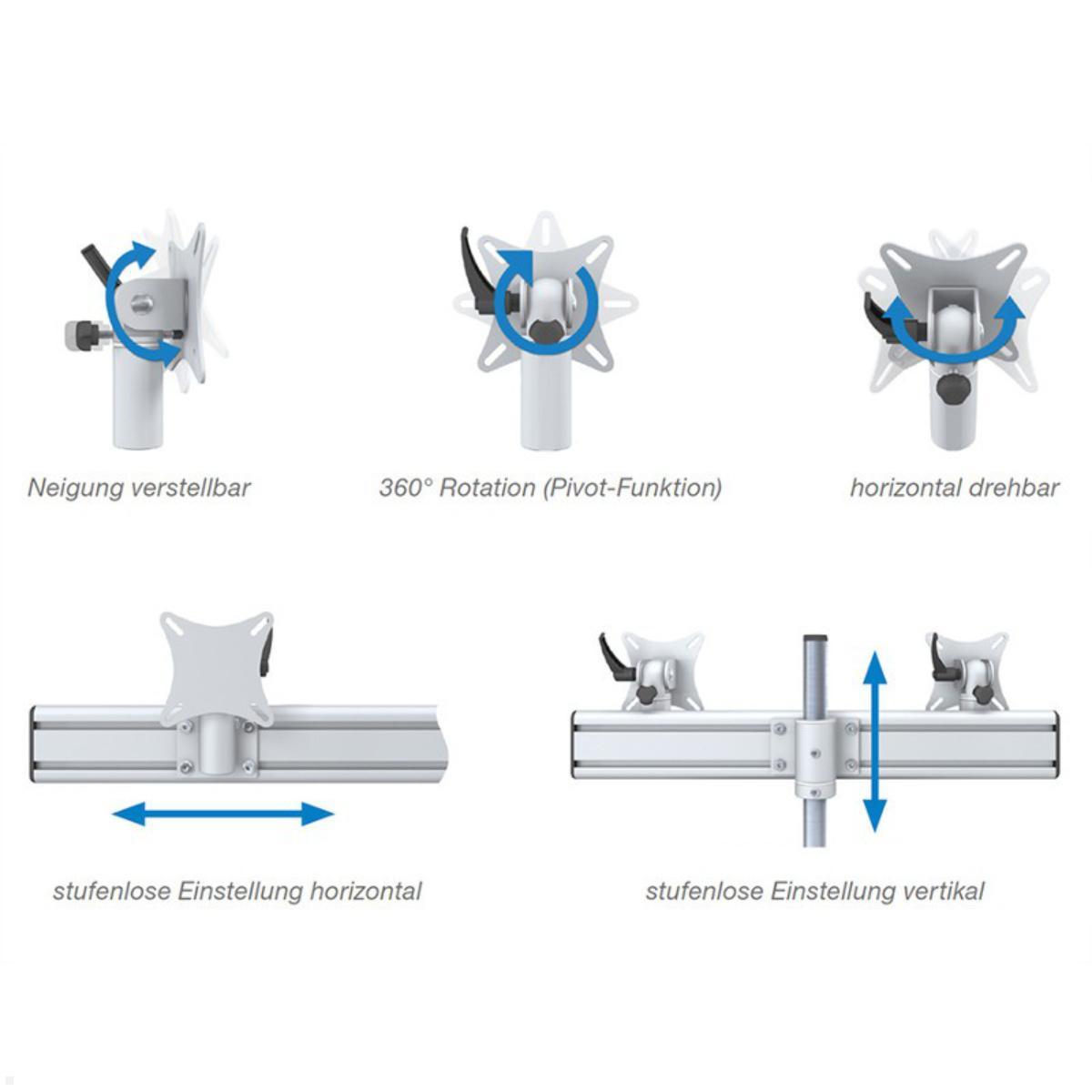

- Infinitely variable height adjustment of the monitor holder
- Infinitely variable width adjustment of the monitors on the truss

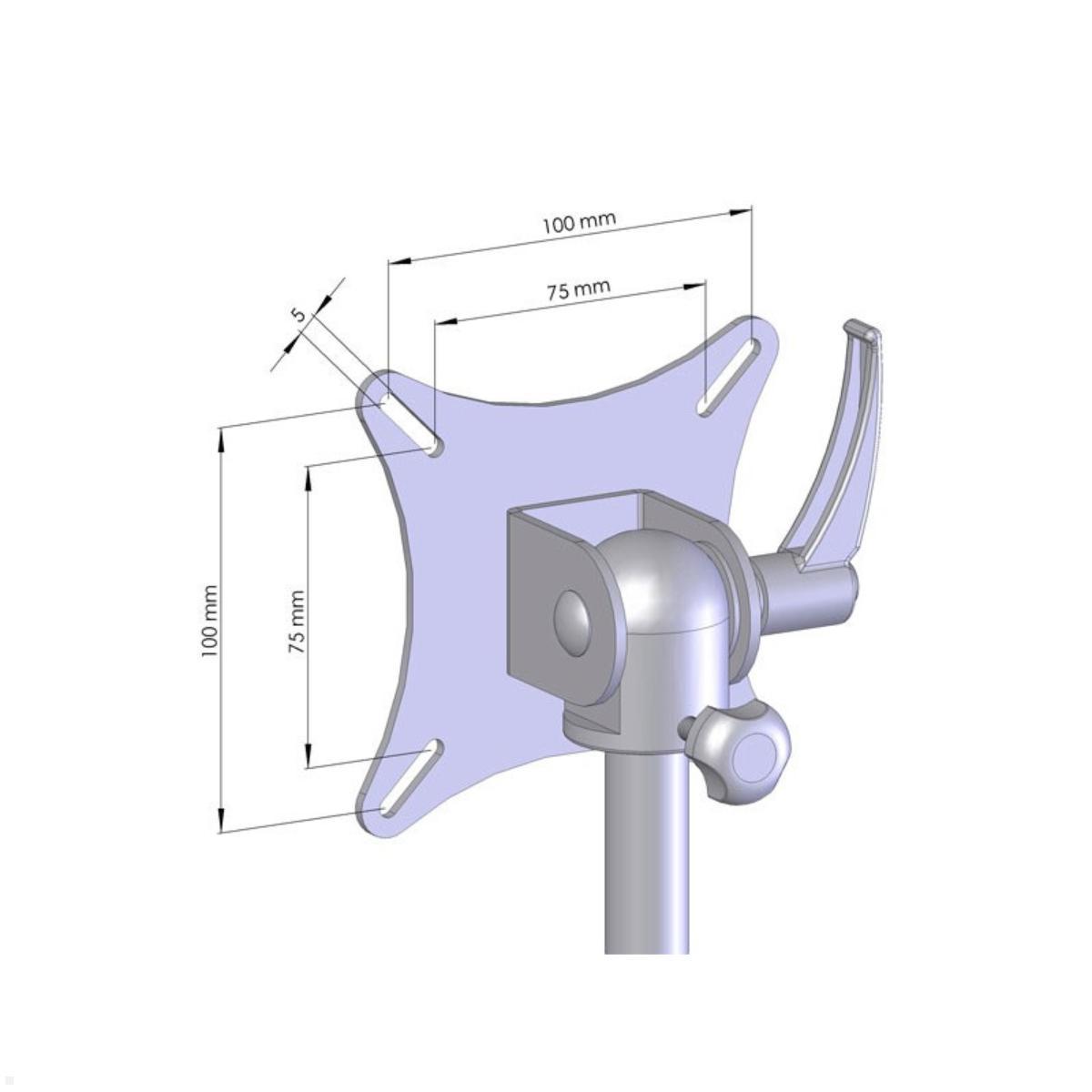

VESA -Adapter
- Most manufacturers of TFT monitors have agreed on this standard for attaching a monitor swivel arm. In such cases, the monitor base can be removed.
- On the back of the monitor there are 4 holes with internal threads at a distance of 75x75mm or 100x100mm for larger monitors.
- The VESA adapter supports both Hole pattern 75x75mm and 100x100mm.
- Three pivot points allow flexible adjustment of the monitor.
Optional
- Individual production according to customer requirements
- One-off and series production
- Special sizes and special colors

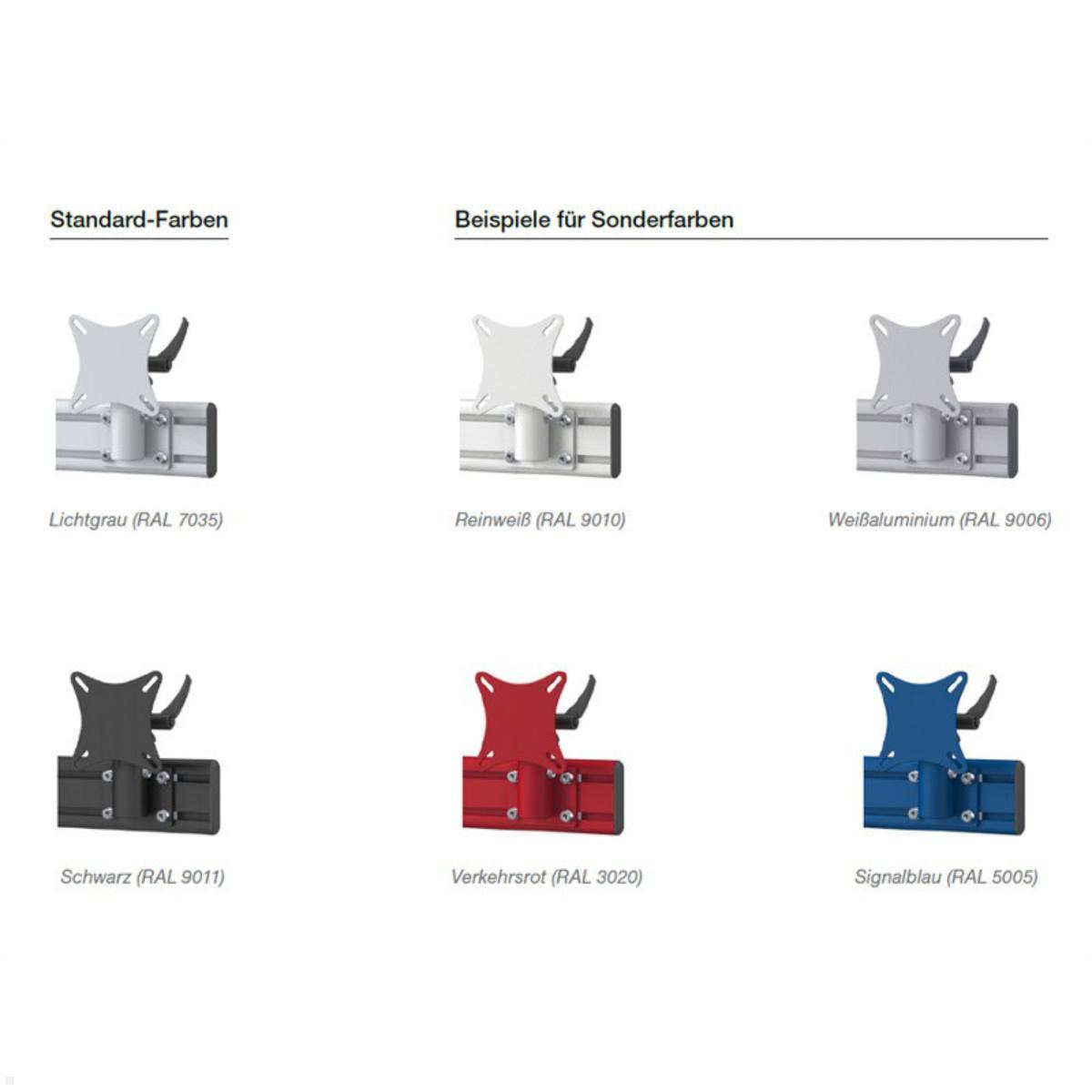

- You can get the bracket in any RAL color. Please select "color of your choice" and enter the RAL color in the comment field during the ordering process!

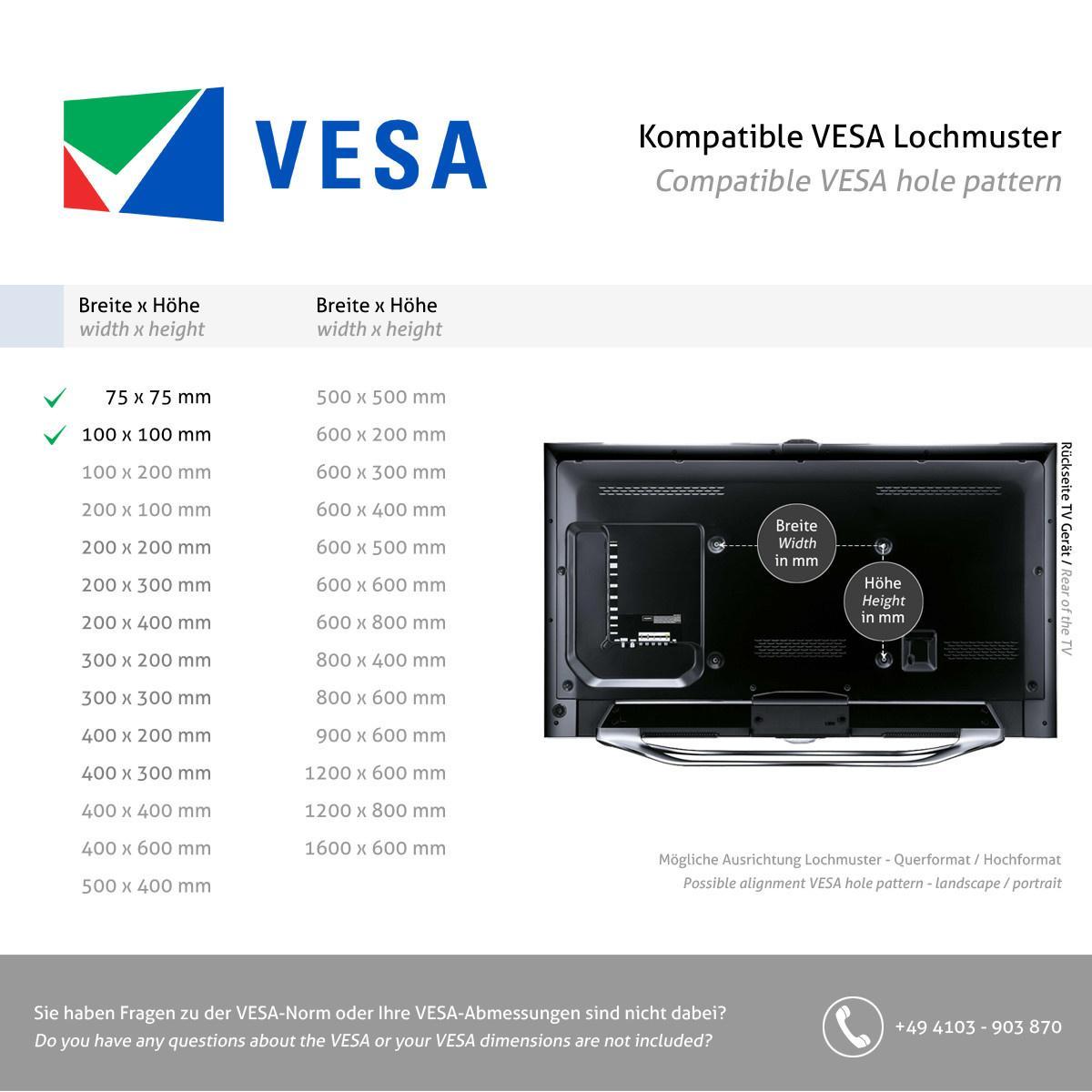

VESA Standard - Learn more about the VESA standard for monitor mounts!
| Technical drawing: |  [pdf] |
|---|---|
| Others: | [pdf] |
| Installation manual: | [pdf - German] |
| Capacity: | 15 kg per monitor holder |
| Tilt: | 25° nach unten / 9° nach oben |
| Screen size: | 17 - 19" |
| Material: | metal, aluminum |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |

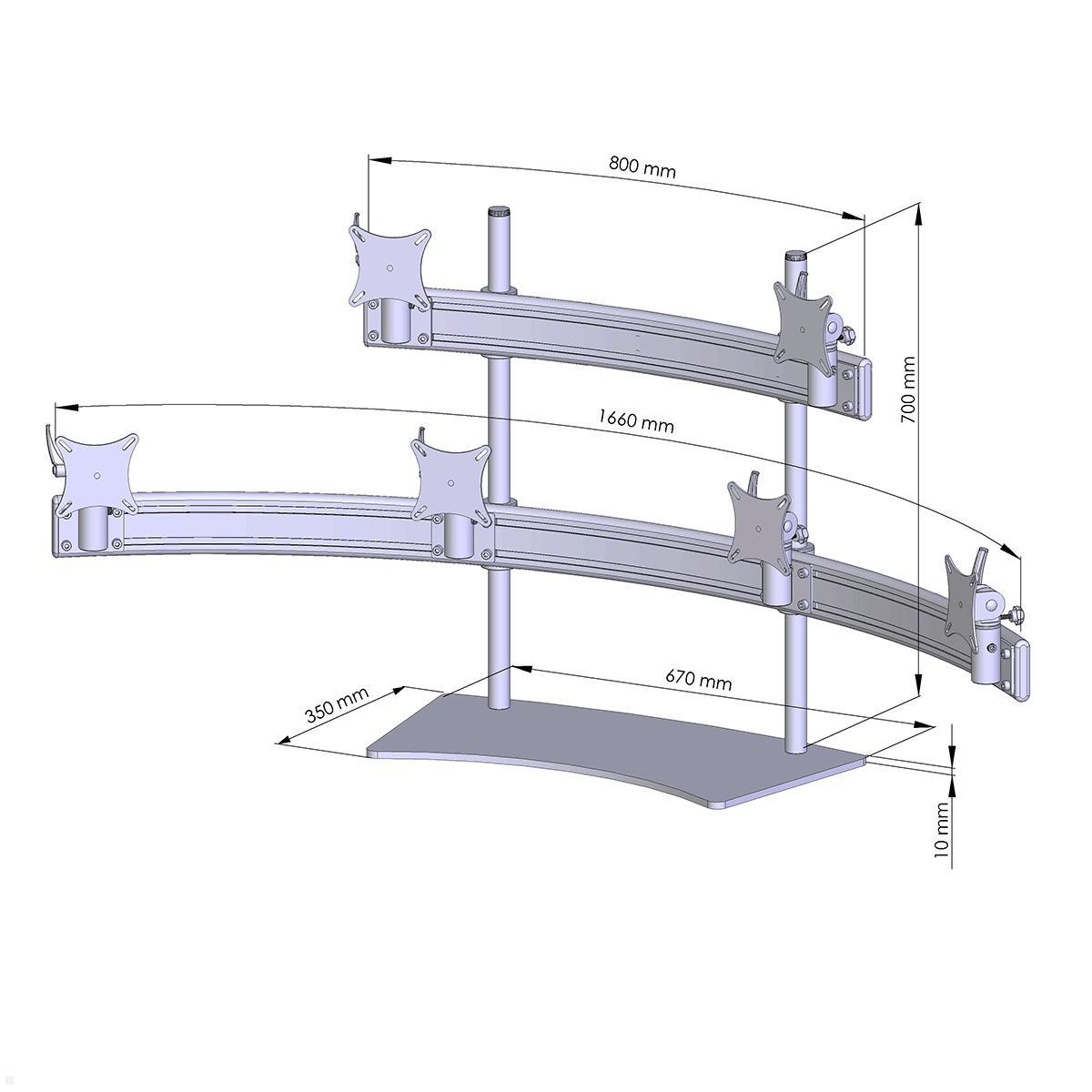

| Scope of delivery: | 1 x table stand 670 x 350 x 10 mm, 2 x traverses (parabolic) 1,660 + 800 mm, 2 x columns Ø 30 x 700 mm with RS, 4 x column mounts and collars, 6 x VESA 75/100 mm and slides |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 17 inch, 18 inch, 19 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk stand |
| Multi-monitor mount: | Solution for 6 |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
