MonLines MTH306B Para 2+1 monitor table holder stand up to 19 inches, black
The MonLines MTH306B monitor standß Para 2+1 is a multi-monitor mount for the table of 3 monitors on 2 trusses each with a load capacity of 15 kg per monitor mount with VESA standard 75x75 and 100x100mm.

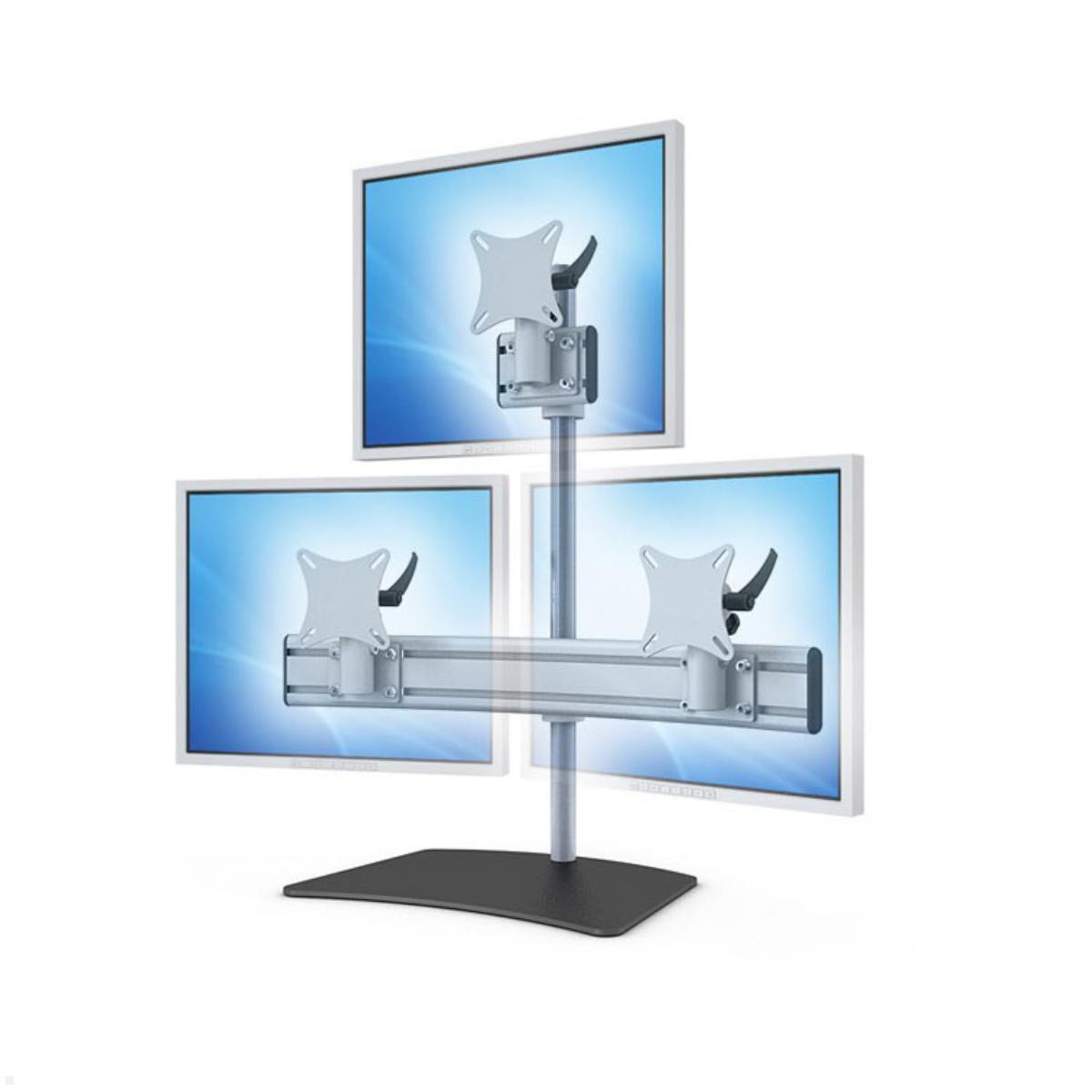

Monitor stand Para 2+1 Display in black

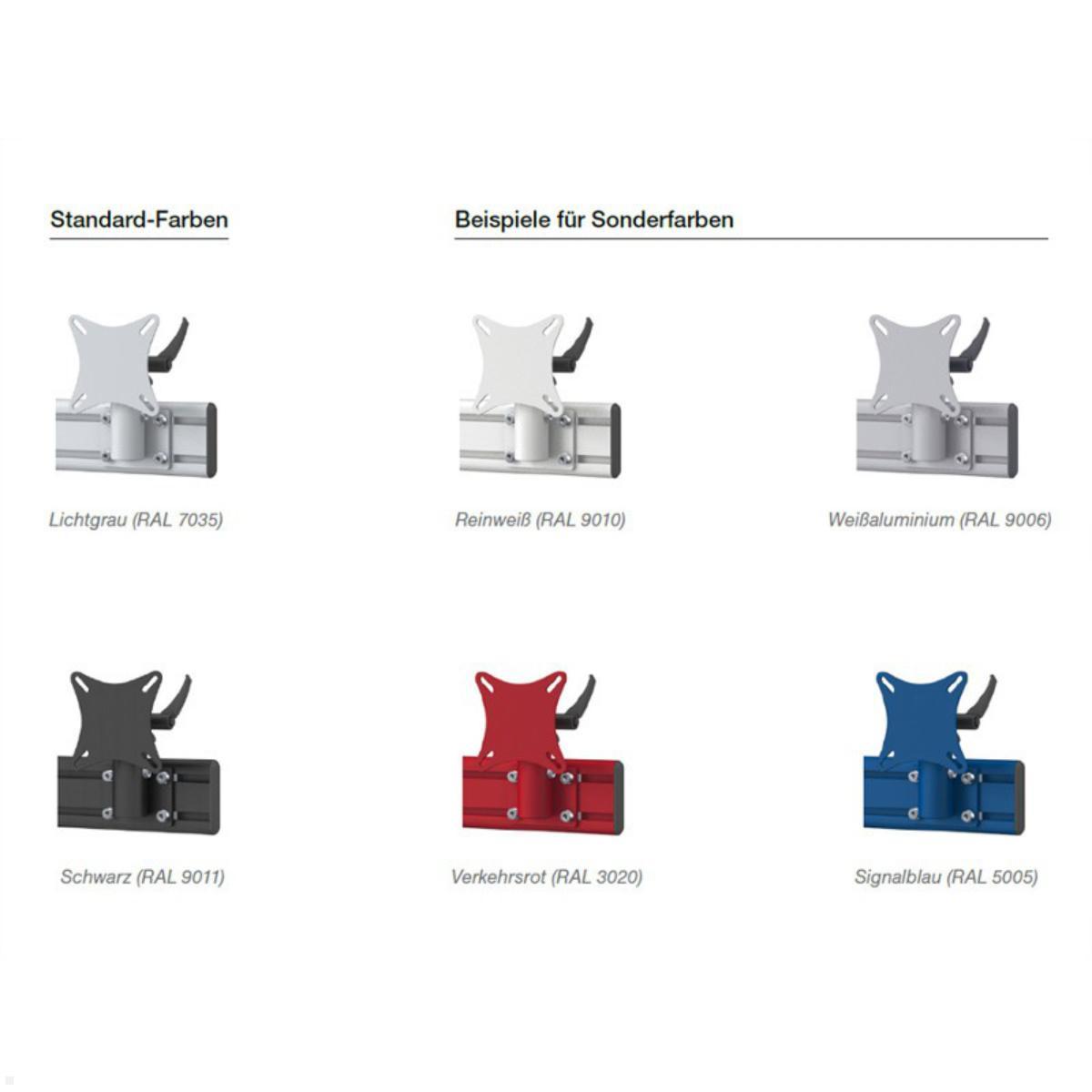

The system MonLines Monitor Stand Para 2+1 Display in black offers multi-screen solutions for monitors that can be continuously adjusted horizontally and vertically. The stable metal construction of the holder with high-quality powder coating is available in different colors and mounting options. The para-system for the parabolic arrangement of the monitors offers investment security thanks to its modular expandability and a load capacity of up to 15 kg per monitor.
Note the para-system 2+ when arranging the MonLines monitor stand parabolic 1 display please state the exact dimensions of the monitors to be attached.
Key features MonLines MTH306B
- Mounting: Stand / Table stand
- Colour: Black RAL 9011
- Load capacity: 15 kg per monitor holder
- Monitor holder: 3 pieces VESA holder 75x75 mm and 100x100mm
- 3 monitors on 2 levels
- 1 truss (parabolic) for 2 monitors each
- 1 truss for 1 monitor each
- Column length 700 mm for 2 levels

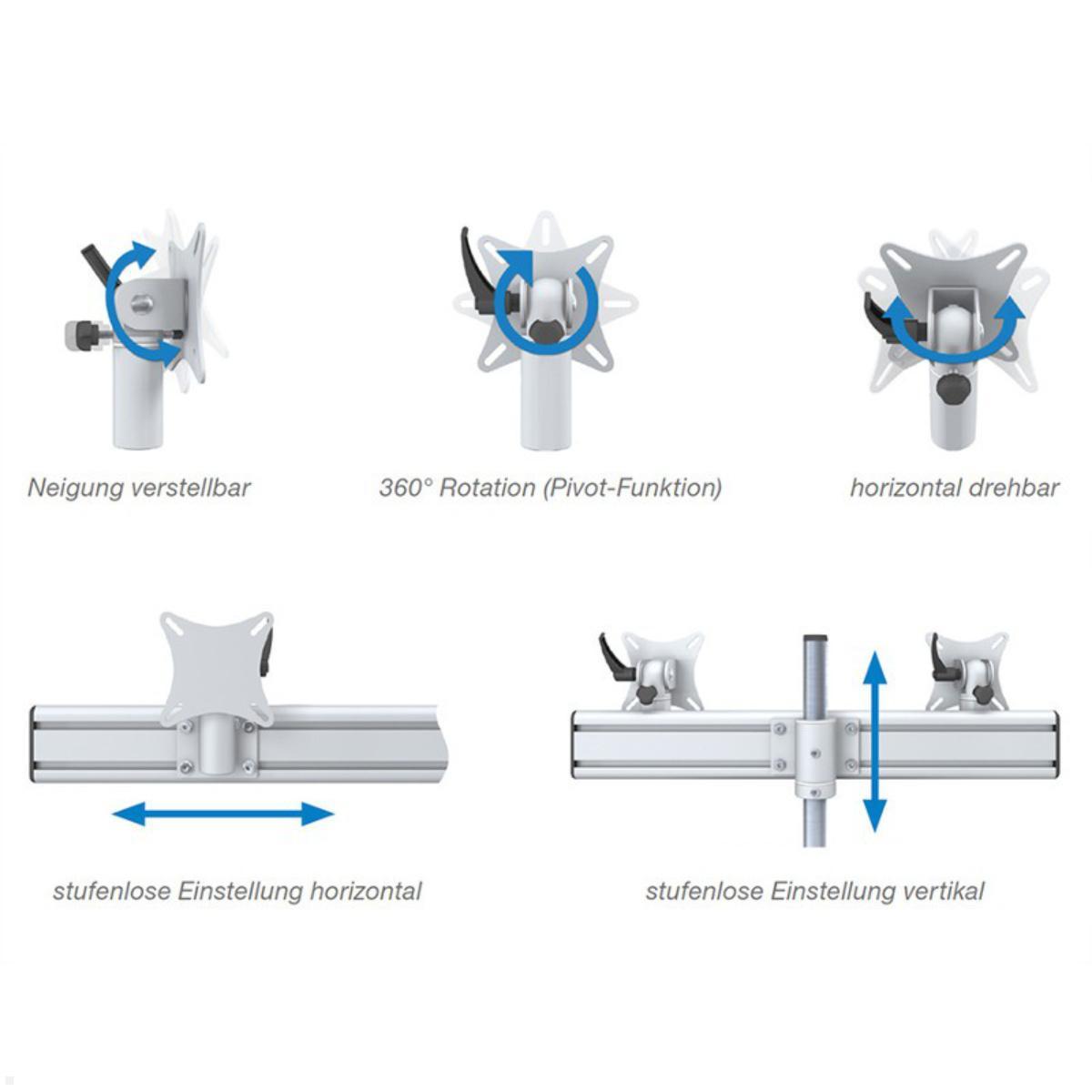

- Infinitely variable height adjustment of the monitor holder
- Infinitely variable width adjustment of the monitors on the traverses

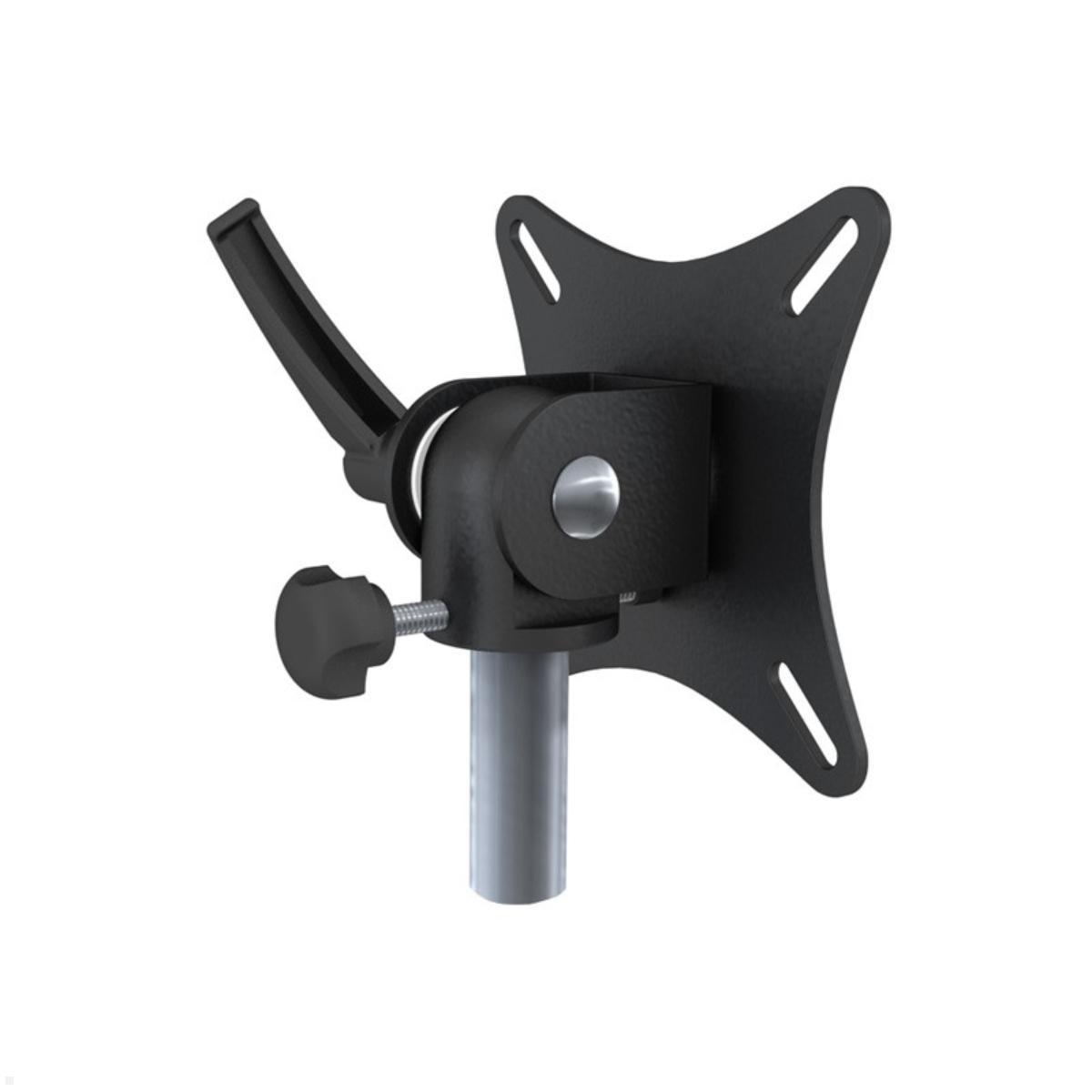

VESA adapter Para mount 2+1
- Most manufacturers of TFT monitors have agreed on this standard for attaching a monitor swivel arm. The monitor footß can be removed in such cases.

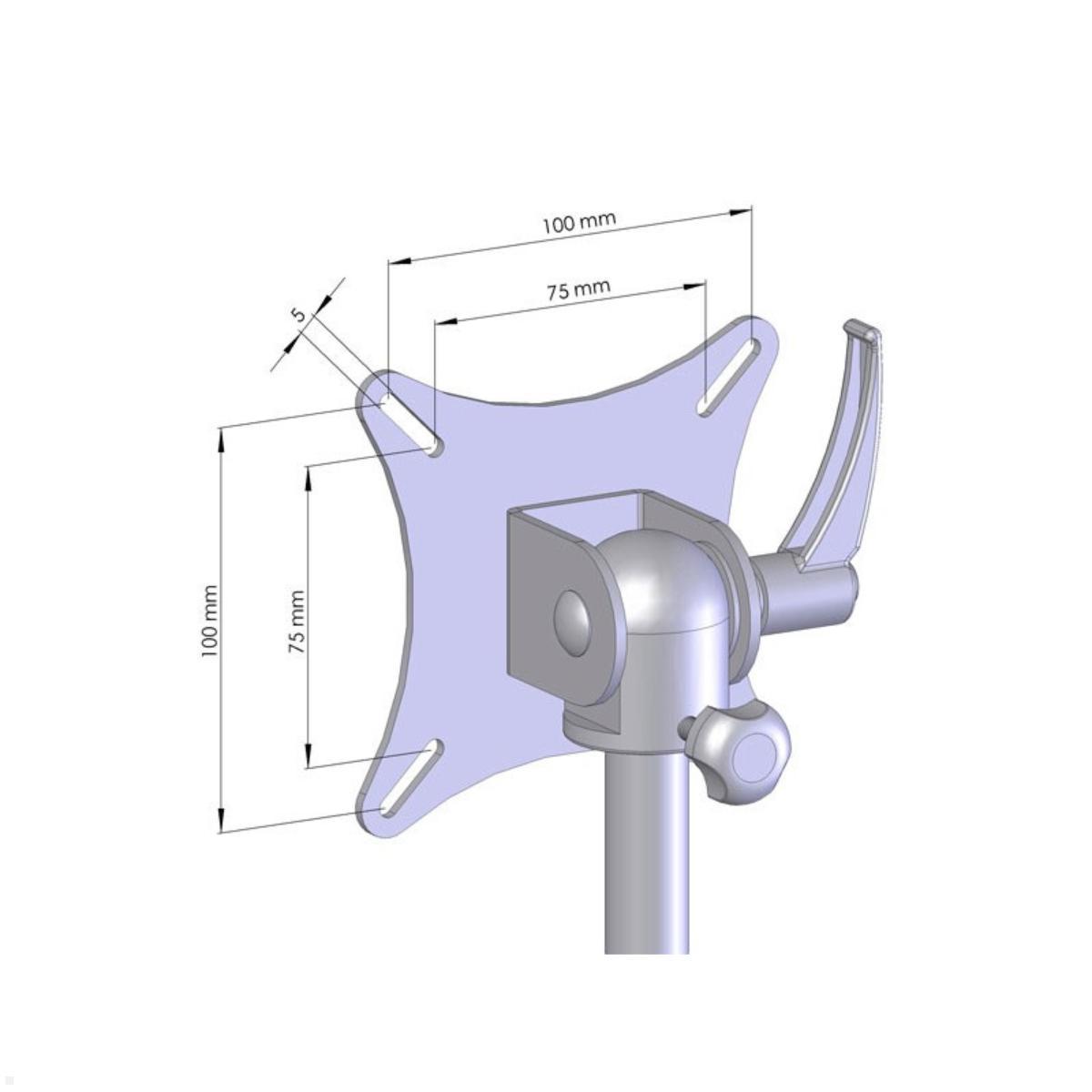

- On the back of the monitor there are four holes with internal threads at a distance of 75x75mm or 100x100mm for larger monitors.
- The VESA adapter supports the hole pattern 75x75mm as well as 100x100mm.
- Three pivot points enable flexible adjustment of the monitor.
VESA standard strong> - Learn more about the VESA standard for monitor mounts!
| Technical drawing: |  [pdf] |
|---|---|
| Others: | [pdf] |
| Installation manual: | [pdf - German] |
| Capacity: | 15 kg per monitor holder |
| Tilt: | 25° nach unten / 9° nach oben |
| Screen size: | 15 - 19" |
| Material: | metal, aluminum |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |

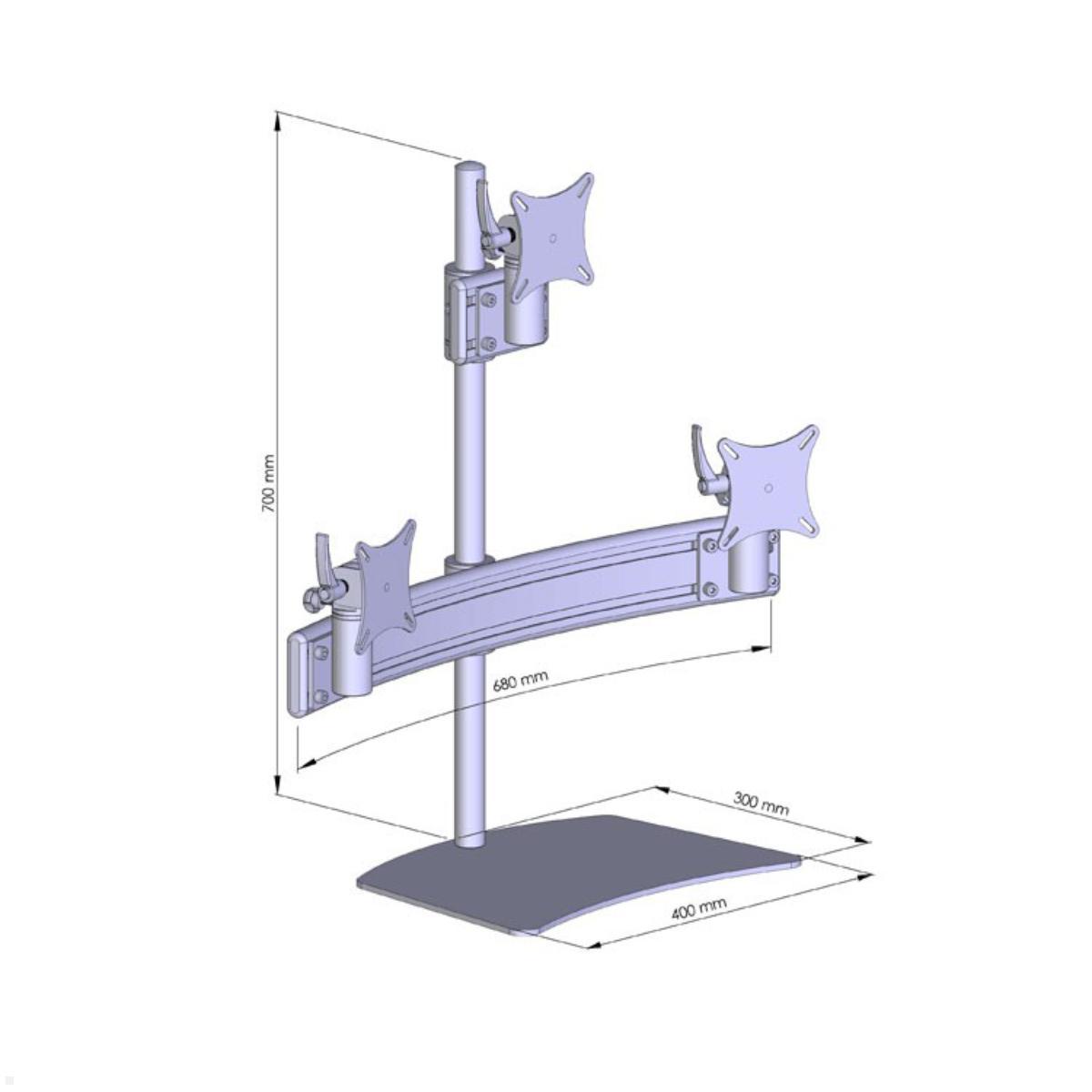

| Scope of delivery: | 1x table stand 400 x 300 x 6 mm, 2x column holder with adjusting ring, 1 x column Ø 30 x 700 mm, 2 x traverses (parabolic) 1,180 + 160 mm, 3x VESA 75/100 mm and slide |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | Stand, desk stand |
| Multi-monitor mount: | Triple solution |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
