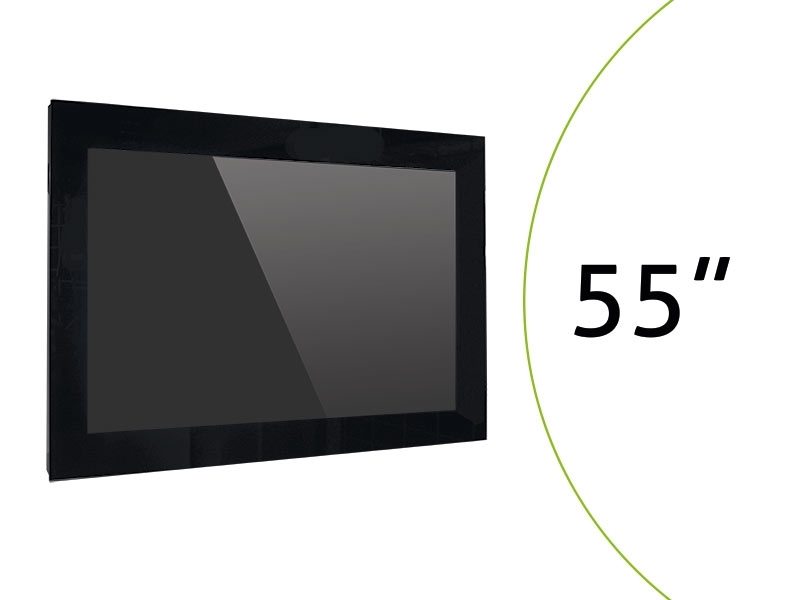

MonLines MWD020B Design PCAP Touch Wall Display 55 inch Premium landscape
The MonLines Design Touch wall display MWD020B in black brings in a sleek design a high-quality 55 inch LG Monitor for the installation in landscape orientation. The wall mount with touchmonitor responds to touch with your fingers through the PCAP touch function and is not disturbed by other objects.

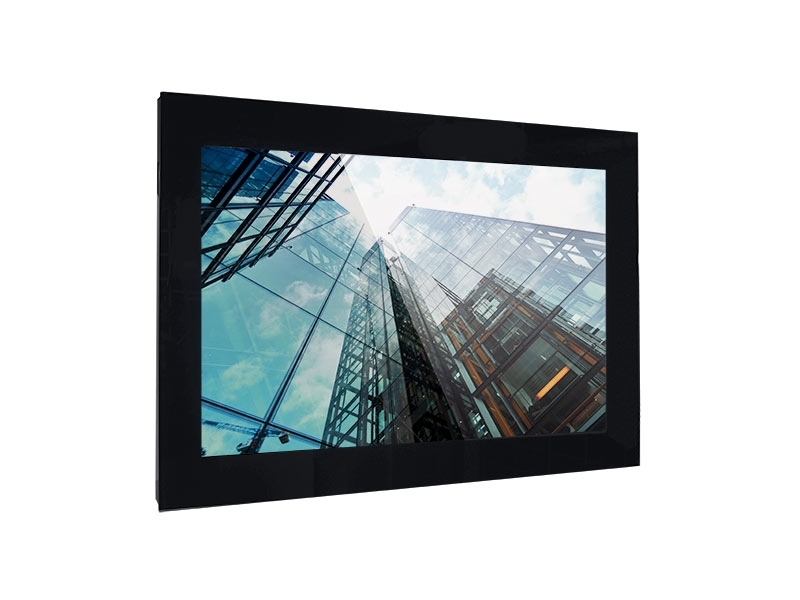

MonLines MWD020B Design Touch Wall Display 55 inch landscape
The MonLines digital wall display MWD020B in black brings in a sleek design a high-quality 55 inch LG Touchmonitor as well as all the technology, including your favorite computer. The integrated LG display impresses with a large-scale and brilliant presentation of all your advertising messages even under difficult lighting conditions. The modern upgrade-capable technology forms an attractive platform for professional target group-specific presentations.
wall display - LG Monitor with PCAP Touchfunction

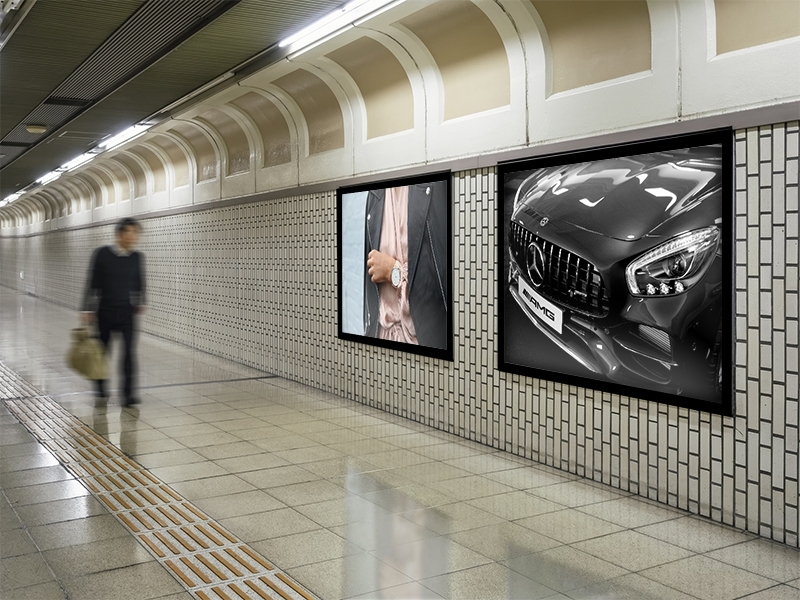

The MonLines Design Wall Display MWD020B is a 6mm thick ESG screen with PCAP Touchfunction fully attached to the front. Ideally, the various MonLines display wall mounts for digital signage can be used as advertising media and can be placed e.g. in cinemas, shop windows, shopping malls, at fairs, train stations or airports. Digital advertising aids support the effectiveness of large-scale images and video.
Key features MonLines MWD020B Design Touch Wall Display:
- PCAP Touch, 2 TP professional touch screen,
which is laminated behind the glass slice - Material: sheet steel, black powder coated, smooth glossy
- hard-bonded, backside ceramic-printed front screen 6mm ESG,
edged and chamfered - LG Monitor Display size: 55 inch
- Installation: landscape orientation
- Viewing angle: 178°/178°
- Dimensions (WxHxD): approx. 1378 x 849 x 88 mm
- Weight: approx. 70kg
- Display resolution: 1920 x 1080 pixels
- Brightness: 700 cd/m², LED-Backlight
- Protection class: IP 20
- Connection current: 100-240 V AC, 50/60 Hz
- Operating time: 24/7
Selectable options:
- Aluminum look with special powder coating
- Mini PC with WLAN module
- Flightcase
- Content-Management-Software
Is the MonLines MWD020B Design Touch Wall Display the right solution for you?
Put on interactive content and show customers via MonLines MWD020B wall display news, advertising messages and other digital content. If you have further questions about our products or services, you are welcome to contact us via e-mail or telephone.
| Product sheet: |  [pdf, 185 kb] |
|---|---|
| Screen size: | 55" |
| Material: | Stahl |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 55 inch |
| Mobility: | fixed |
| Mounting type: | wall mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
3 January 2026 01:42
Perfekt für Frip-Tech
Ich kann jedem nur Empfehlen das Produkt EasyRevievs zu kaufen!
Questions & Answers
-
What is the screen size and resolution of the MonLines MWD020B?
The MonLines MWD020B is a 55-inch display with a 1920x1080 resolution and 700 cd/m² brightness. It has a 178° viewing angle.
-
Is the display touch-enabled?
Yes, it features a full-front 6 mm ESG glass with touch function.
-
What are the technical specifications?
55-inch display, 1920x1080 resolution, 700 cd/m² brightness, 178° viewing angle; IP20, 100-240 V AC, 50/60 Hz; 24/7 operation.
-
What are the dimensions and weight?
Dimensions are 1378 x 849 x 88 mm (W x H x D) and it weighs approximately 70 kg.
-
What options or add-ons are available?
Aluminium look with special powder coating, mini-PC with WLAN module, flightcase, and content-management software.
-
What usage areas is it suitable for?
Ideal for digital signage in cinemas, shop windows, shopping centres, trade shows, stations or airports.
-
Is a PC included with the system?
Yes, the technology including your preferred PC is integrated.
-
How can I contact for questions?
For questions about our products or services, please contact us by email or phone.
