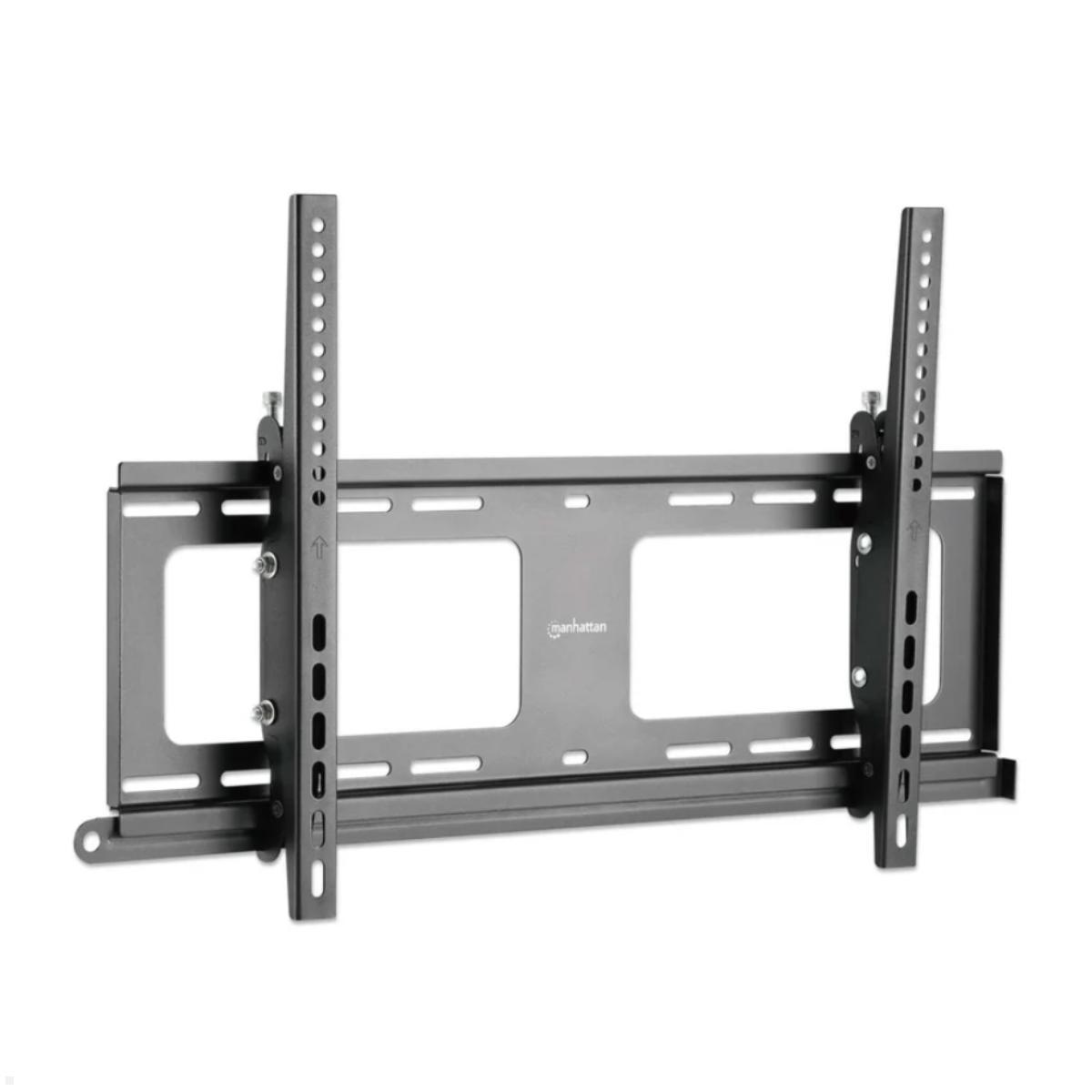

MonLines MWH036B flat outdoor TV wall mount 37-86 inch, theft-proof
Slim, weatherproof and anti-theft outdoor TV wall mount for 37–86 inch TVs up to 80 kg. Ideal for patios, gardens, hospitality areas or public spaces – robust, tiltable and VESA-compatible.
MonLines MWH036B Outdoor TV Wall Mount 37–86 Inch – Slim, Tiltable & Anti-Theft
The MonLines MWH036B outdoor TV wall mount has been specially developed for outdoor use and provides a secure, stable and weatherproof mounting solution for TVs from 37 to 86 inches. Thanks to its slim design, robust steel construction and integrated anti-theft protection, it is ideal for patios, gardens, outdoor catering areas, public facilities or coastal regions.
Weatherproof & Lockable TV Wall Mount for Outdoor Use
The high-quality finish with electroplating, extended powder coating and stainless steel hardware reliably protects the mount against corrosion, rain, moisture and salty air. Even under demanding weather conditions, the construction remains permanently stable and fully functional. With a load capacity of up to 80 kg, the wall mount supports both flat and curved displays. The tilt function from +5° to -10° allows optimal screen alignment, while horizontal fine adjustment of +/- 5 mm after installation ensures perfect positioning. Thanks to the integrated anti-theft mechanism, your TV is additionally secured – ideal for publicly accessible areas.
Key features Dimensions & VESA Compatibility – MonLines MWH036B Outdoor TV Wall Mount 37–86 Inch
- Screen size: 37" to 86"
- Load capacity: max. 80 kg
- Wall distance: 54 mm
- Tilt range: +5° / -10°
- Horizontal adjustment after installation: +/- 5 mm
- Material: Steel with weather-resistant coating
- VESA standards: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400 mm
- Integrated anti-theft protection for increased security
- Supports flat and curved displays
- Color: Black
Is Your Screen or Display Compatible with the VESA Mount?
We are happy to check whether your display is suitable for this MonLines MWH036B wall mount in black. Simply provide your model details (manufacturer + model number) in the comment field at the end of the order process. We will verify compatibility for you and contact you if necessary.
VESA Standard – Learn more about the VESA mounting standard for monitor and TV mounts.
| Product sheet: |  [pdf] |
|---|---|
| Installation manual: | [pdf] |
| Capacity: | 80 kg |
| Tilt: | +5/-10° |
| Screen size: | 37" - 86" |
| Material: | Steel with weather-resistant coating |
| Depth of the bracket: | 54 mm |
| VESA Standard: | 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400 mm (www.vesa-standard.com) |
| Scope of delivery: | MonLines MWH036B flache TV Wandhalterung | Installationsmaterial |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 57 Zoll, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch, 79 inch, 80 inch, 82 inch, 83 Zoll, 84 inch, 85 inch, 86 inch, 90 inch |
| Mobility: | tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | Yes |
| color: | Black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x300, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
Which screen sizes does the MonLines MWH036B support?
The mount supports 37 to 86 inches and a maximum load of 80 kg. It is flat, tiltable and theft-protected.
-

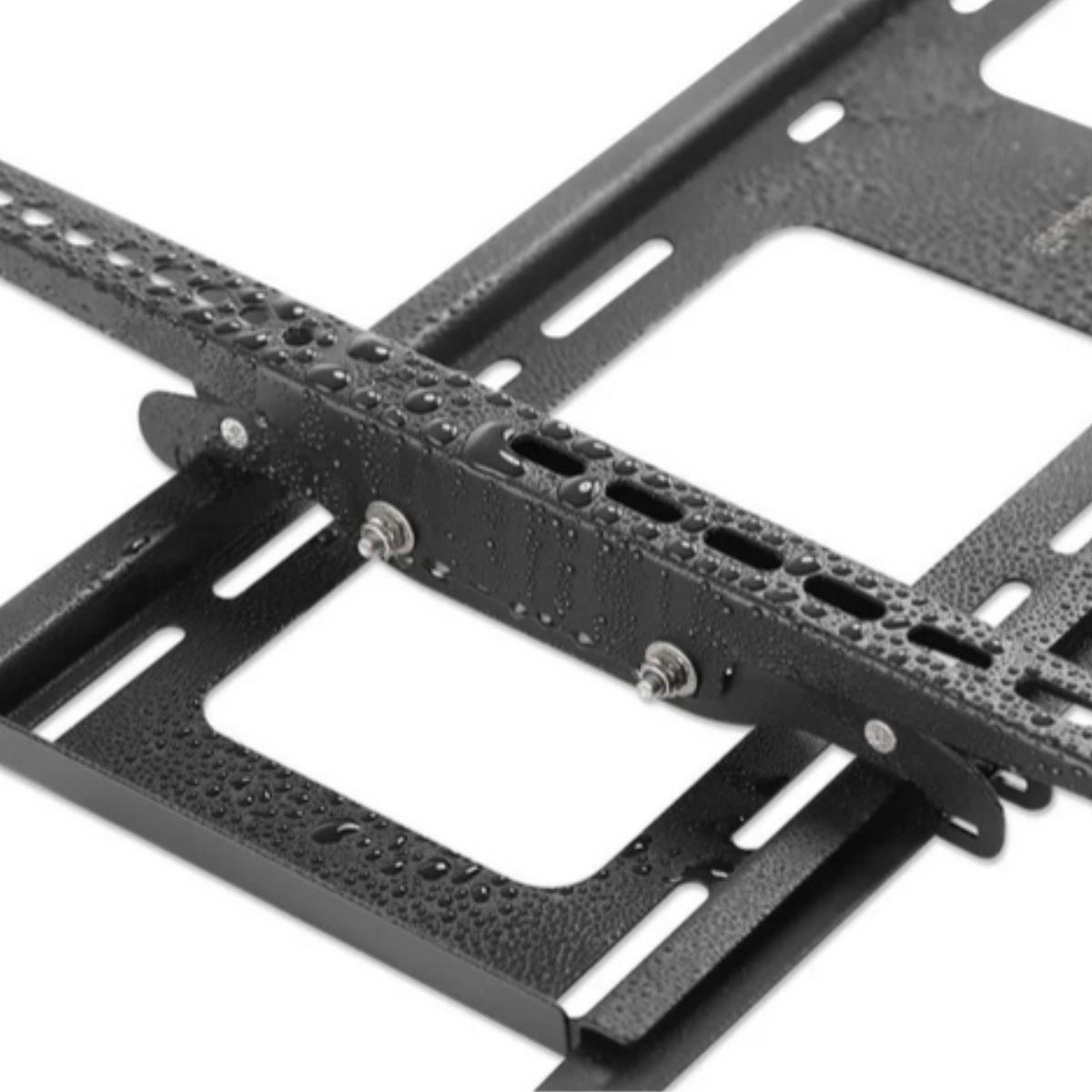

Is it weatherproof and suitable for outdoor use?
Yes, designed for outdoor use, weatherproof and lockable. It features corrosion protection via electroplating, extended powder coating and stainless fittings to withstand rain, moisture and salty air.
-
How far does it sit from the wall?
Wall distance is 54 mm.
-
What tilt and adjustment options are available?
Tilt range is +5° to −10°, with horizontal adjustment of +/- 5 mm after mounting.
-

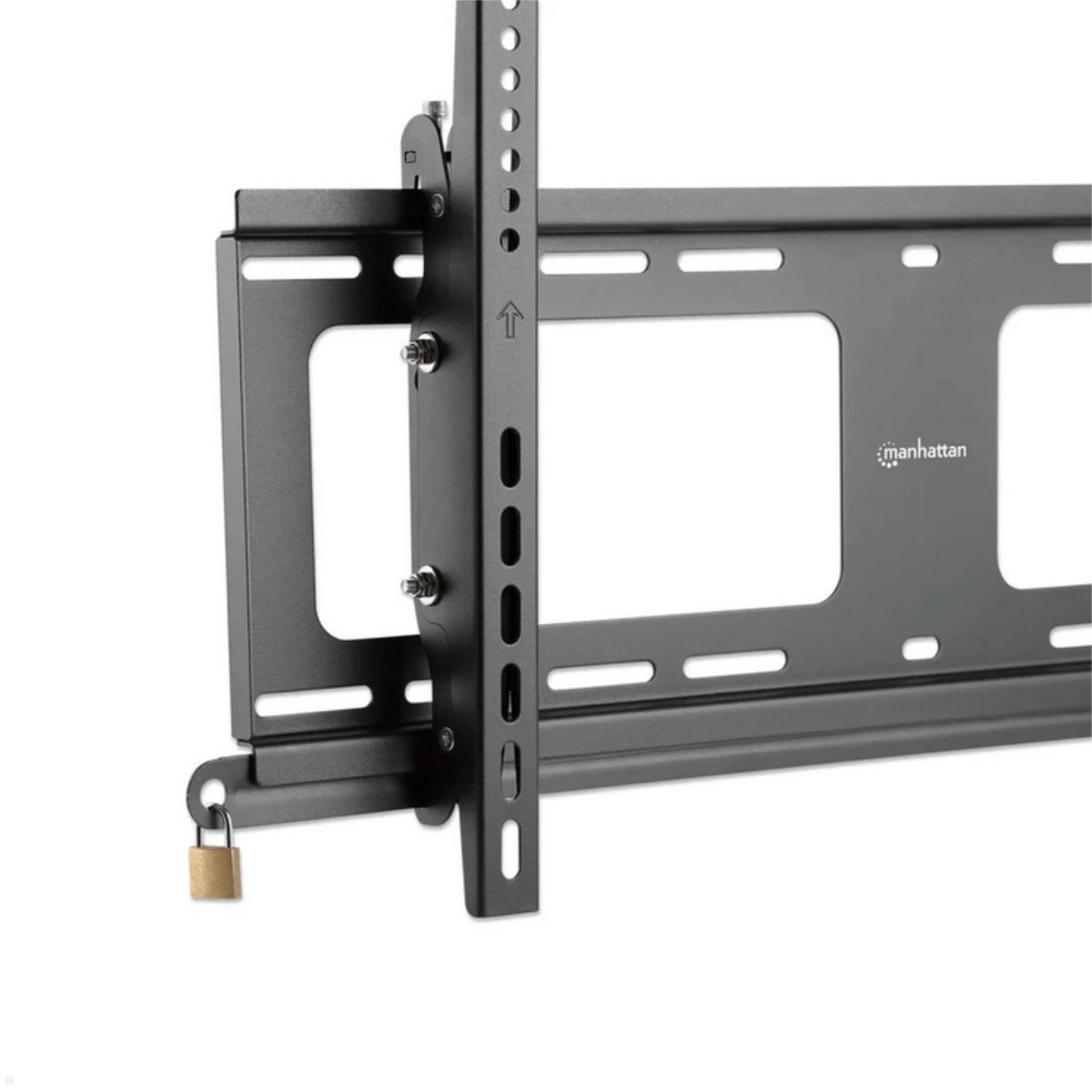

Does it have a theft protection mechanism?
Yes, it has an integrated anti-theft mechanism, ideal for publicly accessible areas.
-

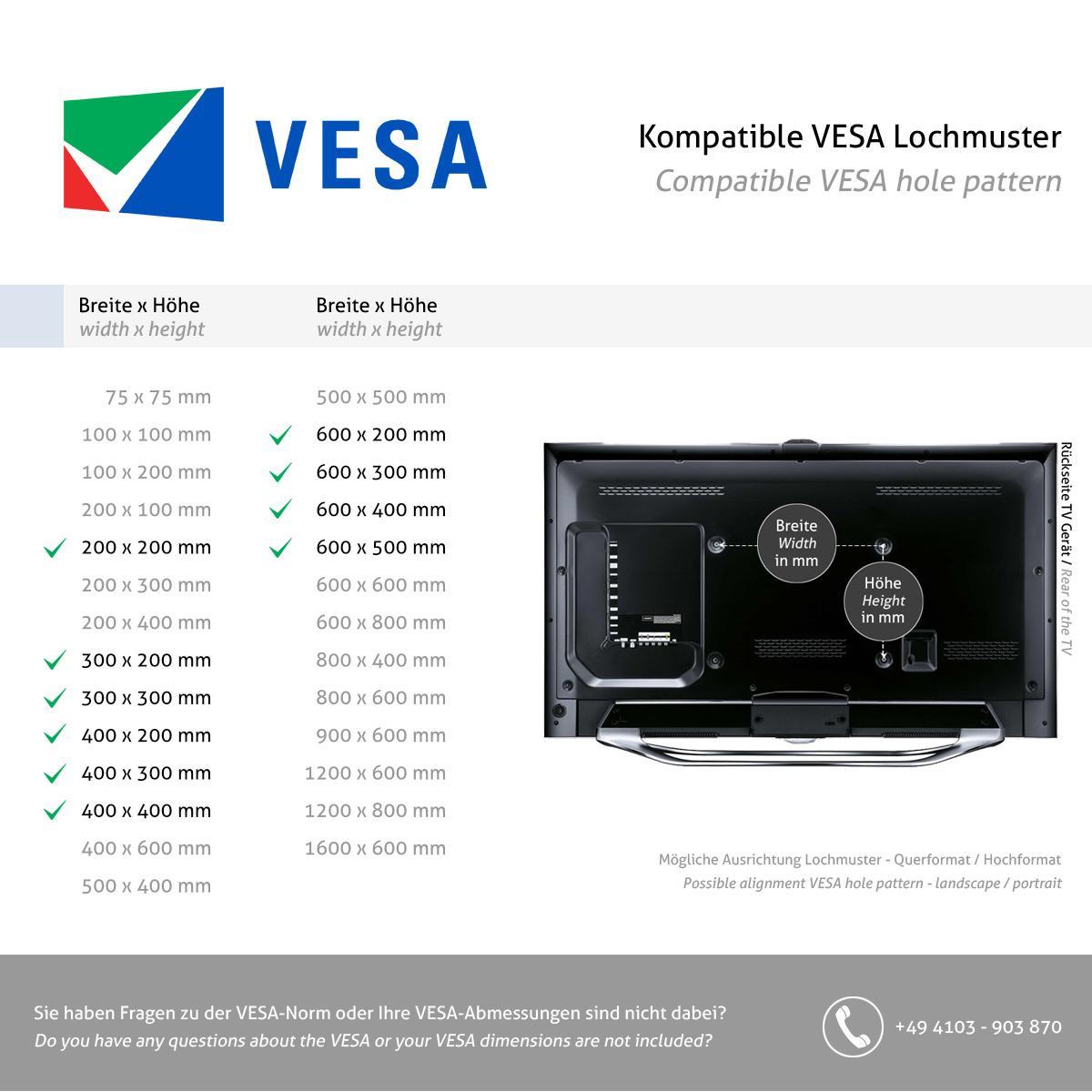

Which VESA standards are supported?
VESA standards: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400 mm.
-
Does it support flat and curved displays?
Yes, it supports both flat and curved displays.
-
What is the mount made of?
Material: steel with weather-resistant coating; stainless fittings.
Is the MonLines MWH036B Outdoor TV Wall Mount 37–86 Inch the Slim, Tiltable & Anti-Theft Solution for Your Outdoor Area?

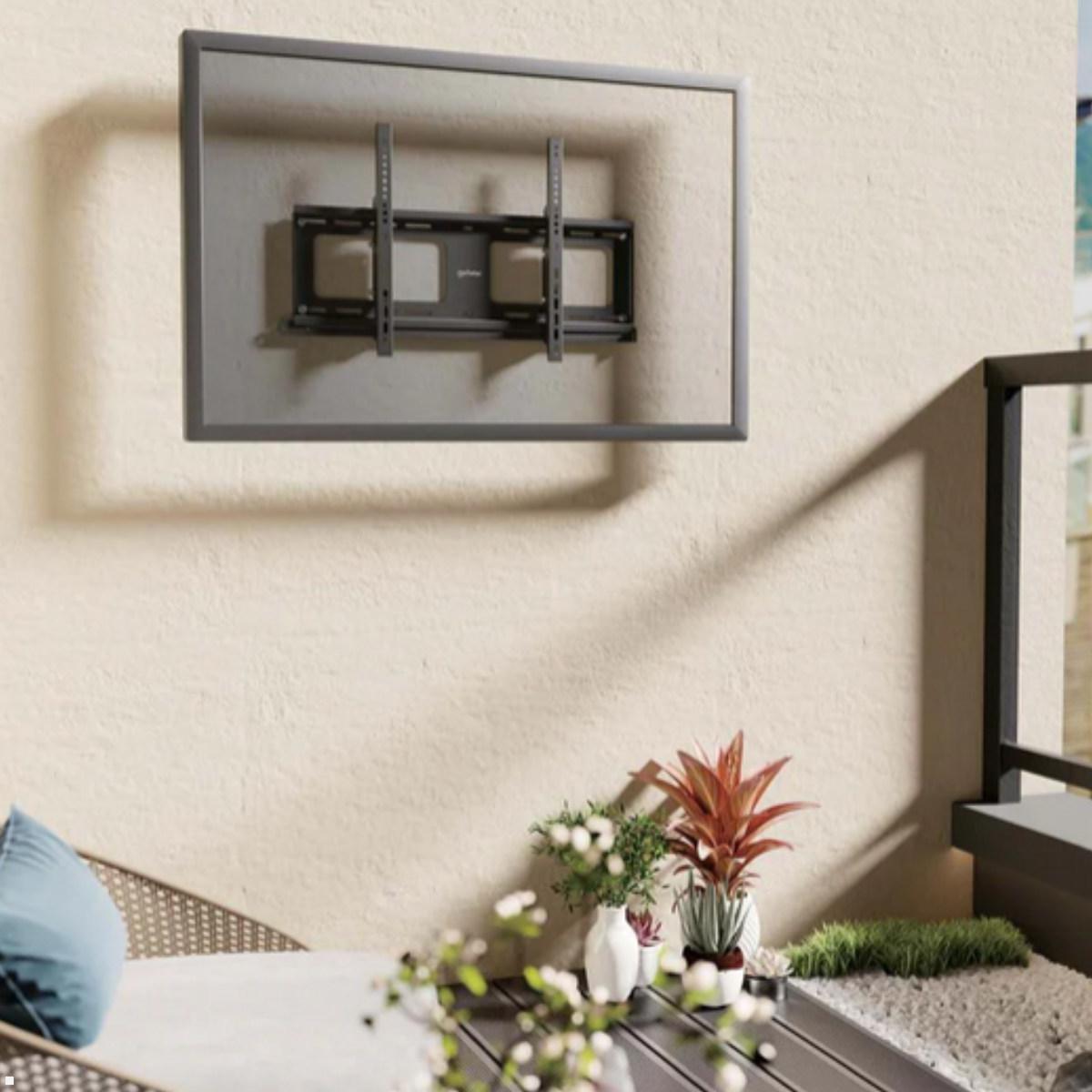

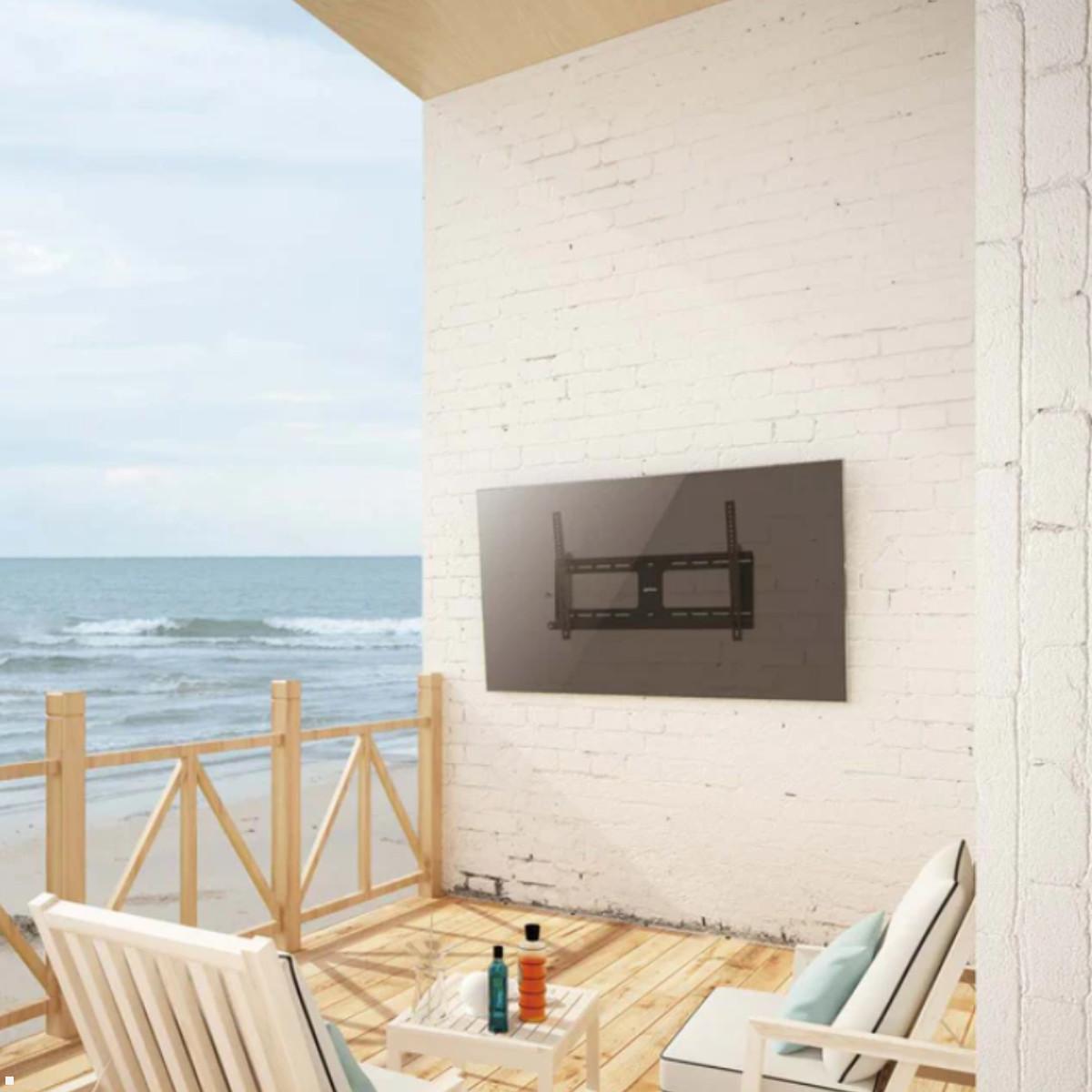

The MonLines MWH036B outdoor TV wall mount has been specially developed for permanent outdoor use and provides a secure, stable, and weatherproof mounting solution for TVs from 37 to 86 inches. Whether on a patio, in the garden, on a balcony, in outdoor hospitality areas, or in public facilities – this outdoor TV wall mount stands out with its robust construction, slim design, and integrated anti-theft protection.
Why Is the MonLines MWH036B the Ideal Outdoor TV Wall Mount for 37–86 Inch TVs?
In outdoor environments, quality and material durability are essential. This TV wall mount features special electroplating, an extended powder coating, and stainless steel hardware. As a result, it is optimally protected against rain, moisture, corrosion, and even salty air in coastal regions. Even under demanding weather conditions, the construction remains permanently stable and fully functional. Thanks to its slim design with minimal wall distance, the mount blends discreetly into any setting, while the solid steel construction reliably supports larger and heavier displays.
How Does the Mount Ensure Security and Optimal Stability Outdoors?
Security is particularly important in publicly accessible areas. The integrated anti-theft protection reliably safeguards the TV against unauthorized removal. This makes the MonLines MWH036B especially suitable for restaurants, hotels, sports facilities, or event venues. Its sturdy construction also ensures a firm hold even for large televisions, keeping your screen securely fixed at all times – even with intensive outdoor use.
Outdoor lighting and viewing angles often change throughout the day. Thanks to the integrated tilt function, the screen can be flexibly adjusted to reduce glare and achieve the optimal viewing angle. In addition, post-installation fine adjustment allows for precise horizontal alignment. This ensures a perfectly positioned TV image at all times – whether on a patio, in a beer garden, or in a hotel outdoor area. With the MonLines MWH036B outdoor TV wall mount, you are choosing a slim, weatherproof, and anti-theft solution specifically designed for demanding outdoor environments.
