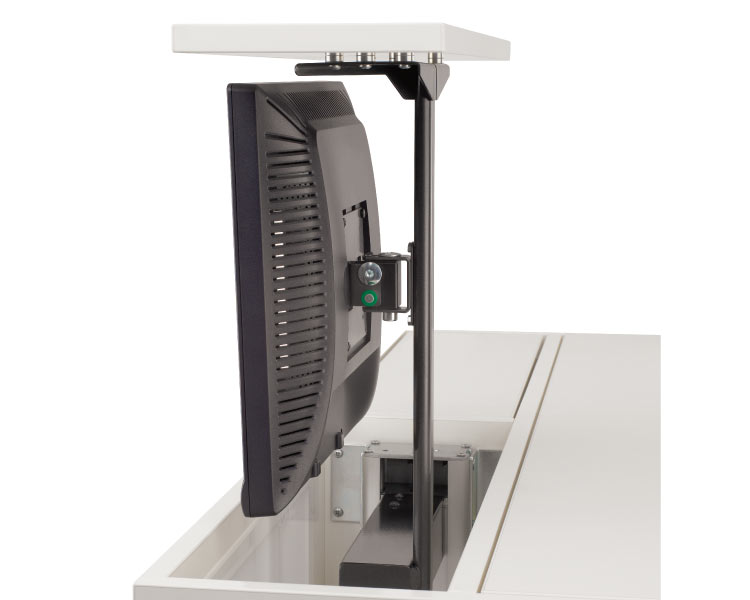

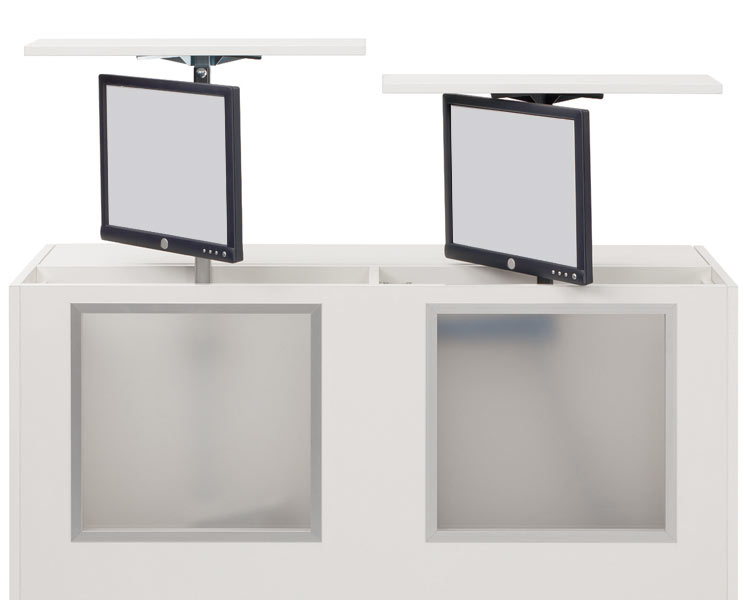

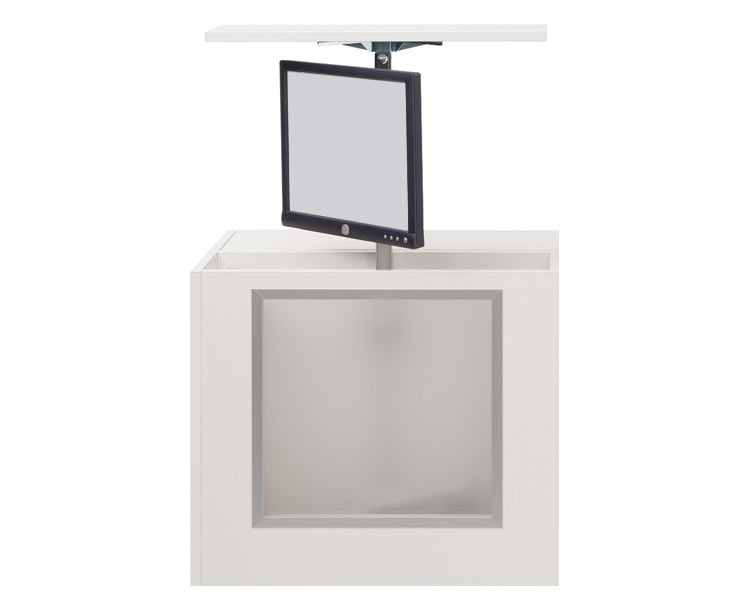

MonLines ScreenMotion for SMB400-C Conference Furniture
The monitor mount screen MonLines Motion SMB400-C for conference furniture is the foundation of a monitor under a table to move the electricity from the screen table.

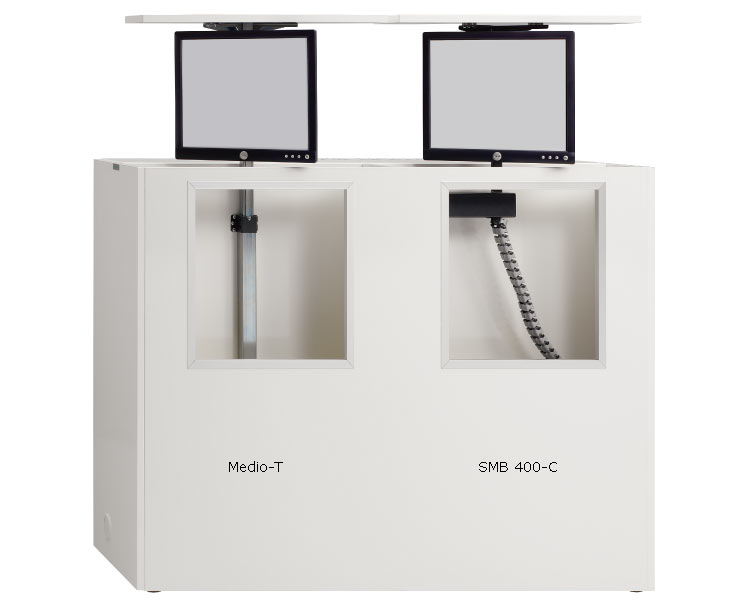

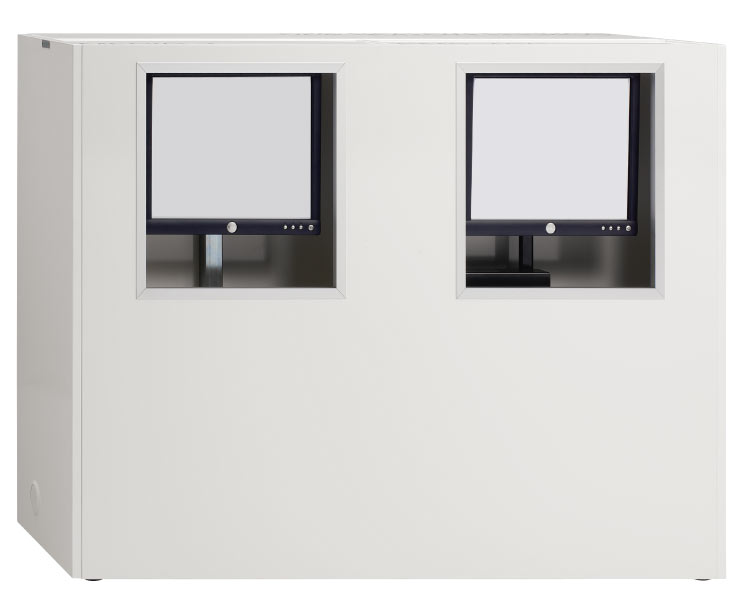

The SMB/Medio system is the smaller sibling of the ScreenMotion SME. It offers attractive solutions for making flat screens invisible with the help of storage compartments. Along with the advantages already mentioned this system also offers the option of letting the screen disappear into your desk. Time and again both systems are spectacular eye-catchers, also for presentational purposes in a professional setting.
- Mounting: cabinet installation
- Capacity: 12,5 kg monitor holder
- Monitor mount: VESA mounting 75x75mm and 100x100mm
- Minimum compartment size width 250mm - depth 115mm + monitor depth - height 105mm
- Monitor hub: 450mm

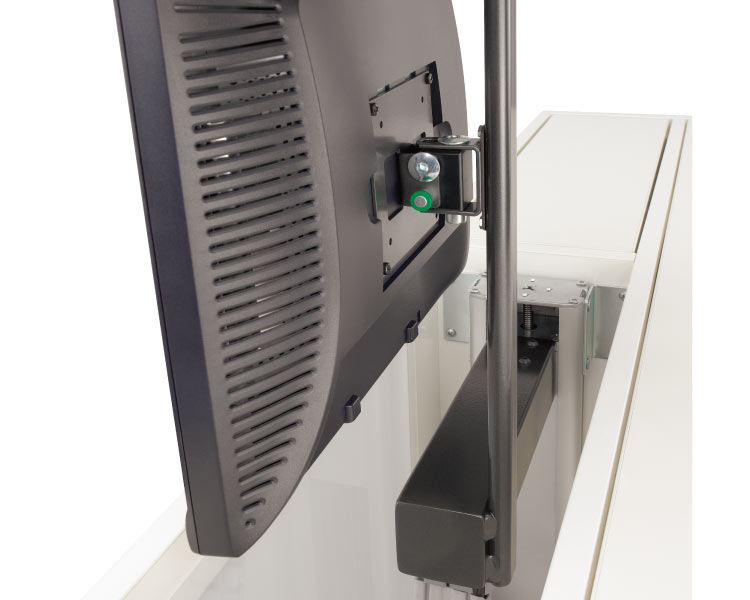

- Stepless adjustment of the swivel monitor mount
Optional
- Special sizes and special colors
- individual production according to customer requirements
- Single part and series production
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 37 kb] |
|---|---|
| Installation manual: | [pdf, 475 kb] |
| Capacity: | 12,5 kg |
| Tilt: | +/15° |
| Height range (mm): | 400 mm |
| Swivelling range: | +/-45° |
| Screen size: | 15 - 19" |
| Material: | Aluminum extruded section Eloxal E6/EV1 nature |
| VESA Standard: | 75/100 (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Mounting type: | Cabinet mount |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
