MonLines TFT-Star MTH233G desk screw mount without cable outlet, grey
The MonLines TFT-Star table screw mount without cable outlet in light grey RAL 7035 is a bracket with mounting screw through a monitor with a swivel arm and a capacity of 25 kg per monitor holder.
TFT-Star desk screw monitor mount

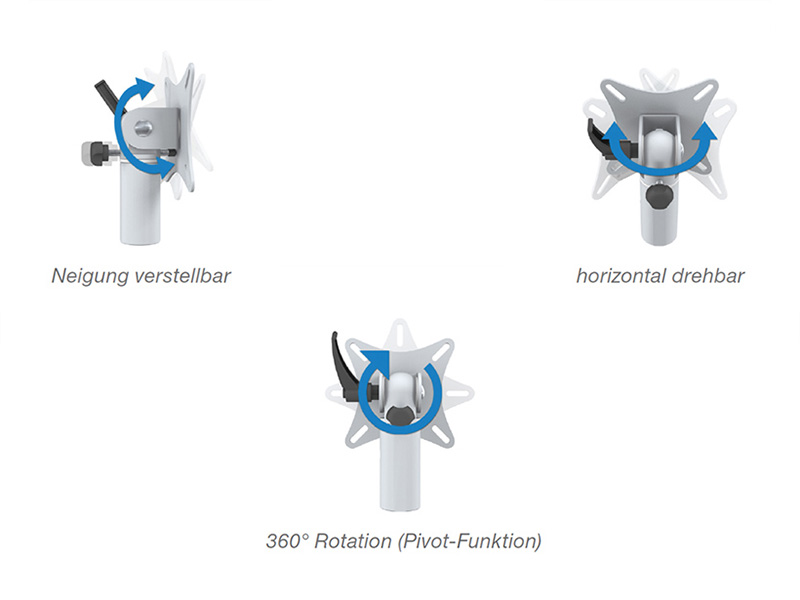

MonLines MTH233G TFT-Star is available for different desk and wall mounts and perfect for 17“ – 24“ screens. Stable metall construction and high-quality powder coating give durability. Height setting with adjusting collar, 360° slewing range and optional keyboard and mouse shelf allow MonLines TFT-Star to be a versatile mount with swivel screen-arm up to 360 mm.
Key features MonLines MTH233G TFT-Star table screw mount without cable outlet
- Mounting: table mount with mounting screw
- Capacity: 25 kg monitor holder
- Monitorsize: 17" - 24"

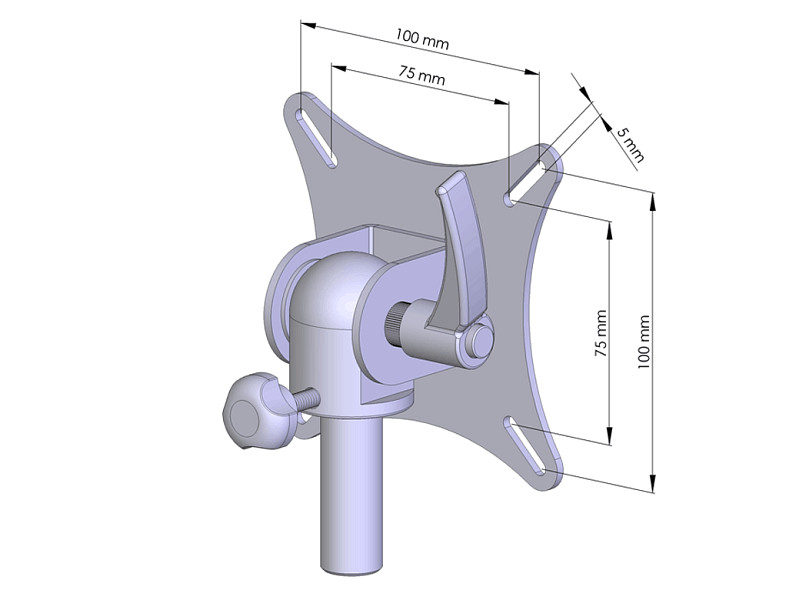

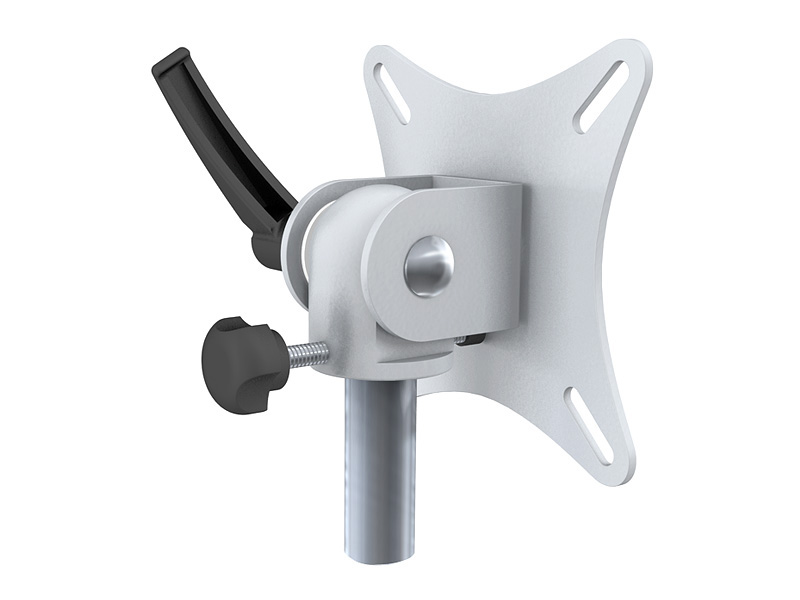

- Monitor mount: VESA mounting 75x75mm and 100x100mm

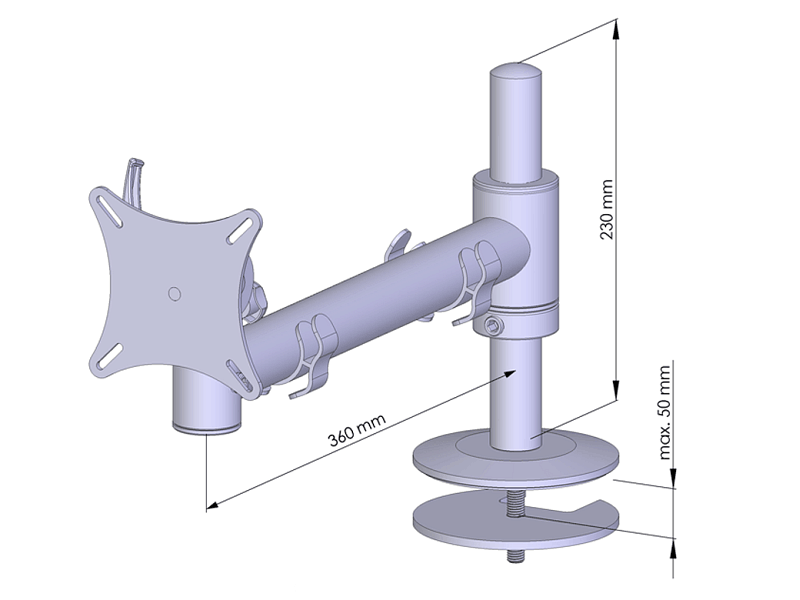

- Column length 230 mm for a plane
- Monitorarm length360 mm
- Stepless height adjustment of the monitor mount
- Finish: RAL 7035 light grey
Available colors:
RAL 7035 light gray structure
RAL 9011 black structure
Special colors (RAL) on request
Optional
- Special sizes and special colors
- individual production according to customer requirements
- Single part and series production
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Installation manual: |  [pdf] |
|---|---|
| Minimum weight: | 3 kg |
| Capacity: | 25 kg |
| Tilt: | +/-10° |
| Swivelling range: | +/- 360° |
| Length of the swivel arm: | 360 |
| Screen size: | 17 - 24" |
| Thickness of table (mm): | 15 - 50 |
| Material: | Steel |
| Old model no.: | 25.03.10.11 |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mounting type: | desk - cable hole fastening |
| Multi-monitor mount: | 1 monitor |
| color: | Grey |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
2 January 2026 10:27
Überzeugende Kundenservice | schnell & unkompliziert
Wurde toll beraten, super Support! Tut genau das, was es soll – perfekt.
Questions & Answers
-
What is the MonLines TFT-Star built-in desk mount?
It is a built-in desk mount for TFT monitors (17–24 inches) with stepless height adjustment, 360° rotation, and a 360 mm arm reach, finished in a light grey powder coating.
-
What monitor sizes and weight can it support?
Suitable for 17–24 inch monitors and rated to 25 kg per monitor holder.
-
Which VESA sizes are compatible?
VESA 75x75 mm and 100x100 mm, with a VESA adapter supporting both patterns.
-
How is it mounted and does it have a cable outlet?
Mounted via through-bolt desk mounting; no cable outlet.
-
What features does the TFT-Star provide?
Stepless height adjustment via dial, 360° swivel, 360 mm reach, and optional keyboard and mouse trays.
-
Is there an optional keyboard and mouse tray?
Yes, optional keyboard and mouse trays are available.
-
Can I customize the color?
Yes—any RAL color; choose Color on request and provide the RAL shade in the order notes.
-
Are there options for special sizes or manufacturing?
Special sizes and colors are available; custom manufacturing by customer requirements, with both single-item and serial production.
