MonLines V097 VESA Adapter from 200x200 to 200x300
Highlights
- VESA extension 200x200 to 200x300 mm
- Universally compatible VESA solution
- Flat VESA adapter in black
- Mounting hardware included
- Easy and quick installation

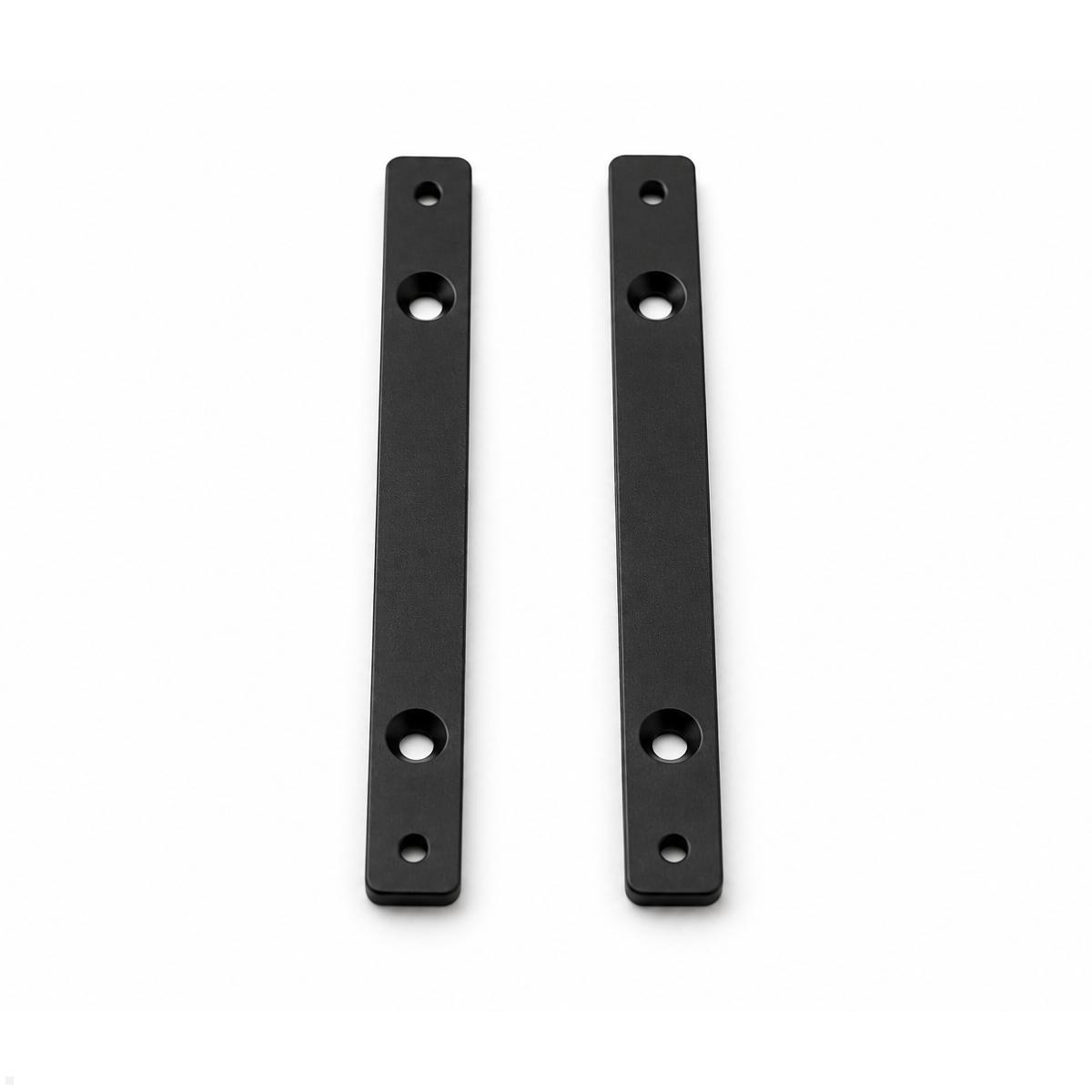

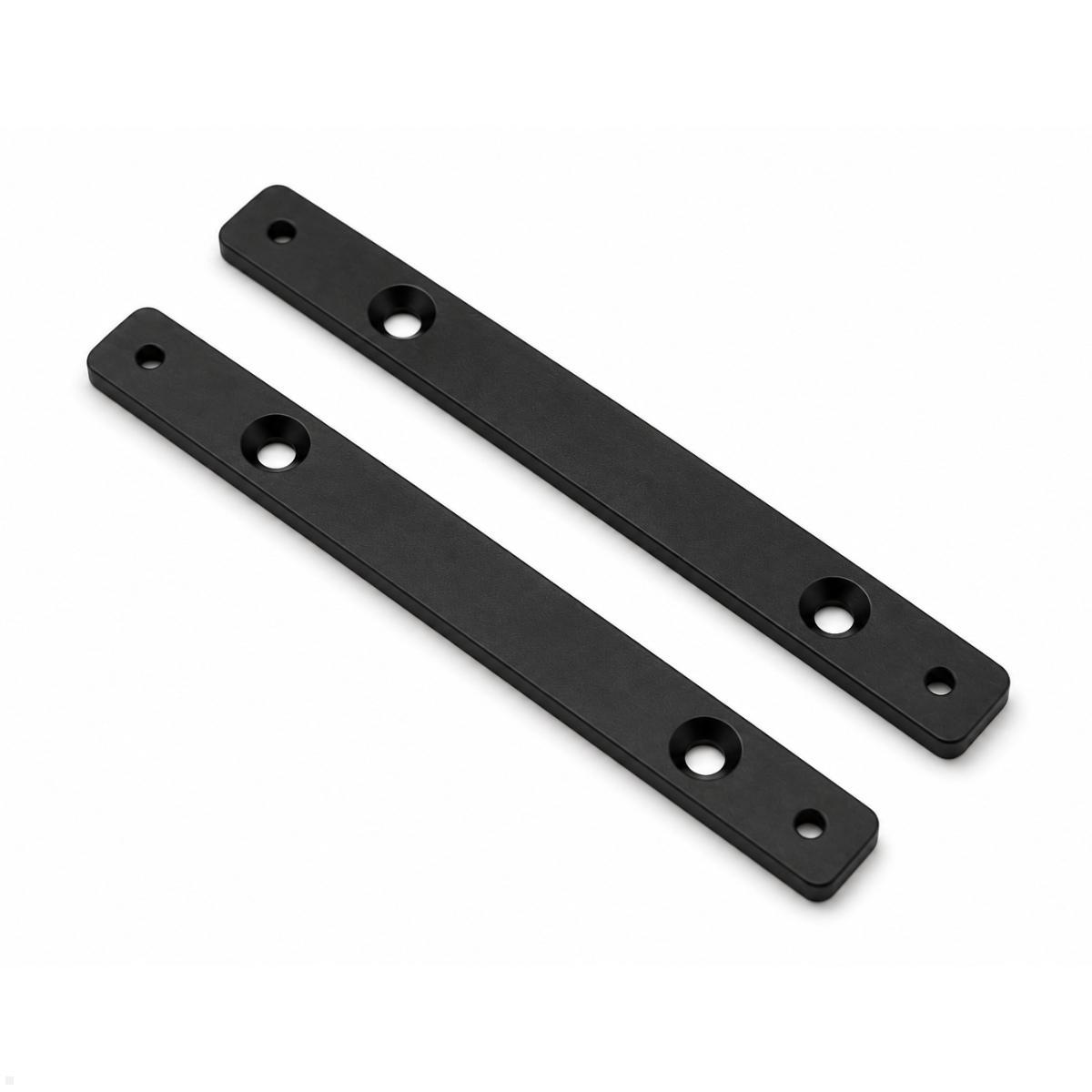

VESA adapter from 200x200 to 200x300 mm
The MonLines V097 VESA adapter in black enables the effortless extension of the VESA mount from 200x200 mm to 200x300 mm. If your screen has a VESA hole pattern of 200x200 mm but needs to fit a mount with 200x300 mm, then the VESA adapter from MonLines is the ideal solution! The slim design ensures the adapter hides discreetly between the monitor mount and the display.
The MonLines V097 VESA adapter from 200x200 to 200x300 mm, monitor mount and TV mount, is suitable for use in the office, home office or commercial environments. Whether on a TV wall mount, ceiling mount or a desk mount – the VESA adapter V097 ensures compatibility between monitor and mount. The mounting hardware is included in the scope of delivery, so you can begin installation immediately. The MonLines V097 VESA adapter from 200x200 to 200x300 is thus the perfect addition to any monitor mount.
Technical details MonLines V097 VESA Adapter
- Color: Black
- Maximum load capacity: 30 kg
- From VESA: 200x200 mm to VESA: 200x300 mm
Does your monitor or display fit the VESA mount?
We are happy to check whether your monitor is suitable for this VESA adapter. Simply provide your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and, if not, we will contact you.

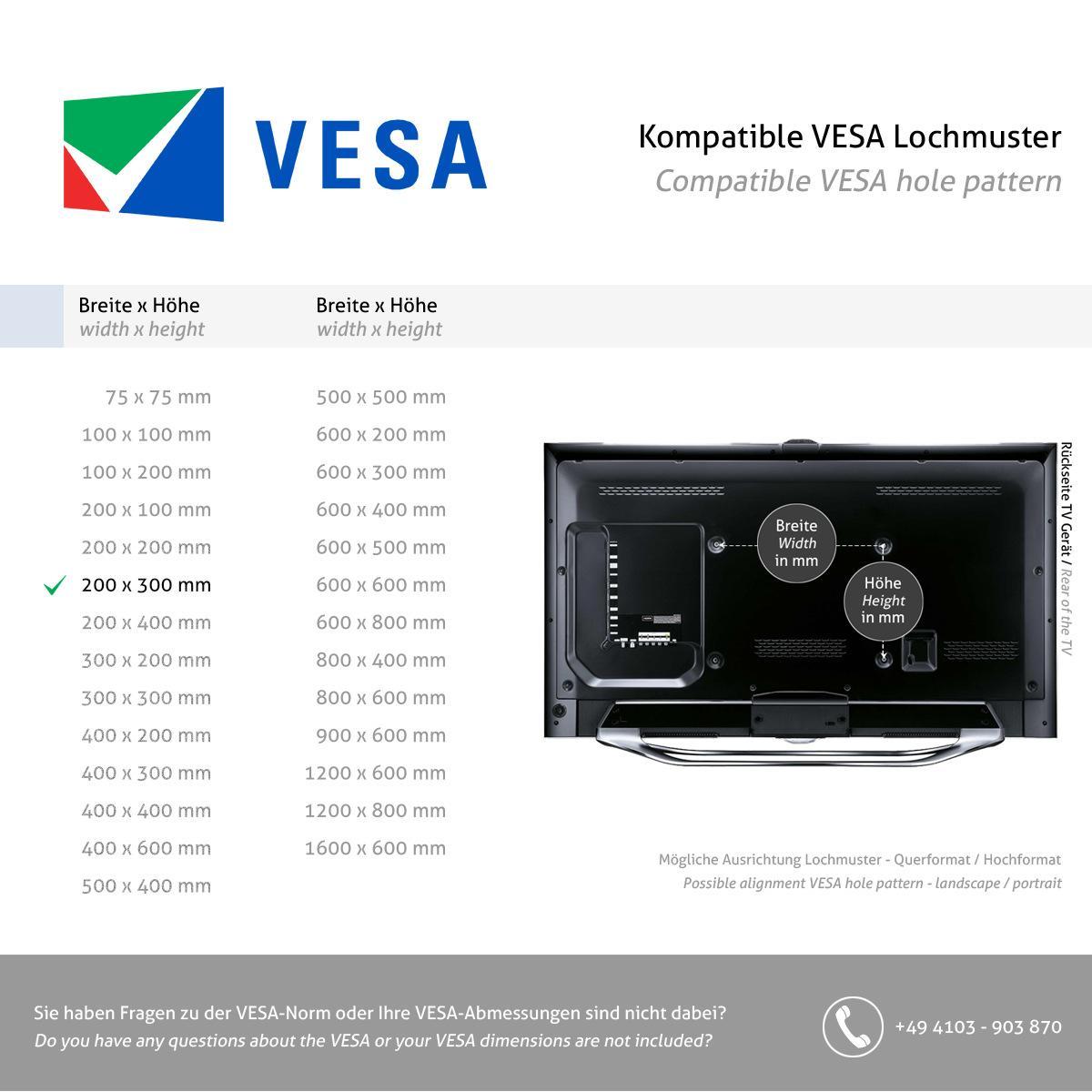

VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

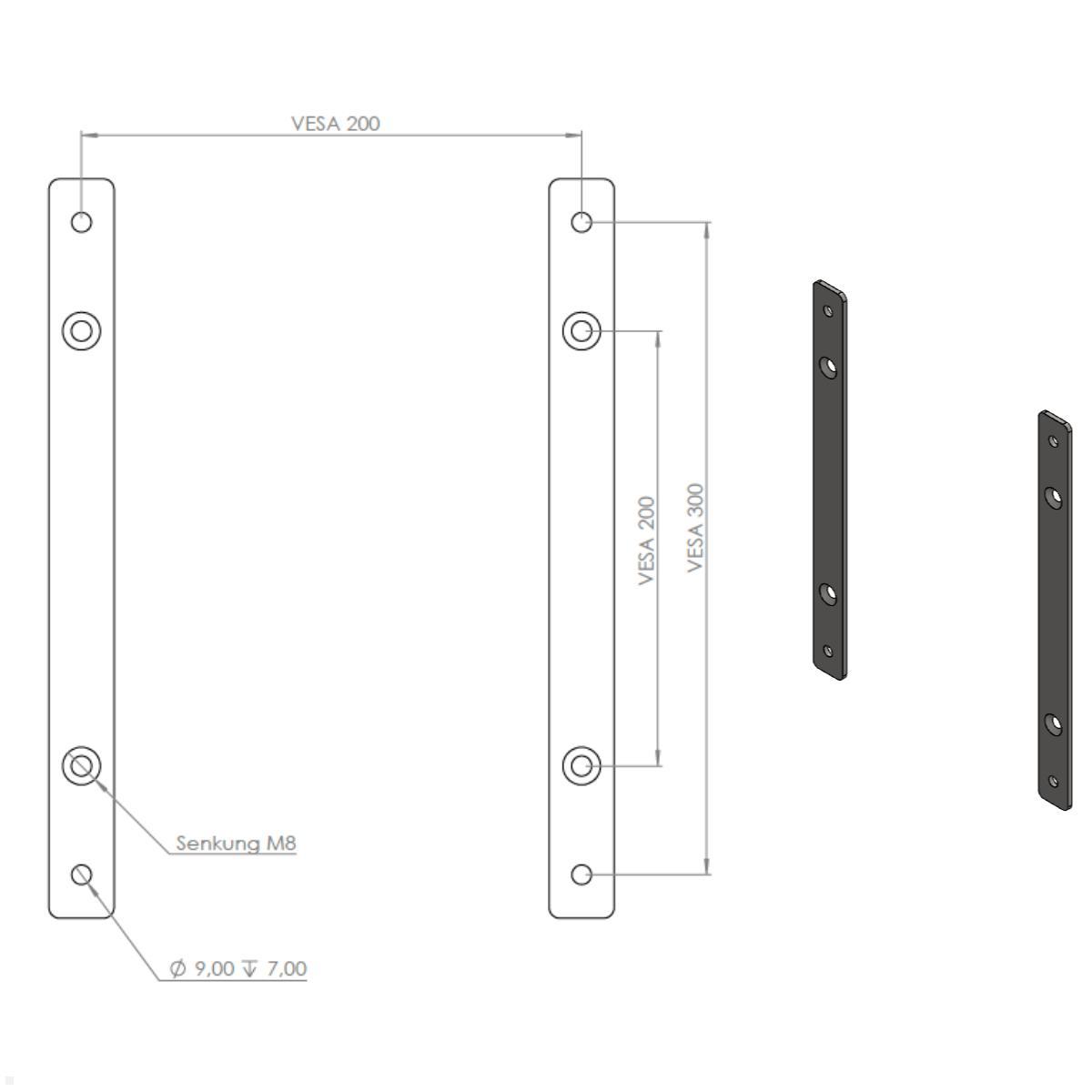

| Technical drawing: | [pdf] |
| Material: | Stahl |
| VESA Standard: | 300x200 mm |
| Scope of delivery: | 1x MonLines V097 VESA adapter, black, 1x screw set, 1x installation manual |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Mobility: | fixed |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 200x300 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What is the MonLines V097 VESA adapter and what is it used for?
The MonLines V097 VESA adapter is a VESA adapter that expands a monitor's VESA hole pattern from 200x200 mm to 200x300 mm. VESA stands for Video Electronics Standards Association and describes the standardized hole spacing on the back of screens and televisions. This standard enables attachment to wall mounts, ceiling mounts, desk mounts and other monitor mounts. The VESA pattern of the monitor does not always match that of the mount. In exactly this case the MonLines V097 VESA adapter is used. The VESA adapter is simply mounted between the display and the mount and establishes compatibility. MonLines specializes in the manufacture of VESA adapters and offers a wide selection of solutions for different hole patterns and screen sizes.

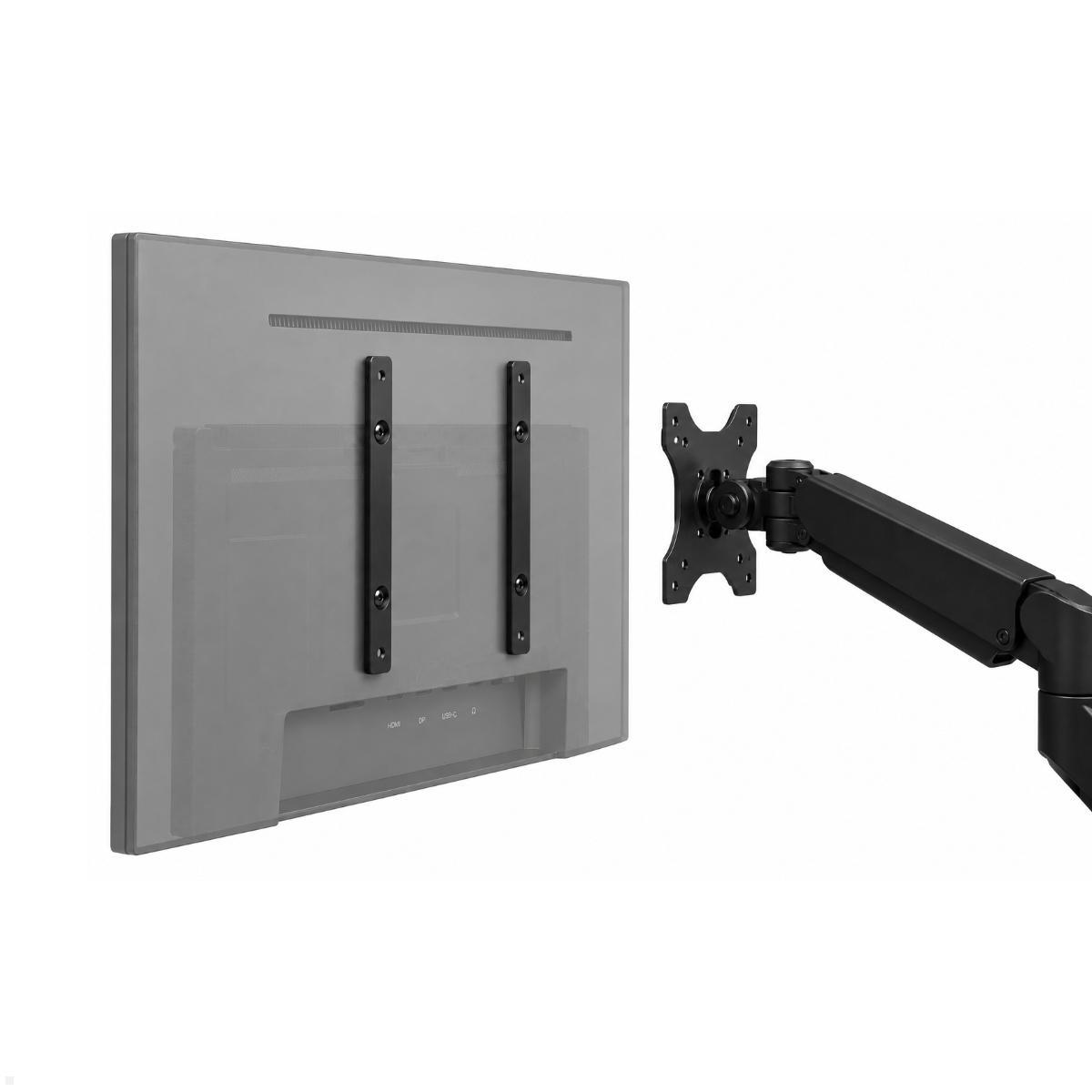

How is the V097 VESA adapter mounted?
Mounting the MonLines V097 VESA adapter is uncomplicated and can be completed in a few minutes. First, the adapter is attached to the existing VESA holes of the monitor using the supplied screws. The mount with the 200x300 mm VESA standard can then be screwed to the VESA adapter. All mounting hardware is included with the V097. The flat design of the VESA adapter ensures that the distance between the monitor and the mount remains minimal. The adapter supports a weight of up to 30 kg, so larger displays are also held securely.
For which applications is a VESA adapter suitable?
VESA adapters like the MonLines V097 are versatile. In the office or home office they enable the flexible combination of monitors and mounts with different VESA standards. VESA adapters are also often used in conference rooms, reception areas or in retail when screens are to be mounted on wall mounts or ceiling mounts. By universally expanding from 200x200 to 200x300 mm, the V097 solves a common compatibility problem and makes replacing mounts or monitors significantly easier. The robust construction and high load capacity of 30 kg ensure reliable support in daily use.
