MonLines V102 VESA Adapter Extension from 400 to 800 mm, black
The MonLines VESA Extension V102 is a robust adapter plate for flexible expansion of VESA mounting patterns in both portrait and landscape orientation. It allows adjustment from 400x400 mm or 400x600 mm to 400x800 mm, as well as from 400x400 mm or 600x400 mm to 800x400 mm, making it ideal for large monitors, TVs, and professional display installations.
MonLines VESA Extension V102 – Adapter for Portrait and Landscape Orientation
The MonLines VESA Extension V102 is a versatile and robust adapter solution for expanding existing VESA mounting patterns on monitor and TV mounts. The MonLines VESA adapter is ideal for professional installations in offices, conference rooms, digital signage environments, or private settings when larger displays with extended VESA dimensions need to be mounted.
Flexible VESA extension in portrait and landscape orientation
The MonLines V102 VESA extension supports both portrait and landscape mounting, offering maximum flexibility. In portrait orientation, the adapter allows an extension from VESA 400x400 mm or VESA 400x600 mm to VESA 400x800 mm. This orientation is particularly suitable for tall displays, information systems, advertising displays, or presentation solutions used vertically. In addition, the MonLines V102 VESA adapter plate can be used in landscape orientation. In this configuration, VESA mounting patterns of 400x400 mm or 600x400 mm can be reliably extended to 800x400 mm. This is ideal for wide monitors, large televisions, or conference room displays in horizontal orientation.
Stable construction for professional display mounting
The adapter plates are mounted directly between the monitor and the mount, precisely extending the existing VESA mounting pattern in the desired direction. The robust metal construction of the MonLines V102 VESA extension ensures secure, stable, and long-lasting installation – even with heavy displays. Precisely manufactured mounting holes guarantee an accurate fit and high load capacity in both portrait and landscape orientation.
Key features MonLines VESA Extension V102
- Product type: VESA extension / VESA adapter plate

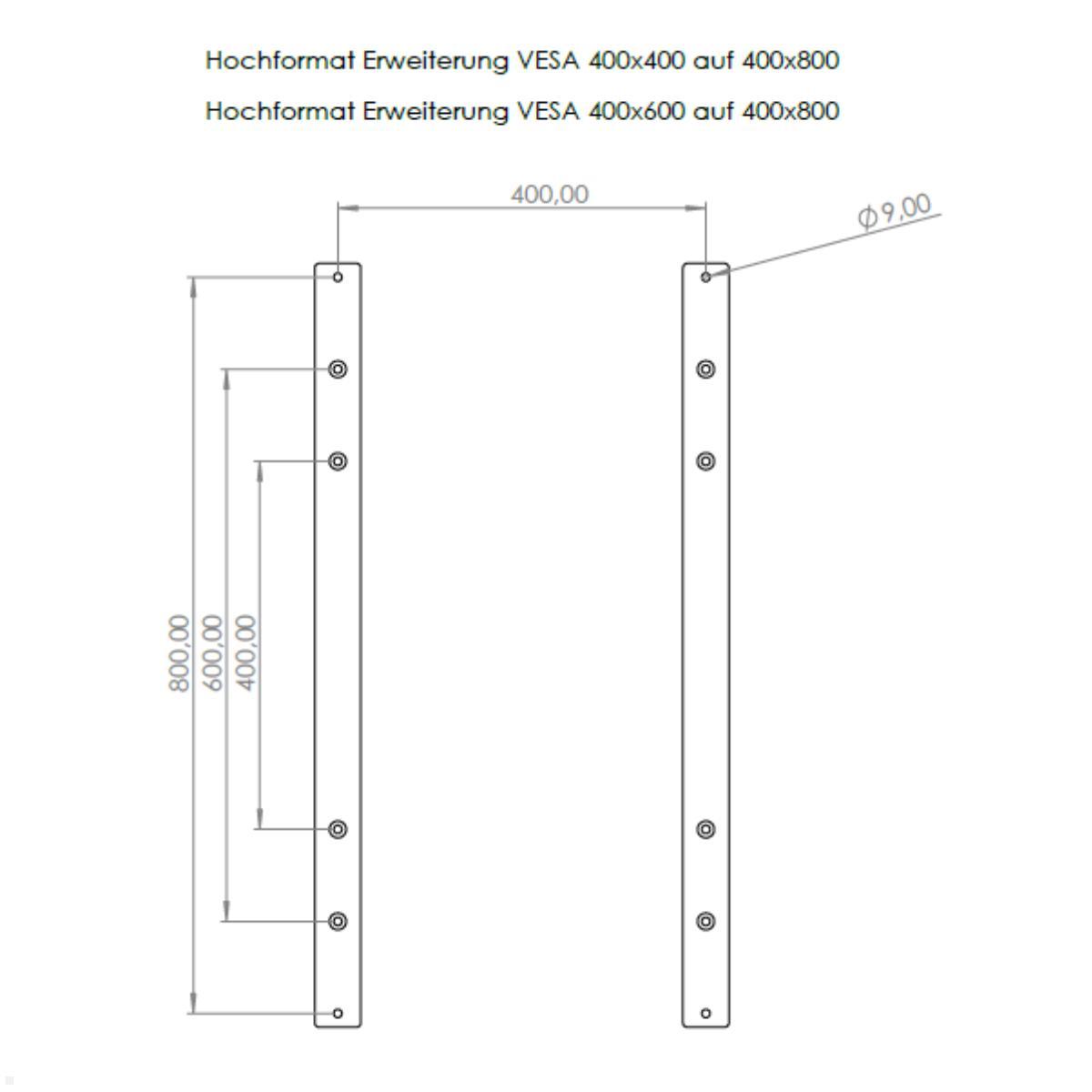

- Portrait extension: 400x400 → 400x800 mm
- Portrait extension: 400x600 → 400x800 mm
- Landscape extension: 400x400 → 800x400 mm
- Landscape extension: 600x400 → 800x400 mm
- Mounting between monitor and mount
- Suitable for monitor and TV mounts with VESA standard
- Material: Steel / metal
- Color: Black
- Applications: Office, conference room, digital signage, presentations

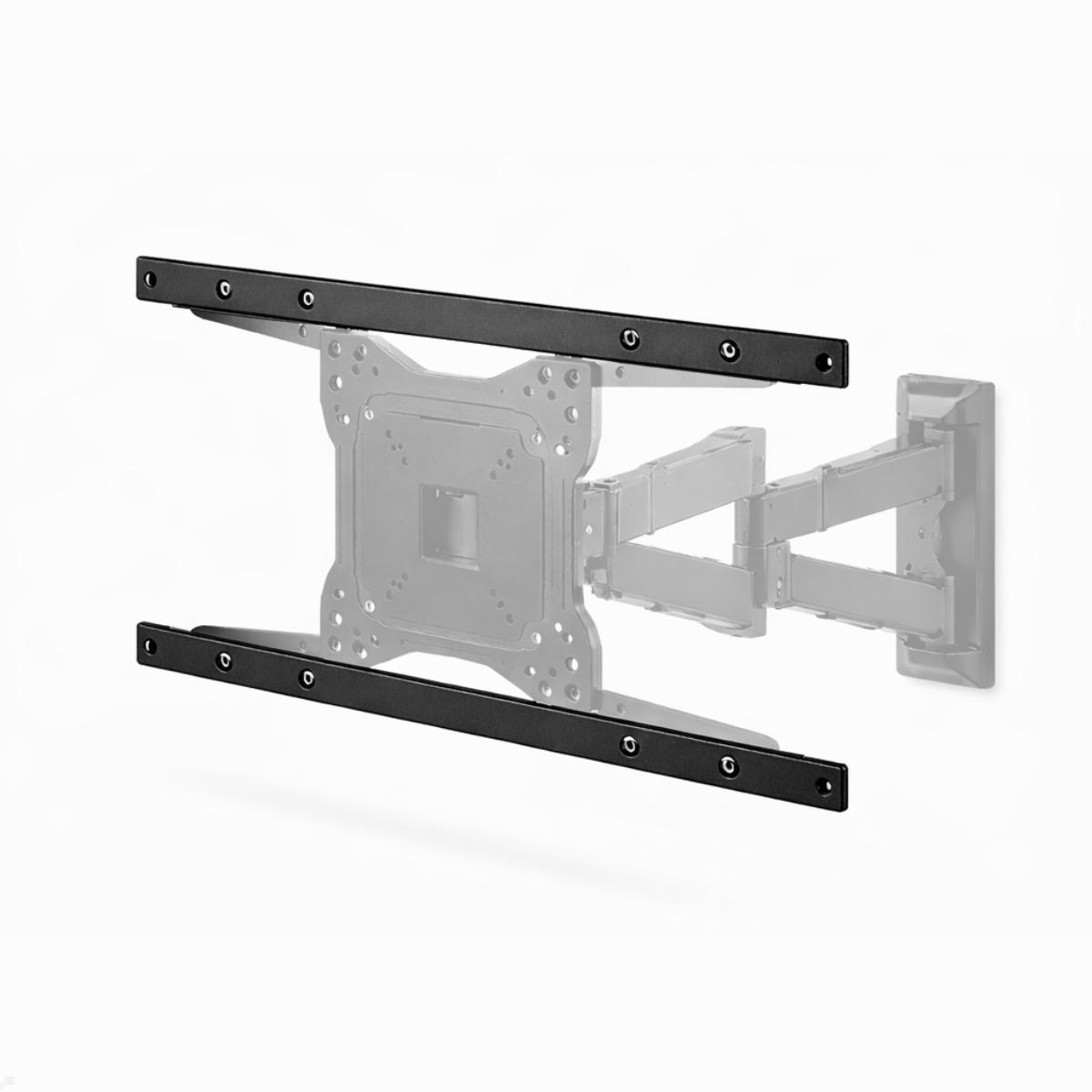

- TV mount not included
Is this VESA adapter V102 compatible with your monitor?
If your monitor does not feature a VESA MIS-D, MIS-E, or MIS-F mounting pattern, an adapter interface may provide a solution. We are happy to check whether this MonLines V102 VESA adapter is suitable for your display. Simply provide your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then verify whether the VESA adapter plate fits your monitor and contact you if it does not.

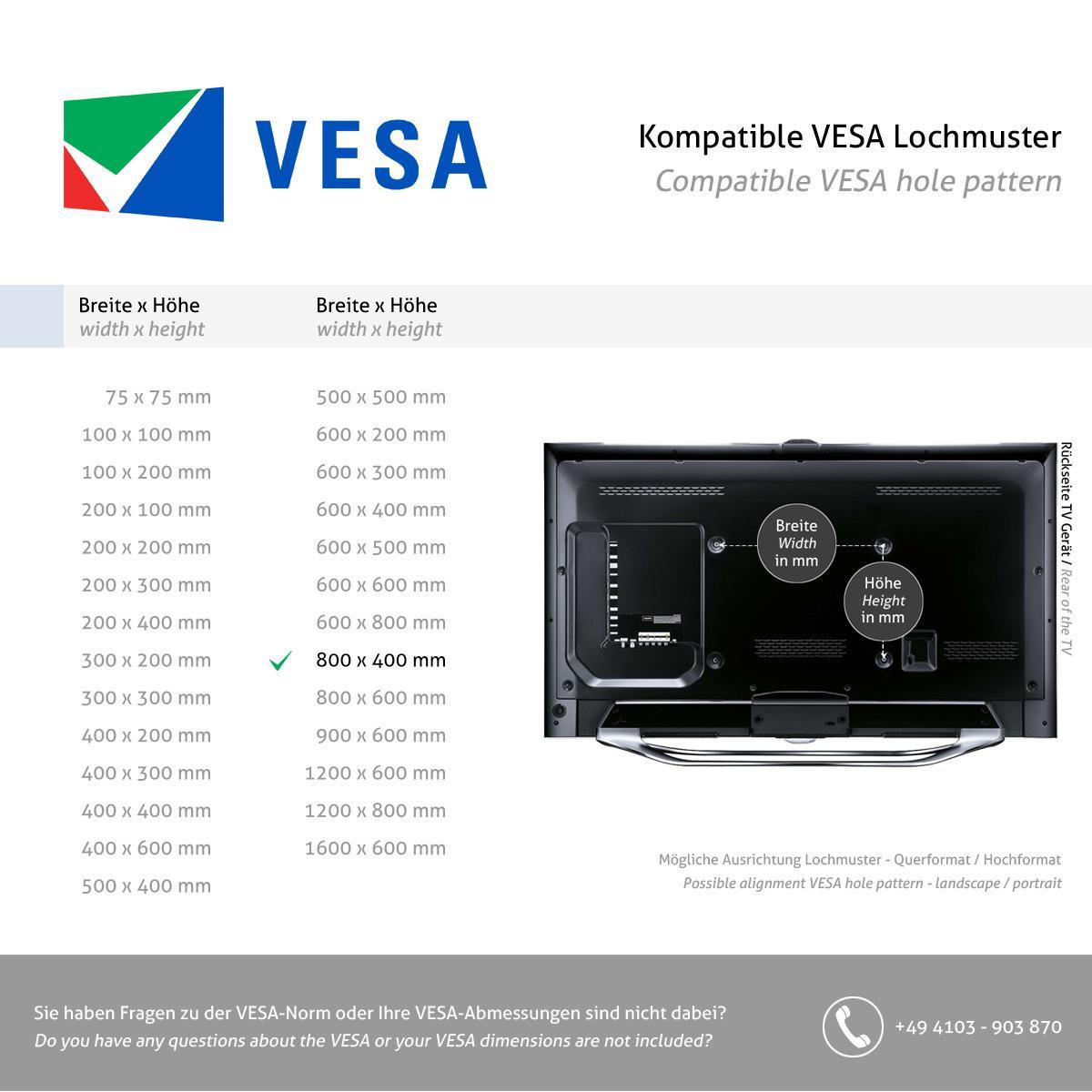

VESA standard – Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Material: | Stahl |
| VESA Standard: | 400x800, 800x400 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x MonLines VESA adapter extension |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Mobility: | fixed |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 400x800, VESA 800x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
MonLines VESA Extension V102 – Adapter for Portrait and Landscape Orientation
The MonLines VESA Extension V102 is a high-quality and reliable adapter solution for the flexible expansion of existing VESA mounting patterns on monitor and TV mounts. The MonLines VESA adapter was specifically designed for professional requirements and is ideal for use in offices, conference rooms, digital signage environments, as well as private settings. Whenever larger displays with extended VESA dimensions need to be mounted, this adapter provides a secure and precisely fitting solution.
Thanks to its robust construction and versatile mounting options, the MonLines V102 VESA extension is particularly popular for installations involving large monitors, televisions, or presentation displays. It allows existing VESA mounting patterns to be easily adapted without the need to replace the mount.
Which VESA extensions are possible with the MonLines V102?
The MonLines V102 VESA extension supports installation in both portrait and landscape orientation, offering maximum flexibility for a wide range of applications. In portrait orientation, the adapter reliably extends existing VESA mountings from 400x400 mm or 400x600 mm to 400x800 mm. This configuration is particularly suitable for tall displays, digital information totems, advertising displays, or presentation solutions used vertically.
In landscape orientation, the MonLines V102 VESA adapter plate also demonstrates its versatility. In this setup, VESA mounting patterns of 400x400 mm or 600x400 mm can be easily extended to 800x400 mm. This orientation is ideal for wide monitors, large TVs, or conference room displays mounted horizontally.
Why is the MonLines VESA Extension V102 especially stable?
The adapter plates are mounted directly between the monitor and the mount, precisely extending the existing VESA mounting pattern in the desired direction. The robust metal construction made from high-quality steel ensures high load capacity, maximum stability, and a long service life – even with heavy displays.
Precisely manufactured mounting holes ensure an accurate fit and prevent twisting or wobbling of the display. As a result, the MonLines V102 VESA extension is ideally suited for professional display installations where safety and reliability are top priorities.
