Neomounts FPMA-W935 Monitor wall mount with Pivot-Function up to 40 Inches
The NewStar FPMA-W935 Monitor Wall Mount can be tilt, swivel and rotate. Monitors from 10 to 40 inches and a weight of 20 kg can be mounted on the bracket.
NewStar FPMA-W935 Monitor wall mount with Pivot-Function up to 40"
The NewStar FPMA-W935 Monitor Wall Mount can be tilt, swivel and rotate. Monitors from 10 to 40 inches and a weight of 20 kg can be mounted on the holder. The TV wall mount is ideal for use in the living room, bedroom or home cinema. Displays with a VESA mount of 75x75 and 100x100 mm can be attached.
Key features NewStar FPMA-W935 Monitor wall mount
- Screen size: 10-40 Inches
- Capacity: 20 kg
- VESA mount: 75x75, 100x100 mm
- Tilt: 15°
- Swivel: 180°
- Rotate: 360°
- Finish: silber
- Warranty: 5 years
Does your monitor or display fit?
We will gladly check if your monitor is suitable for this NewStar FPMA-W935 Monitor wall mount. Simply send us your model (manufacturer + model no.) at the end of the ordering process in the comment field. We then check for you whether the monitor or the display fits the monitor holder and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 449 kb] |
|---|---|
| Technical drawing: | [pdf, 98 kb] |
| Installation manual: | [pdf, 5,2 MB] |
| Capacity: | 20 kg |
| Tilt: | 15° |
| Rotate: | 90° |
| Swivelling range: | 180° |
| Screen size: | 10 - 40 " |
| Depth of the bracket: | 120 - 450 mm |

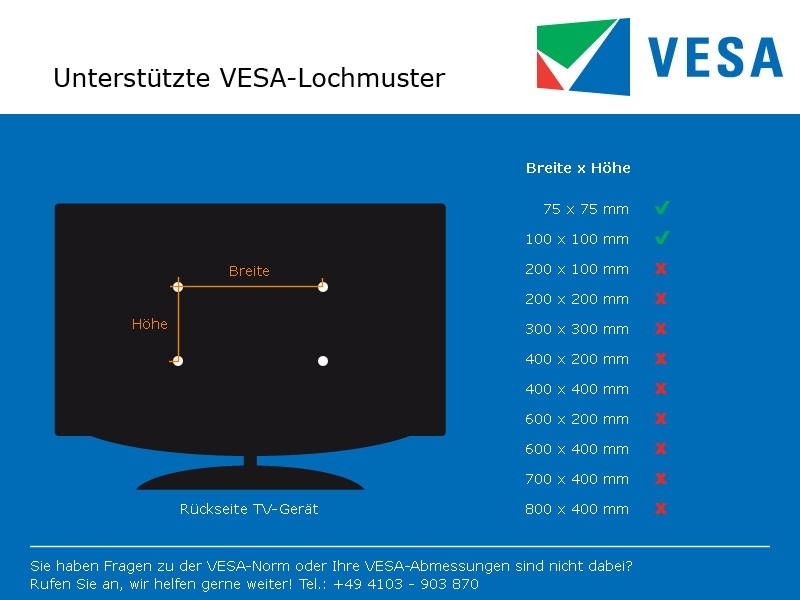

| VESA Standard: | 75x75, 100x100, 200x100, 200x200 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Inch size: | 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch |
| Mobility: | rotatable (pivot), swivelling, tilting |
| Mounting type: | wall mount |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100, VESA 200x100, VESA 200x200 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
