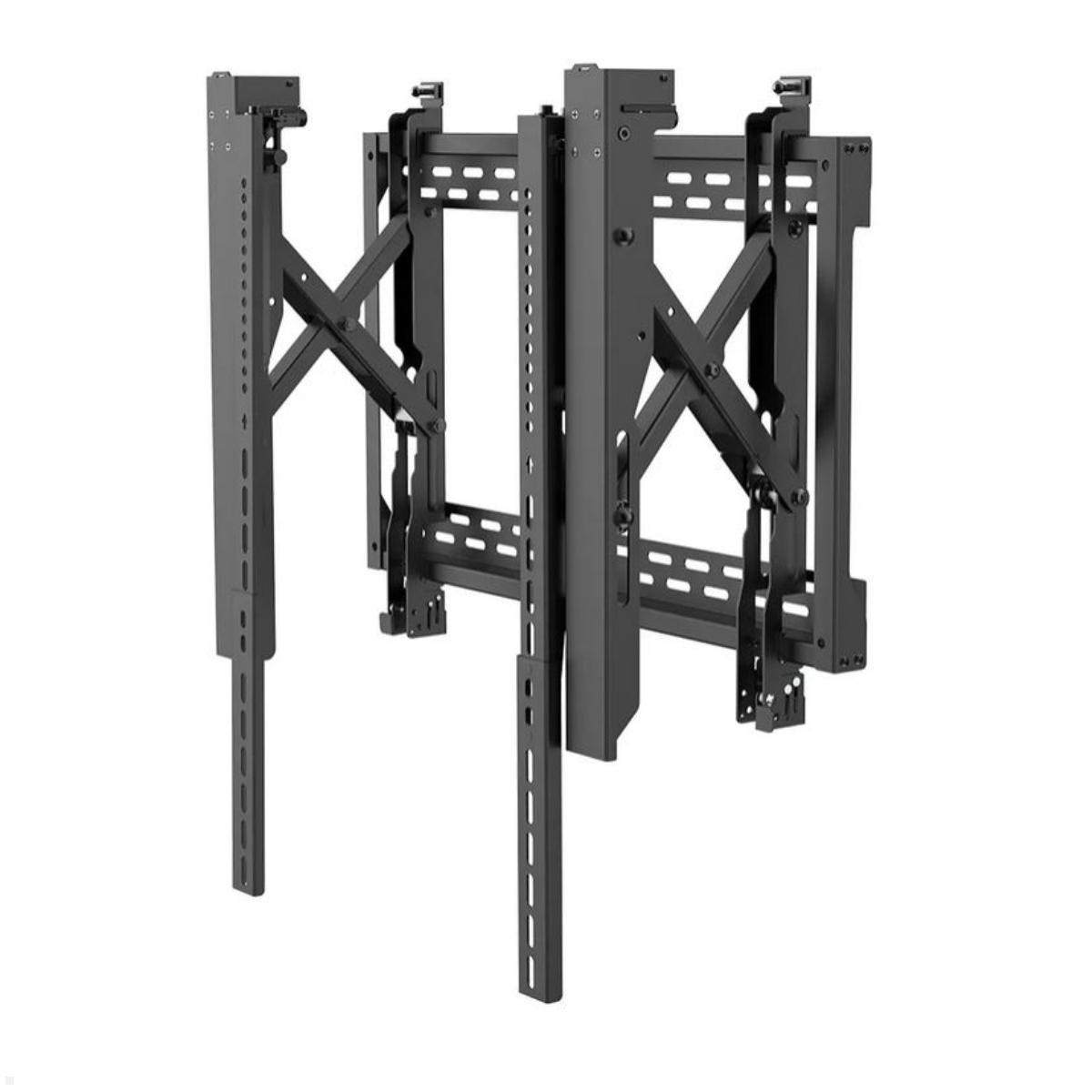

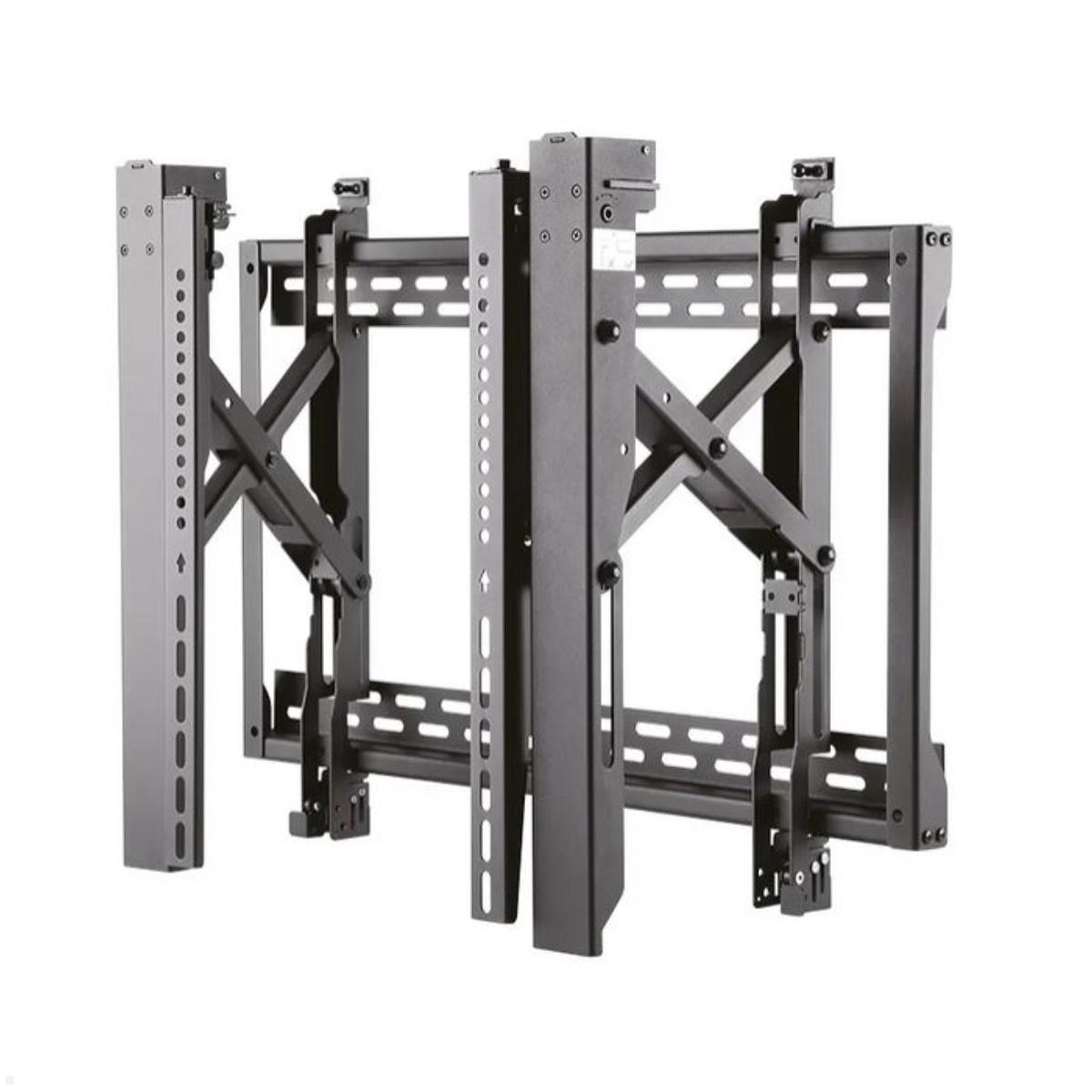

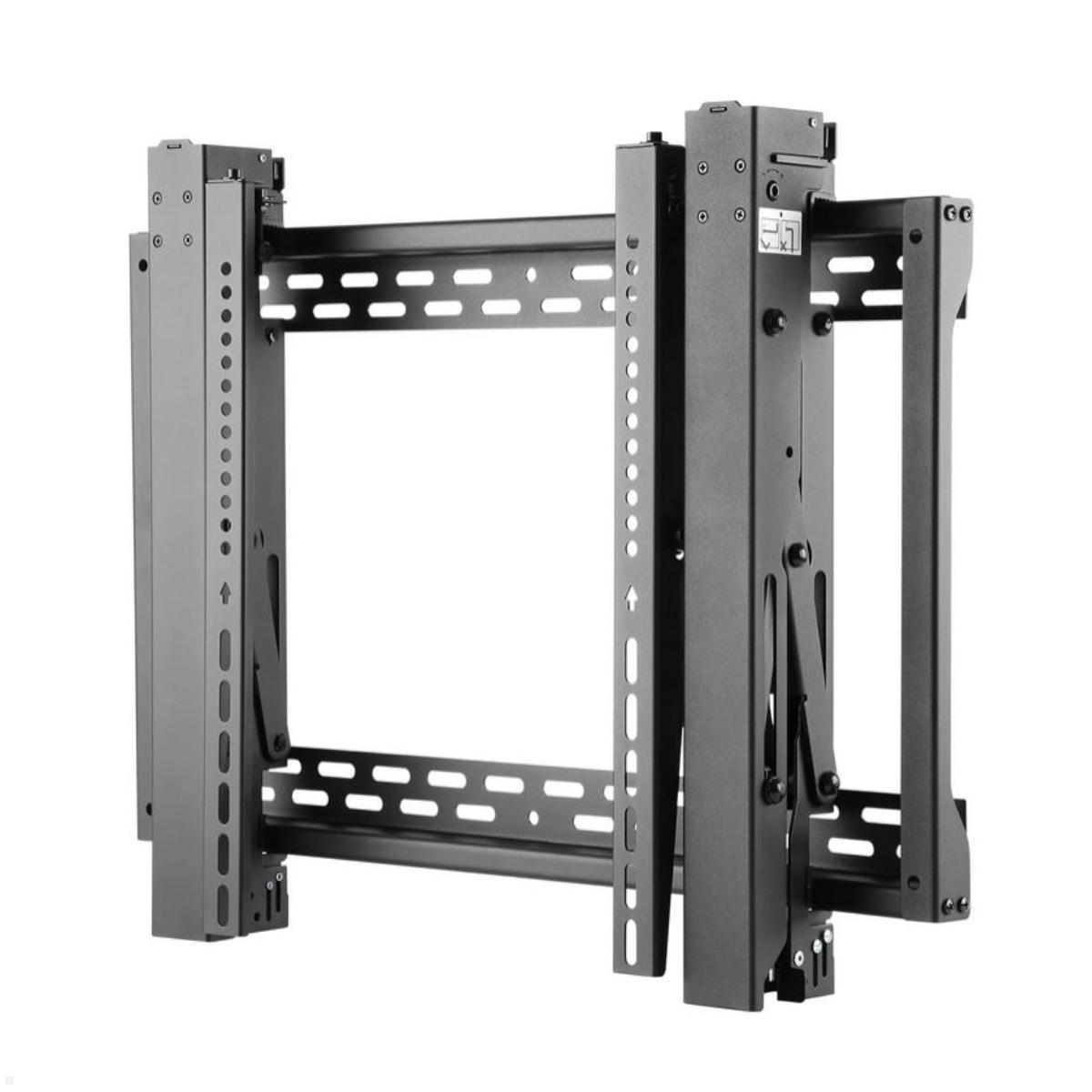

Neomounts LED-VW2500BLACK1 flat video wall TV mount up to 75 inch
The Neomounts Videowall wall mount with pop-out function is specially designed for heavy flat screens with a size of 32 to 75 inches and a weight of up to 70 kg. The monitor wall mount is also suitable for installation in recessed walls.
Flat videowall TV wall mount

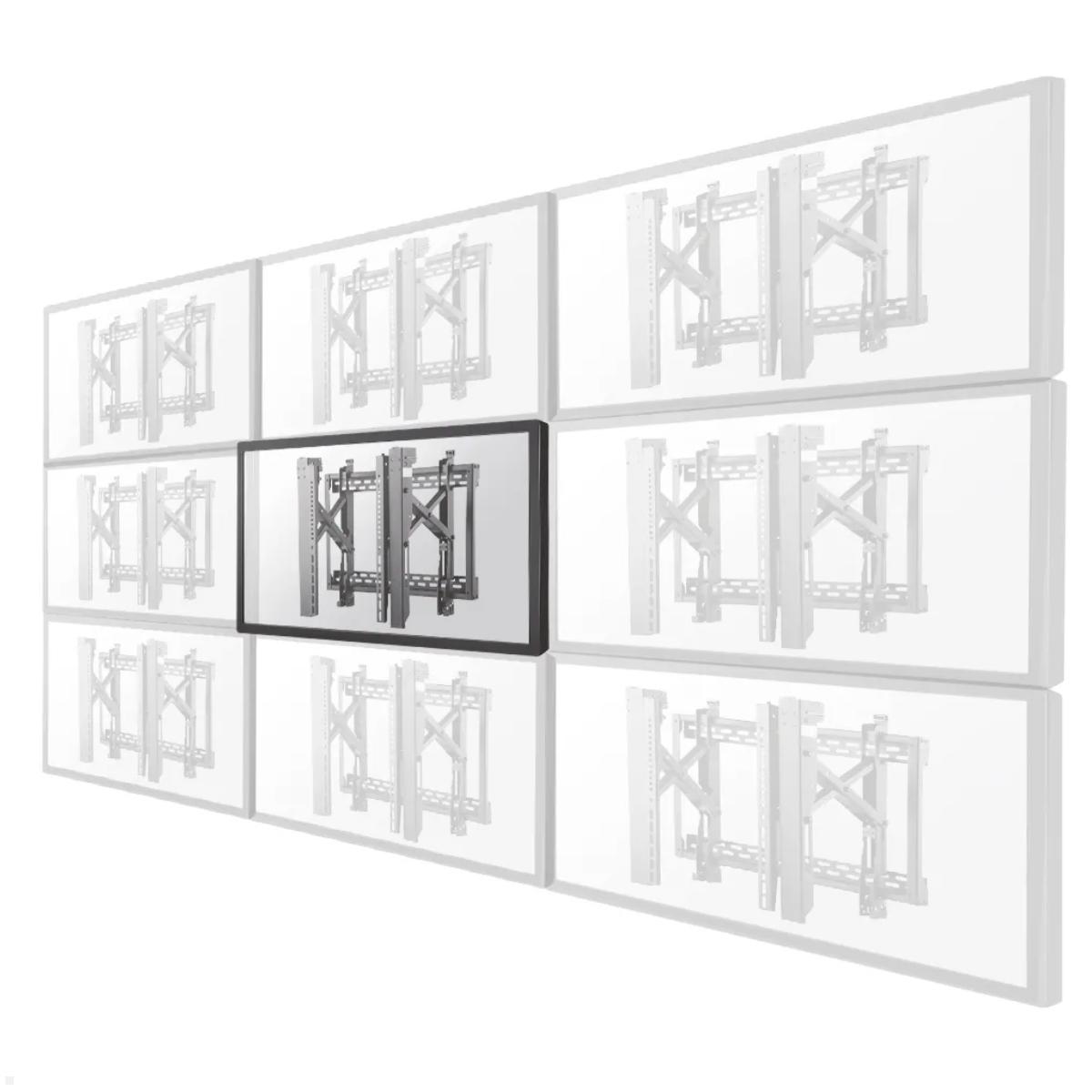

The Neomounts flat Videowall TV wall mount has been specially designed to make the installation of video walls as quick and easy as possible. With this videowall wall mount, unlimited video wall configurations can be created in both portrait and landscape formats. The flat design is ideal for mounting on walls with a shallow recess. The pop out function of the video wall mount allows for easy maintenance and operation of the mounted screens through quick and easy access to the back of the TV set. The soft opening can be opened in a controlled manner and allows access to the back of the mounted screen for service and maintenance. The screen can be rotated and tilted by 6°. The distance to the wall is min. 100 to max. 290 mm.
Key features Neomounts LED-VW2500BLACK1 Pop Out TV wall mount for video walls
- Screen size / monitor size: 32 to 75 inches
- Max. Load capacity: 70 kg
- TV wall installation possible in portrait and landscape format
- VESA mount: 200x200, 200x300, 200x400, 300x200, 300x300, 350x350, 400x300, 400x400, 400x600, 600x200, 600x300, 600x400, 600x600 mm
- Min. wall distance: 100 mm
- Max. wall distance: 290 mm

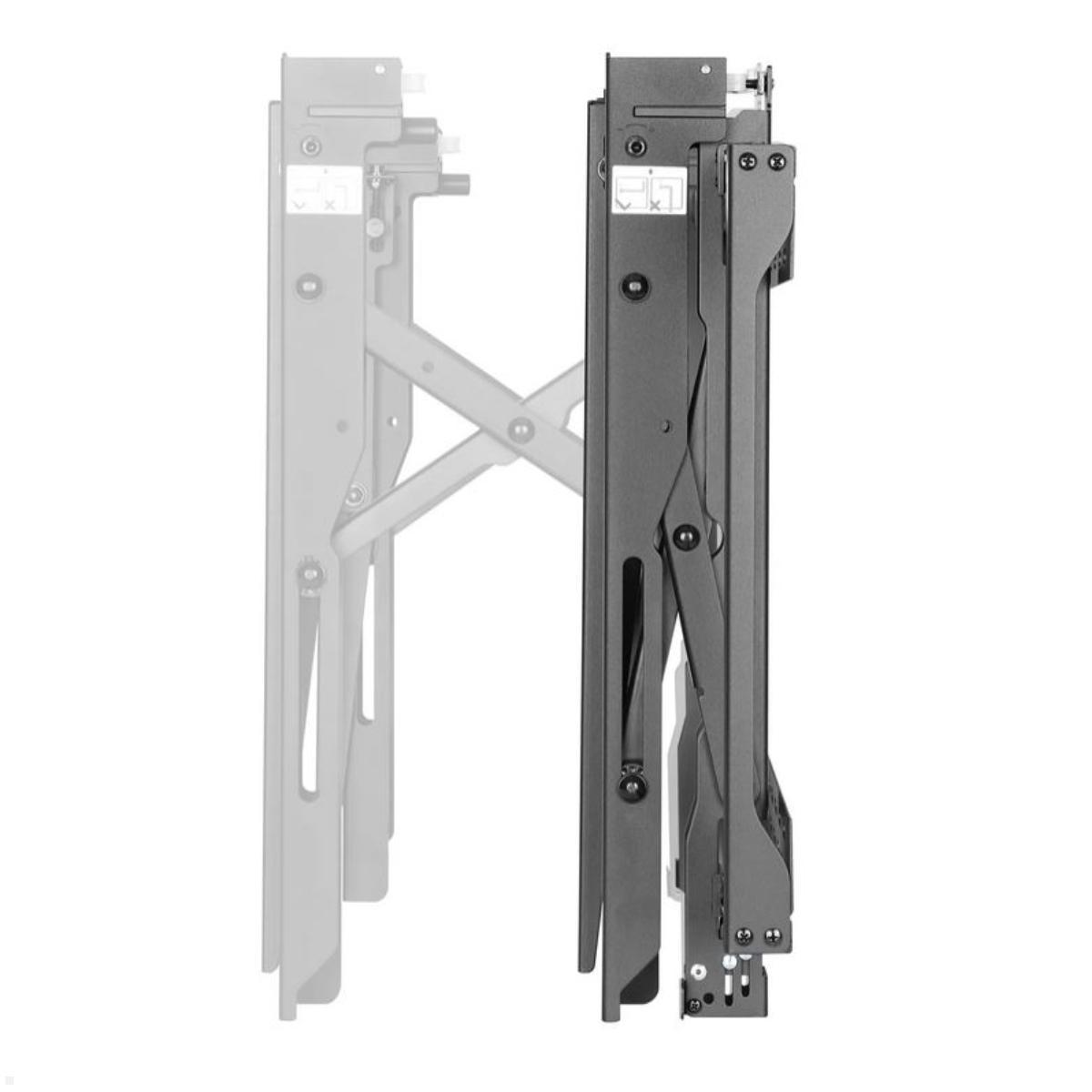

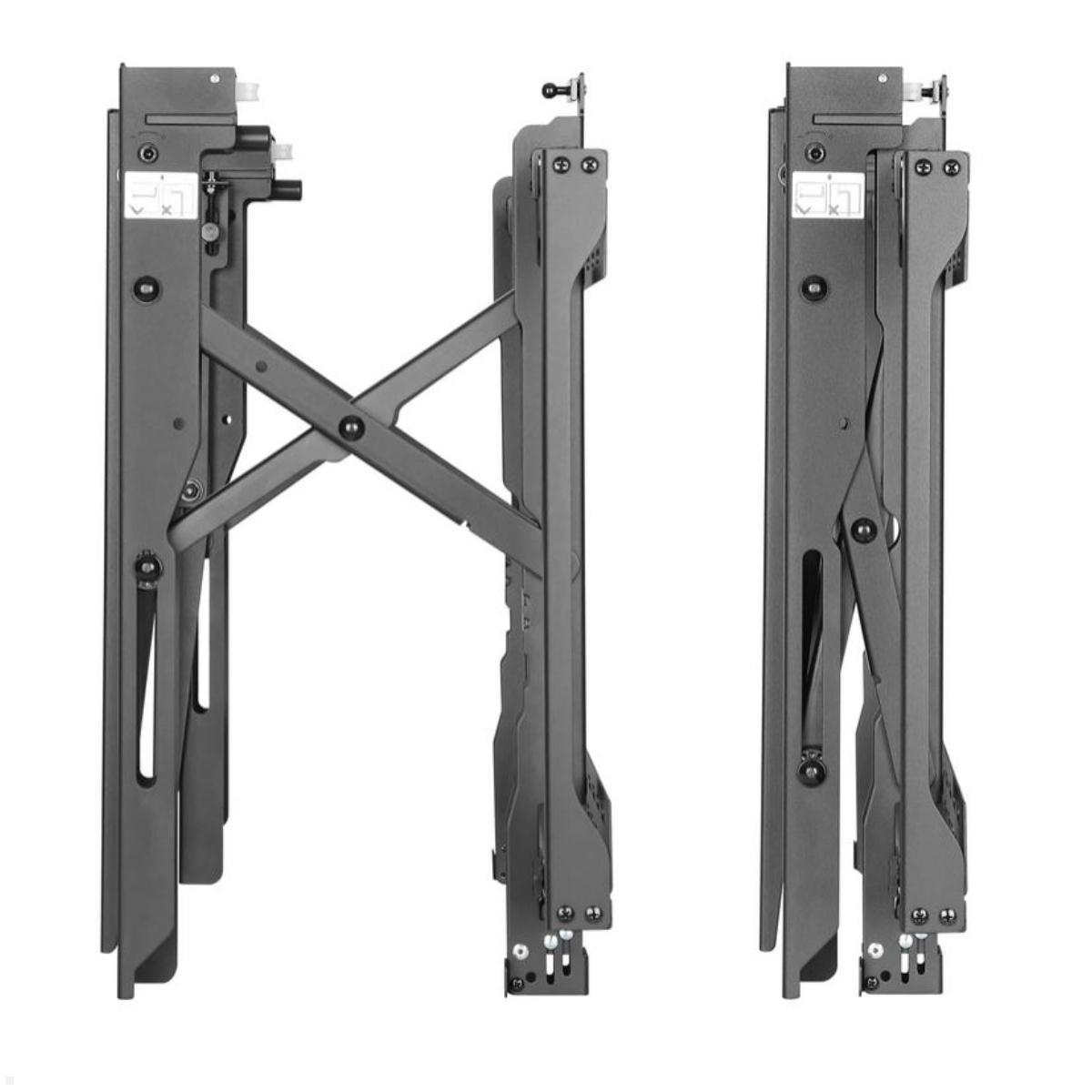

- Pop out mechanism provides quick and easy service access
- Rotate: 6°
- Tilt: 6°
- Warranty: 5 Jahre
- Finish: black
Does your monitor or display fit the VESA video wall mount?
We will check whether your monitor is suitable for this Neomounts by NewStar LED-VW2500BLACK1 videowall wall mount in black. Please tell us your model (manufacturer + model no.) in the comments field at the end of the ordering process. We will verify if the monitor or display fits or not and contact you.
VESA standard - more information about VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

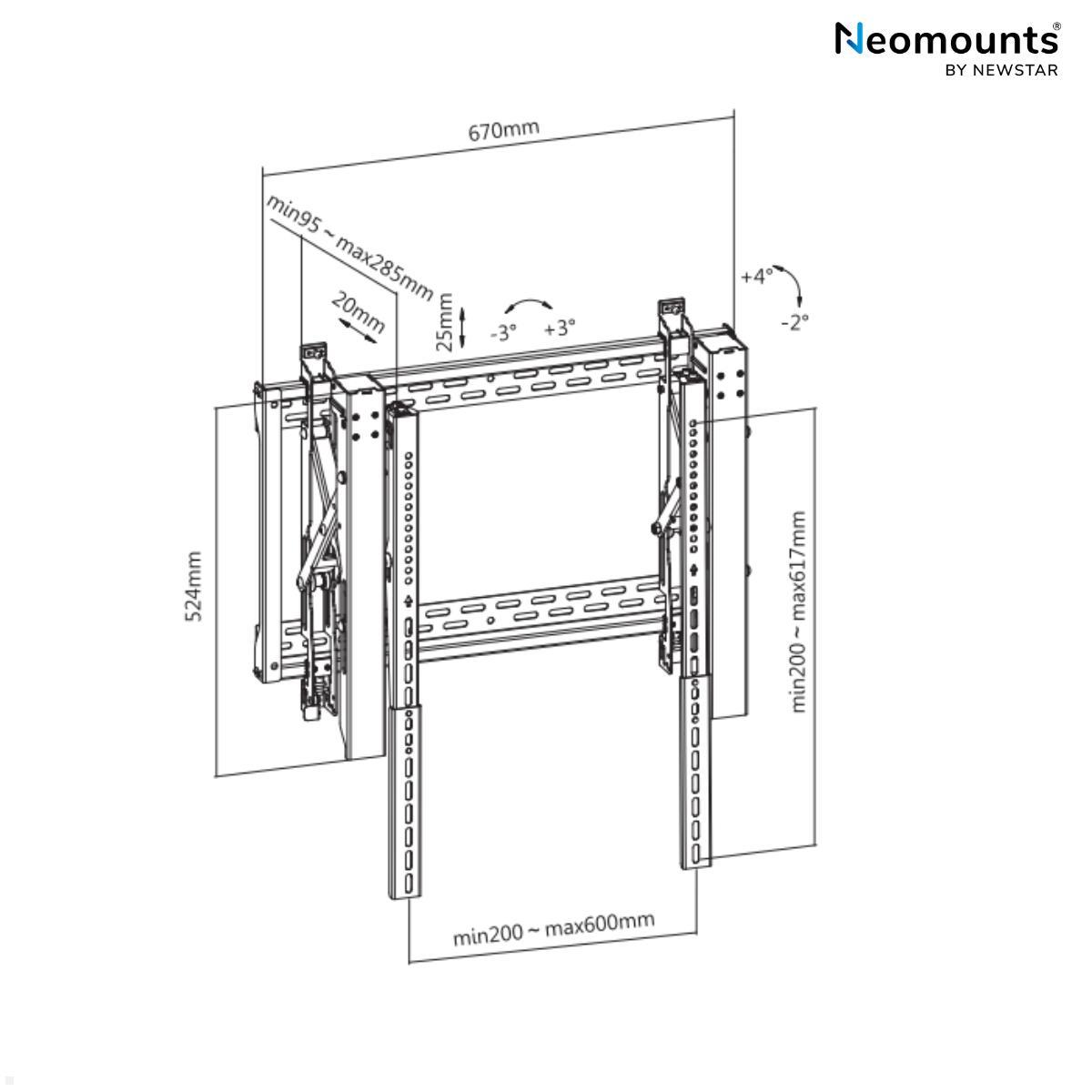

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 70 kg |
| Tilt: | -2°/+4° |
| Rotate: | -3°/+3° |
| Screen size: | 32 - 75" |
| Depth of the bracket: | 100 - 290 mm |
| VESA Standard: | 200x200, 200x300, 200x400, 300x200, 300x300, 350x350, 400x300, 400x400, 400x600, 600x200, 600x300, 600x400, 600x600 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 962 x 293 x 30 |
| Scope of delivery: | 1 x Neomounts LED-VW2500BLACK1 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch |
| Mobility: | Drehbar, tilting |
| Mounting type: | Videowall, in-wall solution, wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 200x200, VESA 200x300, VESA 200x400, VESA 300x200, VESA 300x300, VESA 350x350, VESA 400x300, VESA 400x400, VESA 400x600, VESA 600x200, VESA 600x300, VESA 600x400, VESA 600x500, VESA 600x600 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
