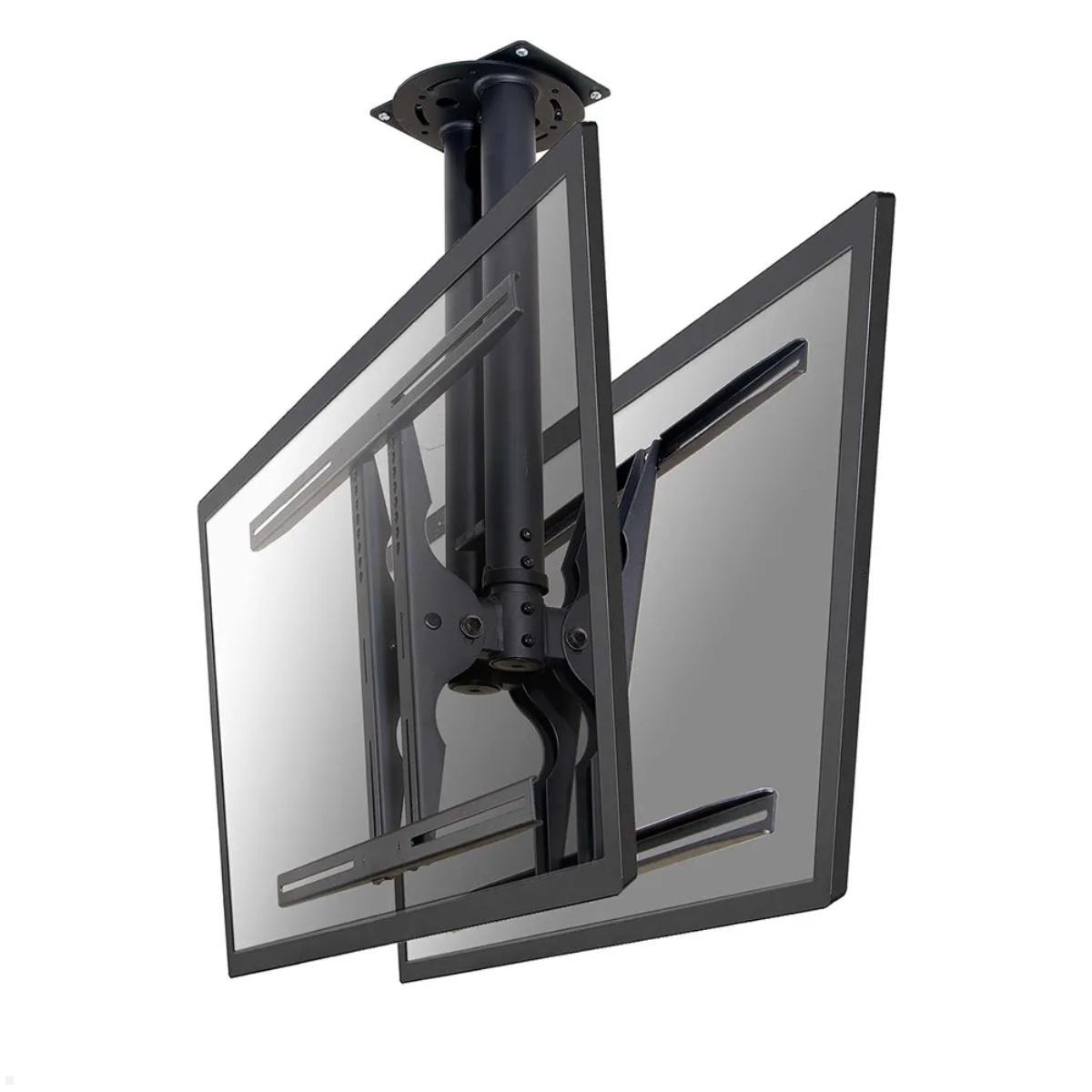

Neomounts PLASMA-C100D dual TV ceiling mount
The Neomounts PLASMA-C100D ceiling mount for two flat screens in black has two pivot points and is suitable for screens up to 75 inches (191 cm). The load capacity of this product is 100 kg. The ceiling mount is suitable for screens with a VESA hole pattern of 200x200 to 800x450mm. All installation materials are included.
Dual ceiling mount for two monitors
The TV ceiling mount from Neomounts by NewStar model PLASMA-C100D is a dual ceiling mount for two monitors . The rotatable and swiveling monitor ceiling mount for flat screens and flat screen TVs up to 75 inches (191 cm). This TV mount is a good choice for space-saving ceiling mounting or when wall mounting or floor placement is not an option. The load capacity of this product is 100 kg. The monitor ceiling mount is suitable for screens with VESA hole pattern 200x200 to 800x450mm.
Neomounts by NewStars unique tilting (25°) and swiveling ( 60°) technology allows the mount to be changed to any viewing angle to fully benefit from the possibilities of flat screens. The monitor attachment of the TV double bracket is easily height-adjustable from 67 to 107 centimetres. A unique cable management conceals and routes cables from the ceiling to the TV. Create a clean design ambience for your flat screen TV in the living room, bedroom or home theater. All mounting materials are included in the scope of delivery.
Key features Neomounts PLASMA-C100D monitor double mount
- Number of screens: 2
- Maximum weight: 100 kg in total
- Screen size: 37 - 75 inches
- Tilt: 25°
- Swivel: 60°
- Height adjustable ü About 670 to 1070 mm
- VESA mount Standard 200x200 - 800x450 mm
- All mounting materials are included.
- Warranty 5 years

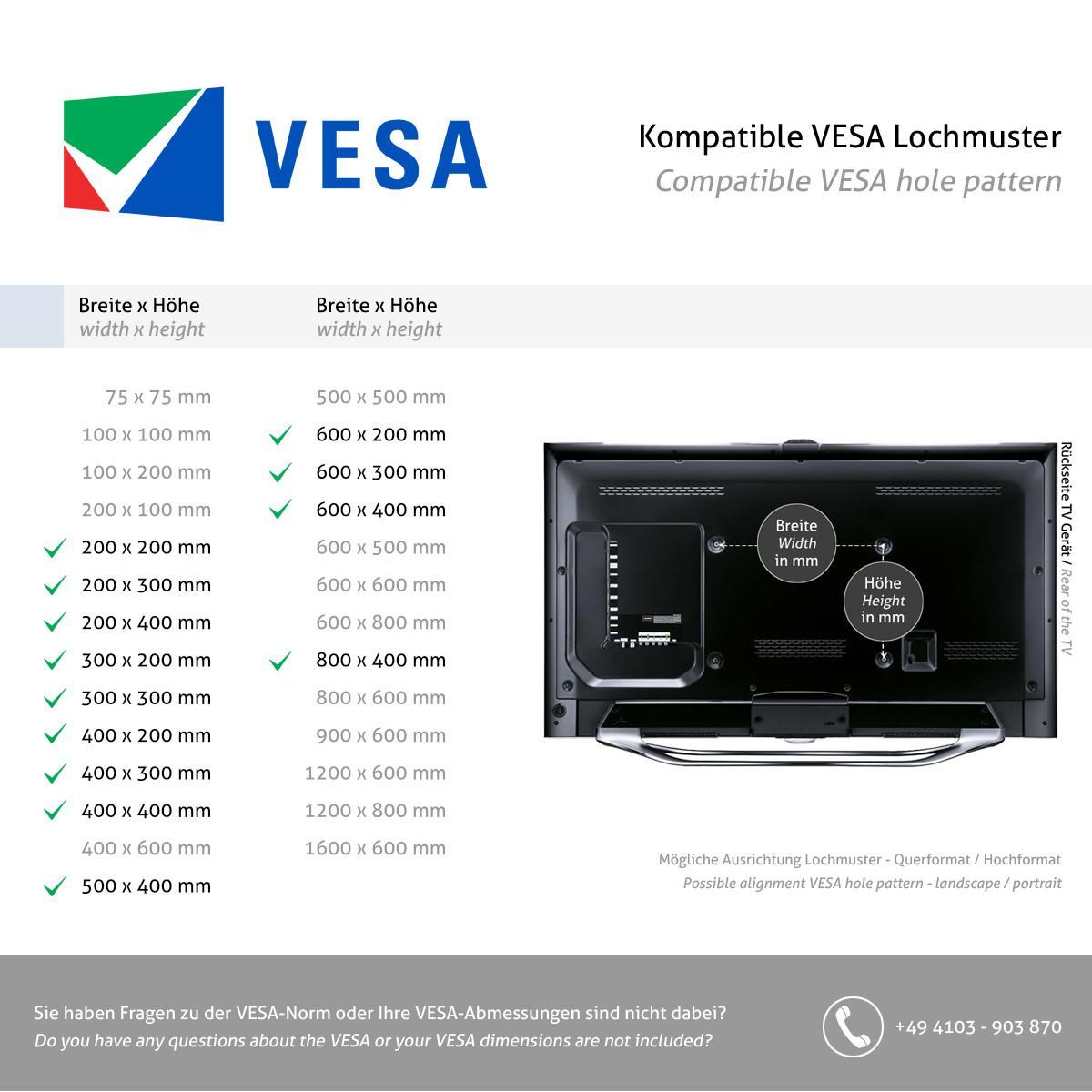

Does your screen or display fit the VESA mount?
We would be happy to check whether your monitor fits this Neomounts by NewStar PLASMA-C100D is suitable. Simply send us your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and if not, we will contact you.
VESA Standard - Find out more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

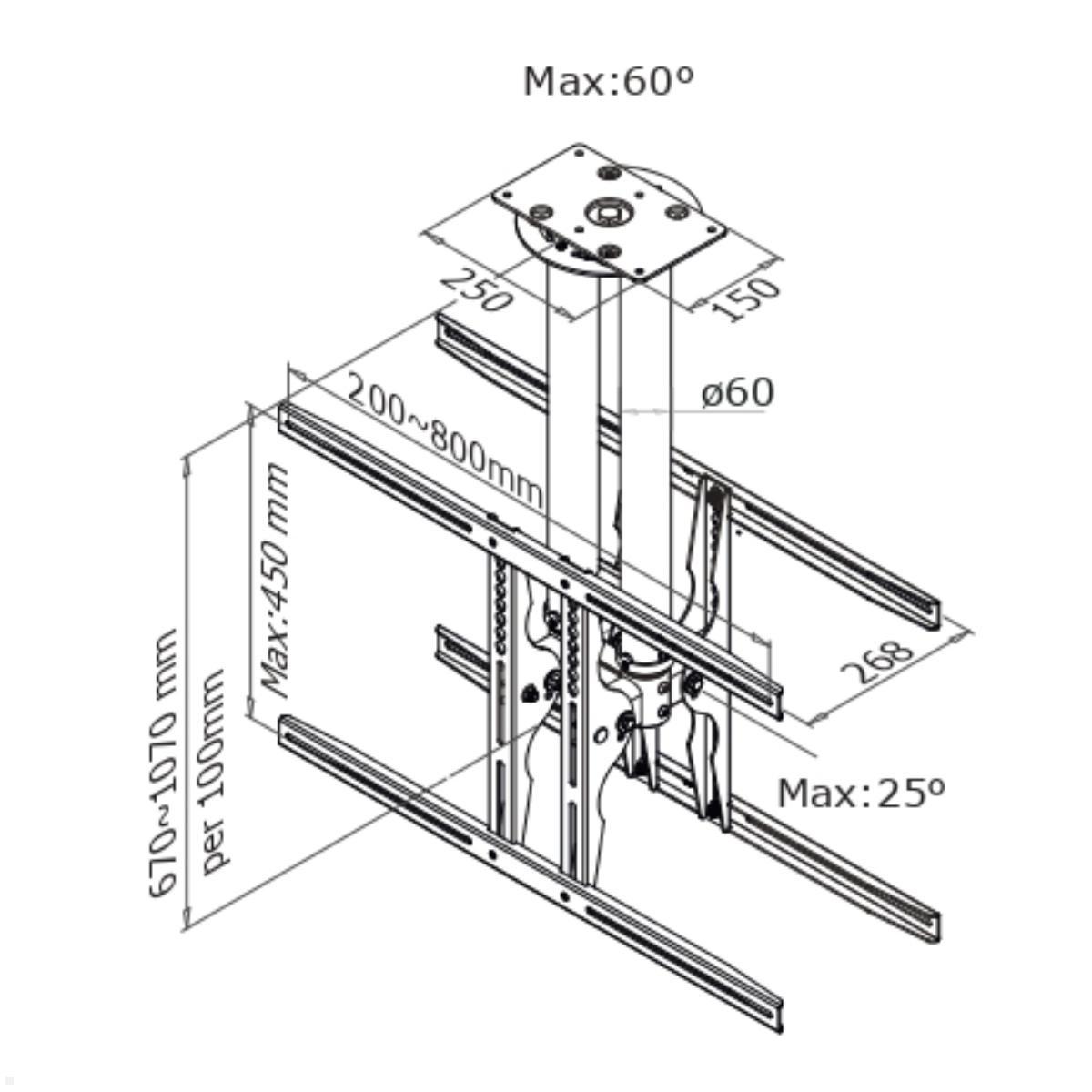

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 100 kg |
| Tilt: | 25° |
| Swivelling range: | 60° |
| Screen size: | 37 - 75" |
| VESA Standard: | 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, 800x400 mm (www.vesa-standard.de) |
| Packaging dimensions (LxWxH in mm): | 858 x 188 x 152 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Ceiling distance in m: | < 2m |
| Inch size: | 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | Ceiling mount |
| Multi-monitor mount: | Monitor back to back |
| color: | Black |
| VESA (in mm): | VESA 200x100, VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400, VESA 800x400 |
Note on Curved Monitors:
If a curved suitability is not explicitly mentioned with the mount, we do not guarantee that the mount is suitable for curved screens. We are happy to check the compatibility for you! Write us an email with your TV model and the desired monitor mount!
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
