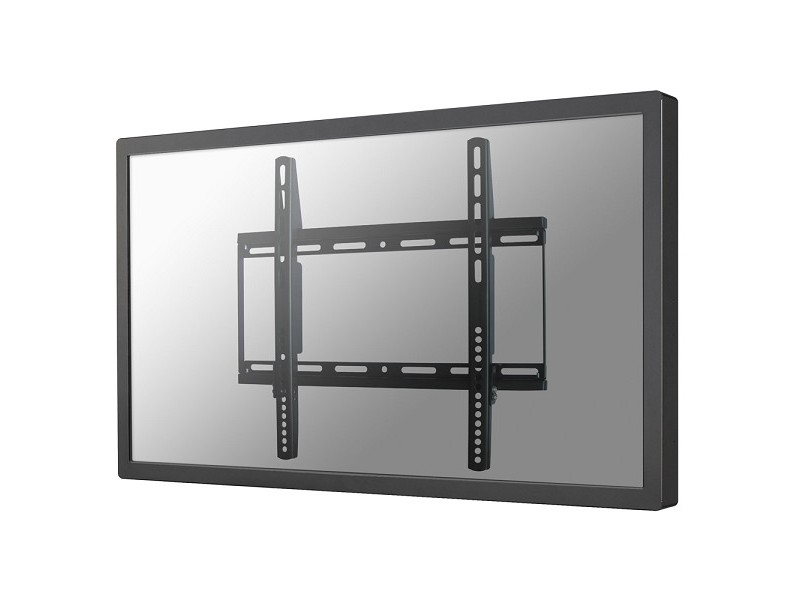

Neomounts PLASMA-WKIT1 starter kit TV wall mount
The NewStar PLASMA-WKIT1 7-in-1 starter kit is suitable for screens up to 55" (140 cm). The weight capacity of this product is 75 kg. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm.
The NewStar wall mount, model PLASMA-WKIT1 is a fixed wall mount for flat screens up to 55" (140 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 3,2 centimetres.
NewStar PLASMA-WKIT1 flatscreen wall mount starter kit
NewStar PLASMA-WKIT1 is suitable for screens up to 55" (140 cm). The weight capacity of this product is 75 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. Different hole patterns can be covered using NewStar VESA adapter plates.

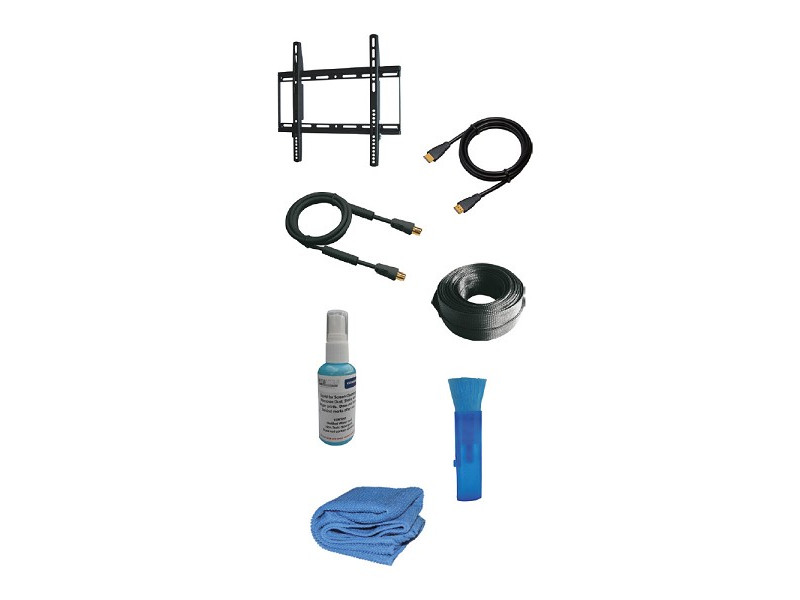

The package includes:
- Fixed wall mount
- HDMI cable (3 meter/10 feet)
- RF antenna cable (3 meter/10 feet)
- Cable sock (3 meter/10 feet)
- Cleaning fluid (60 ml)
- Cleaning brush
- Microfibre cloth (30x30 cm)
Key features NewStar PLASMA-WKIT1 TV wall bracket
- Finish: Black
- Max. weight: 75 kg
- Display size: 23 - 55"
- Wall distance: 32 mm
- VESA Standard 100x100 - 400x400 mm
- All installation material is included with the product.
- Warranty 5 years
Does your monitor or display match?
We will gladly check if your monitor is suitable for this NewStar PLASMA-WKIT1 bracket. Send us simply at the end of the ordering process in the comment box your model (Manufacturer + model no.). We then check for you whether the monitor or the display to monitor mount fits and if not, we will contact you.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 190 kb] |
|---|---|

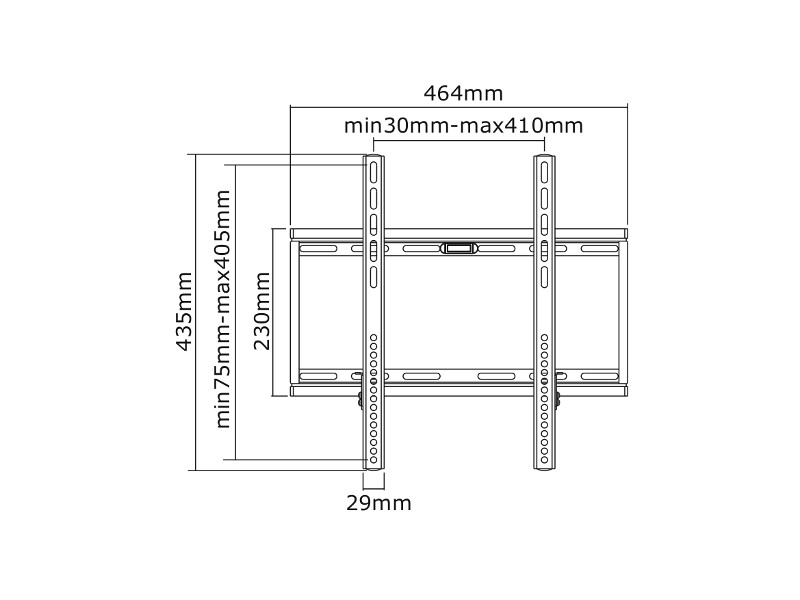

| Technical drawing: | [pdf, 17 kb] |
| Installation manual: | [pdf, 5,6 MB] |
| Capacity: | 75 kg |
| Screen size: | 23 - 55" |
| Depth of the bracket: | 32 mm |
| VESA Standard: | 200x200, 400x200, 300x300, 400x400mm (www.vesa-standard.de) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Inch size: | 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch |
| Mobility: | fixed |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
