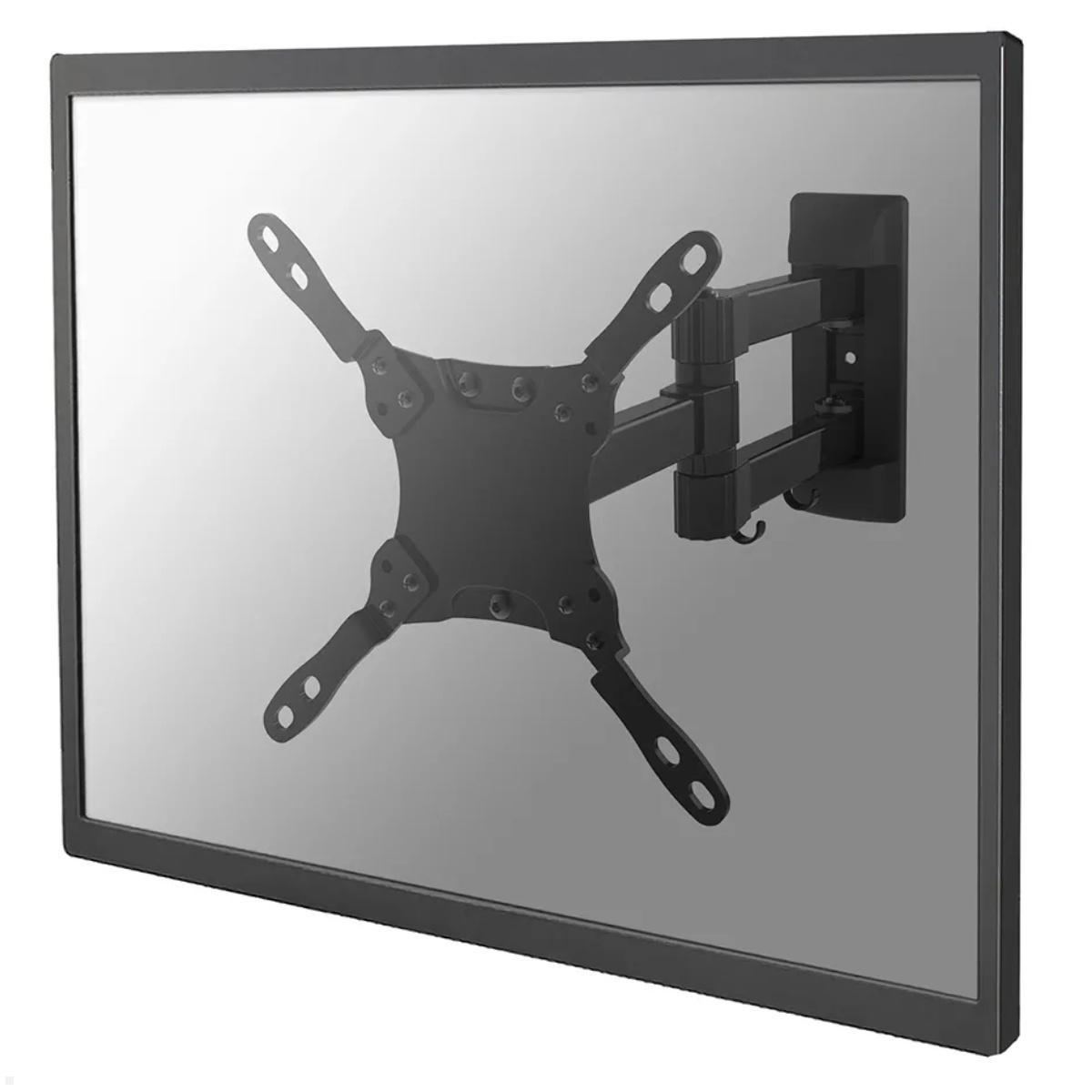

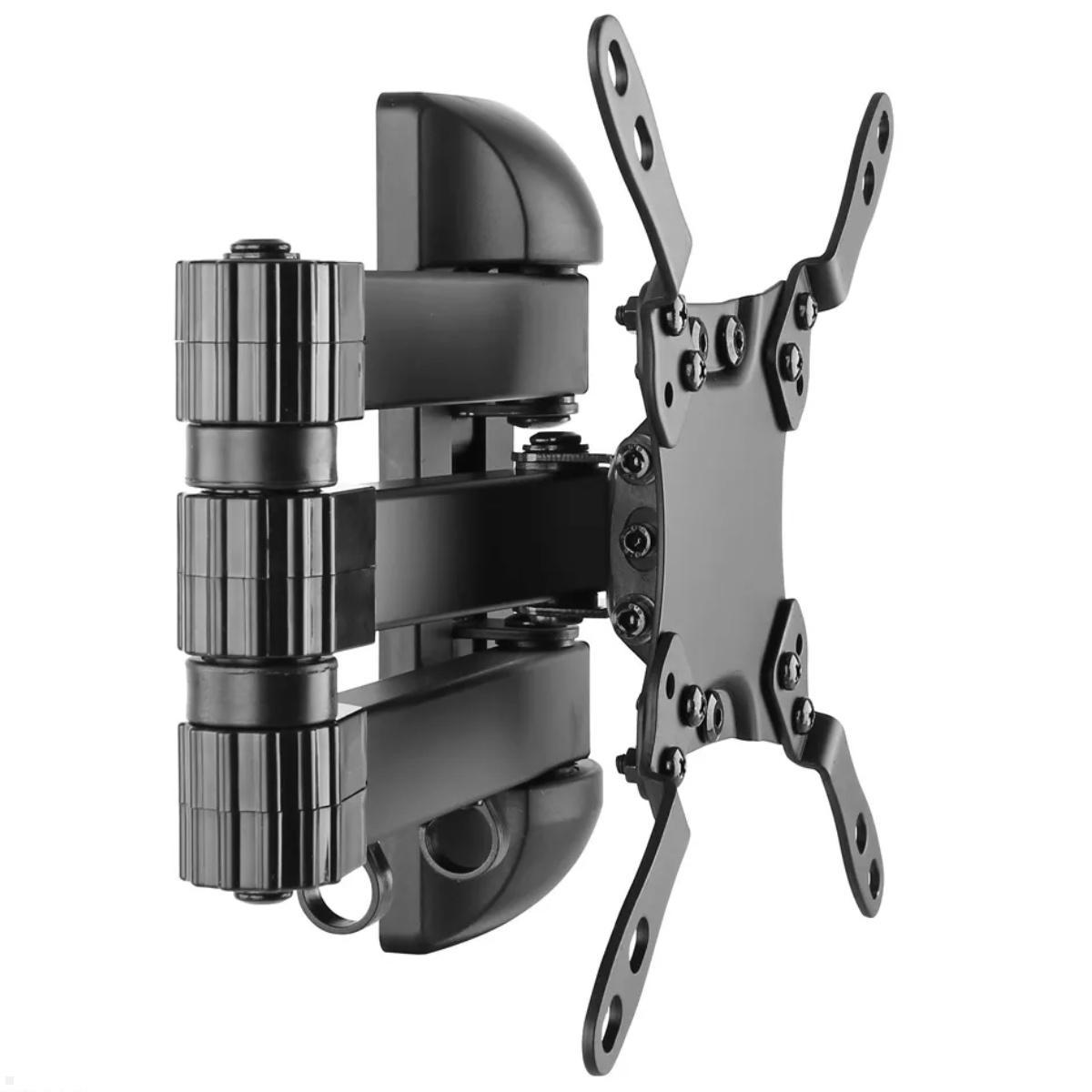

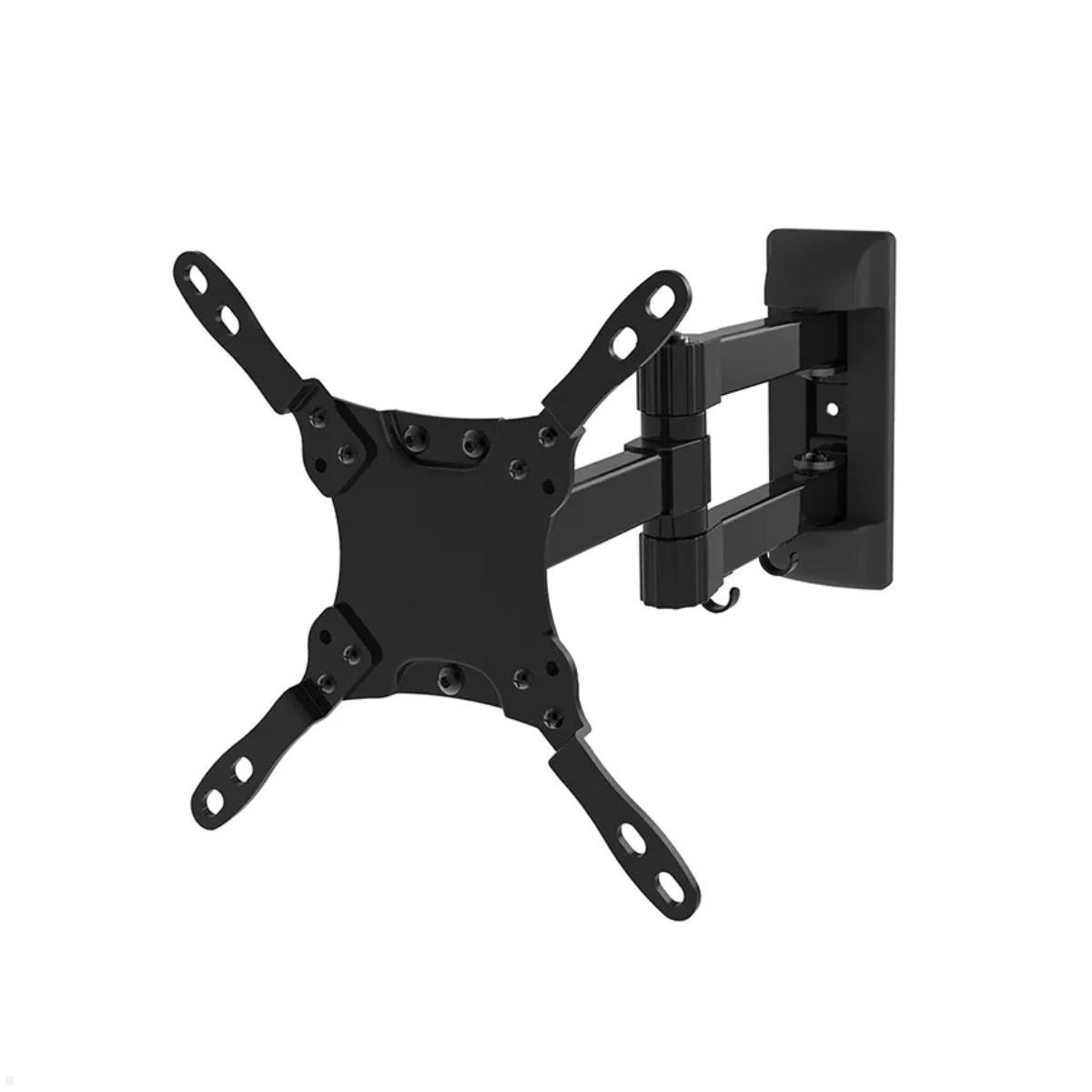

Neomounts Select NM-W225BLACK swivel TV wall mount up to 32 inch
Tilt TV wall mount
The tilt TV wall mount NM-W225BLACK from the Neomounts Select series supports displays up to 32 inches in size and 30 kg in weight. With a swivel range of 180° as well as 20° tilt, the monitor mount is particularly flexible. Ideal application areas for the TV wall bracket are the living room, bedroom or home theater. Cables can be routed along the practical clips in an orderly manner.
Key features Neomounts by NewStar NM-W225BLACK display wall mount
- Screen size: 10" - 32 inch
- Capacity: 30 kg
- VESA mount: 75x75, 100x100, 100x200, 200x100, 200x200 mm
- Swivel: 180°
- Length swivel arm: 50 - 370 mm

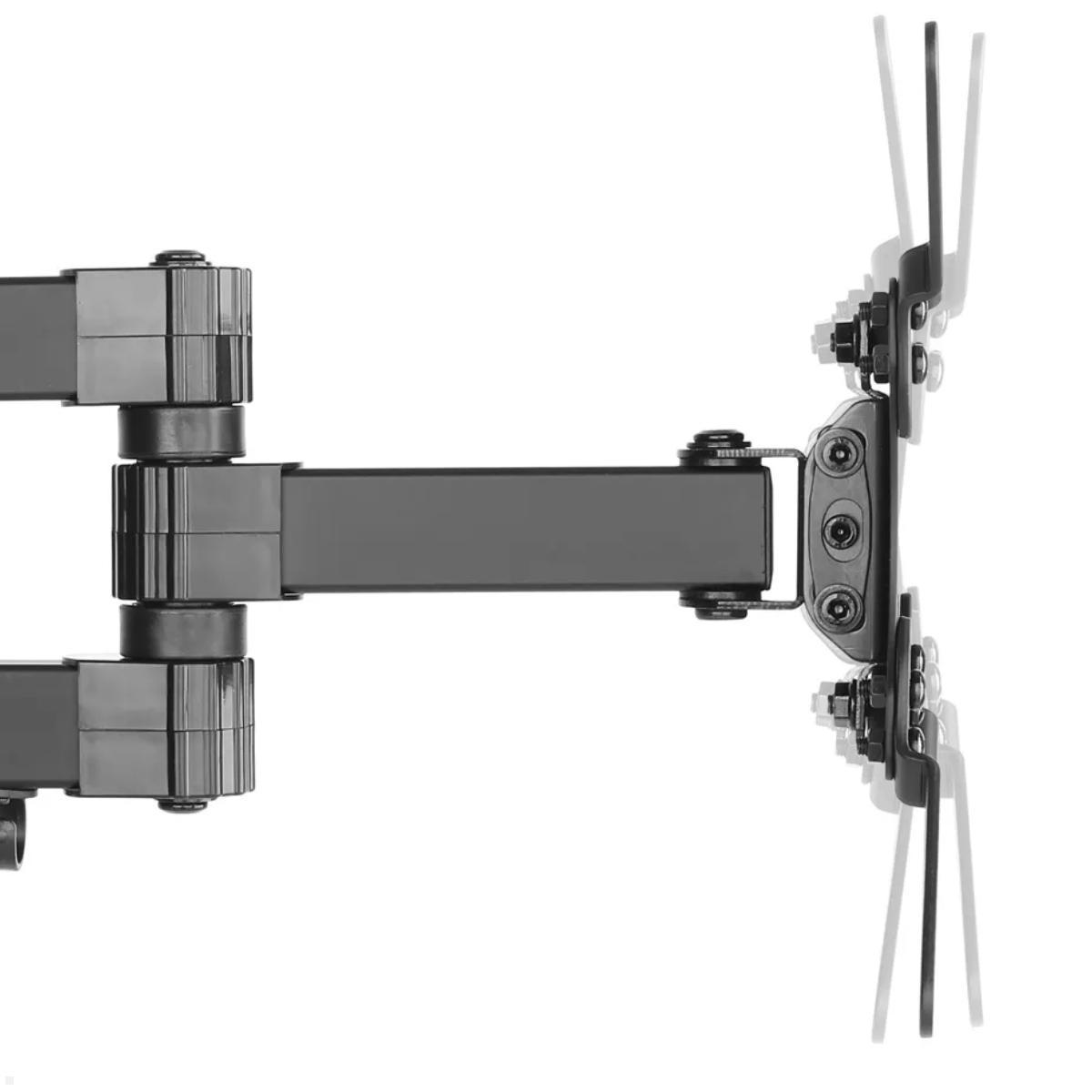

- Tilt: 20°
- Rotate: 5°

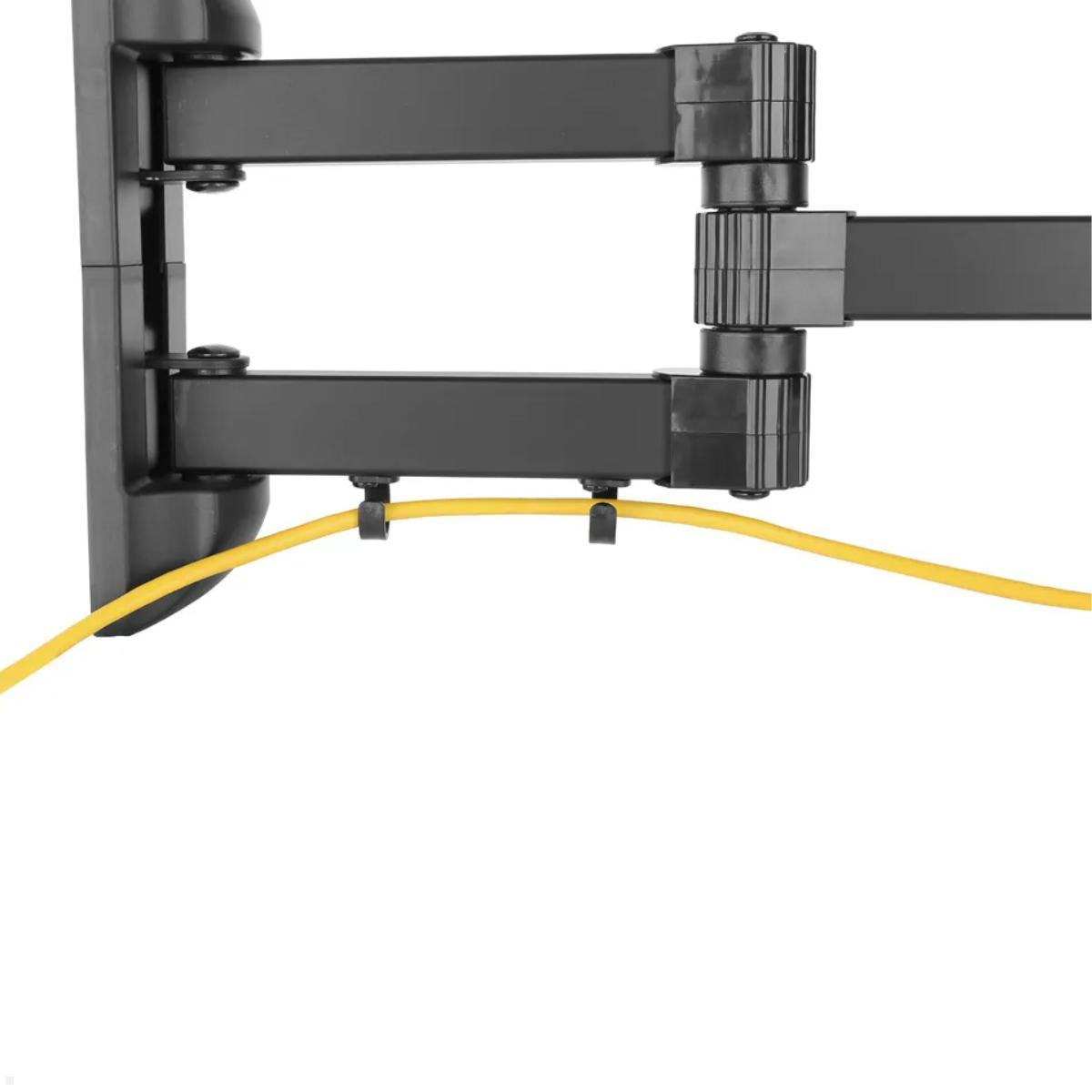

- Integrated cable management
- Warranty: 5 years
- Finish: black
Does your monitor or display fit?
We will gladly check if your monitor is suitable for this Neomounts Select NM-W225BLACK display wall mount. Just send us your model at the end of the ordering process in the comment field (manufacturer + model no.). We will then check for you whether the monitor or the display fits the monitor holder and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf] |
|---|---|

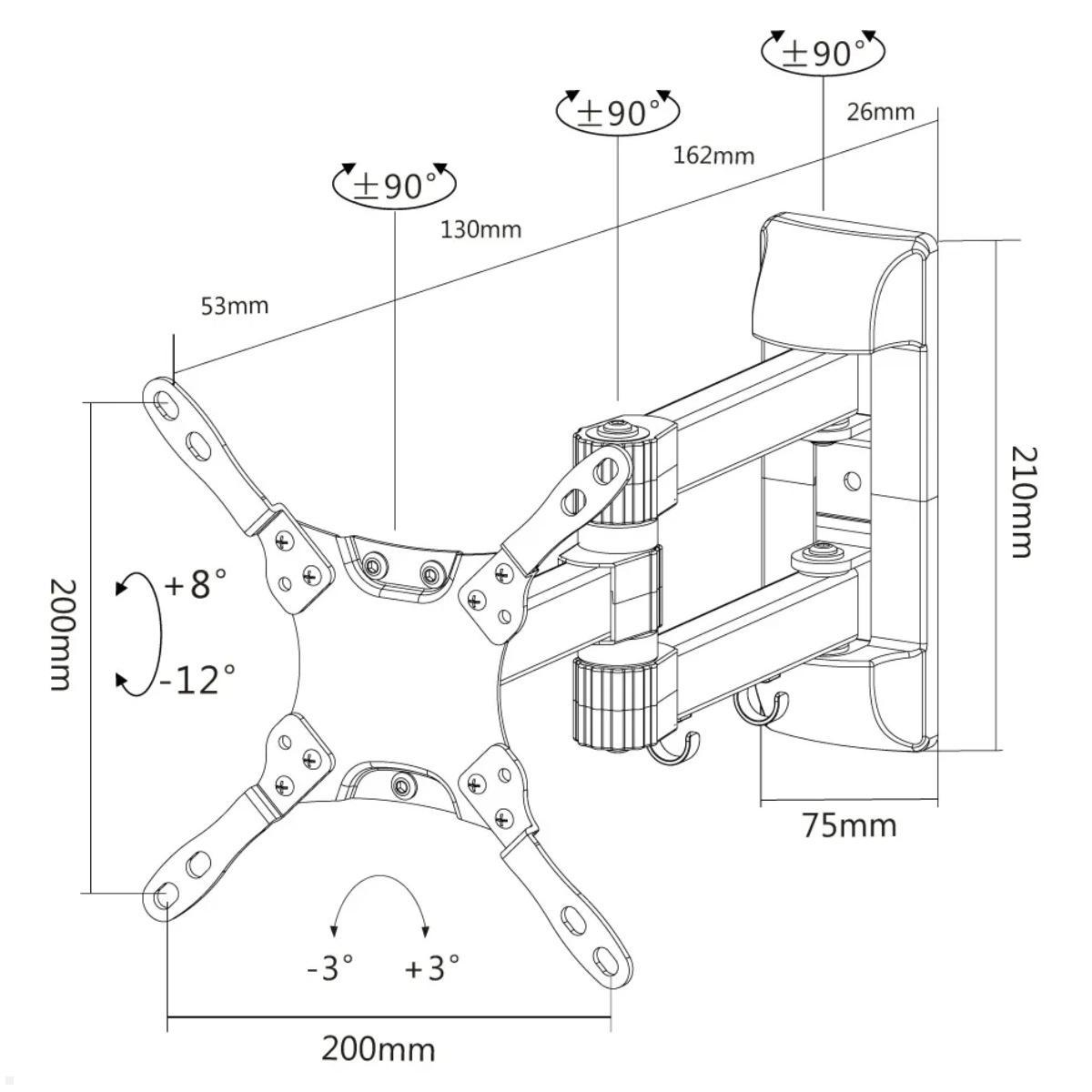

| Technical drawing: | [pdf] |
| Installation manual: | [pdf, 5,5 MB] |
| Capacity: | 30 kg |
| Tilt: | 20° |
| Rotate: | 5° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 370 |
| Screen size: | 10 - 32" |
| VESA Standard: | 75x75, 100x100, 100x200, 200x100, 200x200 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 70 x 228 x 239 mm |
| Scope of delivery: | 1x TV wall mount | mounting material |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch |
| Mobility: | Drehbar, swivelling, tilting |
| Mounting type: | wall mount |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100, VESA 100x200, VESA 200x100, VESA 200x200 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
