Neomounts Select NM-W345 tilt Monitor wall mount 32-52inch, black
On the NewStar NM-W345 NeoMounts wall mount for displays from 32 to 52 inches in black monitors can be mounted with a VESA mount of 100x100 to 400x400 mm.
NewStar NM-W345 NeoMounts tilt Monitor wall mount 32-52inch in black

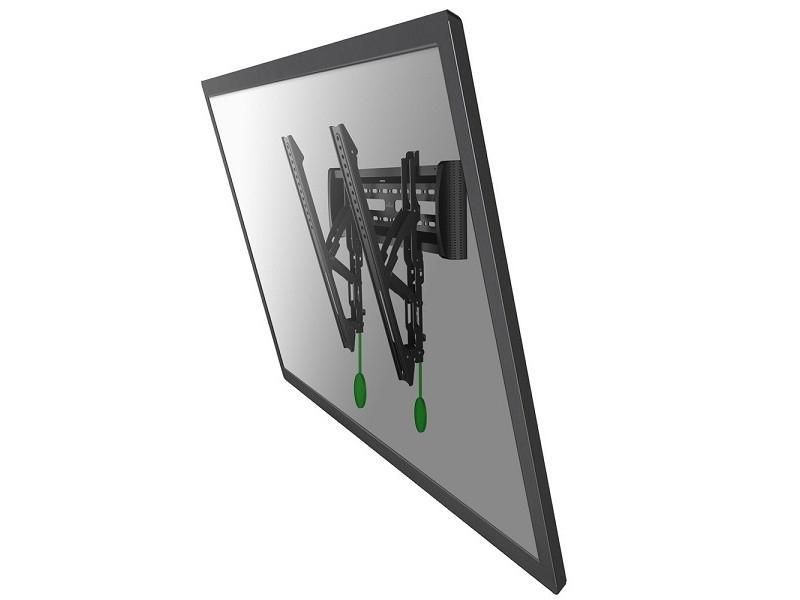

The NewStar NM-W345 NeoMounts Display Wall Mount is suitable for displays from 32 to 52 inches with a weight of up to 25 kg. This TV mount provides the ultimate in television flexibility.
NewStar NeoMounts TV Mount Tilt

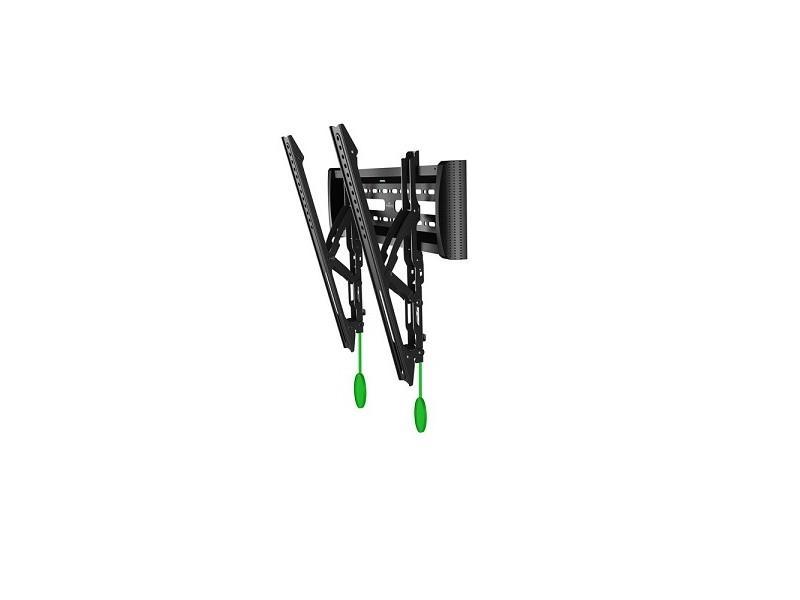

The NewStar NeoMounts TV wall mount allows you to position the TV perfectly on the bracket with the tilt function. Monitors with a VESA mount of 100x100 to 400x400 mm are compatible with the mount.
Key features NewStar NM-W345 NeoMounts Display Wand Halterung
- Screen size: 32"-52"
- Capacity: 25 kg
- Wall distance: 35 mm
- VESA mount: 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400 mm
- Tilt: 12°
- Warranty: 5 years
- Finish: black
Does your monitor or display fit?
We will gladly check if your monitor is suitable for this NewStar NM-W345 NeoMounts tilt Monitor wall mount in black. Just send us your model at the end of the ordering process in the comment field (manufacturer + model no.). We then check for you whether the monitor or the display fits the monitor holder and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 104 kb] |
|---|---|

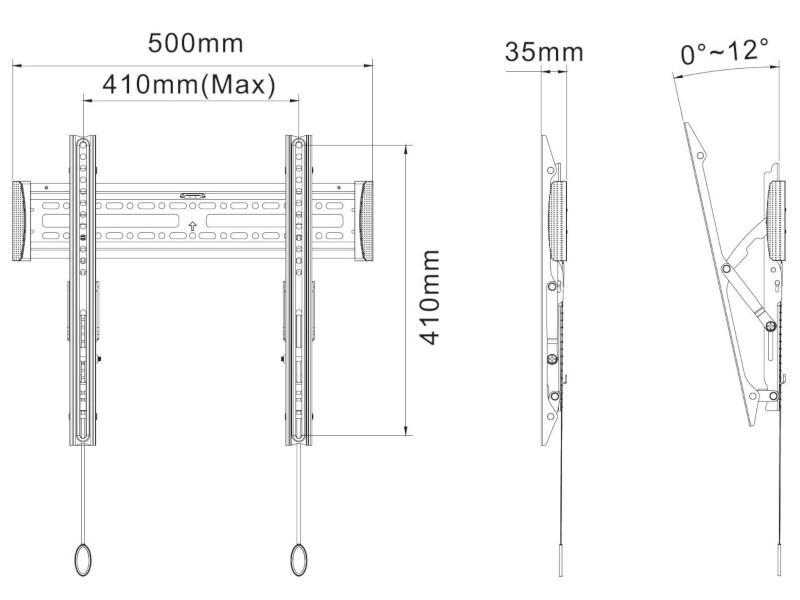

| Technical drawing: | [pdf, 57 kb] |
| Installation manual: | [pdf, 3,7 MB] |
| Capacity: | 25 kg |
| Tilt: | 12° |
| Screen size: | 32 - 52" |
| Depth of the bracket: | 35 mm |
| VESA Standard: | 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch |
| Mobility: | tilting |
| Mounting type: | wall mount |
| color: | Black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
