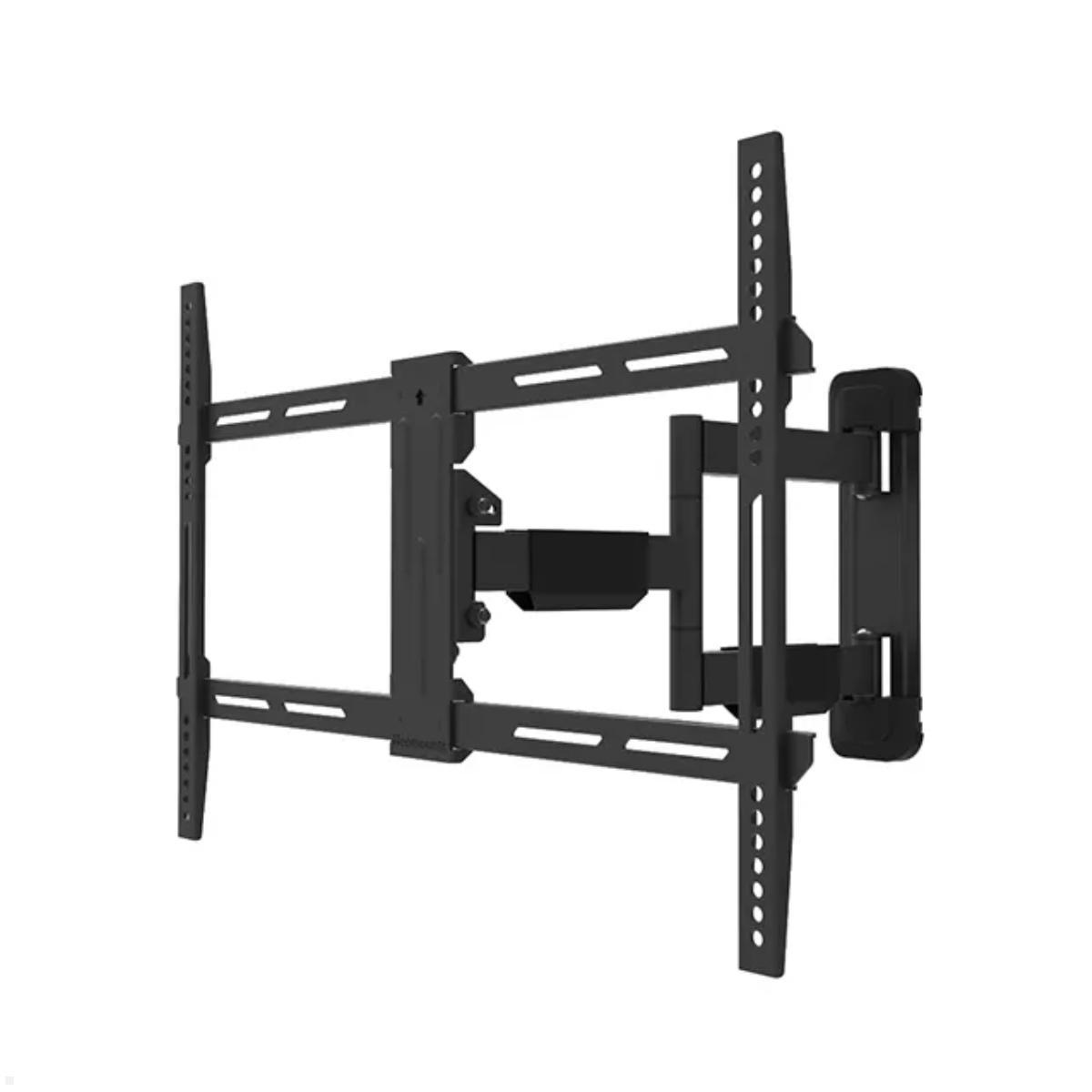

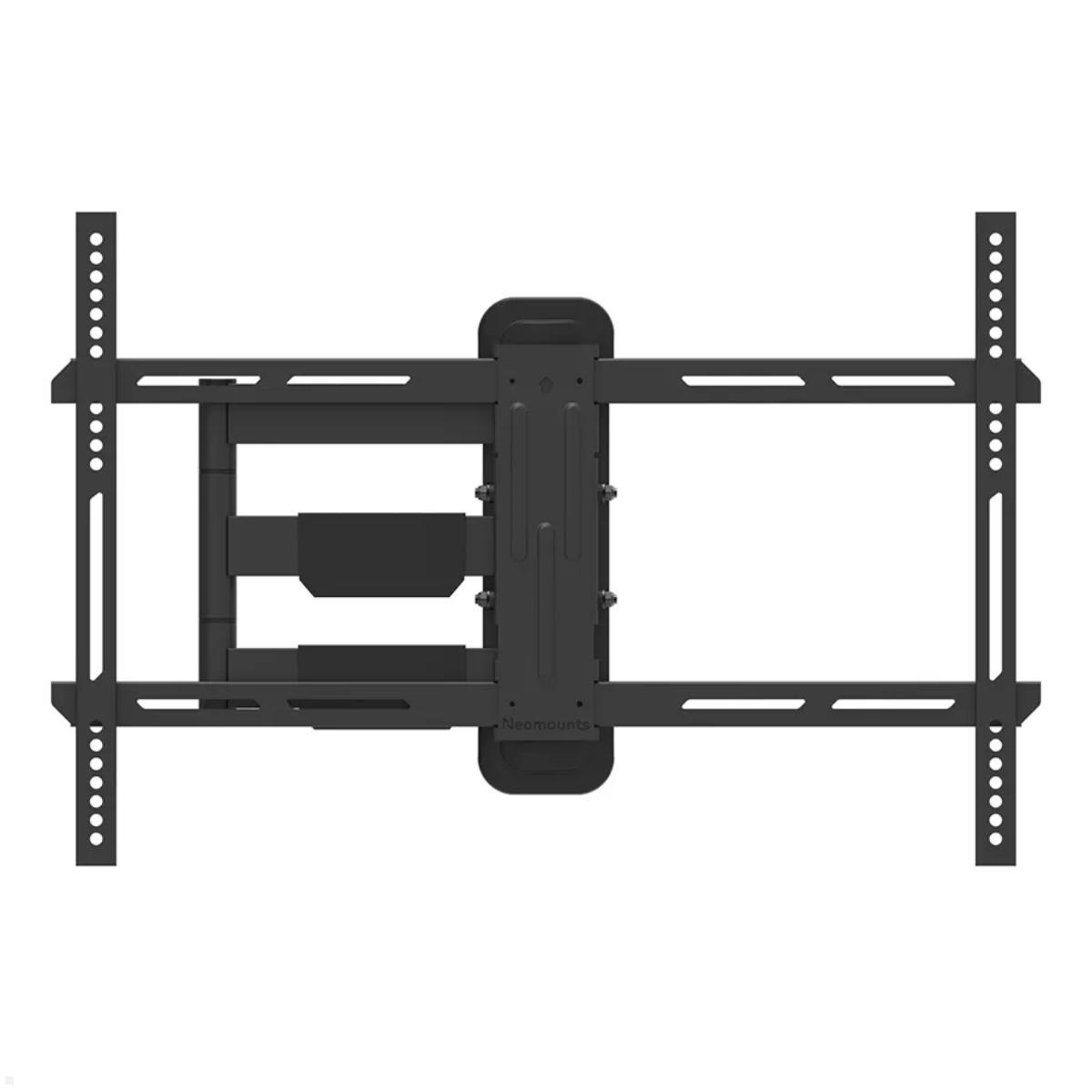

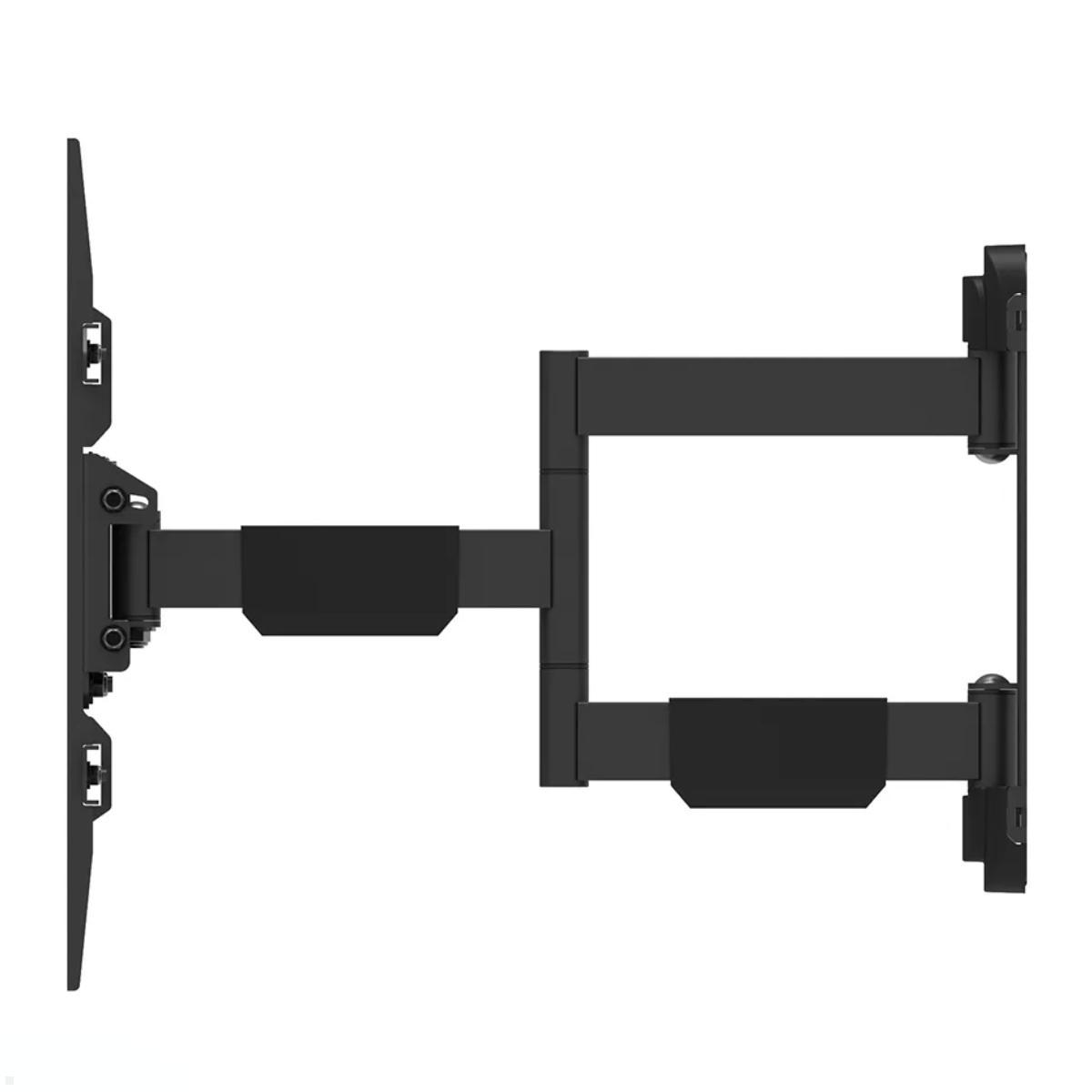

Neomounts WL40-550BL16 swivel TV wall mount 40 - 65 inch

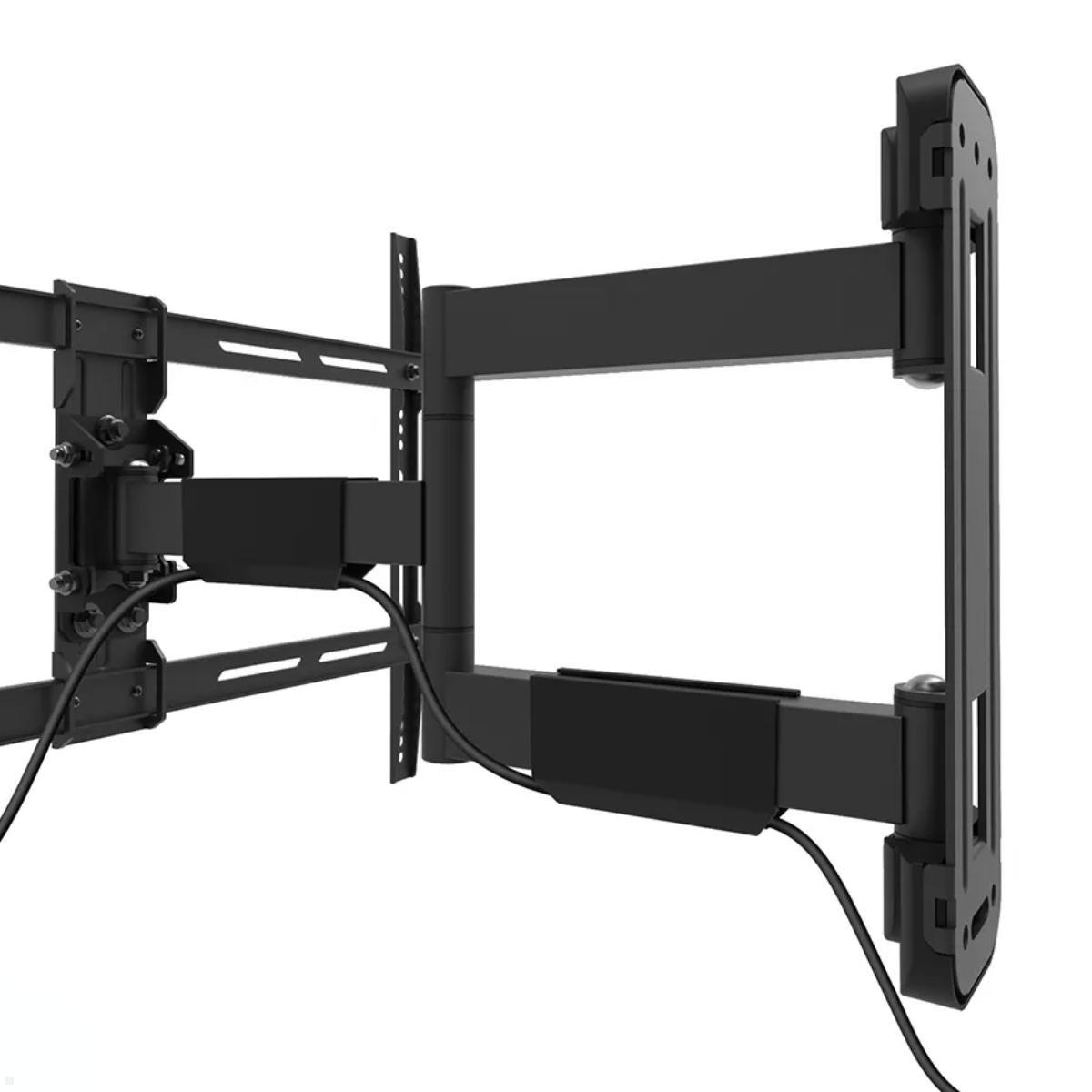

The Neomounts WL40-550BL16 TV wall mount is swivable and tiltable. The mount with swivel arm is suitable for TVs up to 65 inches and 40 kg. The integrated cable management cleverly hides annoying cables in the swivel arm.
Swivel TV wall mount
The Neomounts by Newstar WL40-550BL16 is a 40 degree swivel TV wall mount for TVs from 40 to 65 inches and a maximum load capacity of 40 kg. The TV wall bracket features a distance to the wall of 5.3 to 49 cm and is suitable for screens with a VESA mount of 100x100 to 600x200 mm. The television holder can be tilted by 12°. Mounting the TV wall mount is easy, thanks to the Neomounts Easy-Release system, which allows the TV to be attached in no time and securely and solidly fastened. The integrated cable management ensures hidden cables and a clean environment.
Key features Neomounts WL40-550BL16 TV wall mount, black
- Screen size: 40 - 65 inch
- Load capacity: 40 kg
- Wall distance: 5.3 to 49 cm

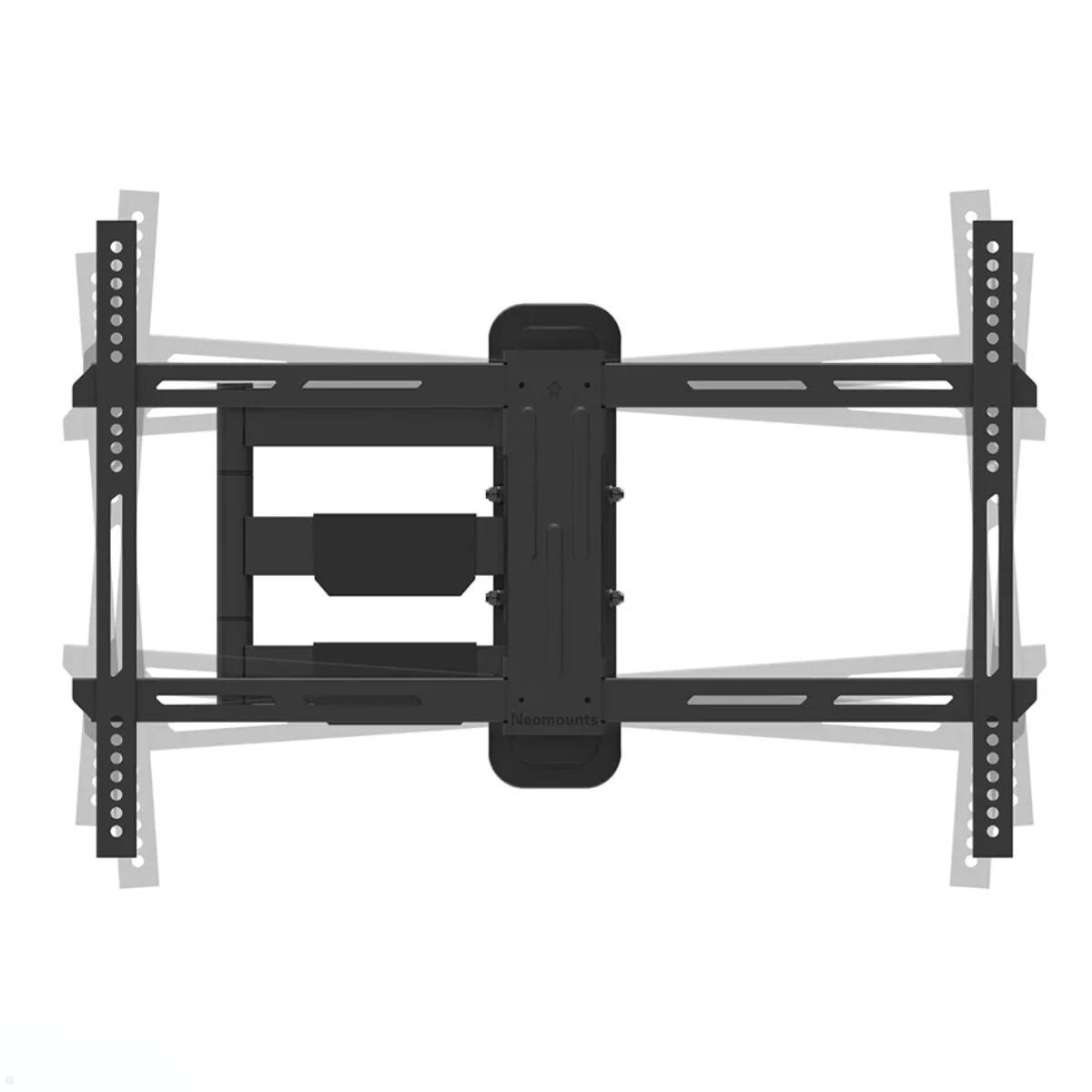

- Tilt: +12°, -2°
- Swivable: 40°
- VESA mount: 100x100, 100x150, 100x200, 120x120, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 440x400, 600x200, 600x300, 600x400 mm
- Warranty: 5 years
- Finish: Black
Does your monitor or display fit the VESA mount?
We would be happy to check if your monitor is suitable for this Neomounts WL40-550BL16 monitor wall mount. Just tell us your model (manufacturer + model no.) in the comment field at the end of the order process. We will then check for you whether the monitor or display fits the monitor mount and if not, we will contact you.
VESA standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

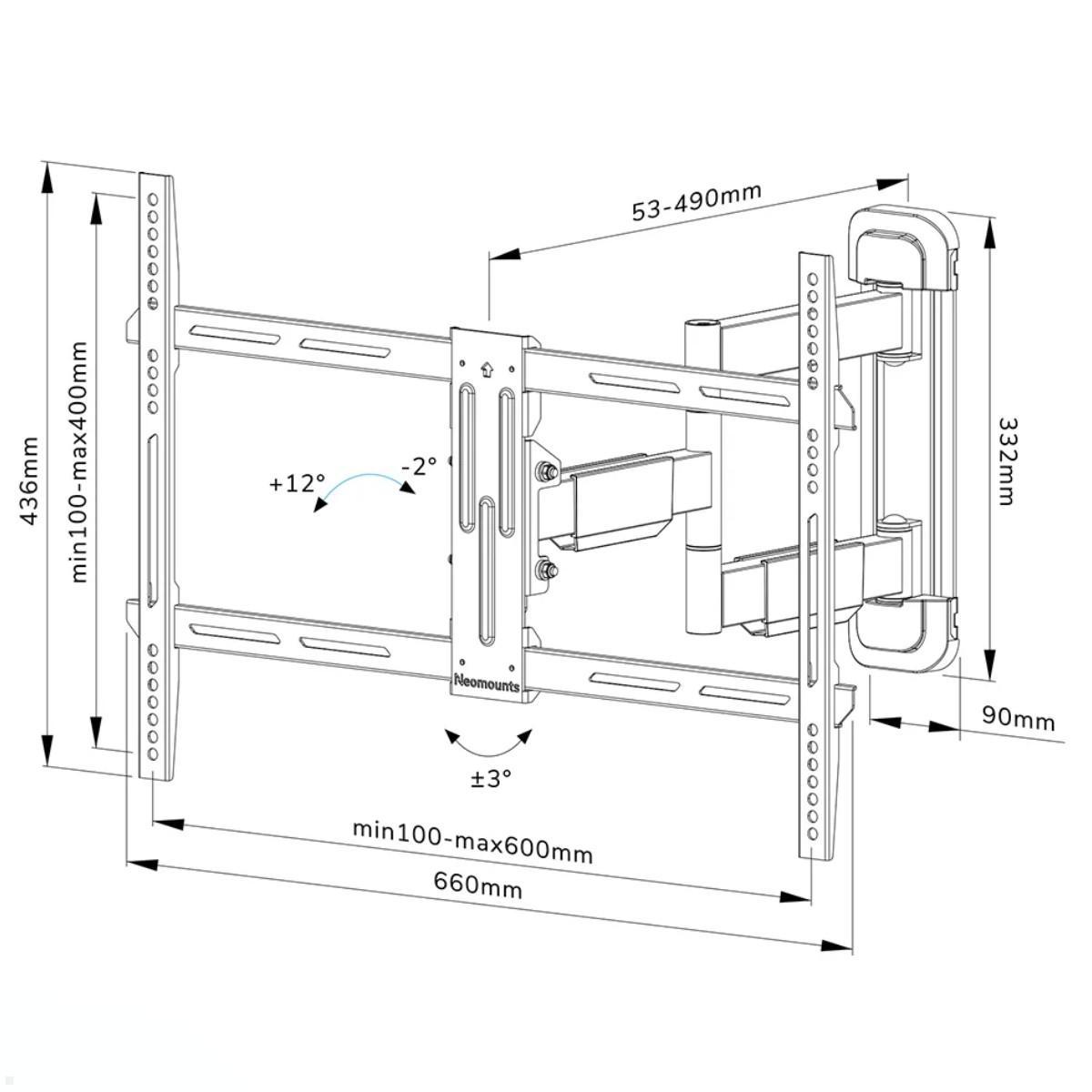

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 40 kg |
| Tilt: | 12° |
| Swivelling range: | 40° |
| Length of the swivel arm: | 490 |
| Screen size: | 40 - 65 " |
| VESA Standard: | 100x100, 100x150, 100x200, 120x120, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 440x400, 600x200, 600x300, 600x400 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 684x323x56 |
| Scope of delivery: | 1x monitor wall mount, mounting hardware |
| Warranty: | 5 years |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Inch size: | 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 100x200, VESA 200x100, VESA 200x200, VESA 200x300, VESA 200x400, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x300, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
25 October 2023 06:30
Schöner Halter
Der Halter ist genau das was wir brauchten. Man kann den Fernseher so weit zur Seite drehen, dass wir von mehreren Plätzen schauen können. Hinterher kommt er zurück an die Wand und stört nicht. Gute Beratung per Telefon, vielen Dank!
Questions & Answers
-
What is the Neomounts WL40-550BL16?
It is a 40° swivelling TV wall mount for TVs from 40 to 65 inches with a load rating of 40 kg.
-
Which TV sizes and VESA patterns are supported?
Suitable for 40–65 inch TVs and supports VESA mounting patterns from 100×100 up to 600×400 mm.
-
How far from the wall can it be positioned?
The wall distance is 5.3 to 49 cm.
-
What are the tilt and swivel ranges?
Tilt is +12° / -2°, and swivel is 40°.
-
What is the warranty?
There is a 5-year warranty.
-
What colour is it?
It comes in black.
-
How do I check if my monitor fits?
We will check if your monitor fits the WL40-550BL16. At the end of checkout, provide the manufacturer and model number in the comment field; we will check and contact you if it does not fit.
-
What does the Easy-Release System do?
The Easy-Release System makes mounting easy, allowing you to attach the TV quickly and securely.
