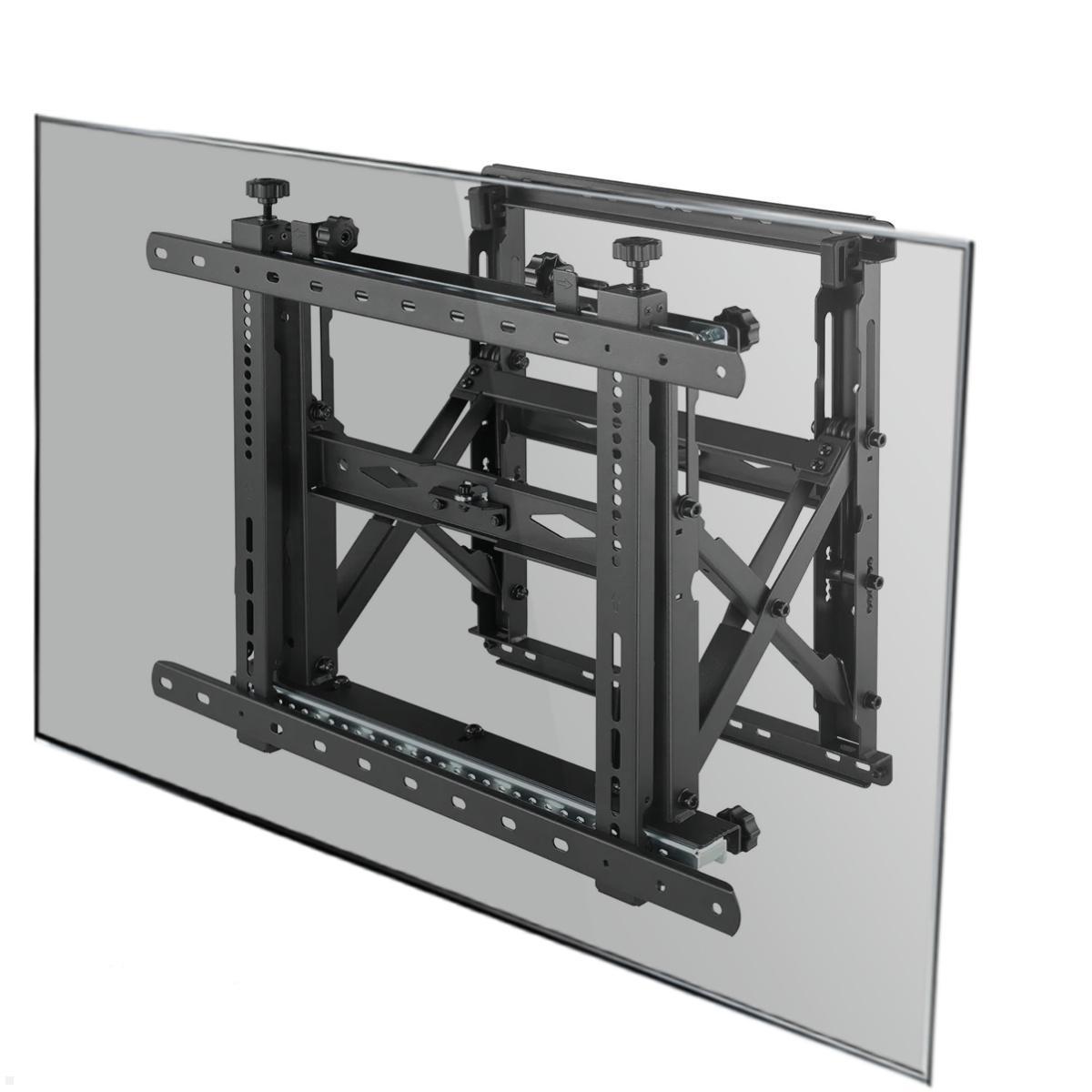

Neomounts WL95-900BL16 Video Wall Mount Pop-Out up to 75 Inch, black
The Neomounts Videowall wall mount is specially designed for large flat screens with a size of 45 to 75 inches weighing up to 70 kg. The monitor wall mount is also easy to install and flexible to adjust.
Videowall TV Wall Mount

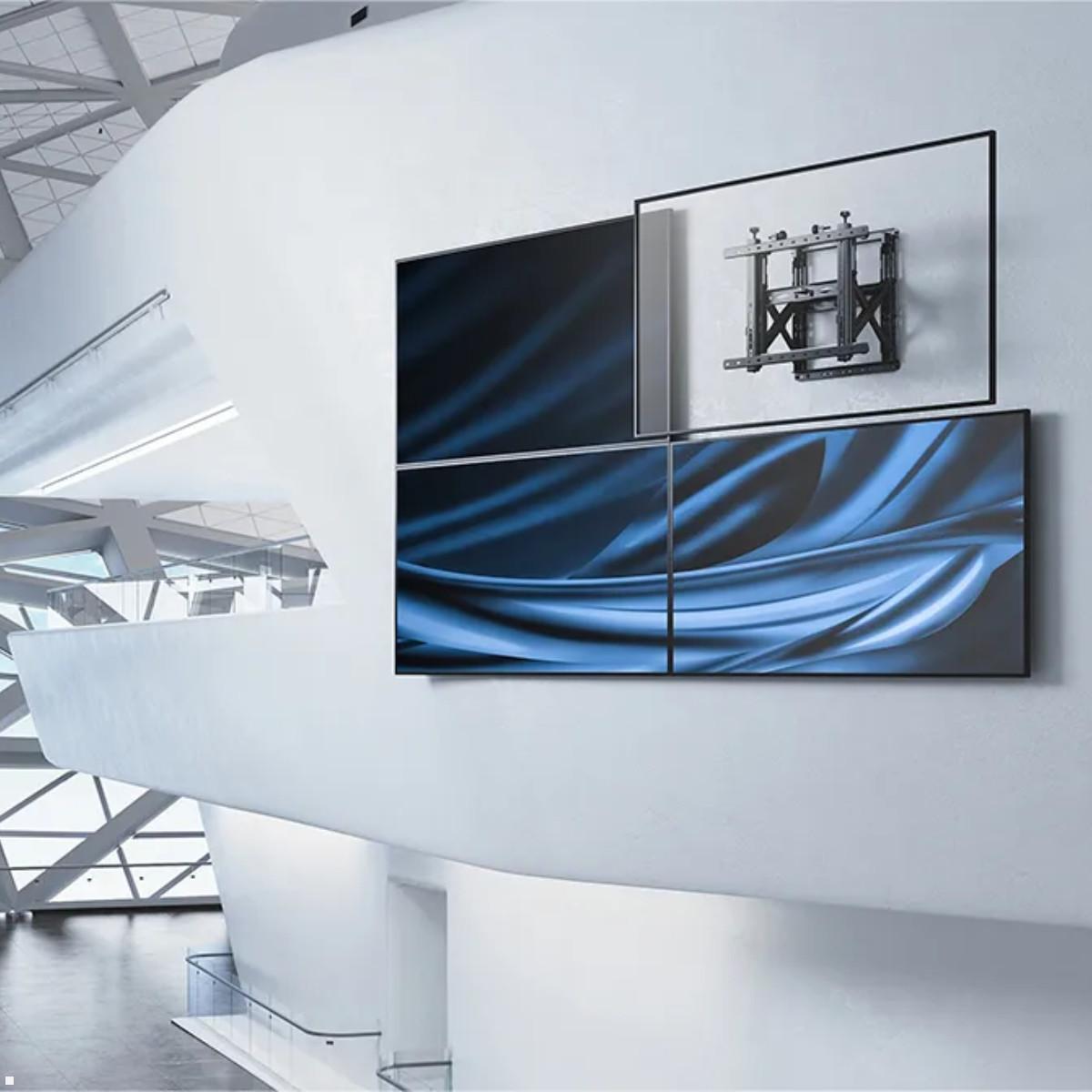

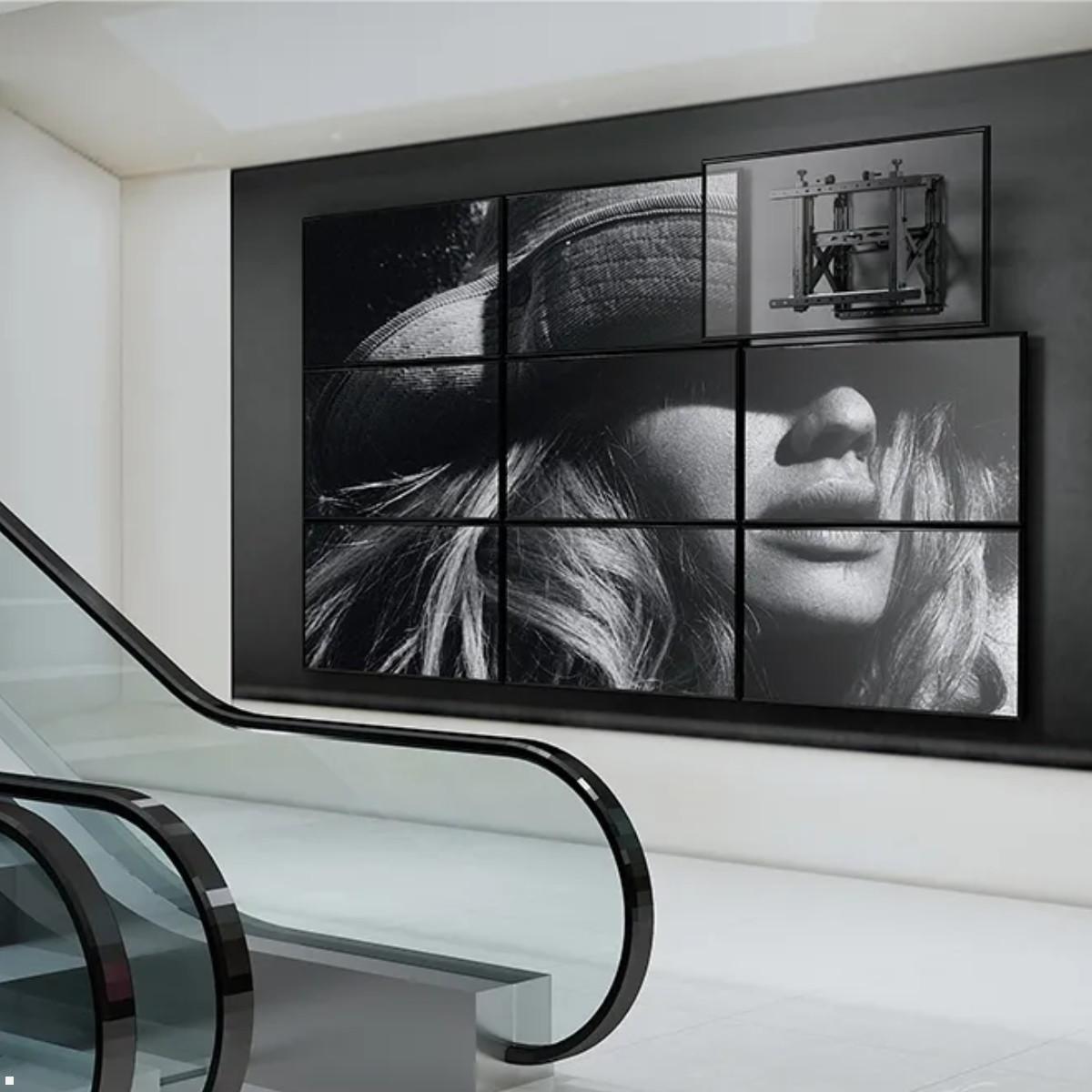

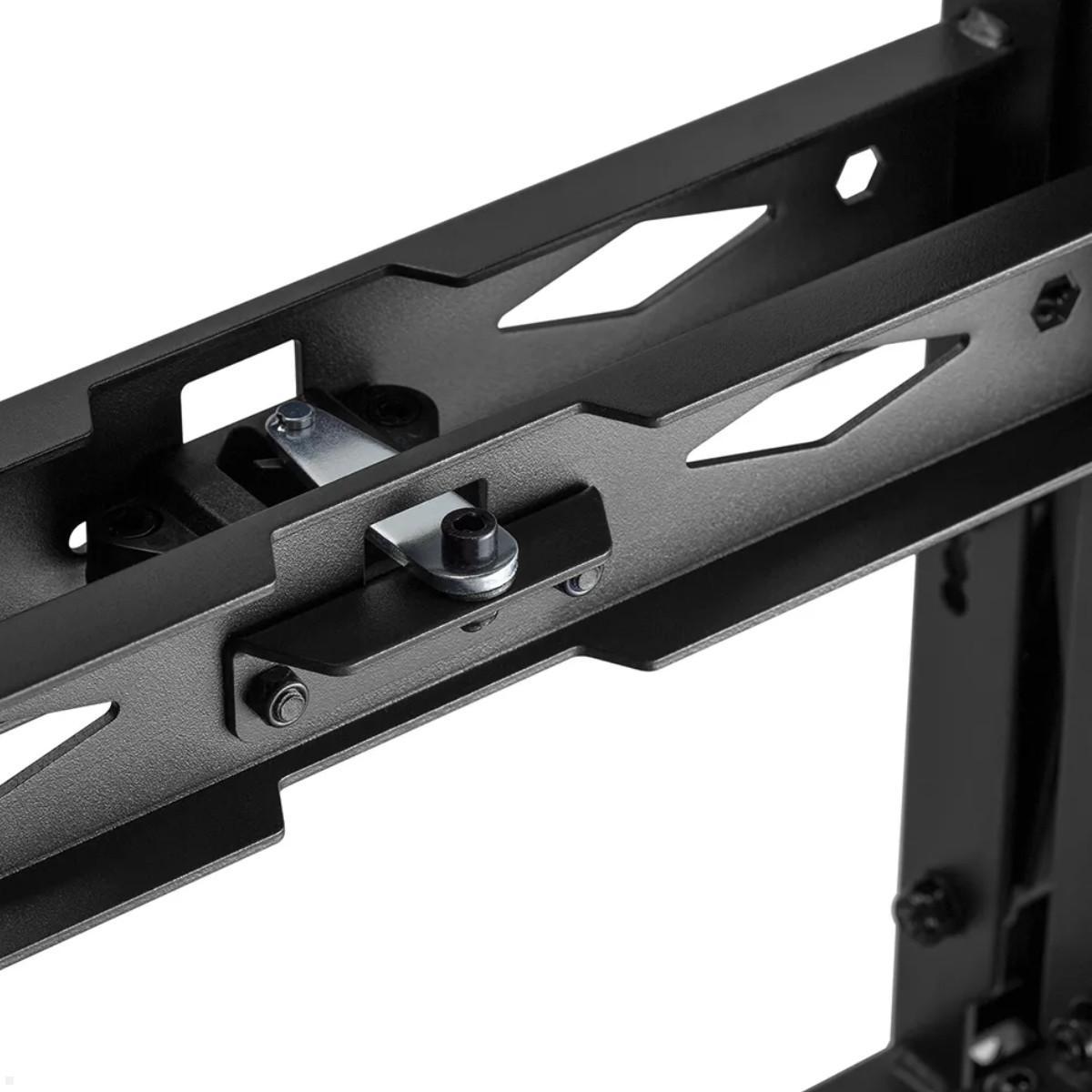

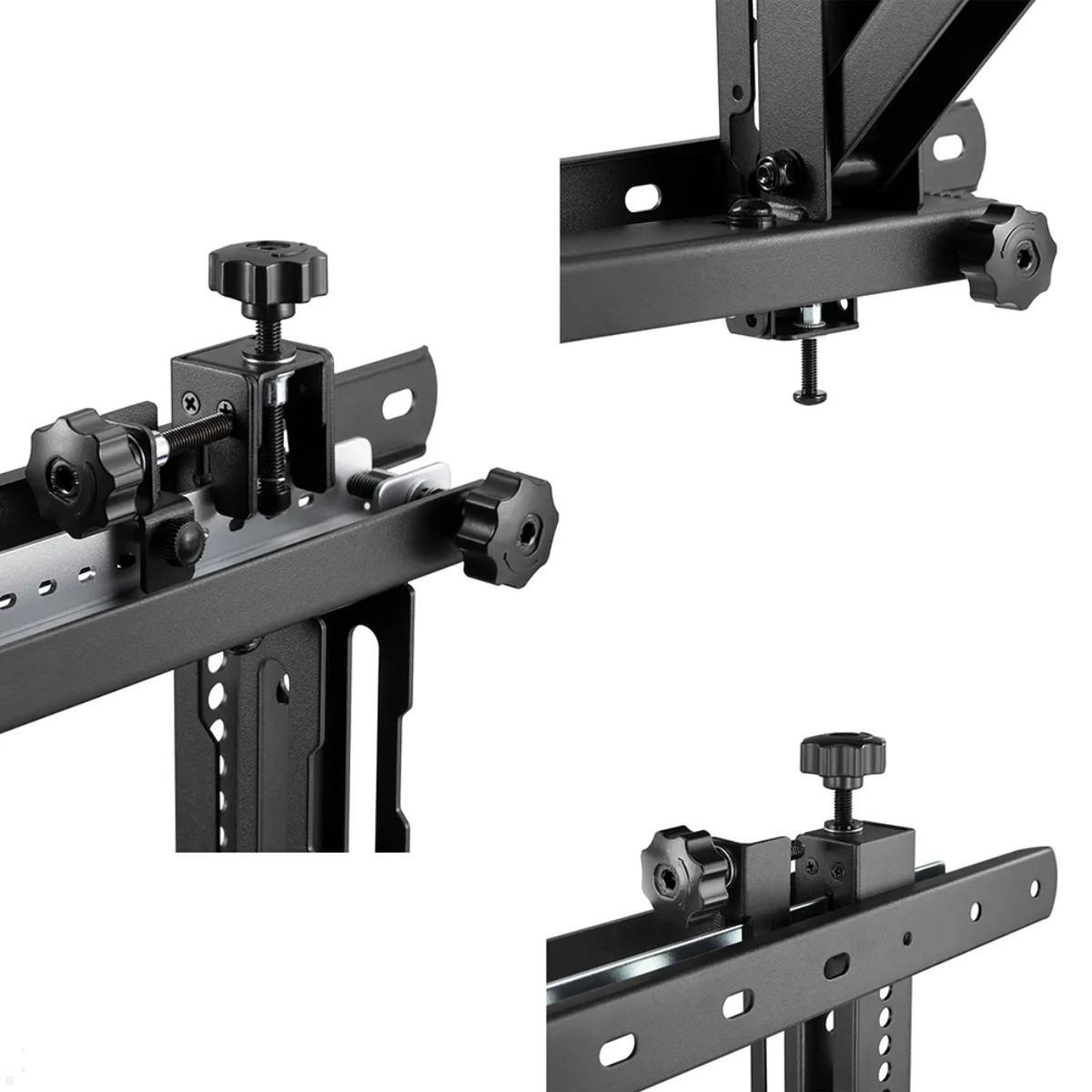

With this Videowall TV wall mount, advertising spaces in stores, shopping centers, concerts, clubs or at trade fairs are excellently equipped. The TV wall bracket for video walls is equipped with a variety of functions and thus always on the pulse of time. The TV wall mount can be flexibly tilted by 5°, as well as swiveled by 4°. The height and depth can be adjusted by 1.3 cm and the width by 4 cm. The TV devices can thus be perfectly aligned in the video wall, creating a beautiful overall picture in portrait or landscape format. Optionally, a lock is available to use the Videowall TV holder theft-proof. The Videowall TV mount from Neomounts can support TVs from 45 to 75 inches and up to a weight of 70 kg. VESA dimensions from 200x200 to 600x400 allow for the attachment of many TV models. A quick-release system makes it easy to attach and remove the TV from the videowall. Neomount's video wall mount comes pre-assembled for quick installation.
Key features Neomounts WL95-900BL16 Pop Out TV wall mount for video walls
- Screen size / monitor size: 45 to 75 inches
- Max. load capacity: 70 kg

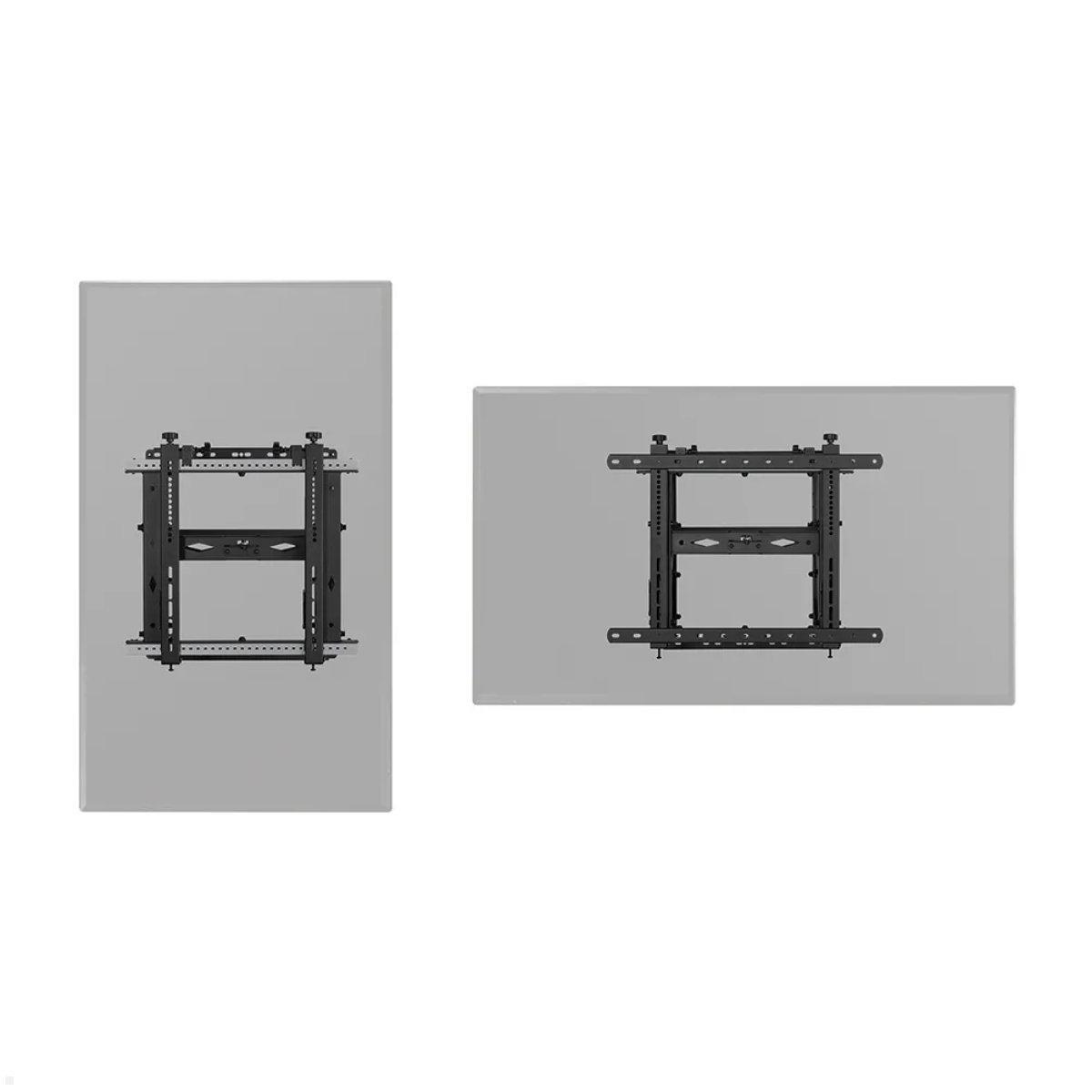

- TV wall installation in portrait and landscape mode possible

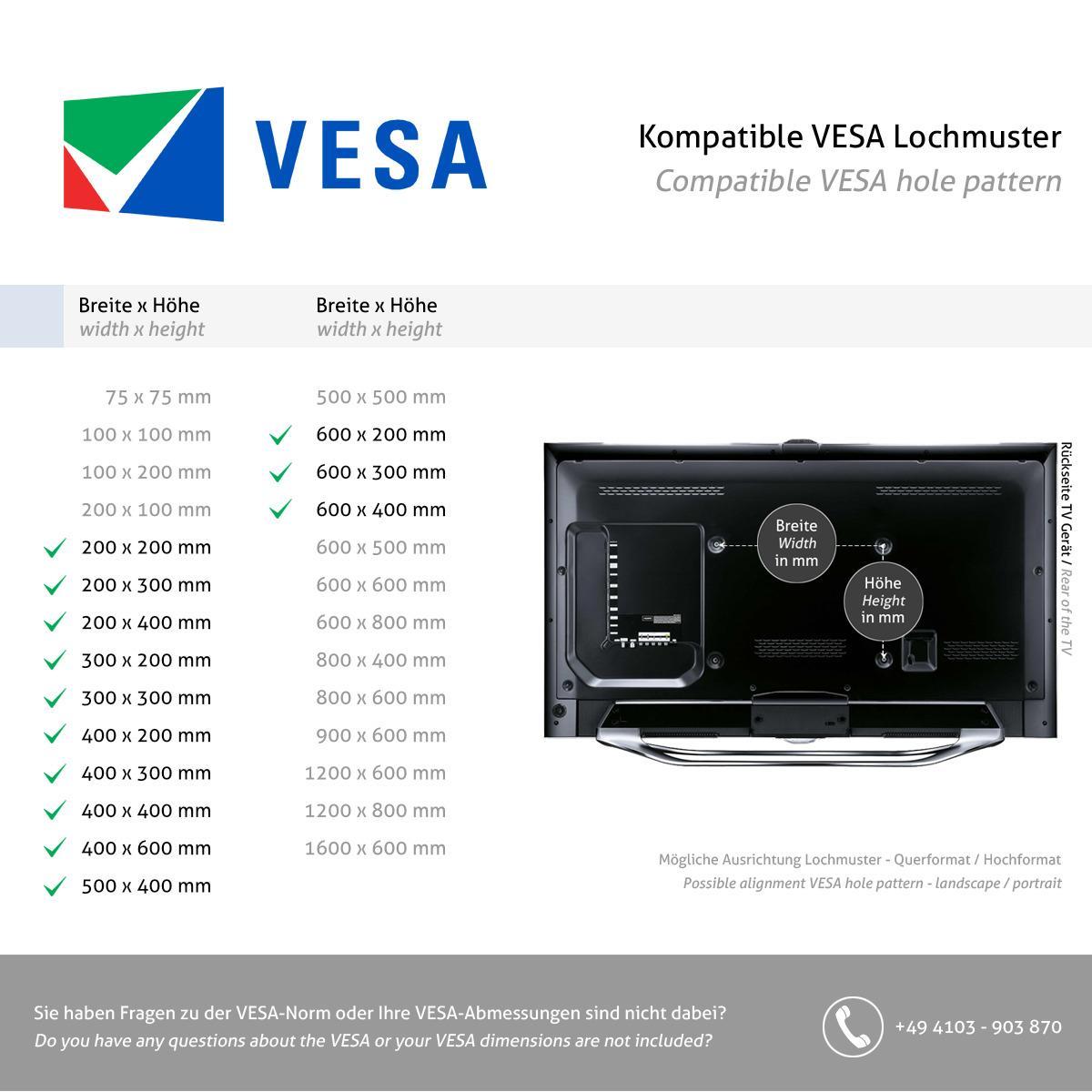

- VESA mount: 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 400x500, 400x600, 500x400, 600x200, 600x300, 600x400 mm
- Min. wall distance: 120 mm
- Max. wall distance: 325 mm

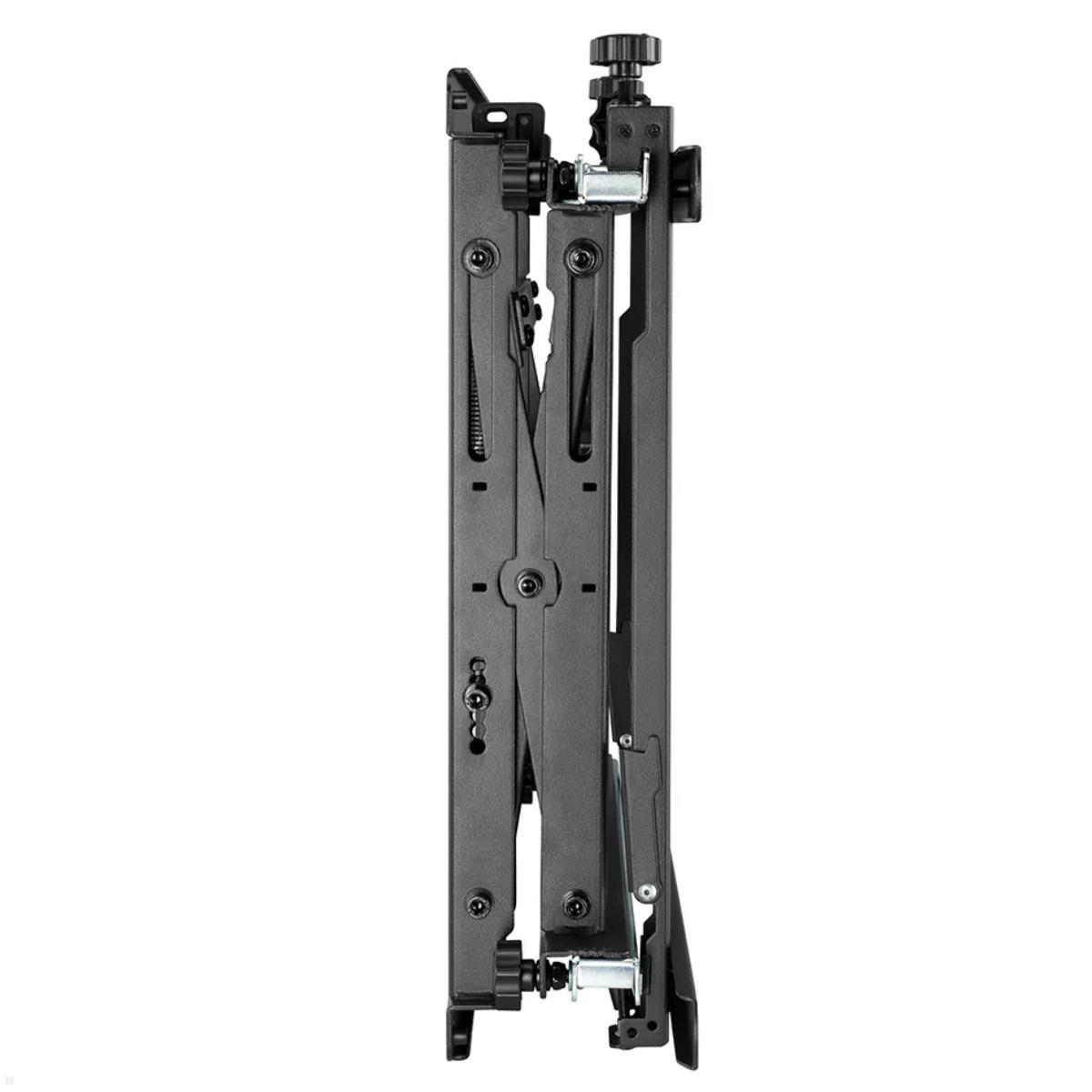

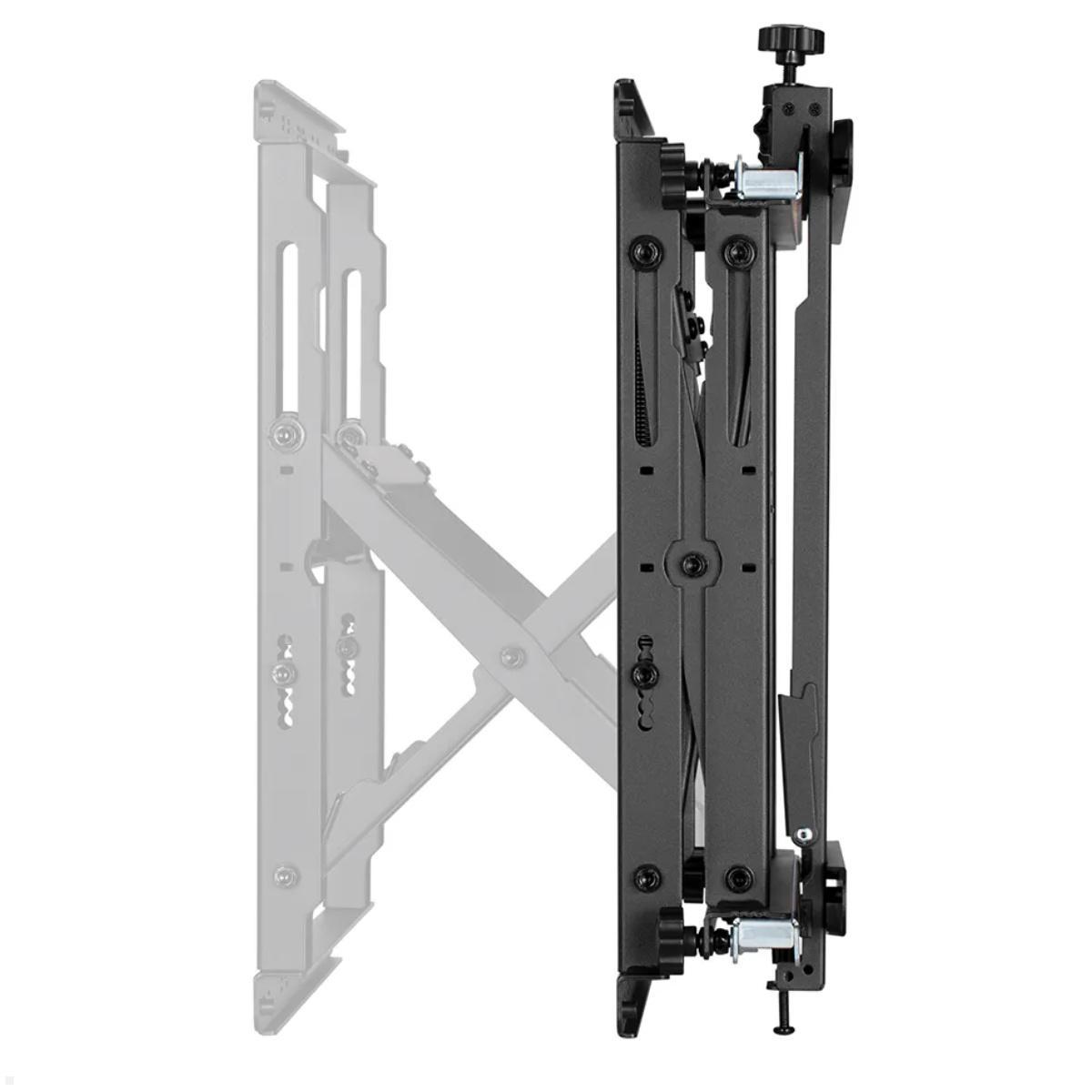

- Pop out mechanism provides quick and easy service access

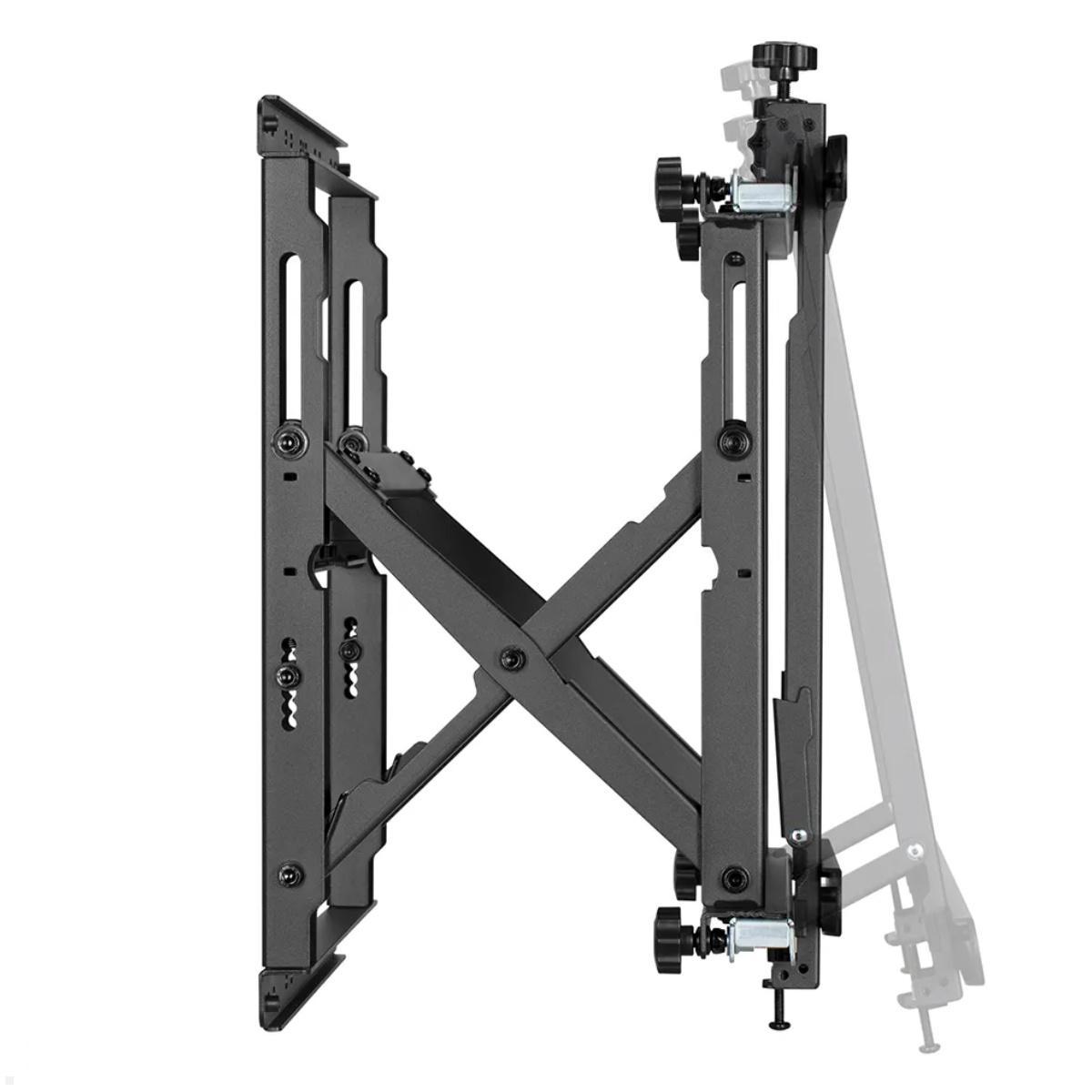

- Tilt: 5°
- Swivel: 4
- Height adjustment: 13 mm

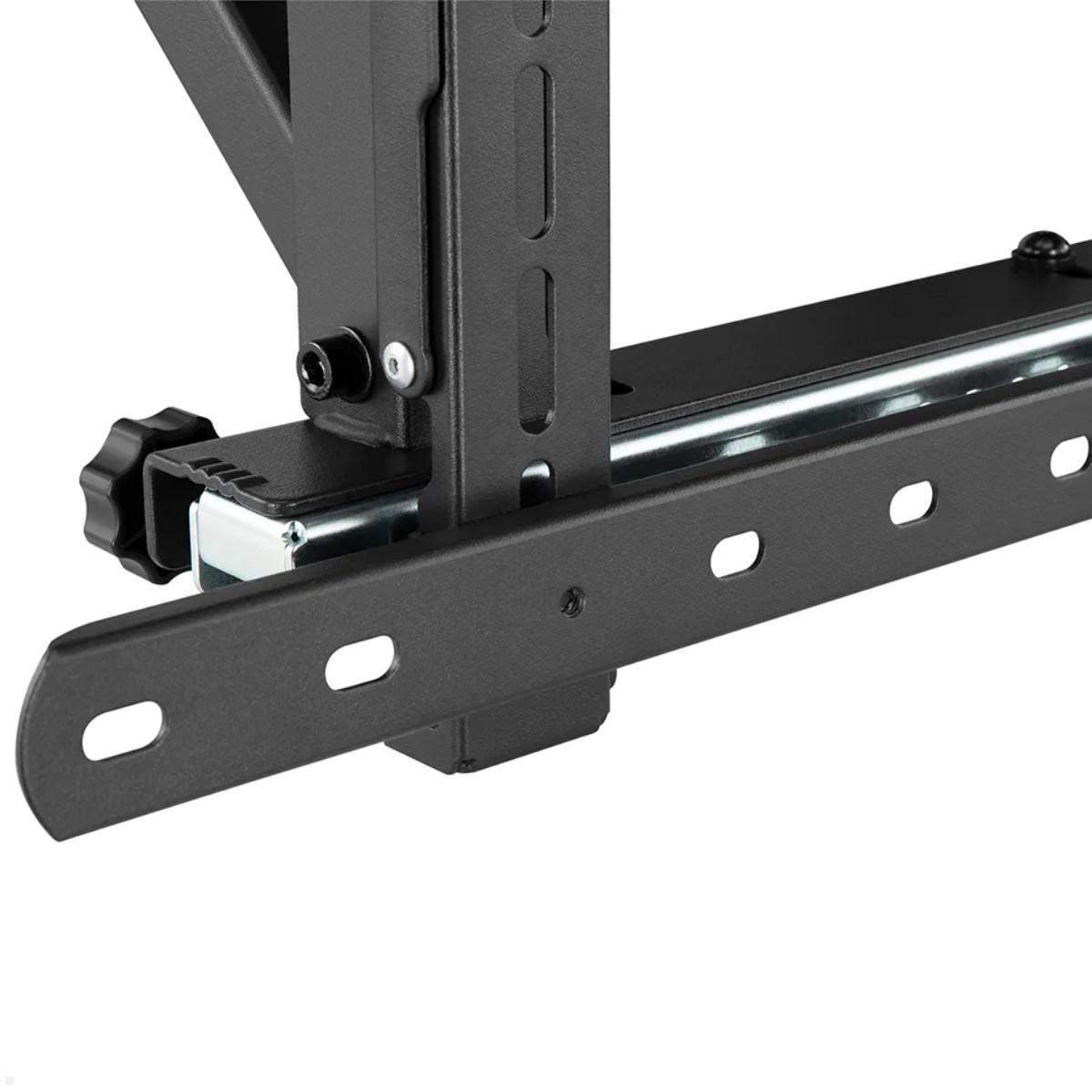

- Width adjustment: 40 mm
- Depth adjustment: 13 mm

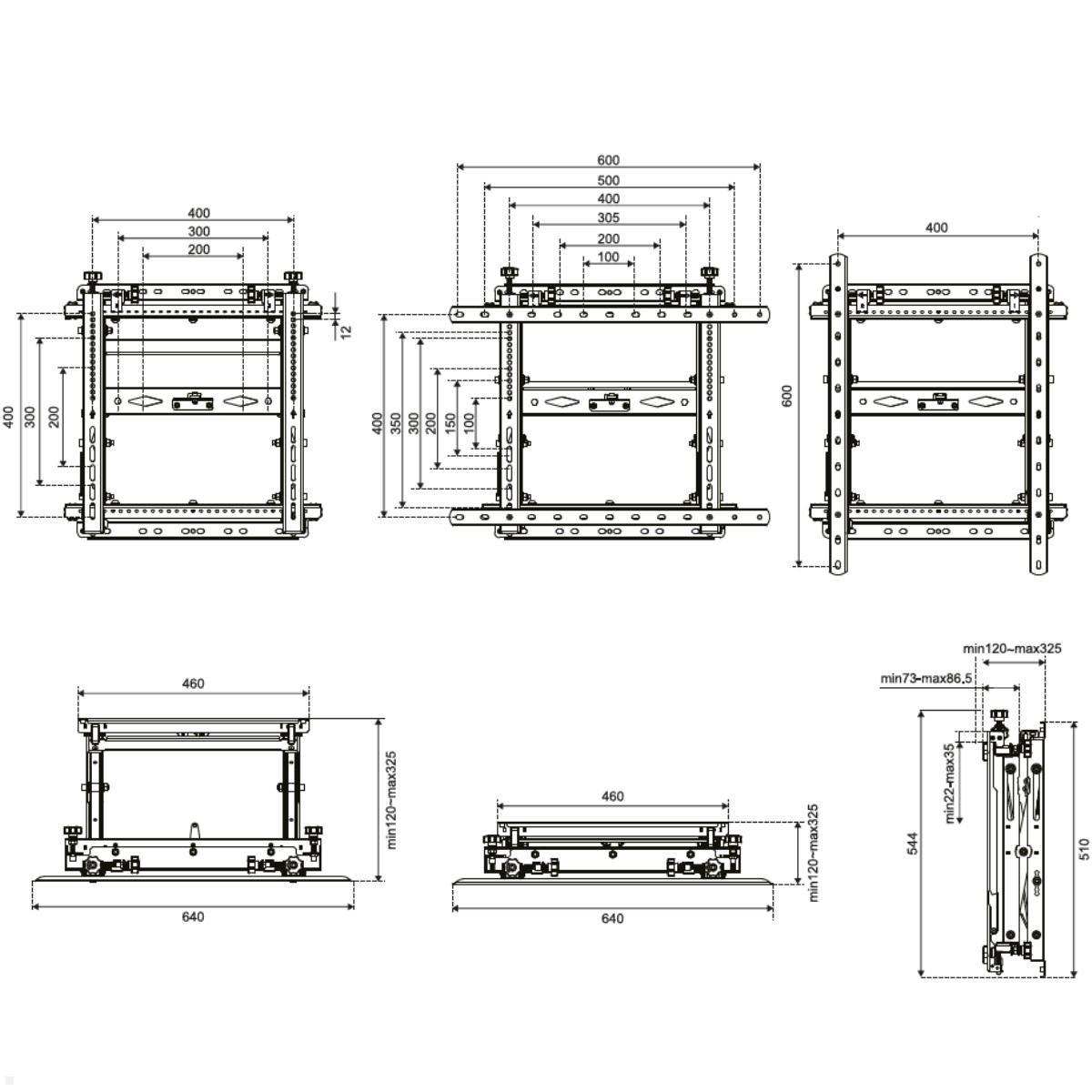

- Wall bracket dimensions (HxWxD): 510x640x12 mm

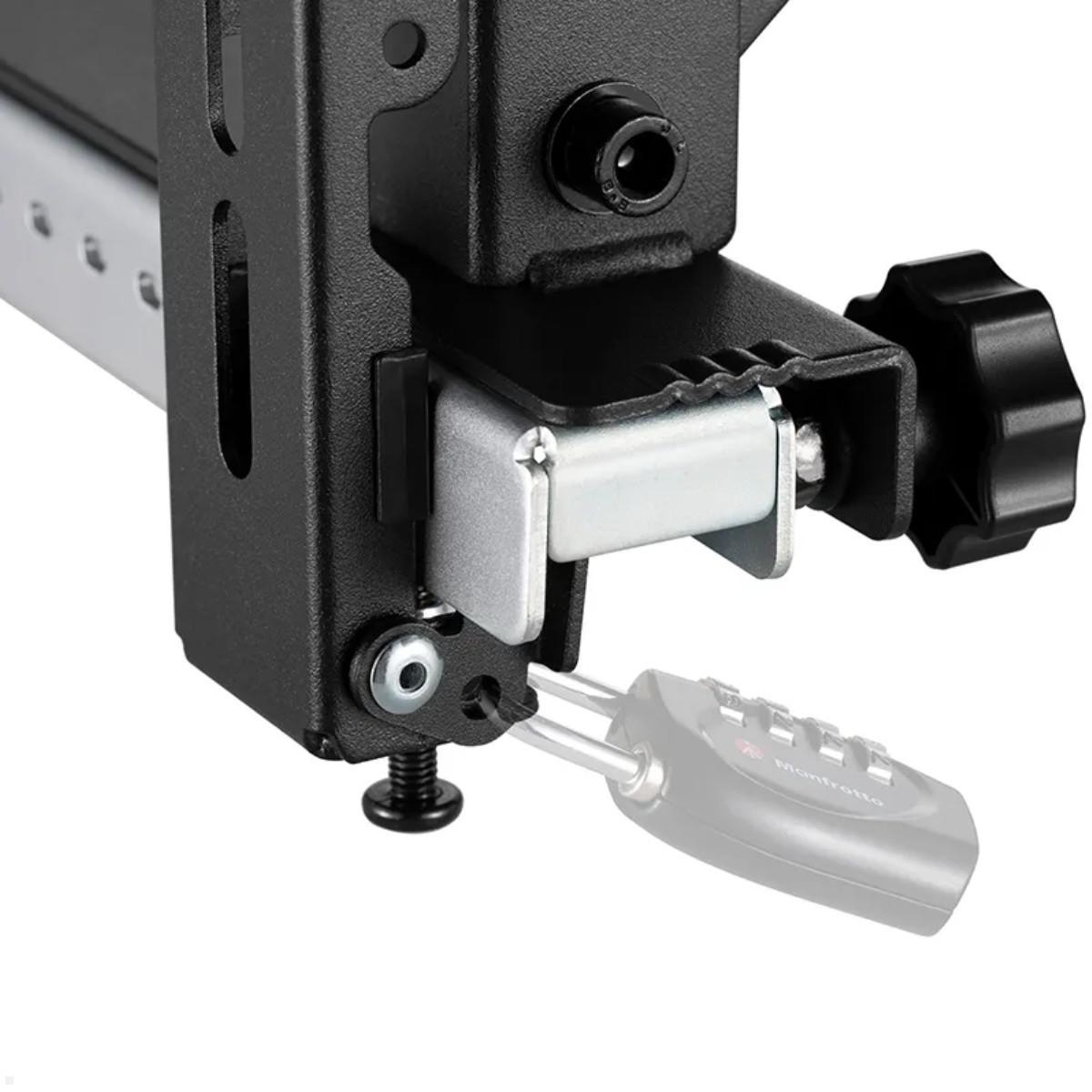

- Optional lock available (not included)
- Warranty: 5 years
- Finish: Black
Does your monitor or display fit the VESA Videowall mount?
We would be happy to check if your monitor is suitable for this Neomounts by NewStar WL95-900BL16 Videowall wall mount in black. Just tell us your model (manufacturer + model no.) in the comment field at the end of the order process. We will then check for you whether the monitor or display fits the monitor mount and if not, we will contact you.
VESA standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 70 kg |
| Tilt: | 5° |
| Swivelling range: | 4° |
| Screen size: | 45 - 75" |
| Depth of the bracket: | 120 - 325 mm |
| VESA Standard: | 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 400x500, 400x600, 500x400, 600x200, 600x300, 600x400 mm (www.vesa-standard.com) |

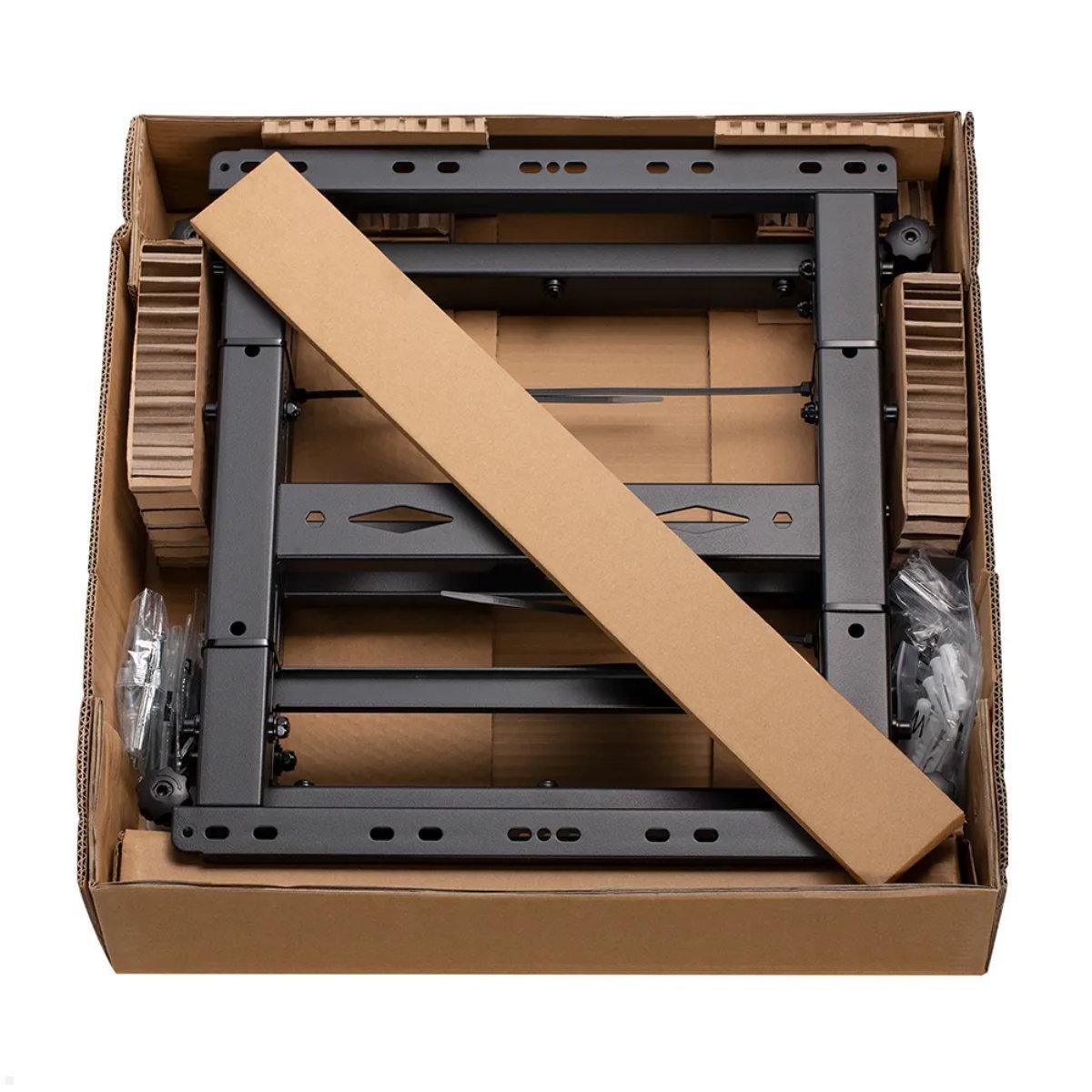

| Packaging dimensions (LxWxH in mm): | 585 x 566 x 135 |
| Scope of delivery: | 1 x Neomounts WL95-900BL16 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Inch size: | 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| color: | Black |
| VESA (in mm): | VESA 200x200, VESA 200x300, VESA 200x400, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 500x400, VESA 600x200, VESA 600x300, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
