Novus accessories TSS Crossbar basic adapter single to dual monitor mount (795+9075+001)

Crossbar for 2 monitors

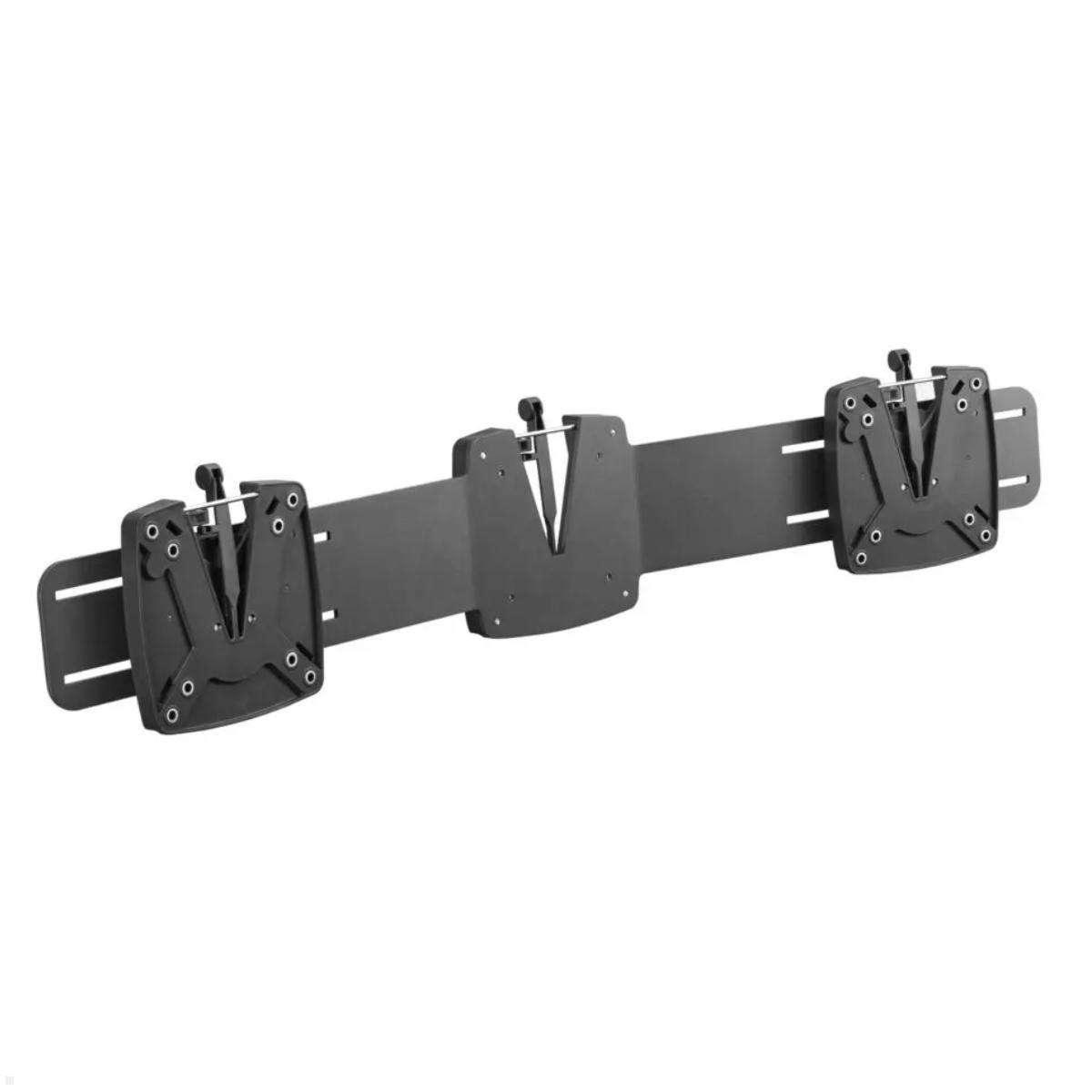

The Novus Crossbar basic adapter for 2 monitors (795+9075+001) provides a straightforward retrofit solution for attaching Novus standard TSS monitor holders, such as the TSS Folding Arm III, to a dual monitor holder. The installation of the crossbar is exceptionally fast and uncomplicated, and it can be accomplished using either the Novus QuickRelease system or by adhering to the universally recognized VESA standards of 75x75 and 100x100 mm. The weight of the crossbar itself is 2.1 kg, which needs to be deducted from the support arm's maximum load capacity. It is designed to accommodate monitor widths ranging from 405 to 695 mm, equivalent to monitors of approximately 30 inches in size. The crossbar basic features a fixed concave alignment of 7.5 degrees on each side. For optimal utilization of the Novus monitor crossbar, a VESA-compatible monitor support arm is essential. The attachment of monitors to the crossbar is a simple task facilitated by the Novus QuickRelease system, which is compatible with VESA standards 75/100. The crossbar allows the mounting of two monitors, each weighing up to approximately 6.4 kg (considering support arms with a maximum load capacity of 15 kg). However, it is crucial to consider the total load-bearing capacity of the combined monitor support arm. The use of high-quality materials ensures exceptional stability and durability for the Novus Crossbar basic adapter. According to available information, it is praised for its user-friendly nature and versatility, enabling efficient workspace configuration.

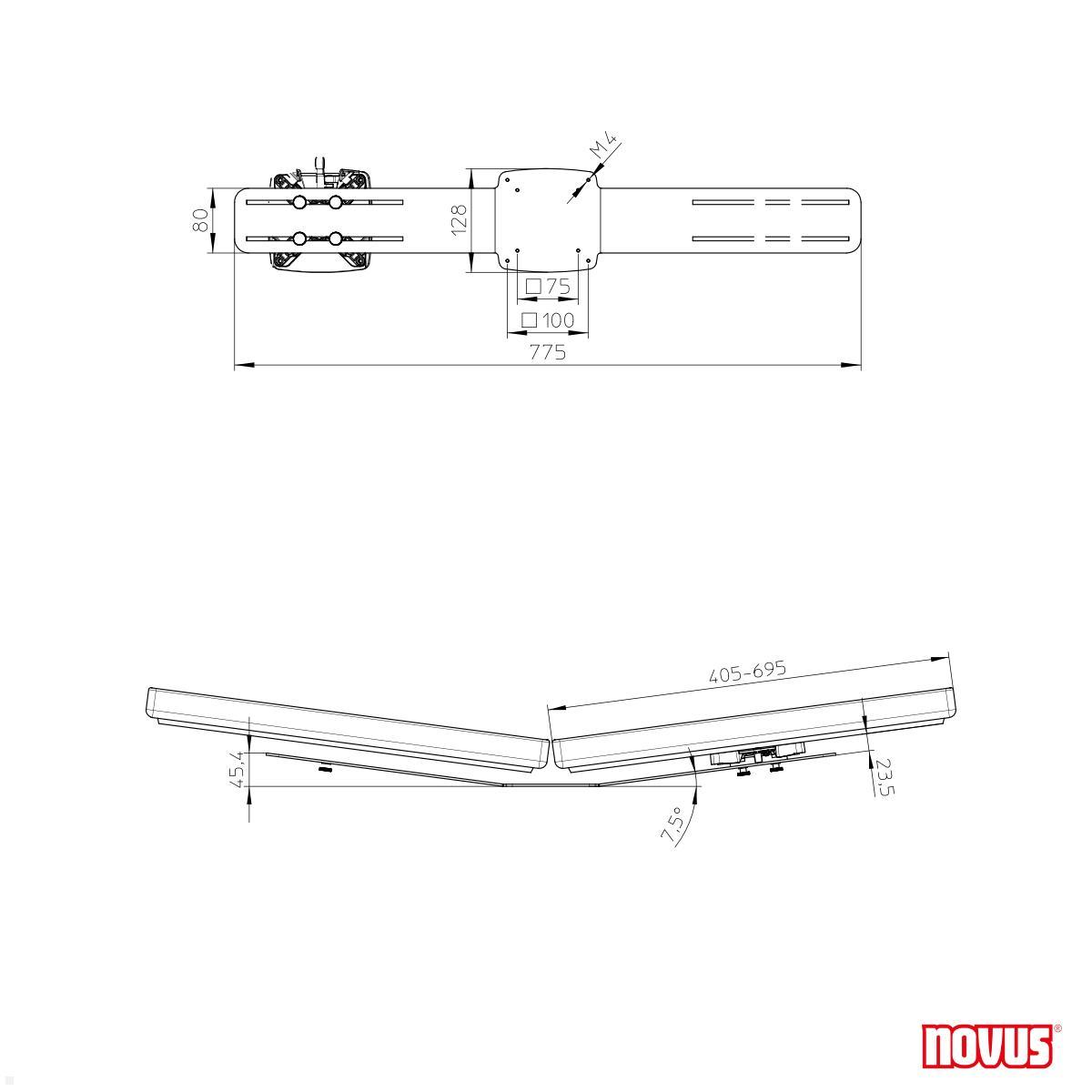

The Novus Monitor Adapter provides a sturdy and dependable solution for affixing monitors to a dual monitor mount. Its straightforward installation and adaptability to different monitor sizes are its defining features. Adjustment for various monitor sizes can be achieved effortlessly without the need for tools, thanks to slotted holes and four knurled screws located on the back of the crossbar. With a generous total width of 775 mm, the crossbar offers ample space to accommodate the monitors.

Key features Novus TSS Crossbar basic adapter Dual monitor mount (795+9075+001)

• Screen size: max. 30 inch per screen (monitor widths: 405 to 695 mm)
• Number of screens: 2
• Arrangement of screens: side by side
• Load capacity: up to 7.9 kg (3.95 kg per monitor)
• VESA mount: 75x75, 100x100 mm
• Max. Load capacity: 6.4 kg per monitor (for support arms with load capacity up to 15 kg)
• Weight of crossbar: 2.1 kg (to be subtracted from the maximum monitor load of the support arm)

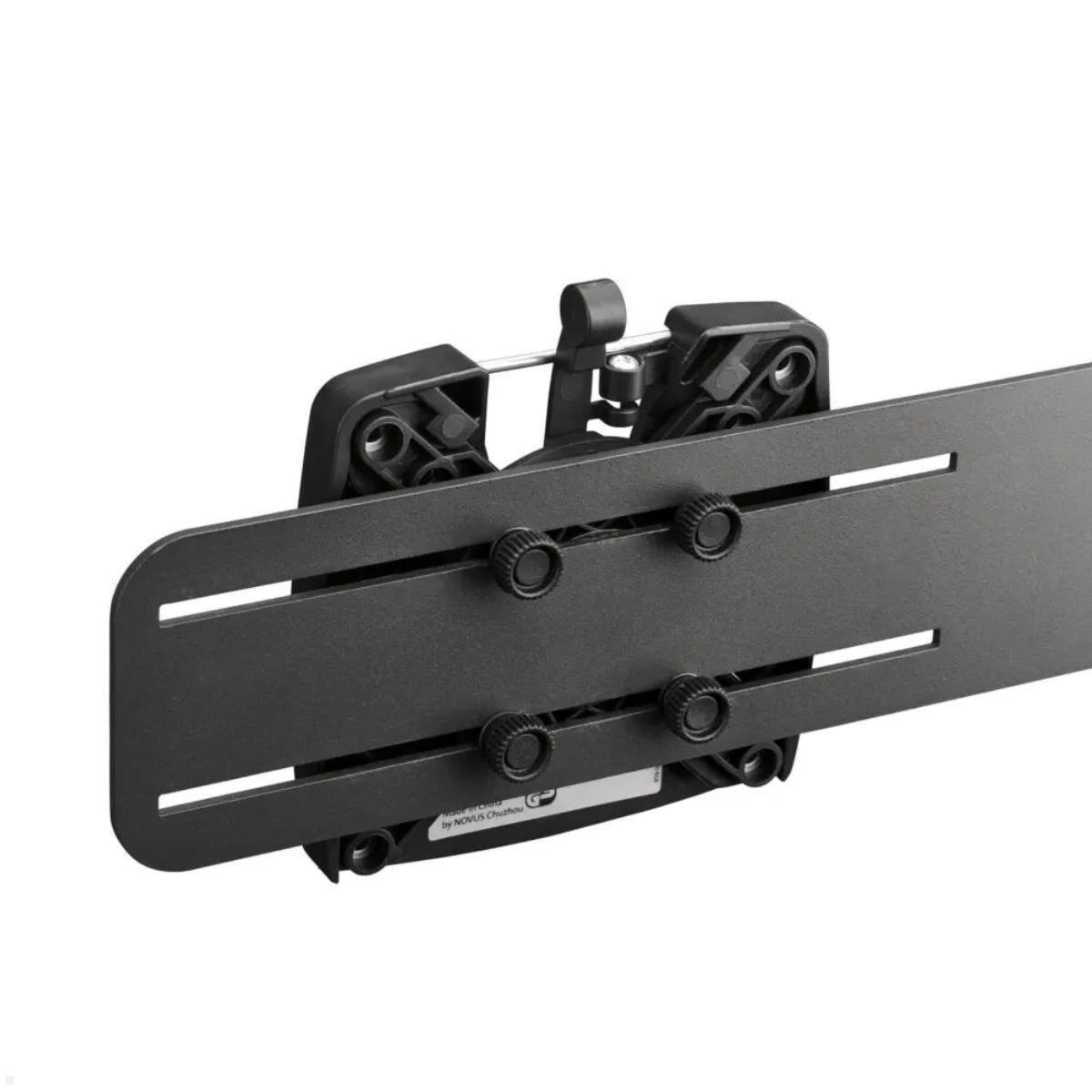

• Tool-free adjustment for different monitor sizes via slotted holes and four knurled screws on the rear side
• Colour: black

Is your monitor or display compatible with the VESA mount?

We would gladly verify if your monitor is suitable for the NOVUS TSS Crossbar basic (795+9075+001). Please provide the manufacturer and model number of your monitor in the comments section during the ordering process. We will then assess whether your monitor or display can be mounted on the monitor mount. If it is not compatible, we will reach out to you to discuss alternative options.

VESA standard - more about VESA!
