Novus Clu Duo monitor mount without mounting hardware (990+4101+000), white
Highlights
- Dual-arm for 2 monitors
- Gas spring for stepless height adjustment
- Load capacity from 2–7 kg per monitor
- VESA 75/100 with Quick Release
- 360° rotation range with stop

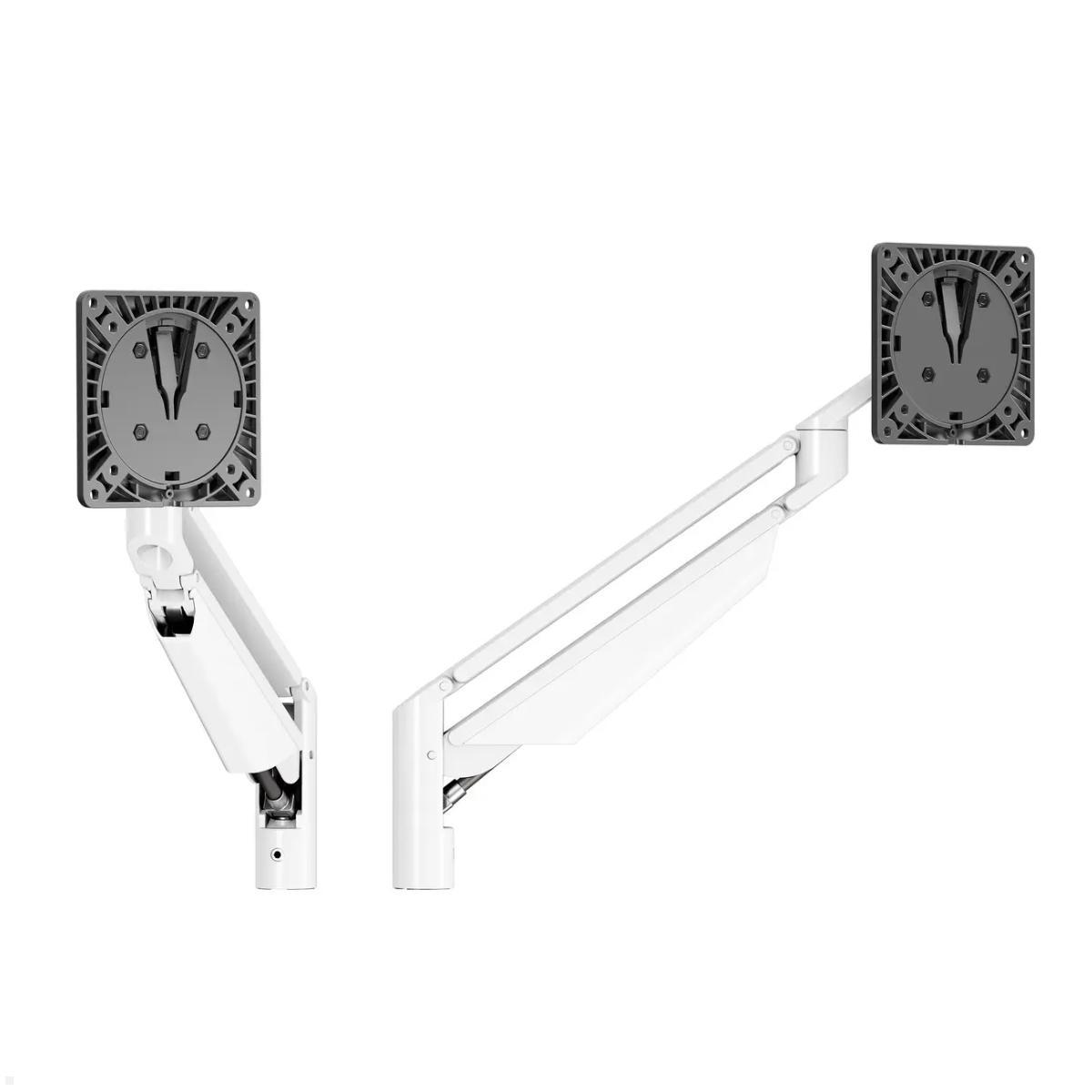

Dual monitor arm with gas spring for two screens
The Novus Clu Duo monitor mount without fastening (990+4101+000), white, is an elegant, 2-piece monitor support arm with an integrated gas spring for two monitors. Thanks to the infinitely adjustable height, both screens can be comfortably and ergonomically adapted to the individual seating position. The reach is 323 mm per arm and, with the 360° rotatable joint and an adjustable stop at 180°, the arms offer maximum flexibility at the workstation.
The QuickRelease function enables quick monitor attachment compatible with the VESA standard 75/100. The pivot function allows switching between landscape and portrait orientation. Thanks to the neat cable management with cable clips, the workstation remains tidy. A Clu mounting is required as an obligatory addition and is available separately. The dual monitor mount is ideal for use in the office, home office, control rooms or trading workstations and supports monitors up to approx. 27 inches with a load capacity of 2–7 kg per arm. Those looking for a high-quality dual monitor support arm will find a reliable solution in the Novus Clu Duo.
Technical details Novus Clu Duo dual monitor support arm white

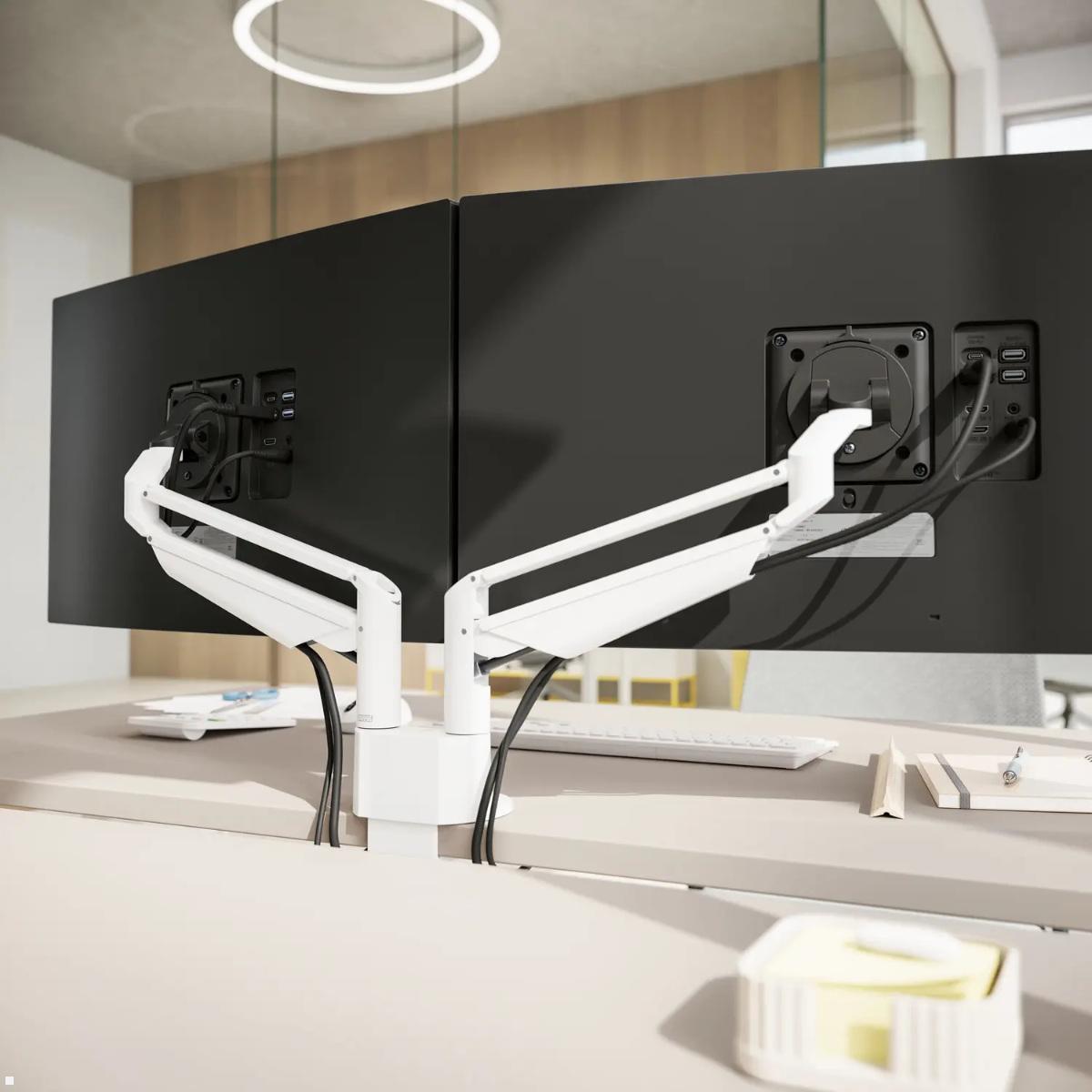

- For 2 monitors side by side
- Load capacity: 2–7 kg per monitor
- For monitors up to approx. 27 inches

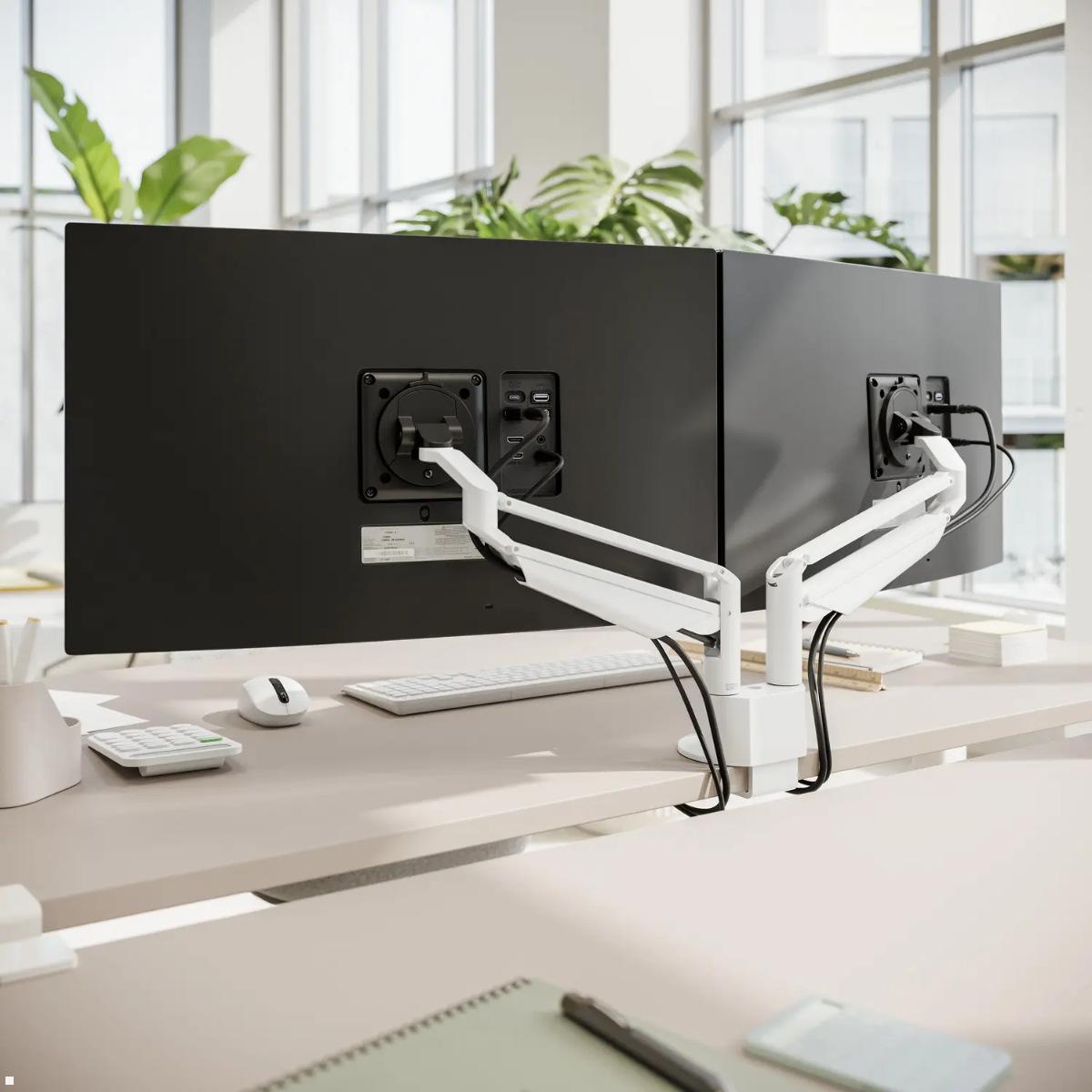

- VESA standard: 75 x 75 / 100 x 100 mm
- Reach: 323 mm per arm
- Rotation range: 360° (adjustable stop at 180°)

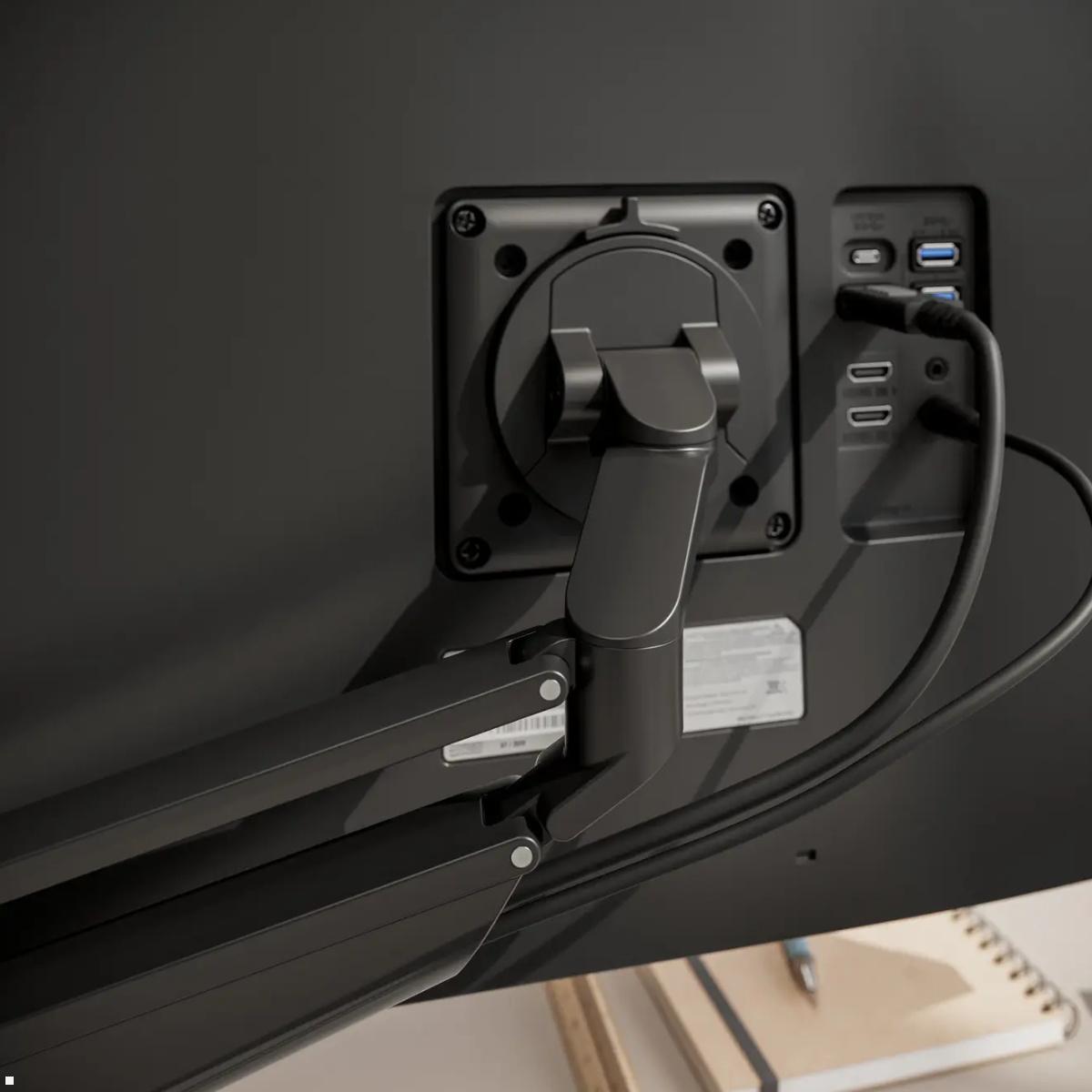

- Pivot function: landscape and portrait
- Tilt: adjustable
- Height adjustment: infinitely adjustable via gas spring
- Adjustable friction of the swivel joints
- Cable management via cable clips
- Color: white
- Series: Clu
- Mounting: not included (sold separately)
- Warranty: 5 years
| Product sheet: |  [pdf] |
|---|---|

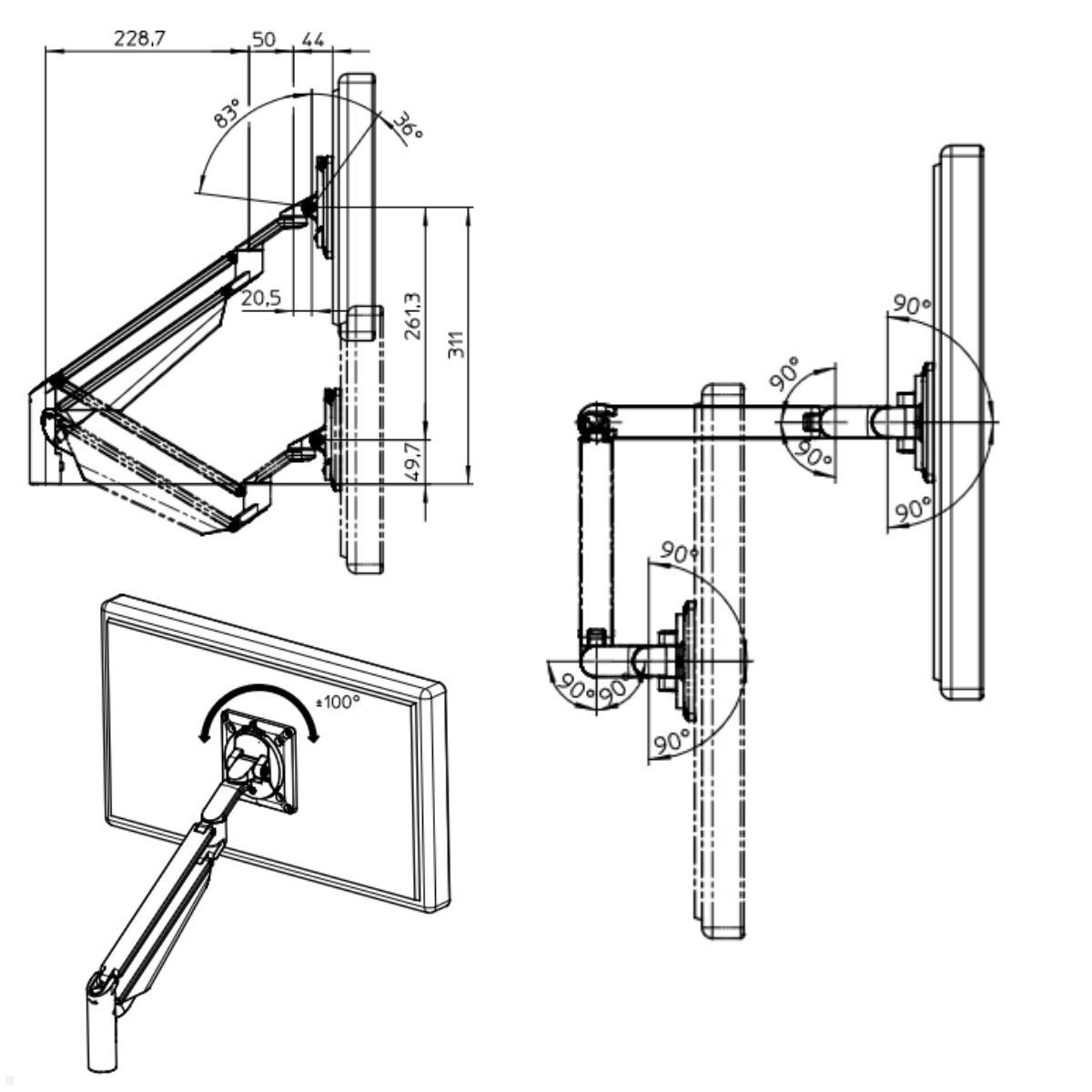

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 2 kg |
| Capacity: | 7 kg |
| Tilt: | 180° |
| Rotate: | 90° |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 323 |
| Screen size: | bis 27" |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Scope of delivery: | 1x Novus Clu I monitor arm |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot), swivelling, tilting |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Weiß |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Novus Clu Duo Monitor Arm without mounting (990+4101+000) and what is it suitable for?
It is a 2-piece dual monitor arm with a gas spring for two monitors, in white; mounting is not included and is available separately.
-
Which monitors are compatible and what is the weight limit?
Designed for two monitors side by side up to around 27 inches; weight 2–7 kg per monitor; VESA standard 75 x 75 mm or 100 x 100 mm.
-
What adjustments does it offer?
Height adjustment is seamless via a gas spring with a 323 mm reach per arm; a 360° rotation with an adjustable stop at 180°; pivot function for landscape or portrait.
-
How does the cable management work?
Cable management is via cable clips to keep the workspace tidy.
-
What does QuickRelease do?
QuickRelease enables quick monitor mounting compatible with VESA 75/100.
-
Is mounting included?
No, mounting is not included and is available separately.
-
What is the warranty and suitable use cases?
It comes with a 5-year warranty and is ideal for office, home office, control rooms or trading desks.
Kunden kauften auch
What advantages does a dual monitor arm with a gas spring offer at the workplace?
Anyone who works with two monitors knows the problem: two separate stands take up a lot of desk space and are hardly flexibly positionable. A dual monitor arm like the Novus Clu Duo solves this problem elegantly. With the integrated gas spring, both screens can be continuously adjusted in height and precisely adapted to the individual seating position. This is particularly important for ergonomic working, as an incorrect screen height often leads to neck and back pain. The Novus Clu Duo monitor mount creates additional desk space and, thanks to the integrated cable management with cable clips, ensures a tidy working environment. The dual monitor support arm is suitable for a wide range of applications, whether in a traditional office, home office, control rooms, or trading workstations where two screens side by side are indispensable. It also provides real added value in newsrooms, graphic studios, or training rooms, where the double arm with two flexibly positionable monitors benefits daily work.
How does the VESA mounting work on the Novus Clu Duo monitor mount?
The VESA mounting is an internationally standardized standard for mounting monitors and flat screens. On the Novus Clu Duo, the monitors are attached to the support arms quickly and without tools thanks to the QuickRelease function. Both arms support the common VESA sizes 75 x 75 mm and 100 x 100 mm, making them compatible with a wide range of monitors up to approx. 27 inches. These values indicate the hole spacing of the mounting points on the back of the monitor in millimeters. Before purchasing, you should check whether your monitors have a corresponding VESA hole pattern. The load capacity is 2 to 7 kg per arm, which covers a broad spectrum of common office monitors. The reach is 323 mm per arm, and the adjustable tensions of the swivel joints ensure that the monitors remain securely fixed in any desired position and do not unintentionally slip.
Why is a separate mounting required for the Novus Clu Duo?
The Novus Clu Duo is deliberately supplied without a mounting so that it can be flexibly adapted to different desk and mounting situations. Depending on the workplace, a desk clamp, a bolt-through mounting, or a slatwall rail can be chosen as the Clu mounting. This modular concept makes it possible to install the dual monitor mount at almost any workstation without having to compromise on stability. Assembly is extremely quick and easy, as the arms simply plug into the chosen mounting. The 360-degree rotation range with an adjustable stop at 180 degrees offers maximum freedom of movement for both screens, while the pivot function enables switching between landscape and portrait orientation. This function is particularly valuable for programmers or financial analysts who want to use a monitor in portrait mode. Novus grants a 5-year warranty on the Clu Duo with proper use. The quality feature "German Engineering" also guarantees that the monitor mount was developed according to German quality standards. Thanks to the thoughtful construction and high-quality materials, the Novus Clu Duo is a durable investment in an ergonomic and productive dual-screen workstation.
