Novus Clu Duo monitor mount without mounting hardware (990+4109+000), silver
Highlights
- Dual arm for 2 monitors
- Gas spring for stepless height adjustment
- Load capacity from 2–7 kg per monitor
- VESA 75/100 with QuickRelease
- 360° rotation range with stop

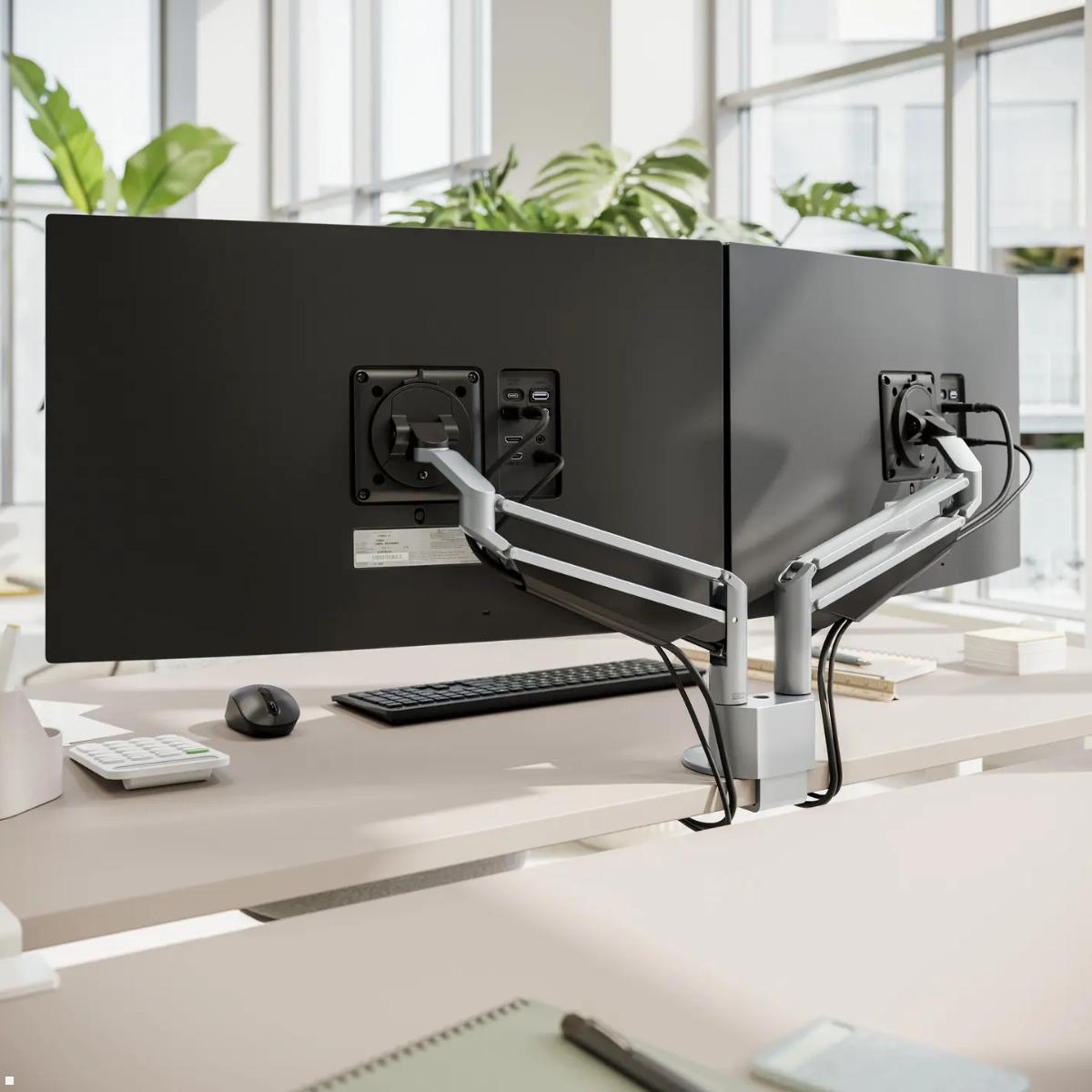

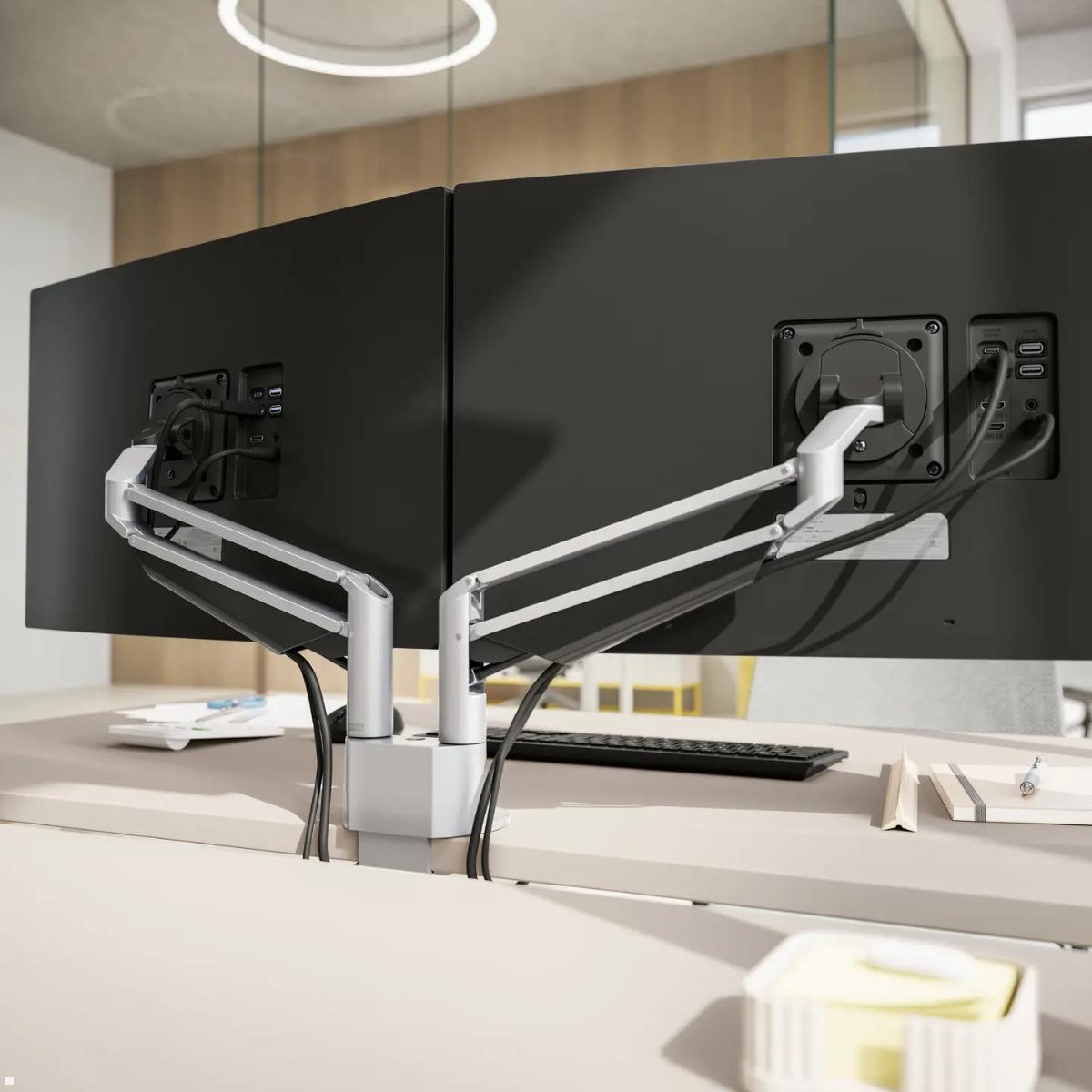

Dual monitor arm with gas spring for two monitors
The Novus Clu Duo monitor mount without mounting (990+4109+000), silver, is an elegant, two-part monitor support arm with integrated gas spring for two monitors. Thanks to the stepless height adjustment, both screens can be comfortably and ergonomically adapted to the individual seating position. The reach is 323 mm per arm and with the 360° rotatable joint as well as an adjustable stop to 180° the arms offer maximum flexibility in the workplace.
The QuickRelease function enables quick monitor attachment compatible with the VESA standard 75/100. The pivot function allows switching between landscape and portrait. Thanks to perfect cable management with cable holders, the workspace always stays tidy. As a mandatory addition, a Clu mounting is required, which is available separately. The dual monitor mount is ideal for use in the office, home office, control rooms or trading workstations and supports monitors up to approx. 27 inches with a load capacity of 2–7 kg per arm. Anyone looking to buy a high-quality dual monitor support arm will find a reliable solution in the Novus Clu Duo.

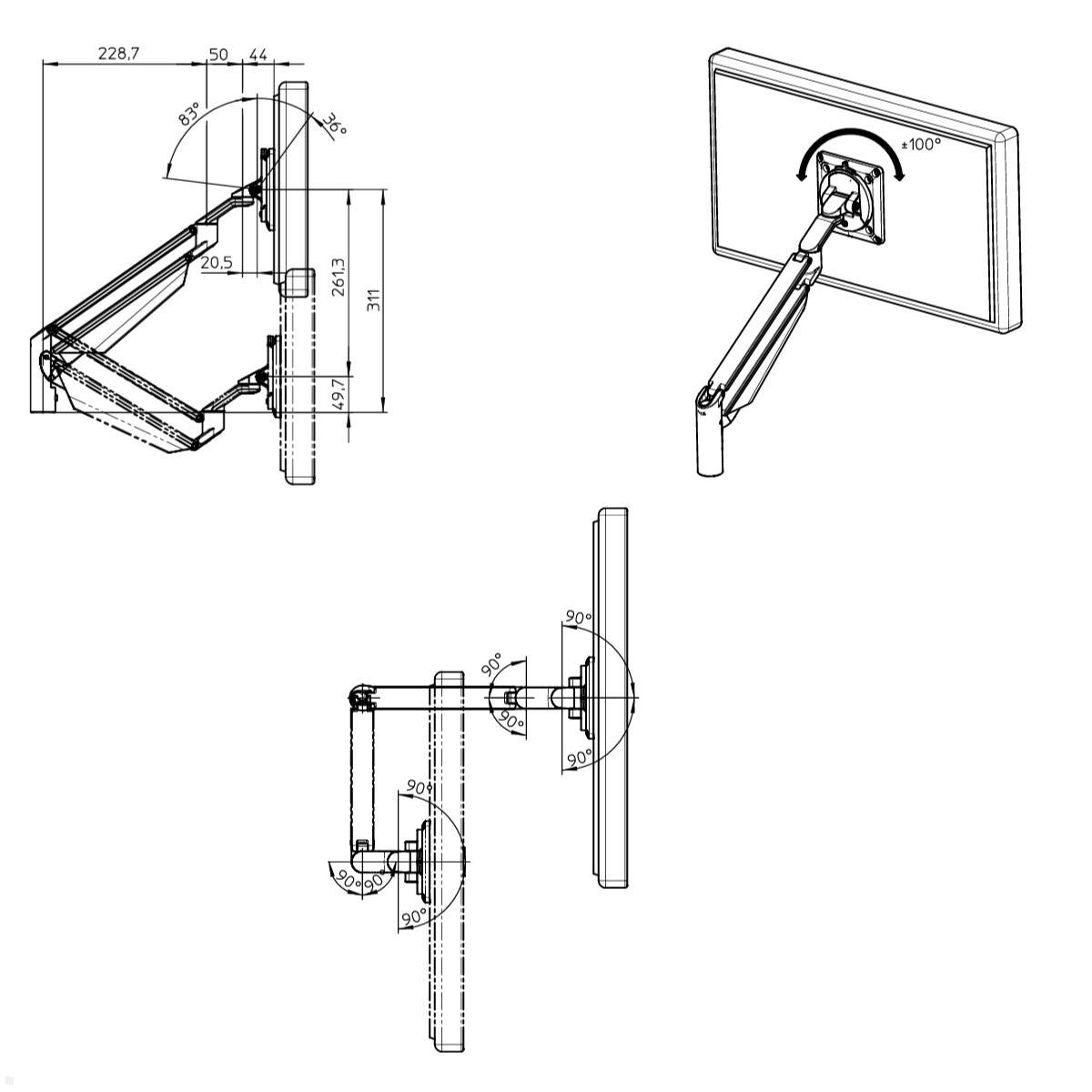

Technical details Novus Clu Duo dual monitor support arm silver
- For 2 monitors side by side
- Load capacity: 2–7 kg per monitor
- For monitors up to approx. 27 inches
- VESA standard: 75 x 75 / 100 x 100 mm
- Reach: 323 mm per arm
- Rotation range: 360° (adjustable stop to 180°)
- Pivot function: landscape and portrait
- Tilt: adjustable
- Height adjustment: stepless via gas spring
- Adjustable resistance of the swivel joints
- Cable management via cable holders
- Color: silver
- Series: Clu
- Mounting: without (available separately)
- Warranty: 5 years
- Successor to 990+4009+000
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 2 kg |
| Capacity: | 7 kg |
| Tilt: | 180° |
| Rotate: | 90° |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 323 |
| Screen size: | bis 27" |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Scope of delivery: | 1x Novus Clu I Monitor arm |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot), swivelling, tilting |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Novus Clu Duo Monitor Arm?
A dual monitor arm with a gas spring for two displays. It is a two-piece arm with an integrated gas spring.
-
How is the height adjusted?
Height adjustment is stepless via a gas spring, allowing ergonomic positioning.
-
How far do the arms reach and how many monitors can I use?
Reach is 323 mm per arm; supports two monitors side by side up to approx. 27 inches, with a 2–7 kg load per arm.
-
What are the rotation and pivot features?
It rotates 360° with an adjustable stop at 180° and has a pivot function for landscape and portrait orientation.
-
What VESA standards are supported?
VESA 75x75 mm and 100x100 mm.
-
Is mounting included?
Mounting is not included; it is sold separately.
-
How is the cable management?
Cable routing is via cable holders to keep the workspace tidy.
Kunden kauften auch
What advantages does a dual monitor arm with gas spring offer in the workplace?
Anyone who works with two monitors knows the problem: two separate bases take up a lot of desk space and are difficult to position flexibly. A dual monitor arm like the Novus Clu Duo solves this problem elegantly. With the integrated gas spring, both screens can be adjusted continuously in height and precisely adapted to the individual seating position. This is particularly important for ergonomic work, as an incorrect screen height often leads to neck and back complaints. The Novus Clu Duo monitor mount creates additional desk space and, thanks to the integrated cable management with cable clips, ensures a tidy work environment. The dual monitor arm is suitable for a wide range of applications, whether in a classic office, home office, control rooms or trading workstations where two screens side by side are indispensable. Even in newsrooms, graphic design studios or training rooms, the double arm with two flexibly positionable monitors offers a real benefit for daily work.
How does the VESA mounting work on the Novus Clu Duo monitor mount?
VESA mounting is an internationally standardized mounting standard for monitors and flat screens. On the Novus Clu Duo, the monitors are attached to the arms quickly and tool-free using the QuickRelease function. Both arms support the common VESA sizes 75 x 75 mm and 100 x 100 mm, making them compatible with a wide range of monitors up to approx. 27 inches. These values indicate the hole spacing of the mounting points on the back of the monitor in millimeters. The load capacity is 2 to 7 kg per arm, covering a wide spectrum of common office monitors. The reach is 323 mm per arm, and the adjustable tension of the swivel joints ensures that the monitors remain securely fixed in any desired position and do not slip unintentionally.
Why is a separate mounting required for the Novus Clu Duo?
The Novus Clu Duo is deliberately delivered without a mounting so it can be flexibly adapted to different desks and installation situations. Depending on the workstation, a desk clamp, a through-desk mount or a slatwall rail can be chosen as the Clu mounting. This modular concept allows the dual monitor mount to be installed at almost any workstation without compromising stability. Assembly is extremely quick and easy, as the arms are simply inserted into the chosen mount. The 360-degree swivel range with an adjustable stop at 180 degrees offers maximum freedom of movement for both screens, while the pivot function allows switching between landscape and portrait orientation. This feature is especially valuable for programmers or financial analysts who want to use a monitor in portrait mode. Novus provides a 5-year warranty on the Clu Duo for intended use, and the product is TÜV Nord certified according to the Equipment and Product Safety Act. The quality label German Engineering also guarantees that the monitor mount was developed to German quality standards and produced in the company's own factories. Thanks to its thoughtful construction and high-quality materials, the Novus Clu Duo is a durable investment in an ergonomic and productive dual-monitor workspace.
