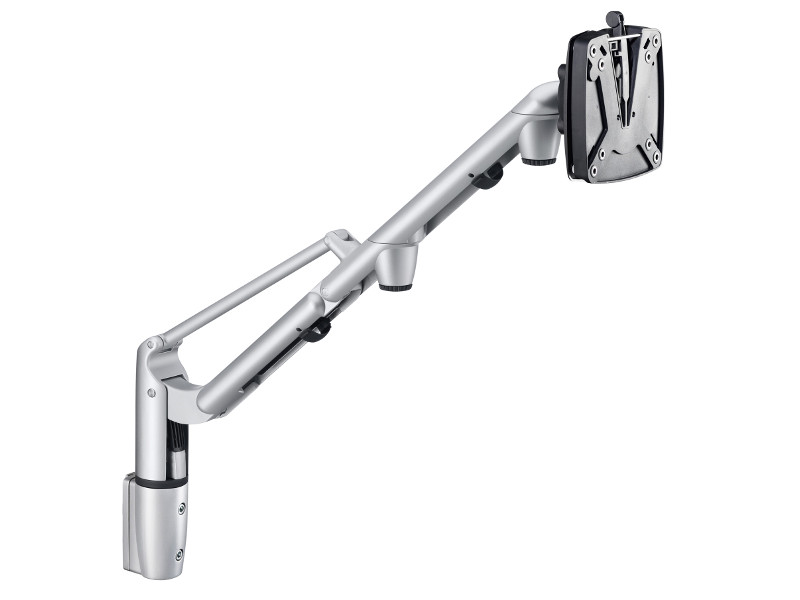

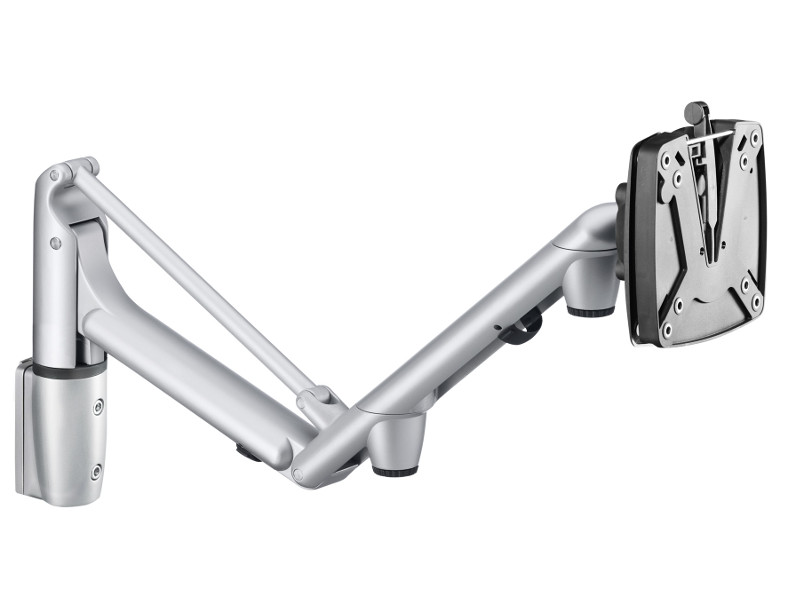

Novus LiftTEC Arm 2 PM mount for alu profile max. 3-8 kg (982+2089+000)
The high-quality Novus 982+2089+000 LiftTEC Arm 2 PM Monitor bracket for aluminum profile max. 3-8 kg is a design highlight under the monitor brackets. The NOVUS LiftTEC Arm II is attached to aluminum profiles such as Bosch, Item, Minitec, Isel, R & K, GAP, and so on.
Novus LiftTEC Arm 2 PM monitor mount for aluminum profile 982+2089+000 max. 3-8 kg
The quick-release with single-lever control ensures the easy mounting of the monitor with a weight of 3-8 kg or 7-15 kg. It complies with the widely used VESA mounting standard 75x75 and 100x100 mm for recording all conventional monitors. For orderly cable management on the support arm, the monitor support arm has a cable holder.
Key features Novus LiftTEC Arm 2 PM Monitor holder for aluminum profile max. 3-8 kg (982+2089+000)
- Finish: silver
- Fixing to aluminum profiles such as Bosch, Item, Minitec, Isel, R&K, GAP
- Load capacity: 3 - 8 kg
- VESA standard 75x75 and 100x100mm
- Swivel range: 180°
- Height adjustment: 260mm
- Operating distance: 515mm
- Tilt: +/-36°
- Integrated cablemanagement
- With comfortable gas pressure technology, the monitor can be easily adjusted in height using the LiftTEC® arm
- The smooth operation of the rotatable joints can be adjusted individually
- Easy-to-use monitor thanks to QuickRelease with single-lever control. Ball-and-socket joint for setting the optimum viewing angle and for utilizing the pivot function of monitors.
- Perfect cable routing on and in the support arm through the cable clips
- The LiftTEC® arm can be adjusted to the weight of the monitor thanks to an adjustable gas pressure spring
- The easy QuickRelease allows the monitor to be easily attached and detached thanks to the single-lever control
- Adjustability: gas pressure technology
Does your monitor or display fit?
We are happy to check if your monitor is suitable for this Novus LiftTEC Arm 2 PM mount. Simply send us your model (manufacturer + model no.) At the end of the order process. We then check for you whether the monitor or the display fits the monitor holder and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Technical drawing: |  [pdf, 288 kb] |
|---|---|
| Installation manual: | [pdf, 3,2 MB] |
| Capacity: | max. 3-8 kg |
| Tilt: | +/- 45° |
| Rotate: | 90° |
| Height range (mm): | 220 - 480mm |
| Pivot: | 90° |
| Swivelling range: | 360° |
| Screen size: | 19 - 24" |
| Material: | diecast aluminium |
| Old model no.: | 985+2089+010 |

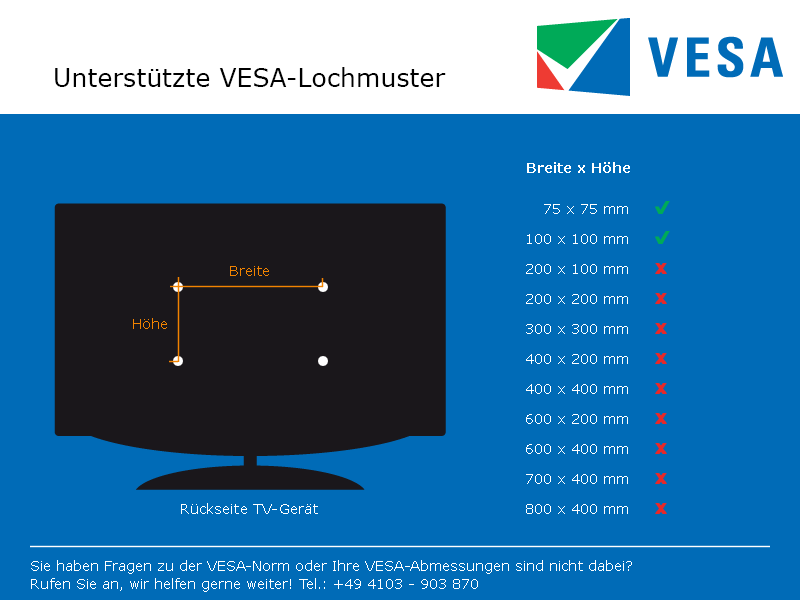

| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | rotatable (pivot), swivelling, tilting |
| Mounting type: | Aluminium profile |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
