Novus MY twin arm G dual monitor mount with grommet (910+2259+000)
The Novus MY twin arm G dual monitor mount with grommet (910+2259+000) is a set of MY base and 2x MY arm – maximum flexibility for a two screen-application.
Novus MY twin arm G dual monitor mount with grommet (910+2259+000)
More space for better work. NOVUS more space system. Always good for a new surprise, the NOVUS more space system demonstrates how easy existing space can be optimised. Intelligent, flexible and ergonomically.
NOVUS MY: Exactly what I need. More space for modern LED screens and Tablets by using the NOVUS MY. The new stylish line of screen supports offers an appropriate solution for almost every workspace situation. The combination of different arms and columns creates more room for your individual work environment.

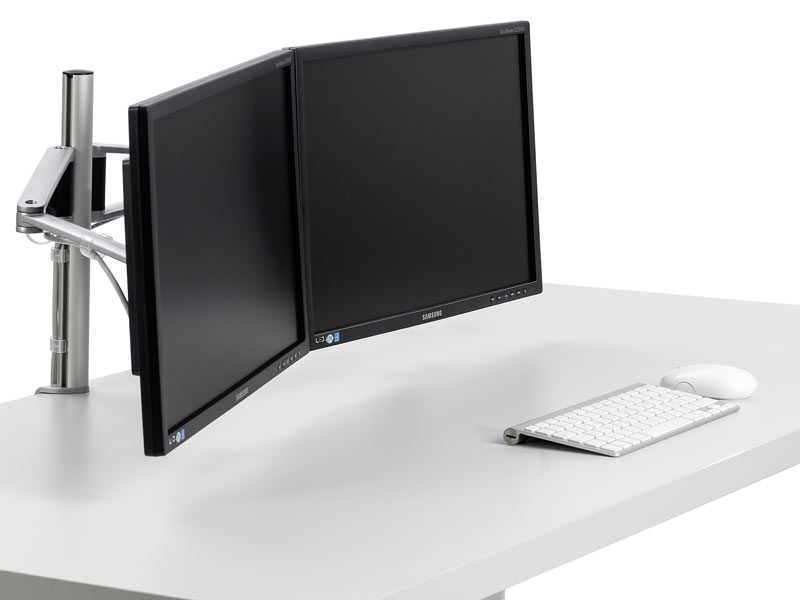

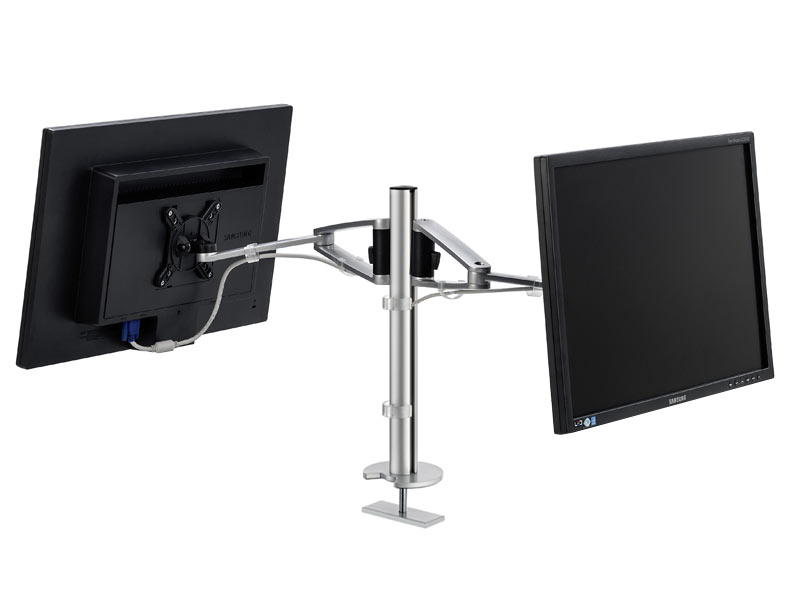

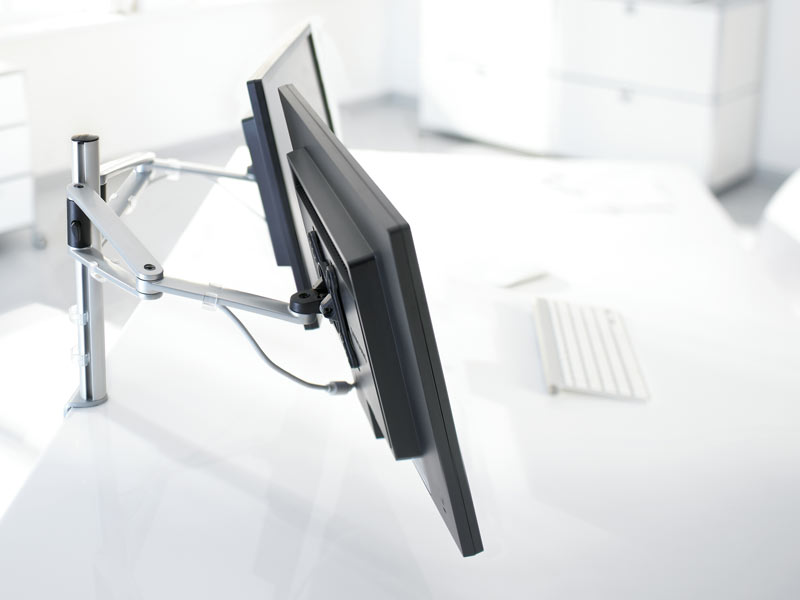

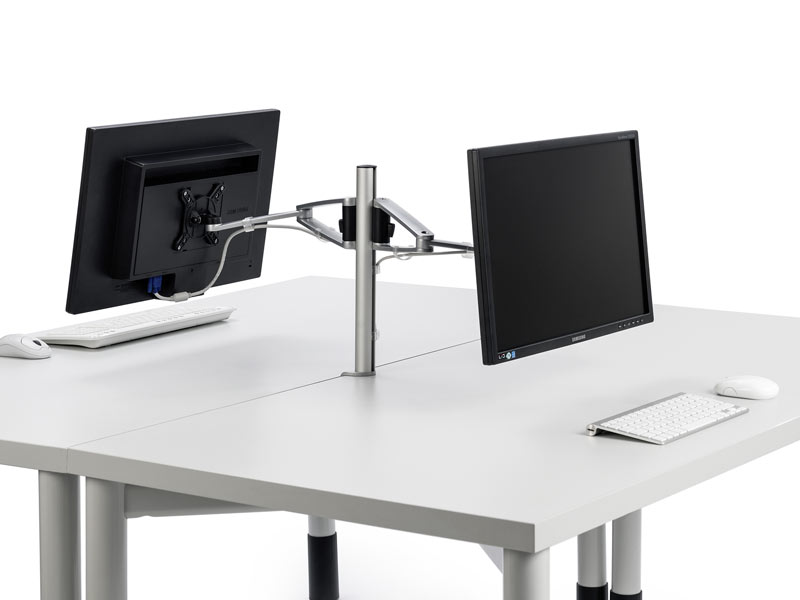

NOVUS MY twin arm
- Column length 350 mm
- Grommet (mounting range 5 - 70 mm)
- 2-part articulated arm with standard 75/100 monitor mount
- Tilts and turns for freedom of movement
- height adjustable
- Including cable clips
- range 415 mm
- capacity up to 6 kg
Comprising:

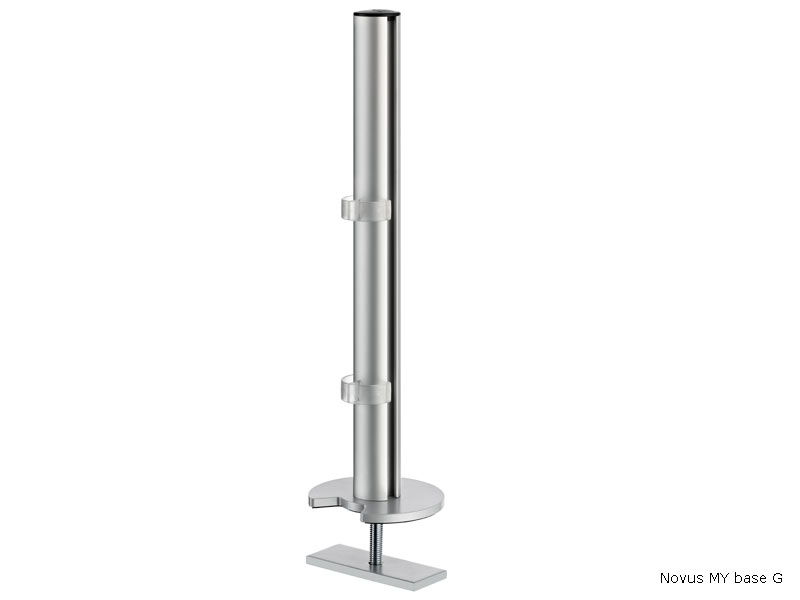

- 1 x NOVUS MY base

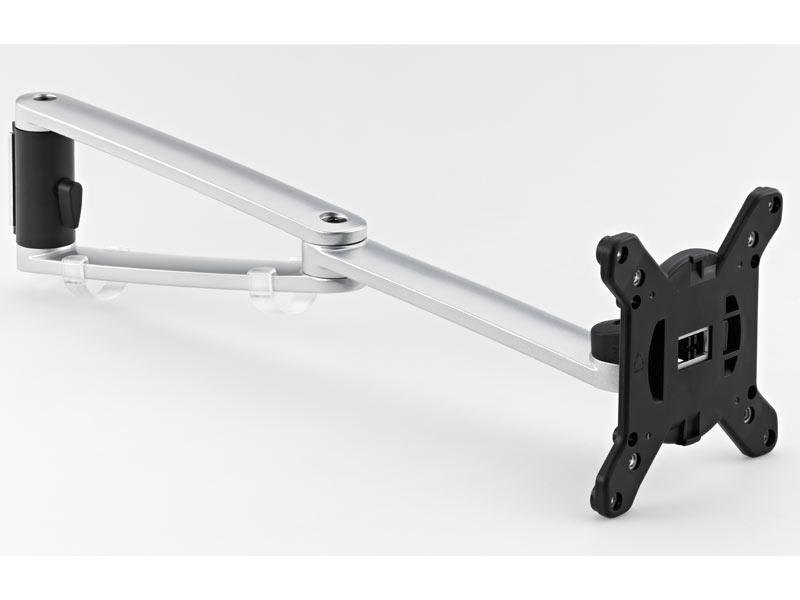

- 2 x NOVUS MY arm
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 370 kb] |
|---|---|
| Technical drawing: | [pdf, 121 kb] |
| Installation manual: | [pdf, 4 MB] |
| Capacity: | 6 kg per monitor |
| Tilt: | 35° |
| Height range (mm): | + |
| Length of the swivel arm: | 415 |
| Screen size: | 15 - 24" |
| Thickness of table (mm): | 5 - 70 mm |
| VESA Standard: | 75x75, 100x100 (www.vesa-standard.com) |

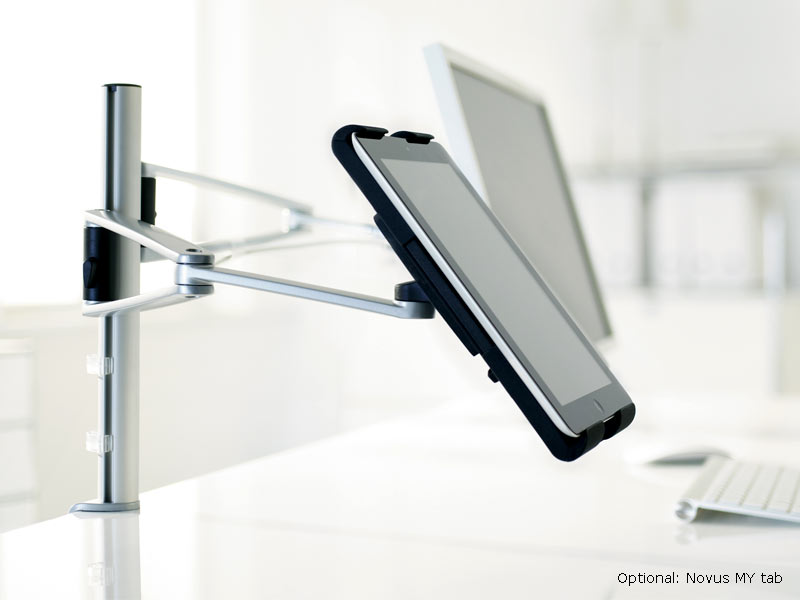

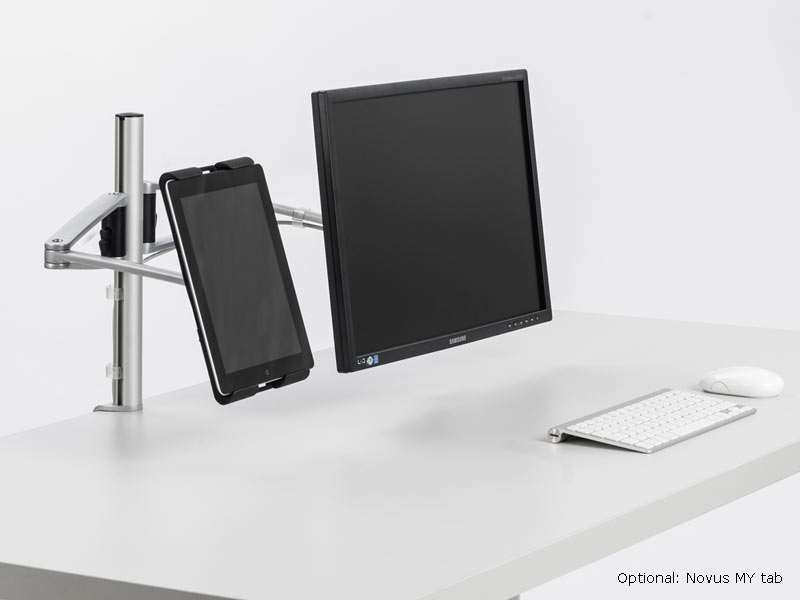

| Accessories: | Novus MY tab Novus MY fix |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Silver/Anthracite |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
