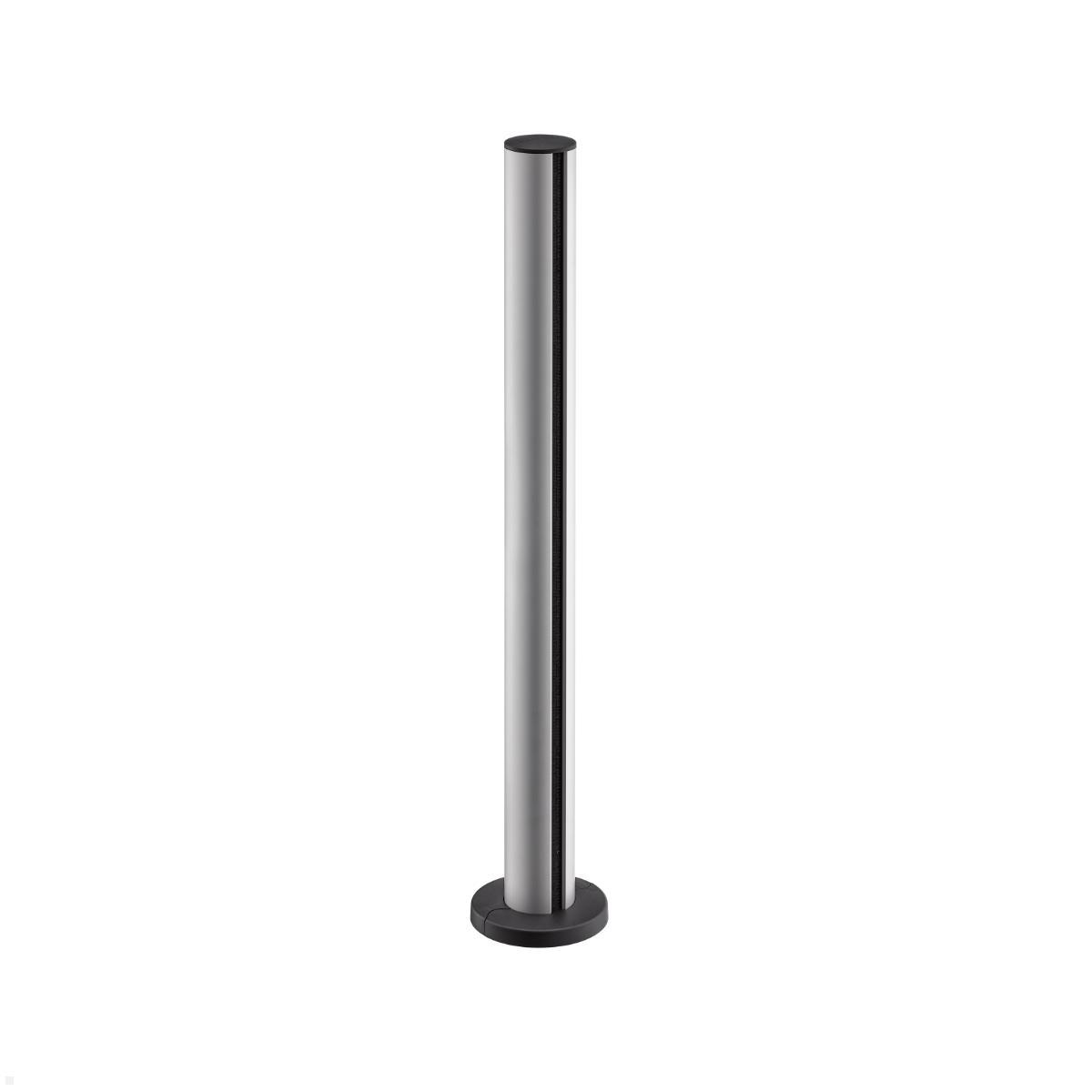

Novus POS base 500 column (851+5009+000), silver
The Novus POS base 500 column (851+5009+000) in silver can be combined with various Novus support elements. It is designed for table mounting at the point of sale and features integrated cable management.
Table Mount for Retail System
The space-saving, flexible products from the Novus POS Solutions range can be easily integrated into the store design and, with sophisticated details, increase user-friendliness in the checkout area. As the basis for the modern point of sale workplace, the Novus POS base 500 in silver offers a variety of combination options. The 500 mm high aluminum column serves as a table mount for a customized retail system and can be equipped with various Novus POS support arms and a Novus connect plate. Devices such as EC terminals, printers, monitors, tablets, and much more can be attached to these support elements. Two grooves on the column ensure ideal cable management, as the device cables are elegantly hidden behind the cover brushes.
Key features Novus POS base 500 Column (851+5009+000)
- Height: 500 mm
- Diameter: 51 mm
- Base diameter: 100 mm
- Suitable for all Novus POS support elements (sold separately)
- Continuously adjustable support elements possible
- Table mounting via surface or screw-through fastening

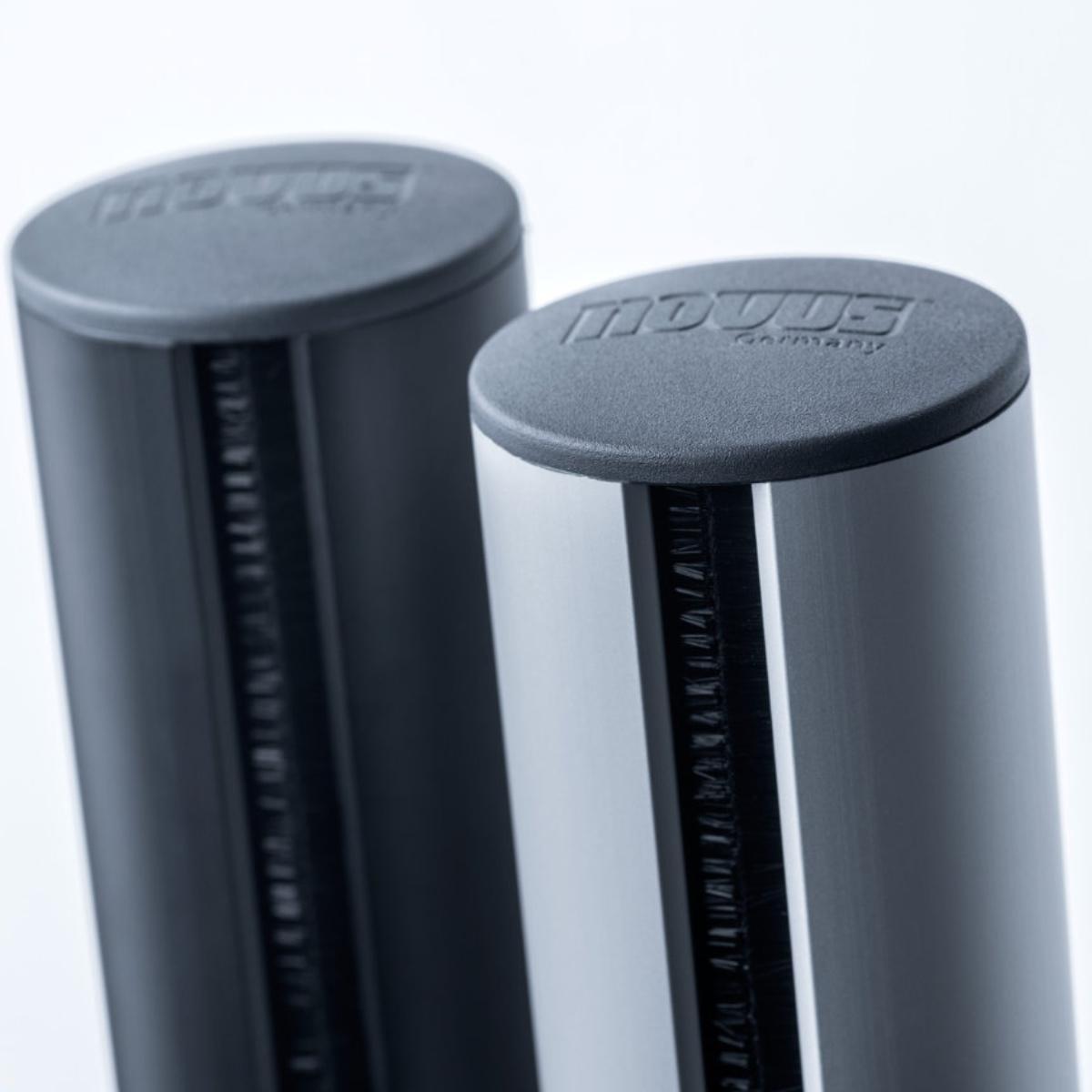

- Integrated cable management (2 grooves with Cover brushes)
- Includes 2 cable clips
- Material: aluminum
- Finish: silver
| Product sheet: |  [pdf] |
|---|---|

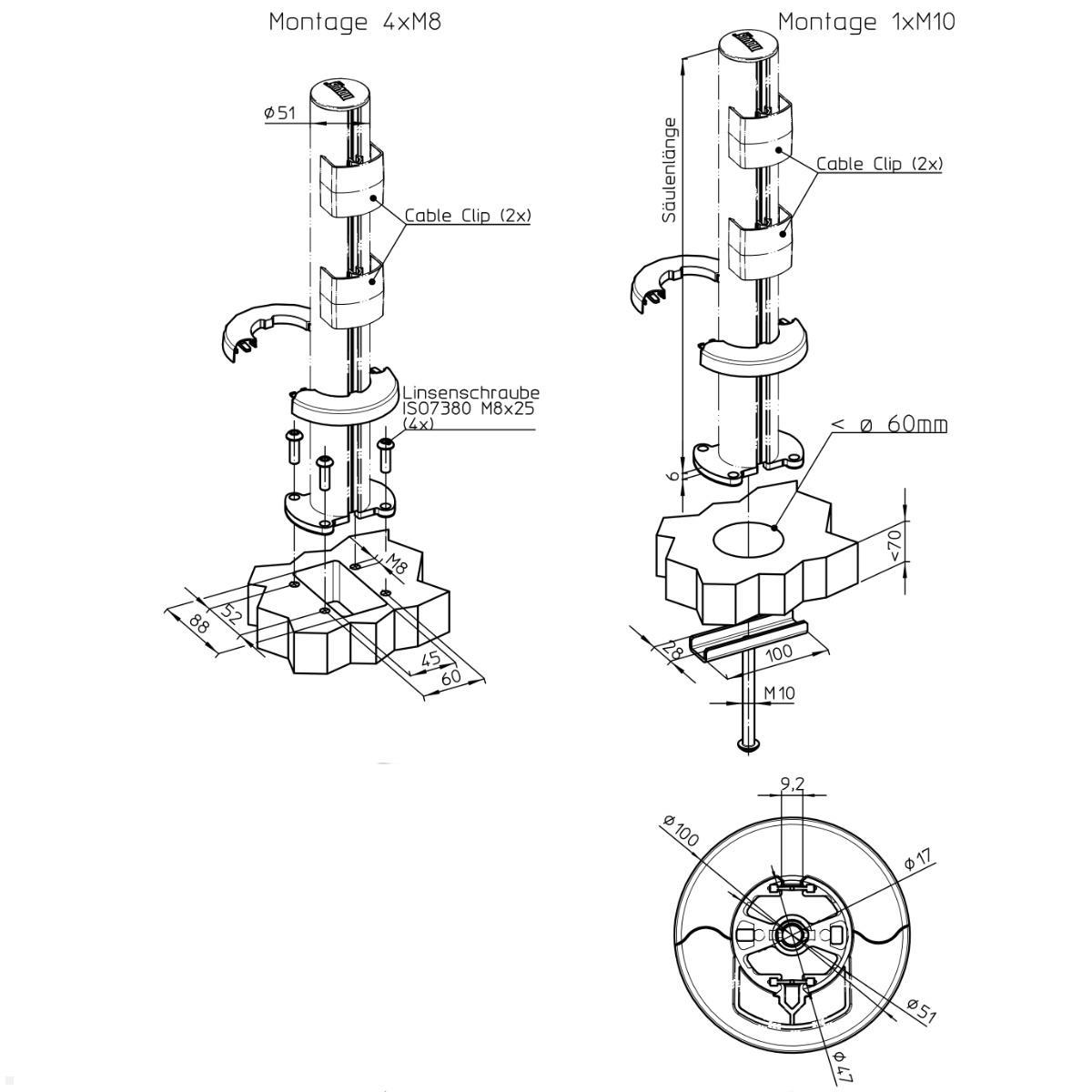

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Thickness of table (mm): | max. 70 |
| Material: | Aluminium |
| Suitable for: | Novus POS support elements |
| Scope of delivery: | 1x POS base Säule | Installationsmaterial |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Mounting type: | desk - drill screw fastening |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Zubehör
Table Mount for Retail Systems - Flexible Base for the Modern Point of Sale
An efficient table mount for retail systems is a crucial factor for a professionally designed checkout area today. The Novus POS base 500 impresses with its space-saving design, high flexibility, and easy integration into any store. This high-quality aluminum column forms the perfect foundation for a customized and ergonomic point of sale system that can be precisely adapted to your requirements.
Space-saving, modern, and flexible
The Novus POS base 500 was specially developed for use in retail, restaurants, or at service counters. With a height of 500 mm, the column offers sufficient space for clearly and ergonomically arranging monitors, tablets, debit terminals, printers, or scanners. Thanks to its slim design, the silver column blends harmoniously into any store design, creating a tidy, professional look.
Various combination options for customized solutions

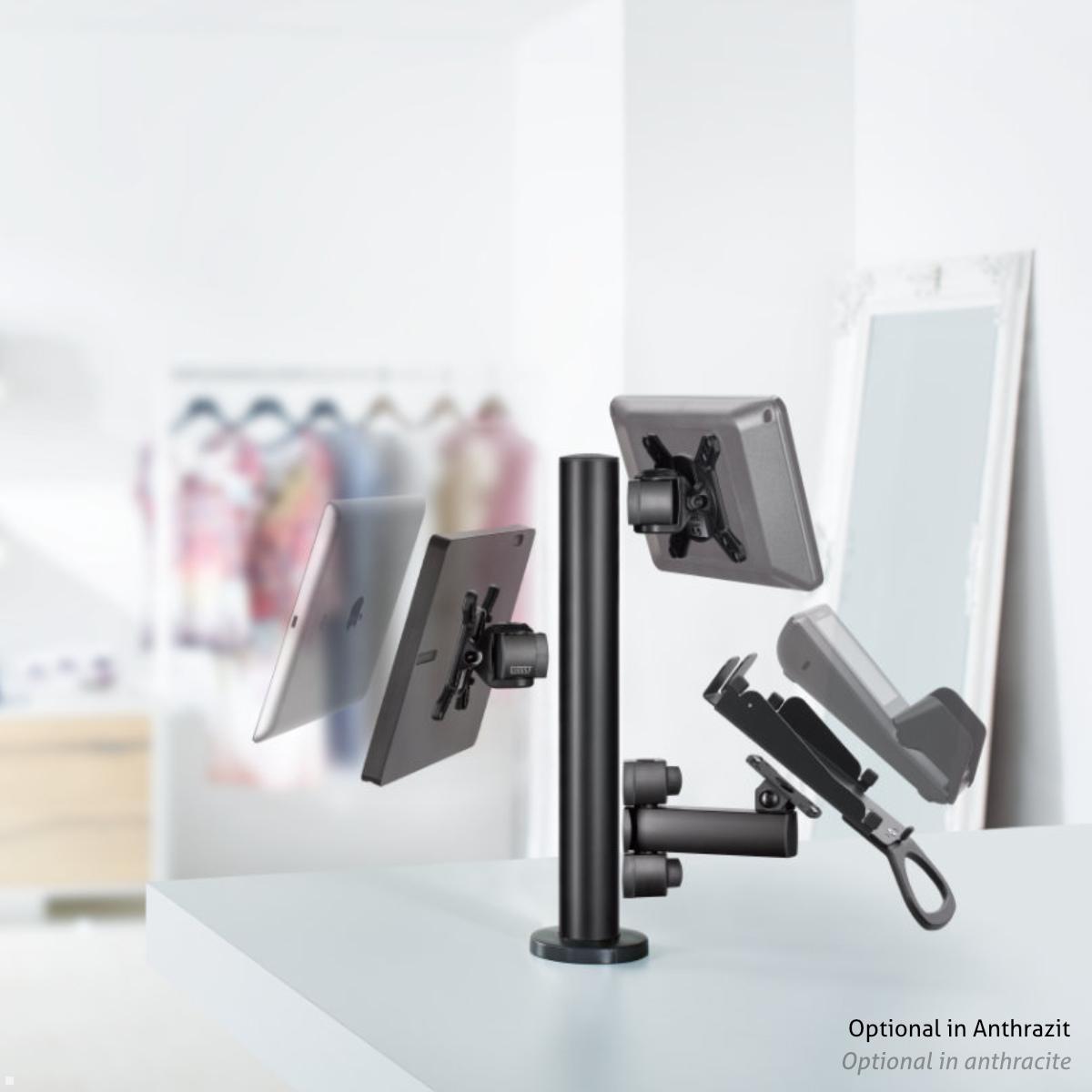

A particular advantage of this table mount for POS systems is its high compatibility. The column can be equipped with various Novus POS support arms and a Novus connect plate, allowing a wide variety of devices to be mounted securely and flexibly. Whether you need a simple POS terminal or a complex multi-device solution, the Novus POS base 500 grows with your needs.
Integrated cable management for a clean workplace
Cable clutter at the POS is a thing of the past with this table mount. Two integrated grooves with practical cover brushes enable clever cable management. Device cables can be elegantly concealed behind the column, which not only improves the appearance but also ensures greater security and order. Two cable clips are also included to further organize cable routing.
Easy installation and continuous adjustment
The Novus POS base 500 is particularly easy to install. The column can be mounted to the table using either a screw-on or through-bolt fastening, depending on your requirements. Another advantage: the support elements are continuously adjustable. This allows you to flexibly adjust the position of your devices at any time – for optimal ergonomics and efficient workflows.
Technical details at a glance
- Height: 500 mm
- Column diameter: 51 mm
- Base diameter: 100 mm
- Material: Aluminum, silver
- Compatible with all Novus POS support arms (sold separately)
- Integrated cable management with 2 grooves and cover brushes
- Mounting: Surface or screw-through mounting
- Includes: 2 cable clips
- Conclusion: The ideal table mount for professional retail systems
The Novus POS base 500 offers everything a modern point of sale workplace needs: stability, flexibility, and a sophisticated design. Thanks to the high-quality materials, ease of use, and versatile combination options, this table mount allows you to create a tidy, efficient, and customer-friendly sales environment.
