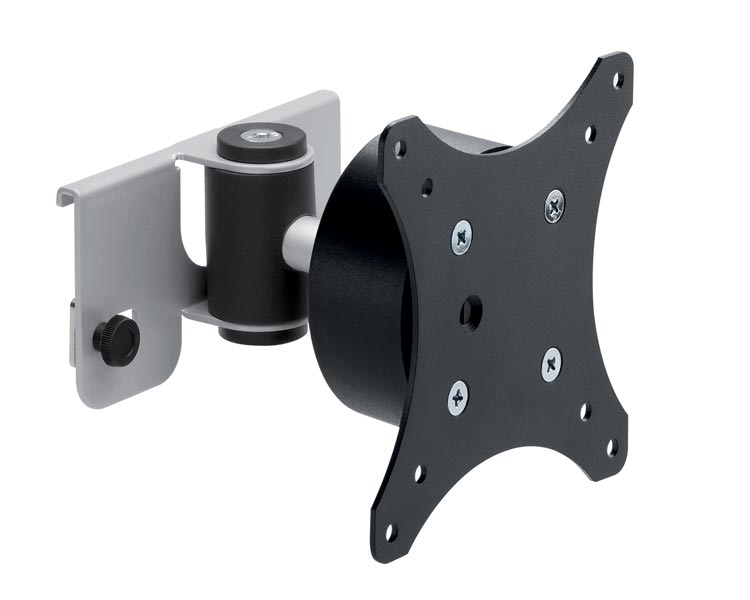

Novus monitor holder support carriage for slatwall
The monitor mount Novus SlatWall support carriage with VESA 75/100 is suitable for Novus Slatwall.
The easiest way to fit a monitor to a Novus SlatWall element. The monitor can moved horizontally whenever necessary and adjusted to exactly the preferred position on the Novus SlatWall element by means of the pivoting ball joint. Equipped with standard VESA 75/100 mount.
- Load capacity: approx. 7.5 kg
- Range of action: up to 107 mm
- Colour: silver / anthracite
| Product sheet: | [pdf, 195 kb] |
|---|---|
| Technical drawing: |  [pdf, 52 kb] |
| Capacity: | 7,5 kg |
| Tilt: | +/- 42° |
| Rotate: | 90° |
| Pivot: | 90° |
| Swivelling range: | +/- 50° |
| Length of the swivel arm: | 107 |
| Screen size: | 15 - 24'' |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | rotatable (pivot), swivelling, tilting |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
