EOL - PureLink CSW110 Wireless HDMI Set 30m

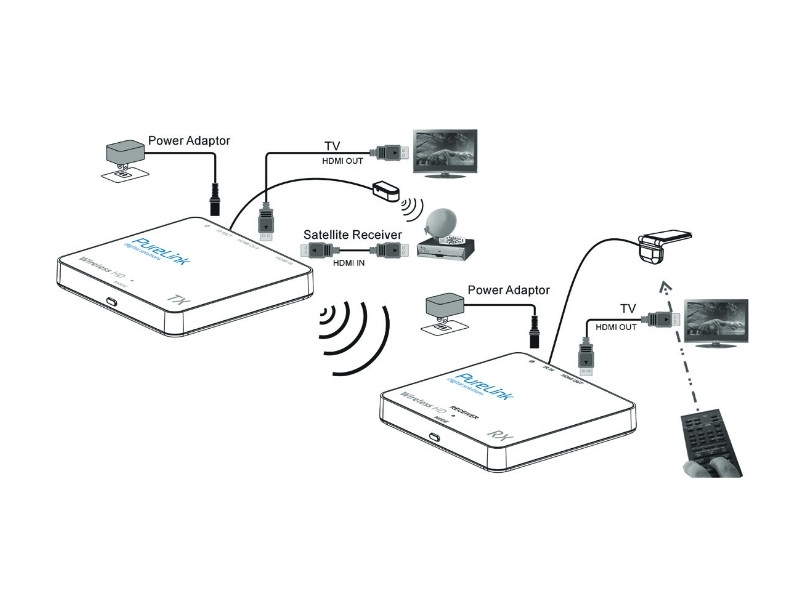

With the PureLink CSW110 HDMI Set, you can output video signals with resolutions up to FullHD 1080p over max. 30 meters and including HDCP and EDID wirelessly transmitted. The transmitter of the PureLink CSW110 also has an HDMI output socket integrated, which allows the simultaneous distribution of the input signal to 2 different display devices.
Successor to the PureLink CSW100 and compatible with it.

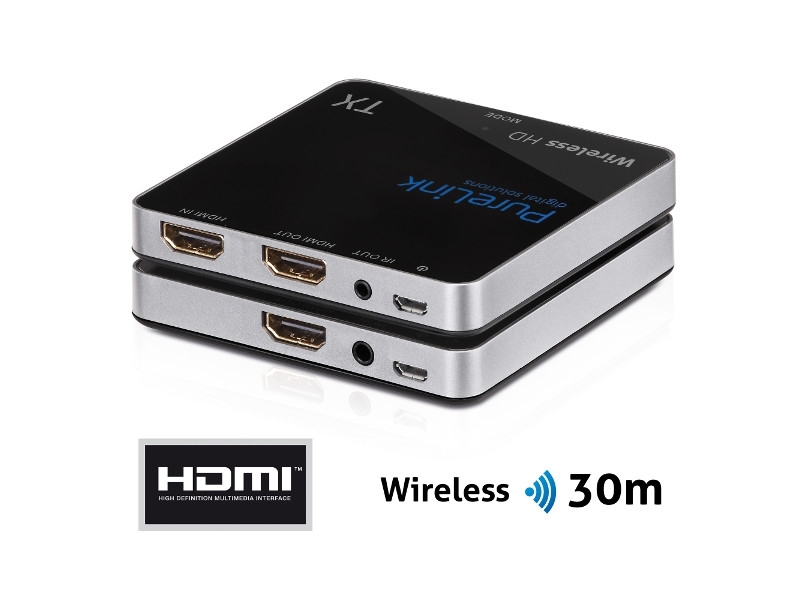

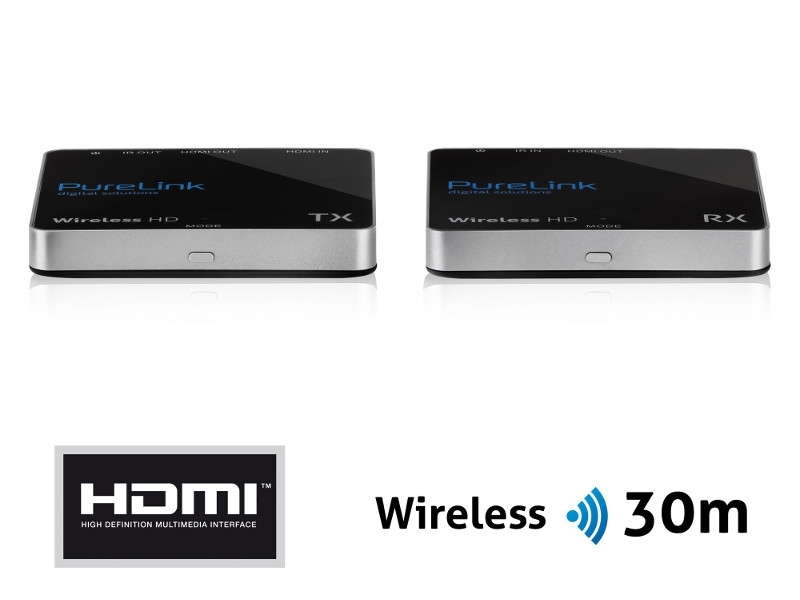

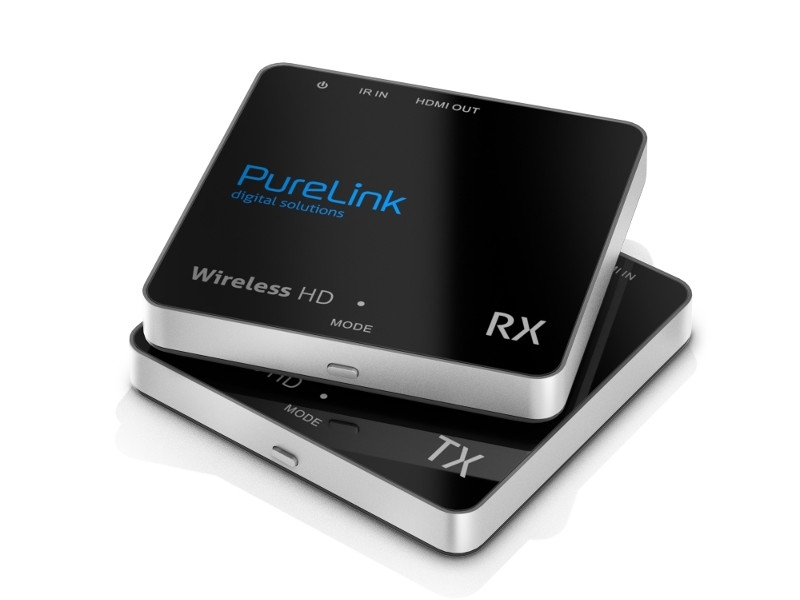

PureLink Wireless HDMI Extender CSW110
The Wireless HDMI Extender CSW110 from PureLink is the successor of the PureLink CSW100 and transmits brilliant FullHD in 1080p@60 including digital audio formats via radio over a distance of up to 30m up to two receivers at the same time. The PureLink CSW110 has a built-in splitter, providing 2 mirrored HDMI outputs so that the same signal can be received at both the main and secondary screen.
The PureLink CSW110 is ideal for wireless connection of HDMI devices with HDMI-A ports. You can use it for example between PC, DVD player, Blu-ray player, Playstation3, Playstation4, Xbox360 or Xbox One and LCD TV, LED TV, plasma TV, projector or projector.
Wireless HDMI signal transmission up to 30m

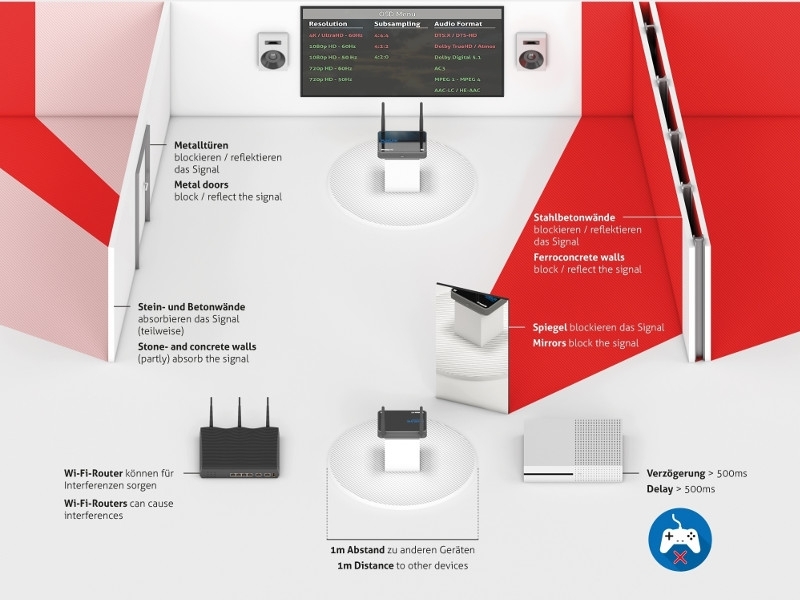

With the CSW110 HDMI Set HDMI signals can be transmitted with up to 1080p or in all frame-packing 3D formats over a maximum distance of up to 30 meters - without cables and with invisible mounting. The transmission distance outside the line of sight can not be determined as a whole and depends on the local conditions.
With PureLink's built-in IR extension feature, the IR remote control signal can be transported from receiver to transmitter side. The two supplied IR extension cables ensure optimum accessibility between remote control, receiver and transmitter, even with concealed mounting.

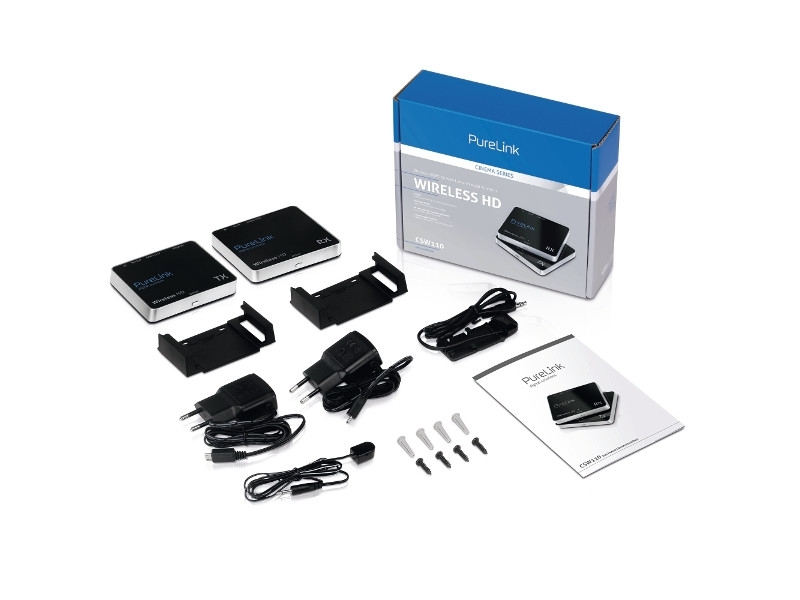

Delivery content PureLink Wireless HDMI Set CSW110:

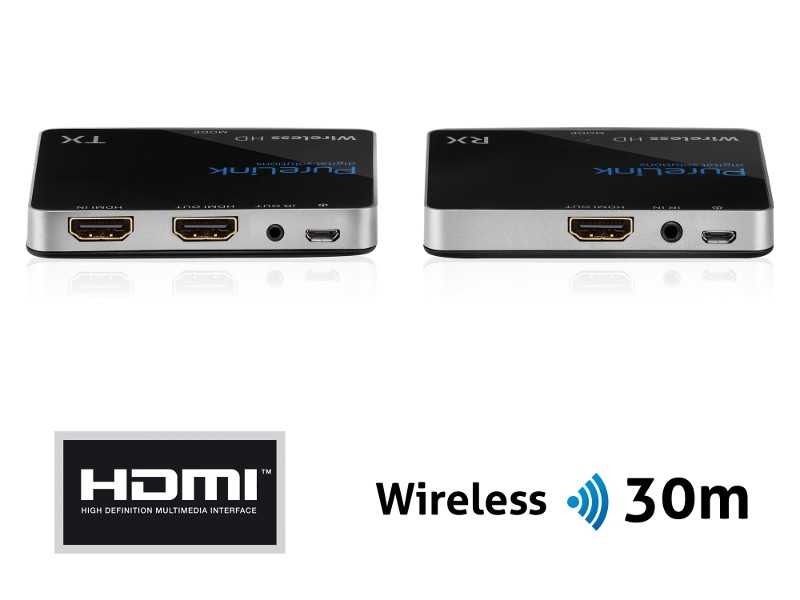

- CSW110 Transmitter (TX):
Inputs: 1x 5V mains connection, 1x HDMI-A socket
Outputs: 1x HDMI-A socket (loop-through), 1x 2.5mm IR socket
Dimensions: 83,0 x 84,9 x 13,5 mm - CSW110 Receiver (RX):
Inputs: 1x 5V mains connection, 1x 2.5mm IR socket
Outputs: 1x HDMI-A socket
Dimensions: 83,0 x 84,9 x 13,5 mm - 1x IR Emitter
- 1x IR Receiver
- 2x power adapter Micro USB
- 2x TX / RX wall mount with holes
- Incl. screw set for assembly
Key features PureLink HDMI set CSW110:
- Wireless HDMI for 3D (frame packing) and HDTV signals up to 1080p
- Wireless data transfer in the 5G frequency range up to 30 meters
- Transmitter with extra "loop-through" HDMI-A output for up to 2 displays
- Supported video resolutions: FullHD@60Hz (1080p, 1080i), HD (720p), SD, FullHD 1080p 3D@30Hz
- Supported audio formats (digital): MP 1/2/3, AC3, Dolby Digital 5.1
- Supported standards: HDMI, HDMI Deep Color & x.v.Color, Wireless HD, HDCP, EDID
- Transmission frequency: approx. 5GHz

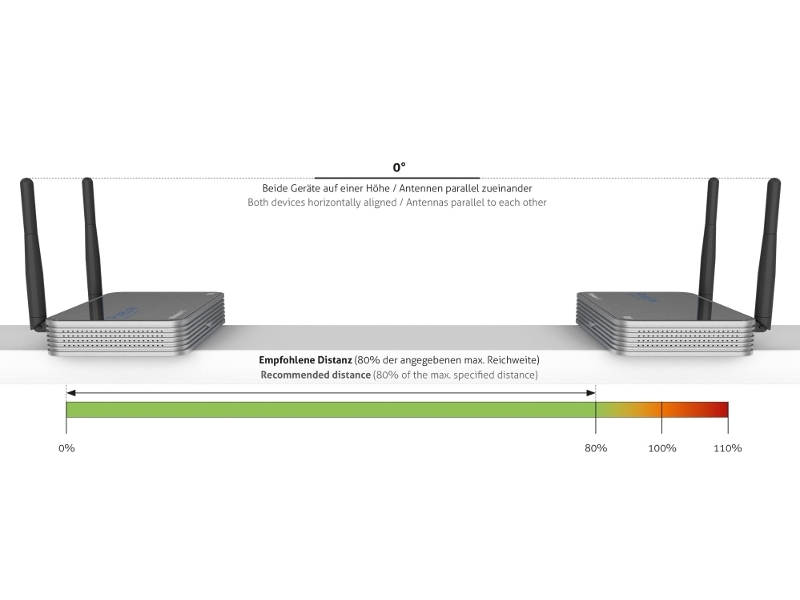

- Maximum transmission distance: 30m in line of sight
- Power supply: 5V 1A DC
- Small size for space-saving and inconspicuous installation
- Compatible with predecessor CSW100
| Installation manual: |  [pdf, 181 kb] |
|---|---|
| Packaging dimensions (LxWxH in mm): | 190 x 56 x 158 |
| Contains installation material: | + |
| Manufacturer/Importer: | PureLink GmbH / PureLink, Von-Liebig-Str. 10, 48432 Rheine, info@purelink.de |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
