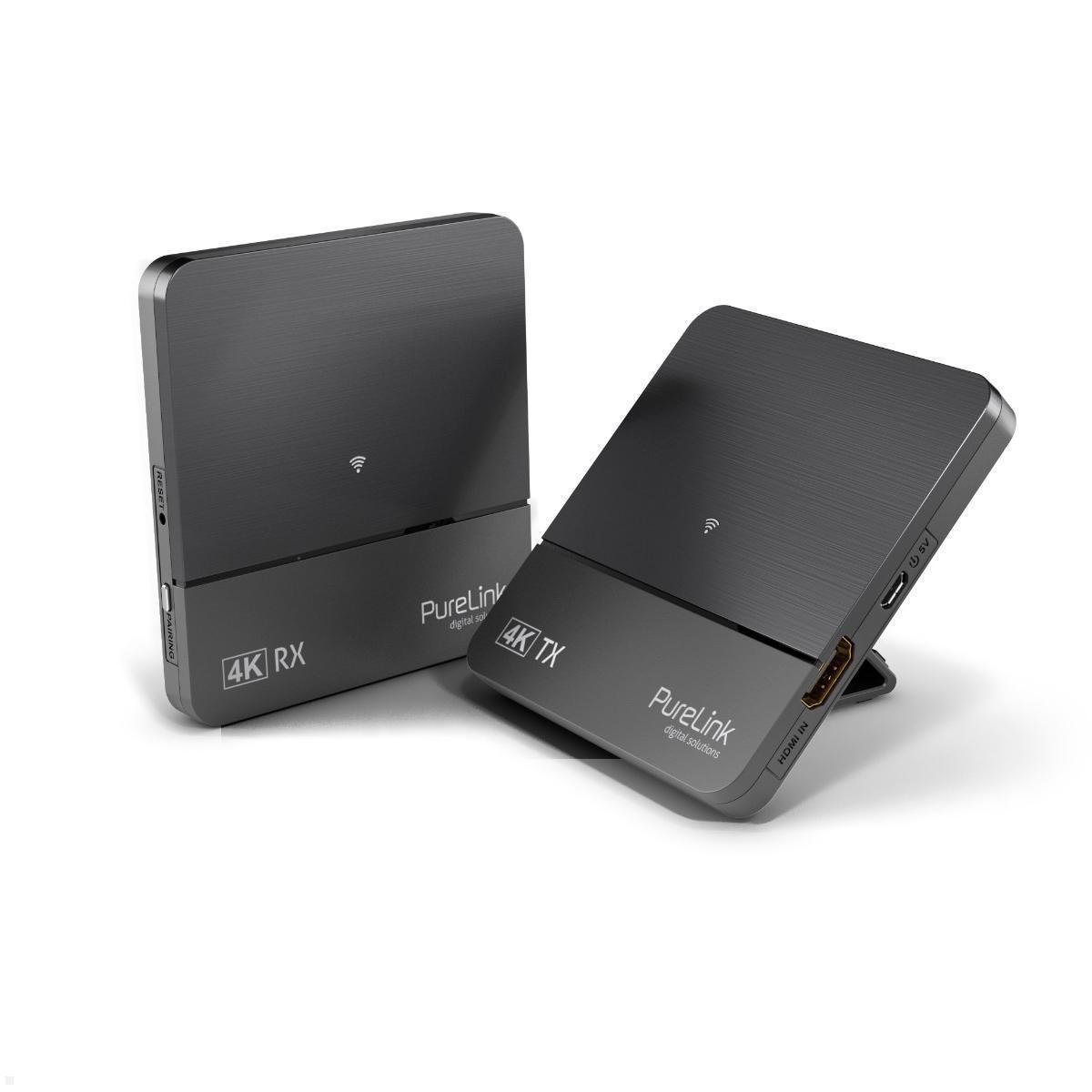

PureLink CSW200 Cinema Series Wireless HDMI Extender Set with 4K/UltraHD 2160p
The PureLink CSW200 marks a milestone as a wireless HD extender, pioneering the transmission of uncompressed 4K/UltraHD/2160p signals along with audio wirelessly across distances of up to 10 meters for the very first time. This transmission occurs without compression and with a latency of less than 100 ms.
Wireless HDMI transmitter set in 4K
The PureLink CSW200 Cinema Series wireless HDMI extender, featuring 4K/UltraHD 2160p capability, represents a breakthrough in wireless HD transmission. For the first time, the extender can wirelessly transmit 4K UltraHD video and audio signals across distances of up to 10 metres. The exact transmission distance beyond line of sight may vary depending on local conditions. By utilizing the 60 GHz frequency spectrum, the sleek black CSW200 minimizes interference with traditional WLAN devices operating in the 2.4 GHz and 5 GHz ranges, ensuring both a high data transmission rate and interference-free operation.
Interference-free audio / video transmission

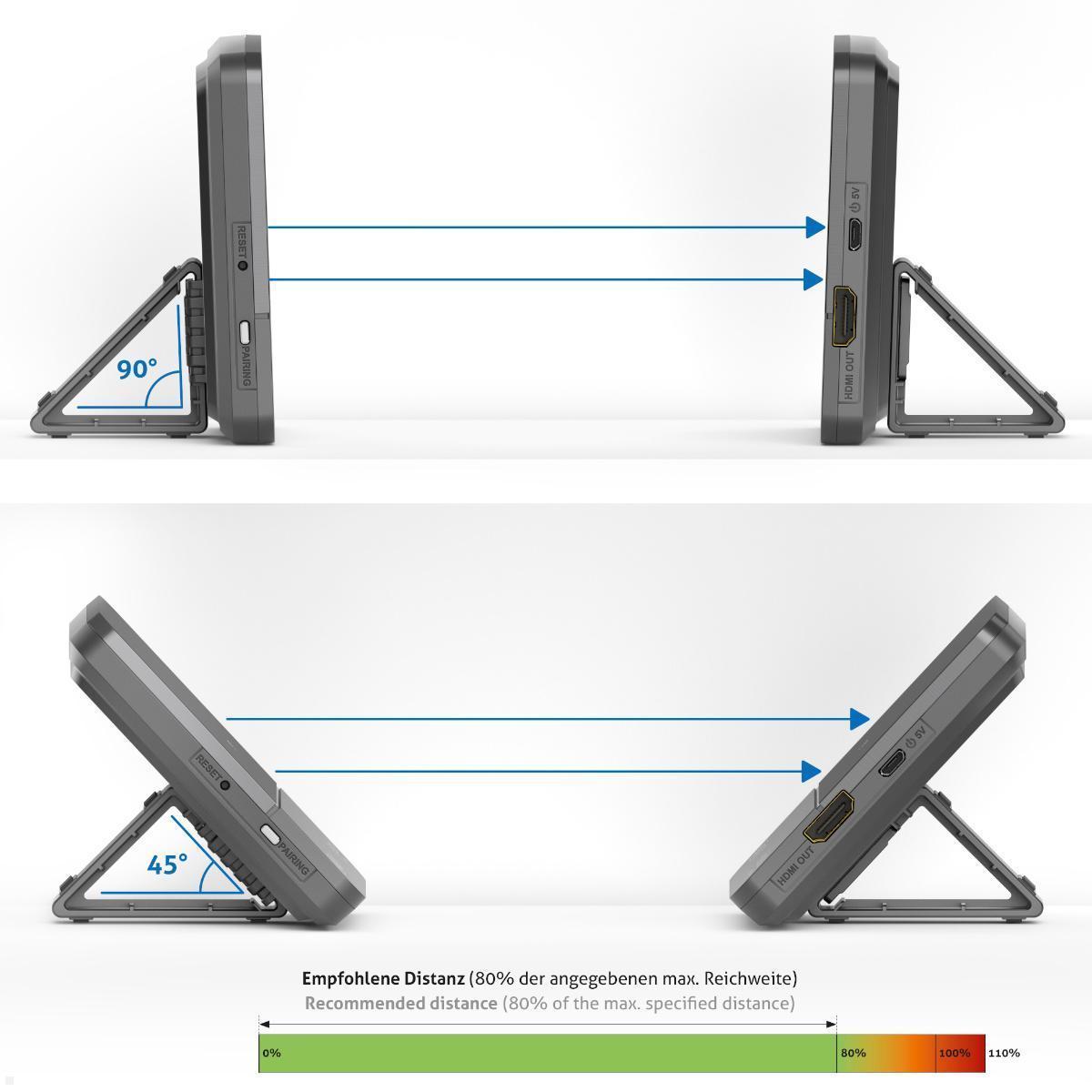

Operating within the 60 GHz frequency range, the CSW200 effectively sidesteps interference from 2.4 GHz / 5 GHz home networks like WiFi / WLAN. This feature is powered by a professional chipset that facilitates uncompressed wireless HDMI transmission in 4K with latency of less than 100 ms. For optimal performance, it is advisable to maintain a clear line of sight and a 90° alignment between the transmitter and receiver to achieve maximum transmission distance. With the PureLink Wireless HD product CSW200, flawless transmission of images and sound is assured even at the highest data rates. Specially optimized for HDTV requirements, the Wireless HDMI transmitter set in 4K eliminates concerns regarding pixel errors.
Key faetures PureLink CSW200 Wireless HD extender Set up to 10 m range, black
- Inputs
- Transmitter: 1x 5V microUSB mains connection, 1x HDMI-A socket
- Receiver: 1x 5V microUSB mains connection
- Outputs
- Receiver: 1x HDMI-A socket
- Power connection: 5V1A DC
- Standards: Frequency 60G, uncompressed, almost lag-free
- Digital video formats: Up to UltraHD / 4K / 2160p @30Hz, uncompressed
- Digital audio formats: HDMI 1.4a compliant
- HDCP: Yes
- EDID: Yes
- Power supply: 5V 1A DC
- Housing: Plastic
- Supported standards: HDMI 1.4b, HDCP 2.0
- Transmission types: Digital audio and video signals
- Max. Resolution: UltraHD / 4K / 2160p @30Hz, uncompressed
- Further standards: Wireless HD, HDCP, EDID
- Safety: CE, FCC, SGS
- Colour: Black
| Product sheet: |  [pdf] |
|---|---|
| Installation manual: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 100 x 95 x 17 |
| Scope of delivery: | 1x CSW200 Transmitter | 1x CSW200 Receiver | 2x 5V/1A MicroUSB power supply unit | 1x manual |
| Contains installation material: | + |
| Manufacturer/Importer: | PureLink GmbH / PureLink, Von-Liebig-Str. 10, 48432 Rheine, info@purelink.de |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
