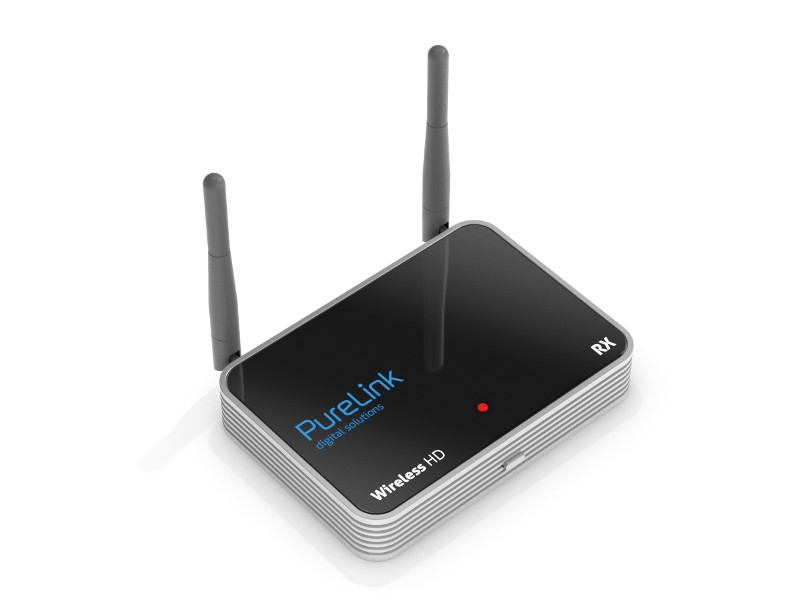

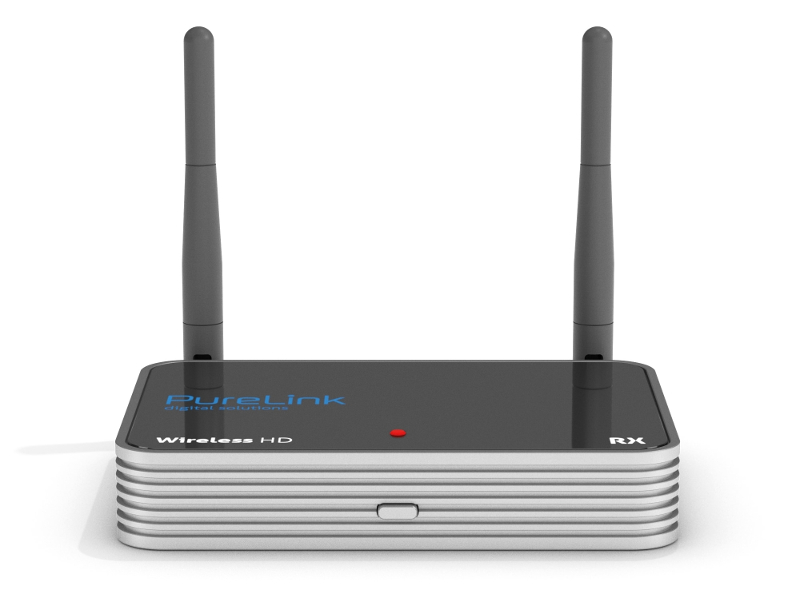

EOL - PureLink CSW310-RX Wireless HDMI Receiver 100m
The wireless HDMI Receiver PureLink CSW310-RX receives brilliant FullHD signals wirelessly in 1080p@60 including digital audio signals via radio from a distance of 100 m. The CSW310 transmitter distributes a 5GHz Wireless HDMI signal, that can be received by up to 4 CSW310-RX receivers at the same time.
Successor of PureLink CSW300-RX and compatible with the HDMI set CSW300.
The Wireless HDMI Receiver CSW310-RX from PureLink is the successor of the CSW300-RX and receives brilliant FullHD signals wirelessly in 1080p@60 including digital audio signals via radio from a distance of 100m.
PureLink Wireless HDMI Receiver CSW310-RX
The CSW310 transmitter distributes a 5GHz Wireless HDMI signal, that can be received by multiple CSW310-RX receivers at the same time. In combination with the full support of HDCP and EDID information it guarantees full compatibility in any system.
The integrated forwarding of IR remote control signals (30~60KHz) enables the effortless handling of the source device – even for hidden and/or covered installations.
Content PureLink wireless HDMI-Receiver CSW310-RX:
- Receiver (RX):
1x IR Input
1x HDMI Output
Dimensions: 130,0 x 83,4 x 26,5 mm - Delivered with power supplies and high performance antennas
Key features PureLink HDMI-Receiver CSW310-RX:

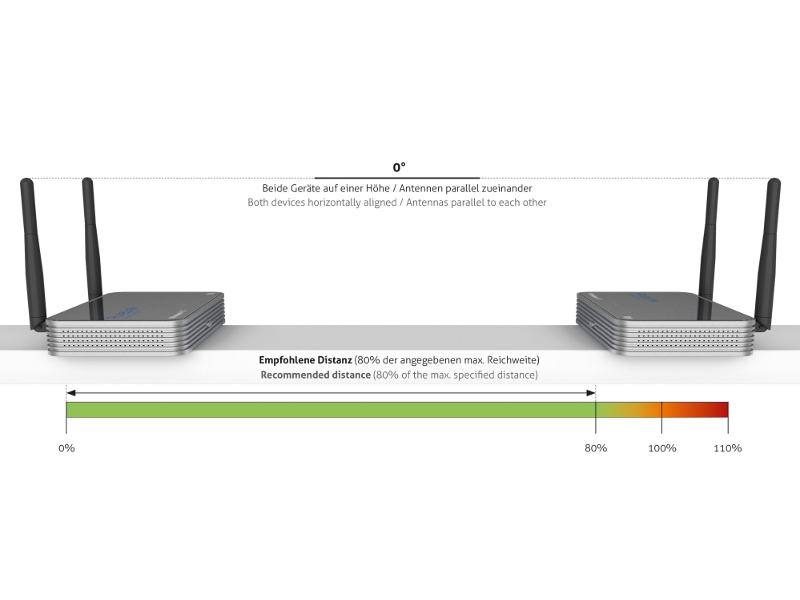

- Extreme receiving distance: 100m in line of sight
- Wireless HD using 5G frequency for HDTV up to 1080p@60Hz
- Wireless AV data transfer for HDMI connections incl. digital audio
- Multiple receivers receive the same signal from just one transmitter
- Free of loss and nearly latency free with less than 0.5 seconds delay
- Dual antenna in 5GHz band
- Supported video resolutions (HDMI): 1080p, 720p, 576p, 480p
- Supported PC resolution (max.): 1920 x 1080 @60Hz (16:9), FullHD
- Supported 3D formats: Frame-Packing 1080p@24Hz, 720p@50/60Hz
- Supported audio formats (digital): compressed formats, PCM, AC3, Dolby 5.1, DTS
- Supported standards: HDMI, HDCP 2.0, EDID 1.3
- Supported IR frequency: 30kHz - 60kHz
- Power supply 100-240V AC @ 50-60Hz, 5V1A DC
- Small housing for an understated installation
- Encrypted transmission for maximum privacy
| Product sheet: |  [pdf, 91 kb] |
|---|---|
| Installation manual: | [pdf, 150 kb] |
| Packaging dimensions (LxWxH in mm): | 158 x 56 x 158 |
| Contains installation material: | + |
| Manufacturer/Importer: | PureLink GmbH / PureLink, Von-Liebig-Str. 10, 48432 Rheine, info@purelink.de |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
