PureLink CSW310 Wireless HDMI Set 100m

The Wireless HDMI Extender CSW310 from PureLink is the successor of the CSW300 and transmits brilliant FullHD wirelessly in 1080p@60 including digital audio signals via radio up to a distance of 100m to multiple receivers at the same time. The encrypted and nearly latency free transmission ensures maximum security and is free of loss.

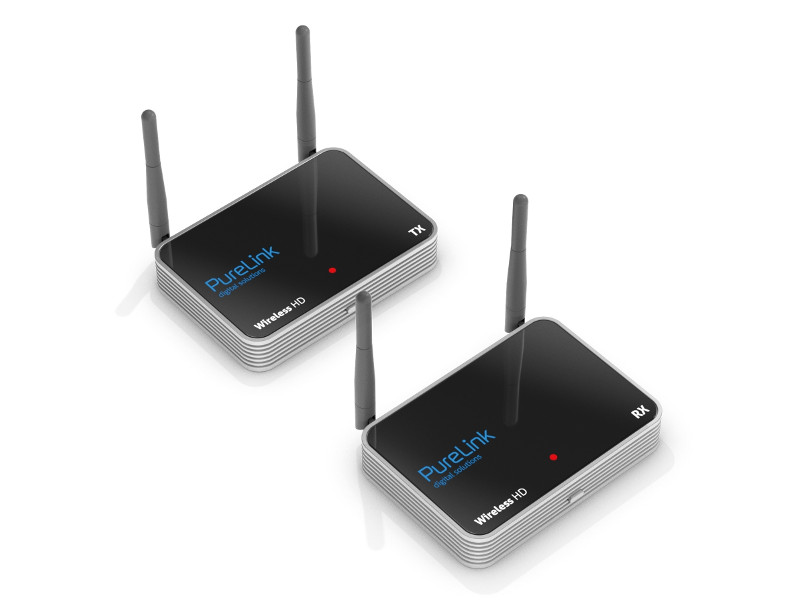

PureLink Wireless HDMI Extender CSW310

The PureLink - Digital Solutions CSW310 can wirelessly transmit one HDMI input signal to up to 4 receivers. The set includes one transmitter and one receiver. The receivers can also be purchased as single units (CSW310-RX). Additional HDMI output port and IR pass-through.

The PureLink CSW310 includes an easy “IR pass-through” function for extending remote control signals. This way the connected source devices, like set-top boxes, Bluray players or other streaming devices can be controlled from display side without intervisibility. Furthermore the transmitter features an additional HDMI “loop-through” output that is able to forward the input signal to another display wtih a simple HDMI cable.

Content PureLink wireless HDMI-Set CSW310:

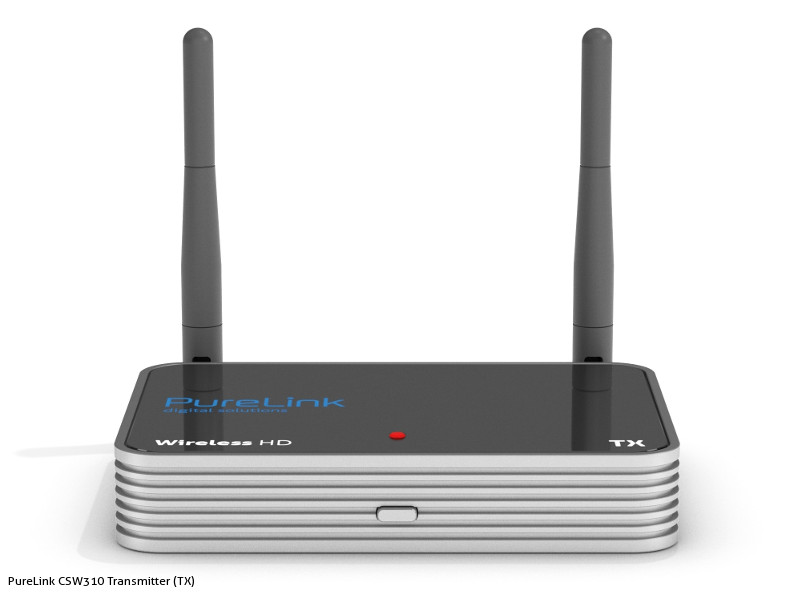

• Transmitter (TX):
  1x HDMI Input
  1x HDMI Output (Loop)
  1x IR Output
  Dimensions: 130,0 x 83,4 x 26,5 mm

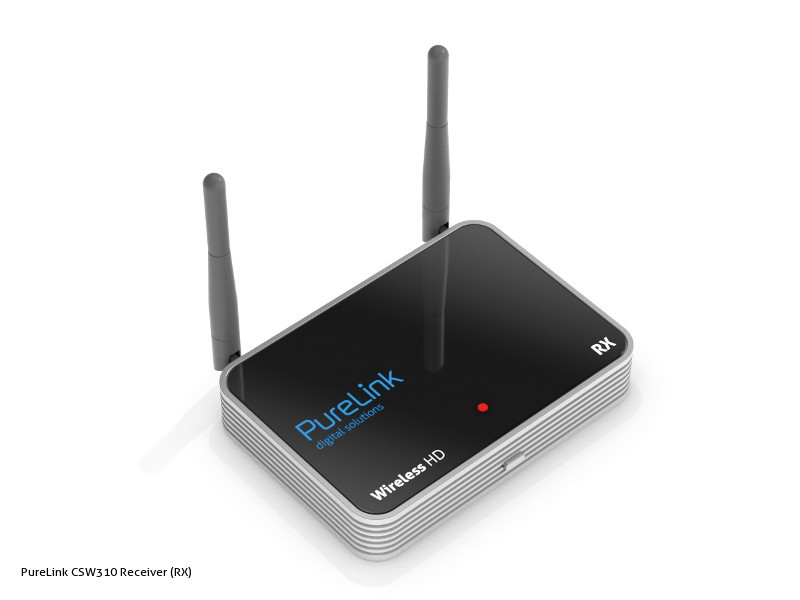

• Receiver (RX):
  1x IR Input
  1x HDMI Output
  Dimensions: 130,0 x 83,4 x 26,5 mm
• Delivered with power supplies and high performance antennas

Key features PureLink HDMI-Set CSW310:

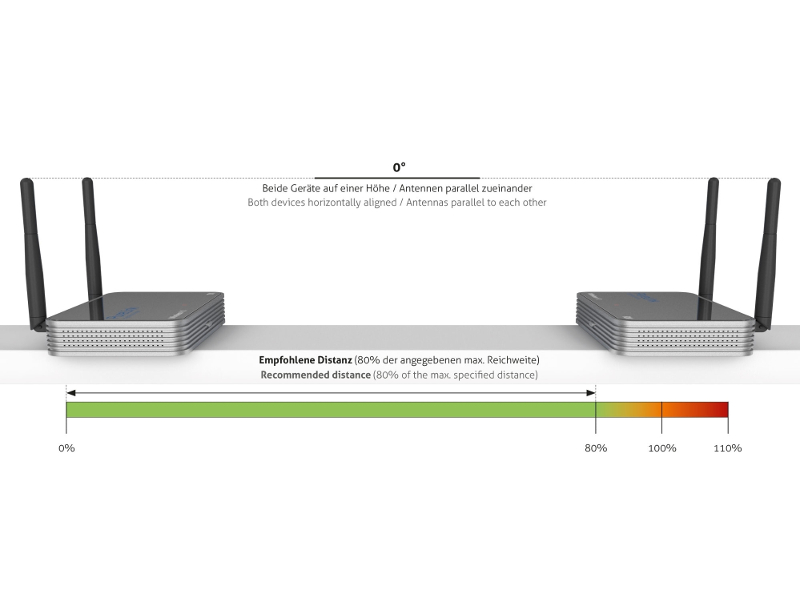

• Extreme transmission distance: 100m in line of sight to up to 4 receivers at the same time
• Wireless HD using 5G frequency for HDTV up to 1080p@60Hz
• Wireless AV data transfer for HDMI connections incl. digital audio
• Additional “loop-through” HDMI breakout port on the transmiter
• Free of loss and nearly latency free with less than 0.5 seconds delay
• Supported video resolutions (HDMI): 1080p, 720p, 576p, 480p
• Supported PC resolution (max.): 1920 x 1080 @60Hz (16:9), FullHD
• Supported 3D formats: Frame-Packing 1080p@24Hz, 720p@50/60Hz
• Supported audio formats (digital): compressed formats, PCM, AC3, Dolby 5.1, DTS
• Supported standards: HDMI, HDCP 2.0, EDID 1.3
• Frequency: ca. 5GHz
• Max. range: up to 100m in lone-of-sight
• System latency: max. 0,5 seconds (unscaled and latency free)
• Supported IR frequency: 30kHz - 60kHz
• Power supply 100-240V AC @ 50-60Hz, 5V1A DC
• Small housing for an understated installation
• Encrypted transmission for maximum privacy
