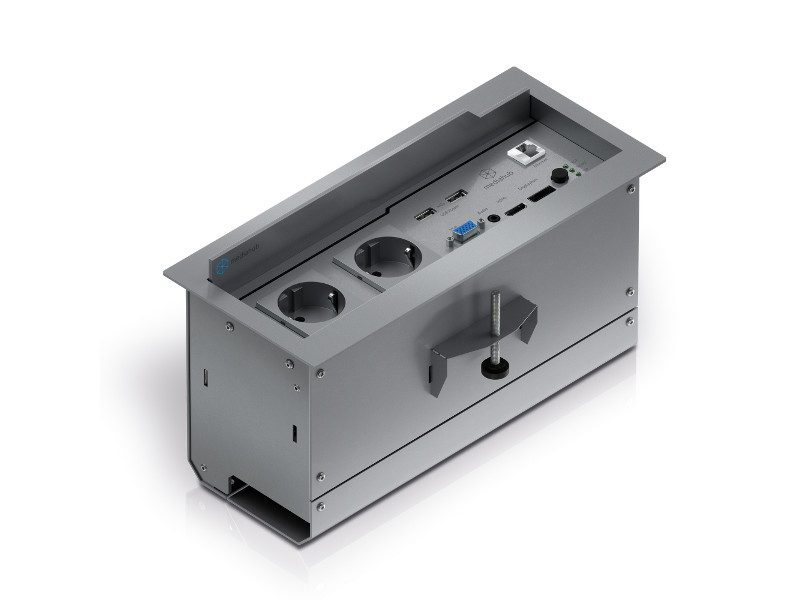

PureLink mediahub In-table connector panel Daisy Chain, steel-grey
The mediahub™ In-table desk connection panel by PureLink in steel-grey offers a flexible all-in-one solution for power, network and A/V connections. The perfectly manufactured, modular cartridge-system is upgradable and thus enables a scalable and high-grade multimedia interface integration. For decentralized daisy-chains.
The contemporary use of digital media in conferences and meetings requires a flexible all-in-one solution for power, network and A/V connections. mediahub™ by PureLink combines innovative technology with usability and a high-quality design.
PureLink mediahub™ In-table desk connector panel Daisy Chain steel-grey

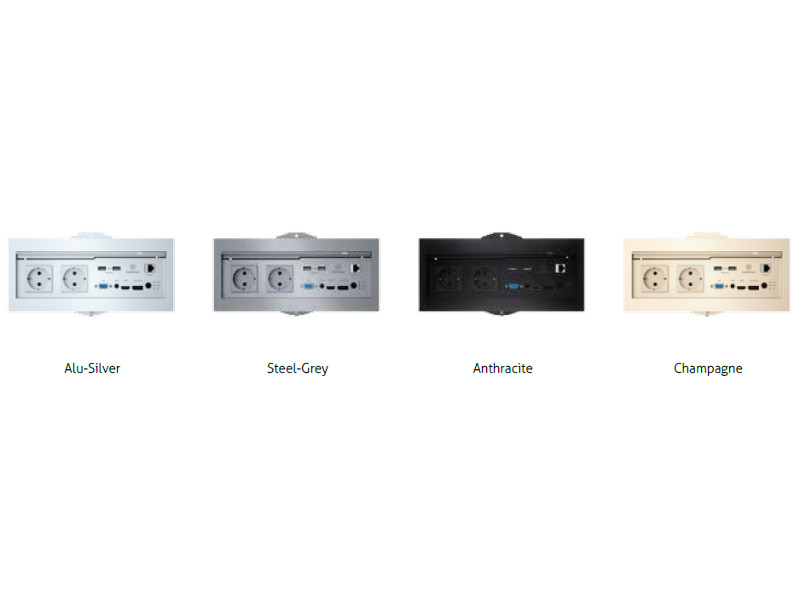

The housing of the mediahub™ desk connector panels are made of powder coated or anodized aluminium from European production, are available in four high-quality versions and can be mounted flush with the tabletop (in-table) or overlying (On-table). The smooth mechanism ensures a frustration-free opening and closing of the mediahub™ and this way perfectly adapts to a flexible office environment with variable requirements.

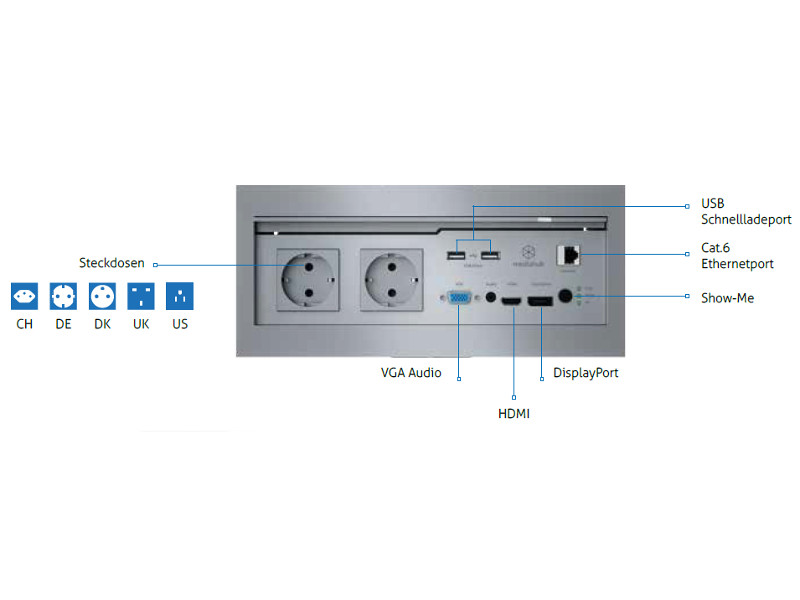

The perfectly manufactured, modular cartridge-system is upgradable and thus enables a scalable and high-grade multimedia interface integration. This makes it possible to incorporate different power outlets for various EU countries in one housing and also replace them afterwards. In all housing versions, two power outlets, a Cat.6 Ethernet connection as well as two USB-A fast charging ports with 2.1A are available.
Key features PureLink mediahub™ In-table desk connection panel MHUB-ENC101-G:
- All-in-one desk connector panel for power, Ethernet, A/V, etc.
- For decentralized daisy-chains

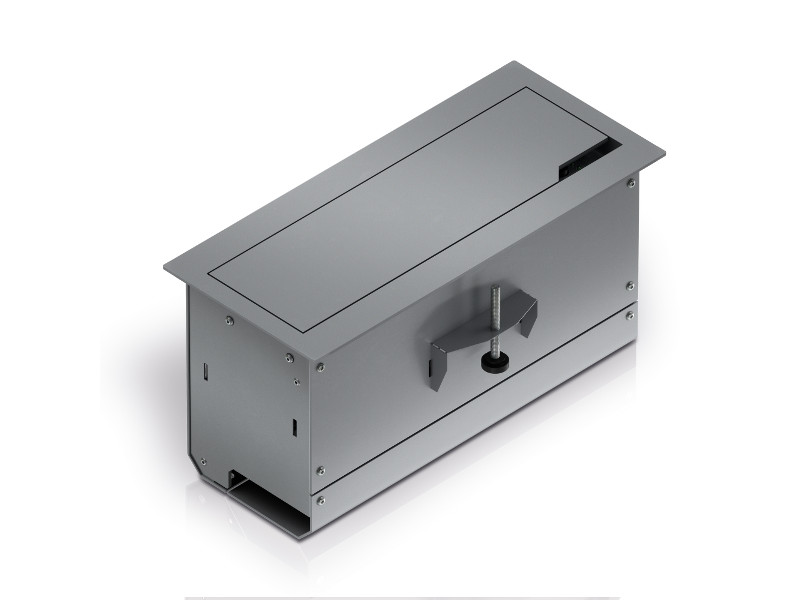

- In-table Installation - Perfect and flush mounted integration of media technology into your conference table

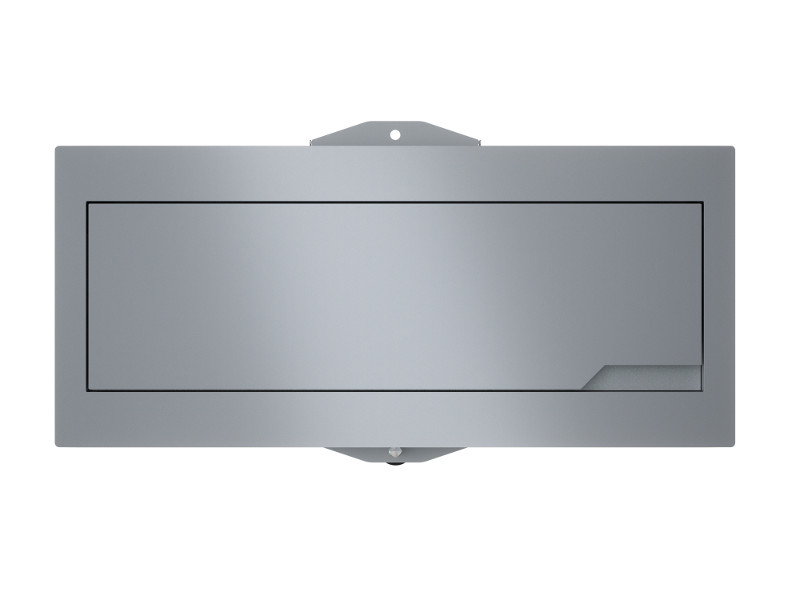

- Smooth and frustration-free mechanism
- Modular cartridge-system – scalable and upgradable

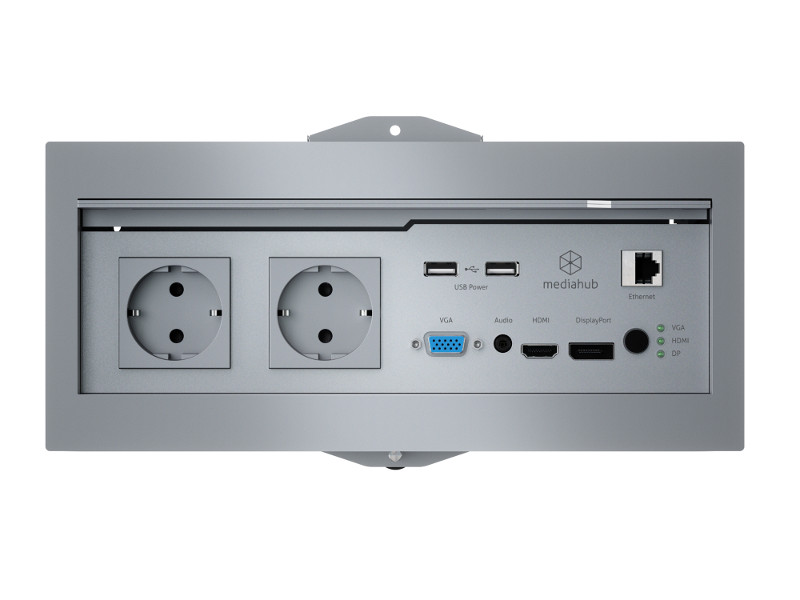

- Always included: 2x USB fast charging ports, 1x Ethernet connection, 2x power outlets
- Integrated Scaler for all signal formats and resolutions up to full HD/1080p
- Automatic input signal detection/Present at your fingertips, thanks to an integrated "Show Me" Button
- RS232 control via "Uplink" app - available soon for Android
- Finish: steel-grey

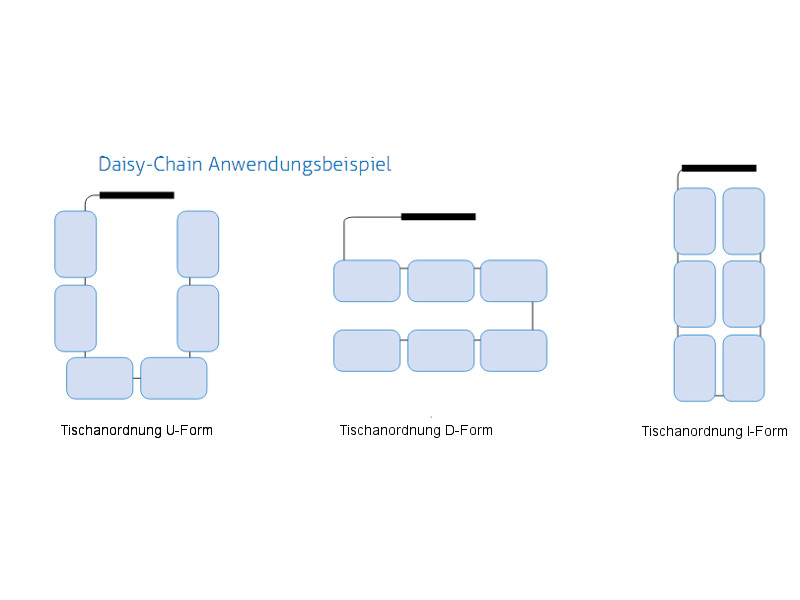

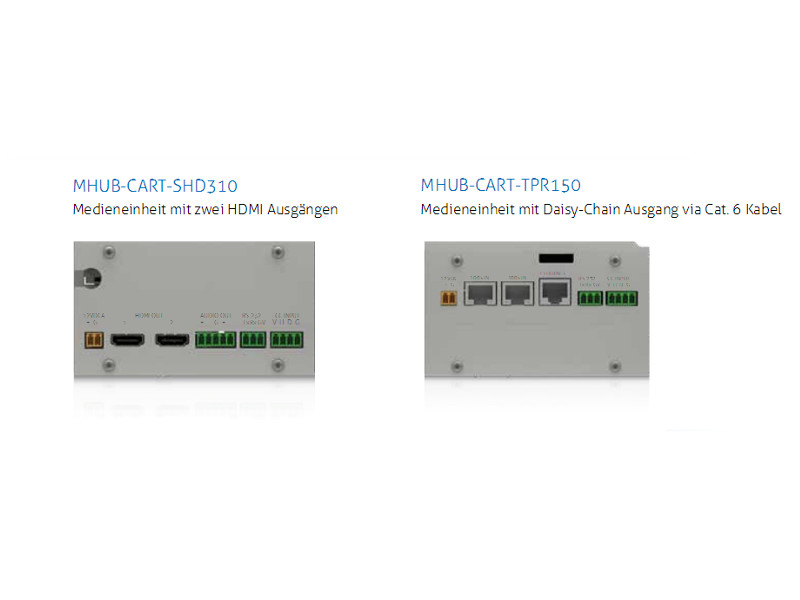

Integrated PureLink Daisy-Chain solution via mediahub™ TPR150:
- Singal inputs: 1x HDMI-A, 1x VGA, 1x 3.5mm stereo audio, 1x DisplayPort, 1x Daisy-Chain Cat (RJ45),
1x Ethernet (RJ45) - Signal outputs: 1x Daisy-Chain Cat (RJ45)
- Control inputs: 1x RS232 (Phoenix), 1x Show-Me (Phoenix)
- Latency-free signal distribution
- Decentralized Daisy-Chain system, scalable and space-saving
- Replaces centralized A/V topologies with a decentralized daisy-chain system
- Integrated scaler for optimum format conversion of 16:9 and 16:10
- Completely scalable: The system is nearly unlimitedly extendable and/or reducible
- Only one Cat.6 cable in between adjacent units - no more space-consuming cable bundles
- Daisy-Chain: 18 GB/s bandwidth with max. 6 feeds - Max. 9 GB/s per feed
- Signals can be distributed over nearly unlimited distances
- Power-over-Cat reduces the number of required power supplies significantly
- Show-Me push button for controlling the input signal
- Maximum resolution FullHD / 1080p@60Hz / WUXGA
- EDID management function
- Controls: Automatic input detection (deactivatable), on the device via push button, external push buttons (Phoenix connectors), via media control or app controlled RS232
| Product sheet: |  [pdf, 774 kb] |
|---|---|
| Contains installation material: | + |
| Manufacturer/Importer: | PureLink GmbH / PureLink, Von-Liebig-Str. 10, 48432 Rheine, info@purelink.de |
| color: | dark grey |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
