RAM Mounts 2x round plate, 1x arm 150mm, B-ball (RAM-B-101U-C), black

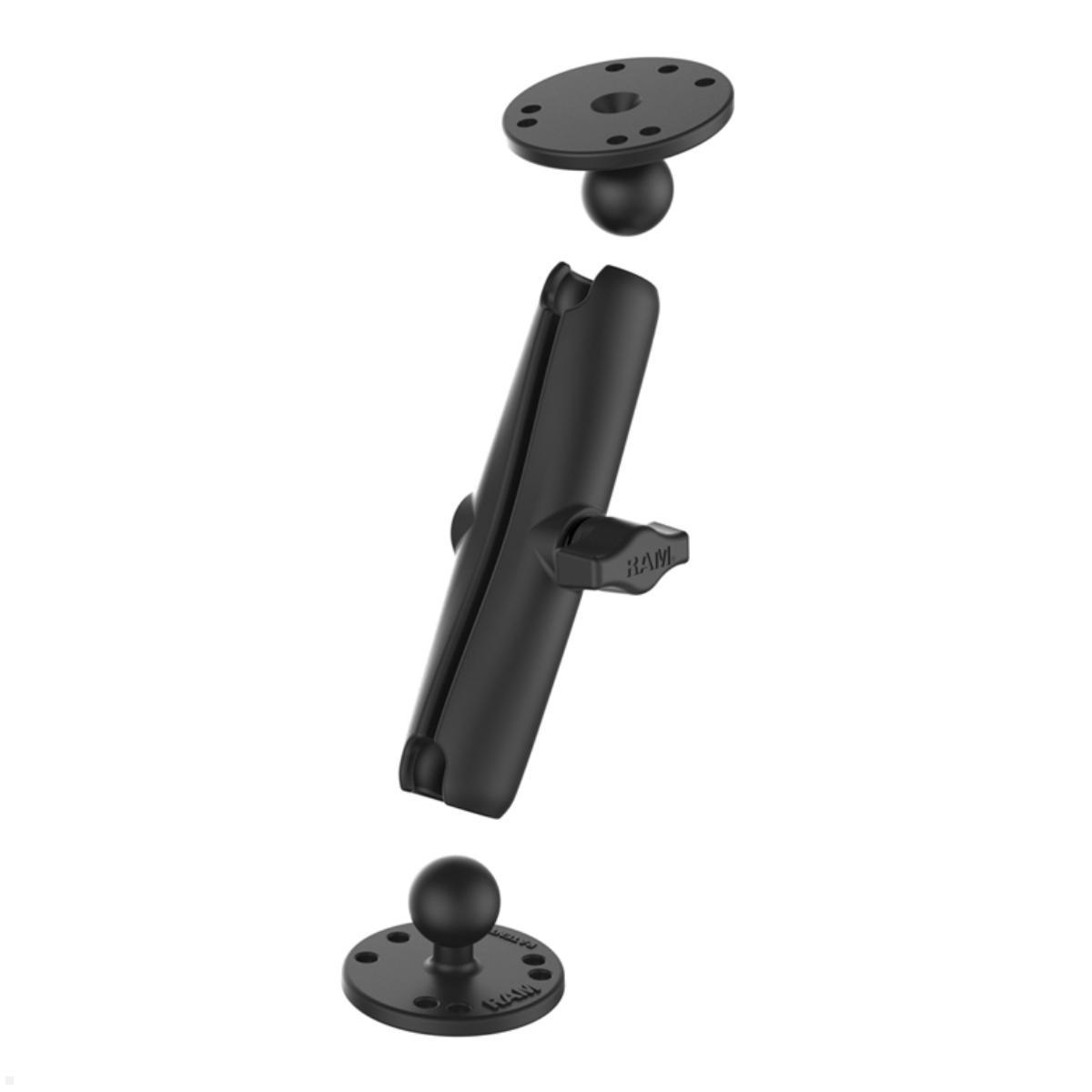

The RAM Mounts Set consists of two base plates with AMPS hole pattern and a connecting arm with a length of 150 mm. The mounting system is the ideal solution for secure mounting on smooth, vertical or horizontal surfaces.
RAM Mounts Set | Tablet mounting solution

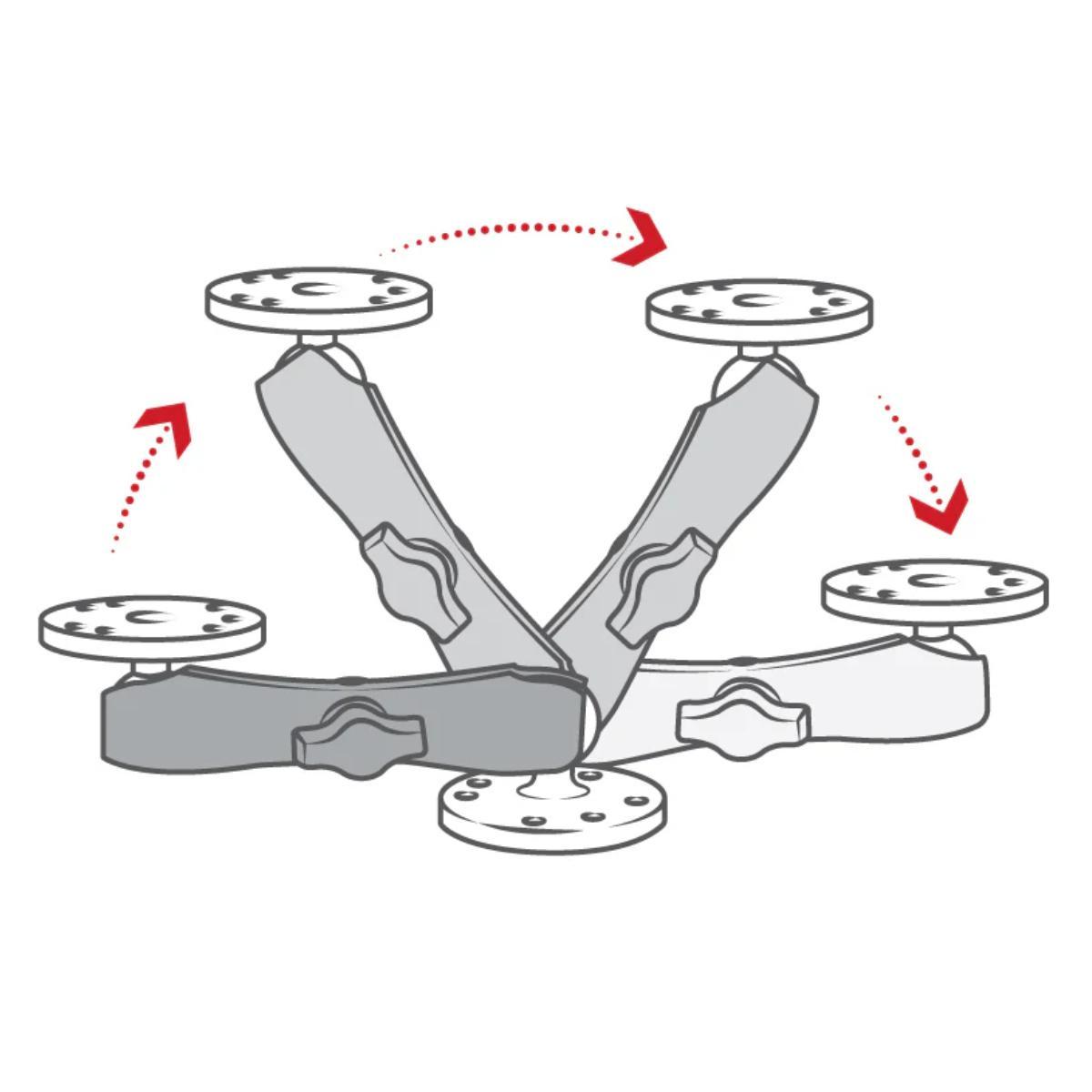

The RAM Mounts Set (RAM-B-101U-C), consisting of two round base plates with AMPS hole pattern and an approx. 150 mm long connecting arm, is the ideal solution for secure mounting on smooth, vertical or horizontal surfaces. The connecting arm is easily mounted between the spherical bases and can be firmly locked in place with a practical twist lock as soon as the desired position is reached. In combination with a tablet case, the RAM Mounts holder becomes a versatile tablet holder. This set enables flexible and stable mounting for a variety of applications, such as in cars, trucks or boats.
Technical details RAM Mounts RAM-B-101U-C
- Material: aluminum, powder-coated
- Ball diameter: 25.4 mm for B-ball 1 inch
- Total length of connecting arm: 152.4 mm
- Length base to base: 133.35 mm
- Base plate/base plate diameter: 63.5 mm
- Hole mask: AMPS 4-hole
- Load capacity: up to 0.9 kg
- Finish: black RAL 9005
- Weight: approx. 240
| Product sheet: |  [pdf] |
|---|---|
| Others: | [pdf] |
| Capacity: | 0,9 kg |
| Rotate: | 360° |
| Swivelling range: | 180° |
| Material: | aluminum, powder-coated |
| Suitable for: | Für fast alle Notebookmodelle |
| Scope of delivery: | 2x base plate, 1x connecting arm 150mm, B-ball (RAM-B-101U-C) |
| Contains installation material: | - |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
