RAM Mounts 2x round plate, 1x arm 90mm with C-balls (RAM-101U-B), black
The RAM-101U-B connecting arm with a length of approx. 90 mm offers a versatile solution for mounting various devices in vehicles, boats or other applications. The innovative ball system from RAM Mounts in combination with the connecting arm enables flexible positioning and a variable viewing angle for the devices.
RAM Mounts Set | Tablet mounting solution
The RAM Mounts C-ball set RAM-101U-B offers a versatile solution for mounting various devices in vehicles, boats or other applications. The set consists of a short connecting arm of approx. 90 mm length and two base plates with a universal AMPS hole pattern. The innovative ball system from RAM Mounts in combination with the connecting arm enables flexible positioning and a variable viewing angle for the devices.

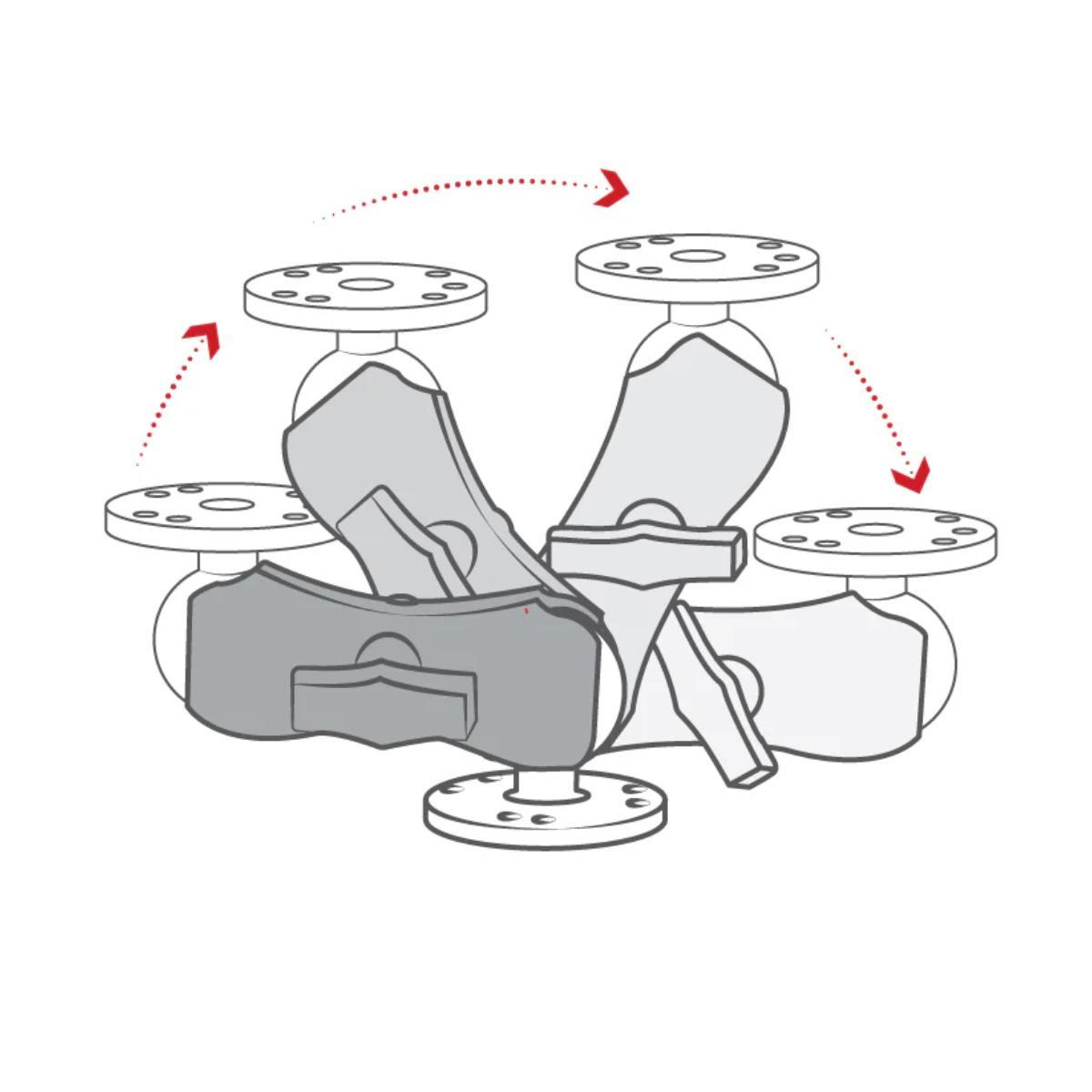

Mounting solution with different viewing angles
The patented ball system allows a variety of mounting options for different devices and applications. The RAM Mounts C-ball set has a high-quality finish and is designed for long-term use. The base plates with the AMPS hole pattern can be easily attached to various surfaces. The mounts with C-balls are suitable for a weight of up to 1.8 kg, which ensures secure and reliable fastening.
Technical details RAM Mounts RAM-101U-B
- Material: Aluminum, powder-coated
- ball diameter: 38.1 mm for C-ball 1.5 inch
- Total length of connecting arm: 88.9 mm
- Length base to base: 57.15 mm
- Base plates/base plates diameter: 36.5 mm
- AMPS hole pattern
- Load capacity: up to 1.8 kg
- Finish: black RAL 9005
- Weight: approx. 404g
| Product sheet: |  [pdf] |
|---|---|

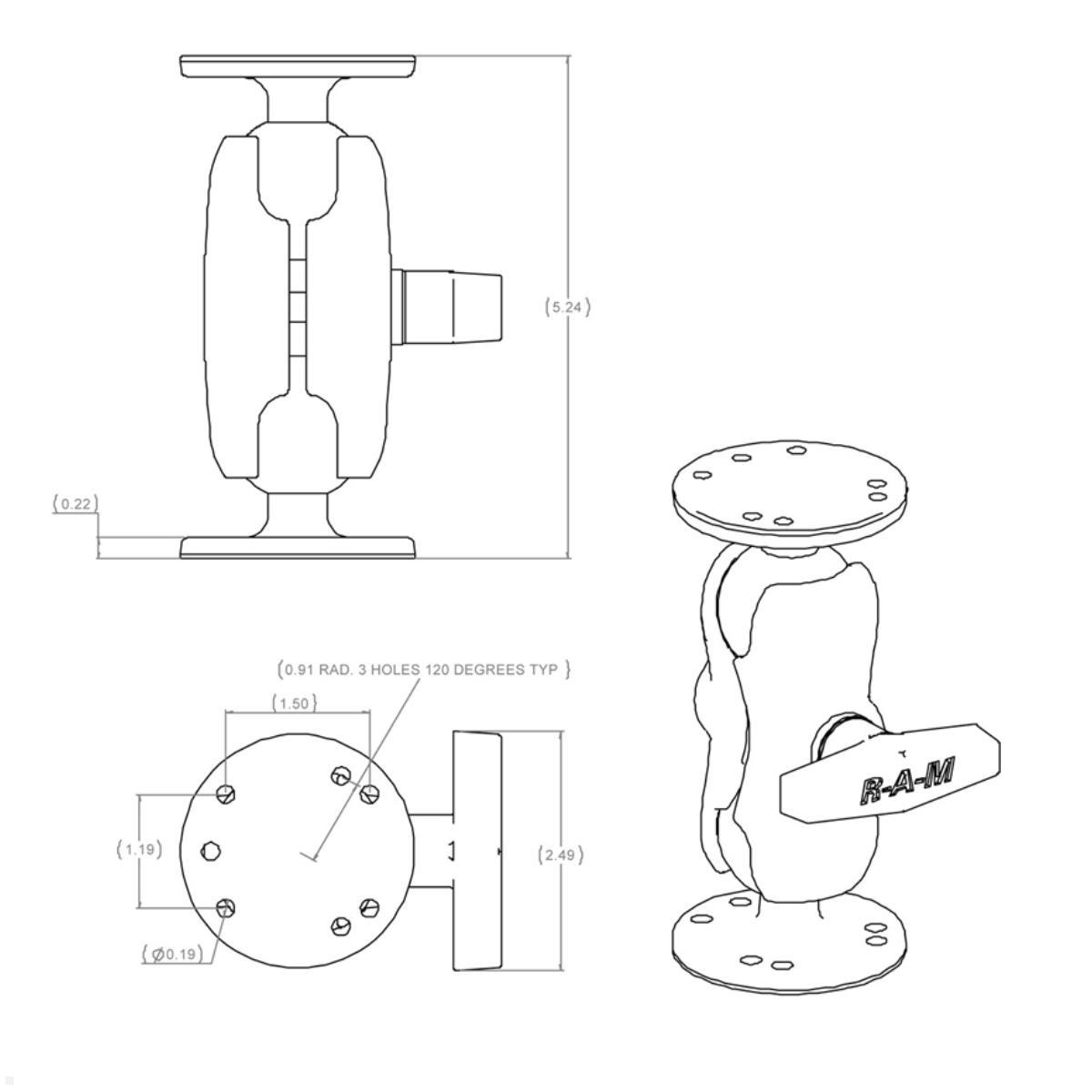

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Capacity: | 1,8 kg |
| Rotate: | 360° |
| Swivelling range: | 180° |
| Material: | aluminum, powder-coated |
| Suitable for: | Für fast alle Notebookmodelle |
| Scope of delivery: | 2x base plate, 1x connecting arm, C-ball (RAM-101U-B) |
| Contains installation material: | - |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | C-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
