RAM Mounts 6-bay GDS desktop charging station for tablets in IntelliSkin protective case (RAM-GDS-DOCK-6G16P)
Highlights
- 6 charging bays for maximum efficiency
- Optimized for tablets with IntelliSkin®
- Fast charging thanks to USB Power Delivery
- Workspace organization through a central charging solution
- Robust design for industry, warehousing and field service
RAM Mounts 6-Bay GDS Tabletop Charging Station for Tablets with IntelliSkin®
The RAM Mounts 6-bay GDS tabletop charging station for tablets in IntelliSkin® protective sleeve is the ideal solution for businesses and organizations that need to charge and manage multiple tablets simultaneously. Whether in logistics, field service, workshops, or warehouses – the docking station provides a centralized and clear charging infrastructure. Thanks to the proven GDS® technology, compatible devices are charged not only reliably but also particularly efficiently. With six integrated charging bays, the station enables the simultaneous charging of multiple tablets and thus contributes to optimized workflows. The robust construction is designed for professional continuous use and ensures long service life. The centralized power supply also significantly reduces cable clutter, resulting in a neater and safer workplace.
Technical details for the RAM Mounts tabletop charging station for tablets
- Product series: GDS® Technology™
- Width: 13.38 cm
- Depth: 39.31 cm
- Height: 8.05 cm
- Weight: 3.02 kg
- Compatible with tablets in IntelliSkin® and IntelliSkin® Next Gen protective sleeves
- Simultaneous charging of up to 6 devices
- Desktop/tabletop docking station
- Supports USB Power Delivery (PD)
- Output power per port: 5 V / 3 A
- Output power per port: 9 V / 2 A
- Output power per port: 9 V / 2.22 A
- Output power per port: 12 V / 2 A
- PD 3.0 output voltage: 3.3 V to 11.7 V DC

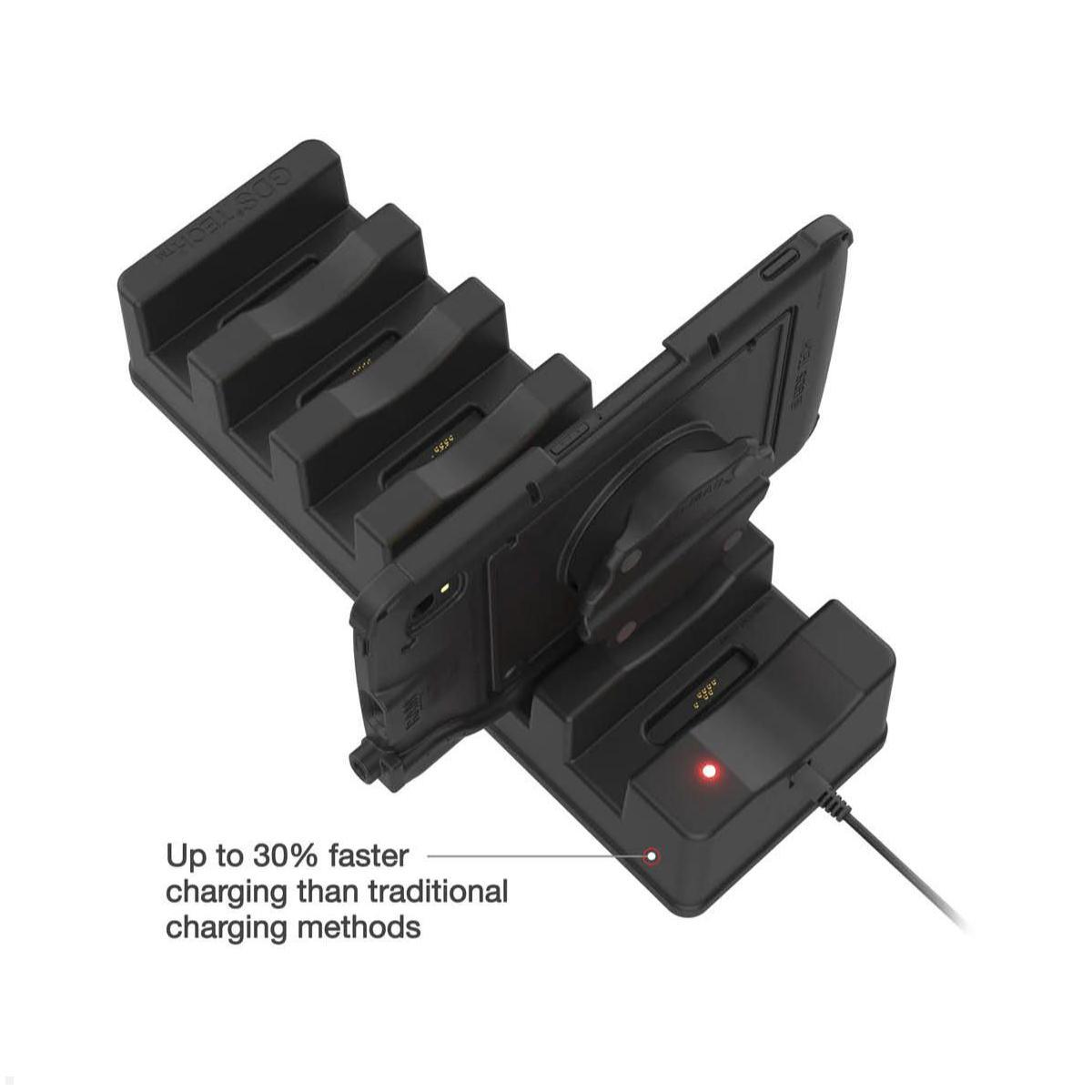

- Up to 30% faster charging thanks to GDS® Technology™
- Integrated overvoltage protection
- Integrated overcurrent protection
- Material: High-strength composite
- Non-slip rubber feet
- Certifications: CE, FCC, UKCA, RCM, RoHS, and WEEE
- Only suitable for devices with Power Delivery charging function
| Material: | Hochfester Verbundwerkstoff |
|---|---|
| Suitable for: | Tablets mit Power-Delivery-Ladefunktion & IntelliSkin®, IntelliSkin® Next Gen Schutzhülle |

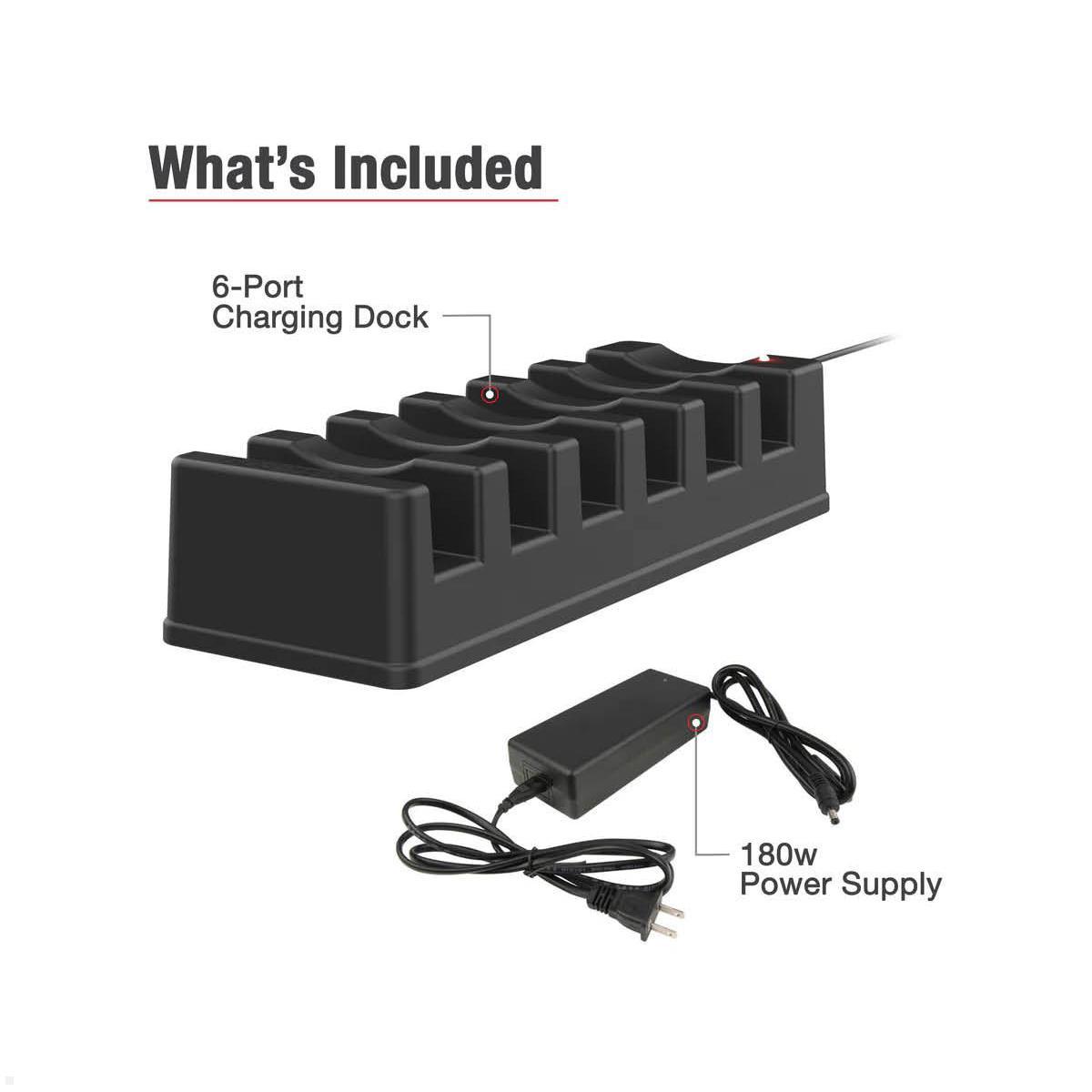

| Scope of delivery: | 1x 6-slot GDS desktop charging station (RAM-GDS-DOCK-6G16P) |
| Contains installation material: | - |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts 6-Port GDS Desktop Docking Station for Tablets in IntelliSkin Case (RAM-GDS-DOCK-6G16P)?
A six-port desktop docking station for tablets in IntelliSkin or IntelliSkin Next Gen cases, using GDS® Technology™, designed for a central charging infrastructure.
-
How many tablets can be charged simultaneously?
Up to six devices can be charged at the same time.
-
What technology enables faster charging?
GDS® Technology enables up to 30% faster charging.
-
Does it support USB Power Delivery and what are the port outputs?
Yes, it supports USB Power Delivery (PD). Per port outputs are 5 V / 3 A, 9 V / 2 A, 9 V / 2.22 A, or 12 V / 2 A; PD 3.0 output voltage range is 3.3 V to 11.7 V DC.
-
What safety features are included?
Integrated overvoltage protection and overcurrent protection.
-
What certifications does the product have?
CE, FCC, UKCA, RCM, RoHS and WEEE.
-
What are the dimensions and weight?
Width 13.38 cm, depth 39.31 cm, height 8.05 cm; weight 3.02 kg.
-
Why is a central power supply advantageous?
It reduces cable clutter and increases order and safety in the workplace.
Why is a central charging station for tablets useful?
In many businesses several tablets are used daily. Individual chargers quickly cause cable clutter and complicate device organization. The 6-bay GDS desktop charging station provides a remedy by consolidating all tablets in a fixed location. Employees always know where the devices are and can place them back on charge immediately after use. The central power supply not only saves space but also reduces administrative effort. At the same time, device availability increases because they are always charged and ready for use. This ensures more efficient workflows, particularly in logistics centers, service vehicles, production facilities, or healthcare.
Which devices are compatible with the GDS desktop charging station?
The charging station was specifically developed for tablets equipped with an IntelliSkin® or IntelliSkin® Next Gen protective cover. The innovative GDS® system enables a secure connection between tablet and charging station without additional cables being connected directly to the device. This significantly simplifies daily insertion and removal of the devices. At the same time, the tablets' charging ports are preserved, which contributes to maintaining the hardware value in the long term. The docking station is therefore ideal for professional environments where devices are regularly charged and used.
What advantages does GDS® Technology™ offer?
The integrated GDS® Technology™ was developed specifically for professional use of mobile devices. In combination with USB Power Delivery it provides reliable and efficient power supply for connected tablets. Compared to conventional charging solutions, charging performance can be optimized so devices are ready for use again more quickly. In addition, the charging station features integrated protection mechanisms against overcurrent and overvoltage. These increase operational safety and protect both the connected devices and the charging infrastructure. The robust construction from high-strength composite material also ensures a long service life even with intensive daily use.
For which applications is the 6-bay GDS desktop charging station suitable?
The 6-bay GDS desktop charging station is suitable wherever multiple tablets need to be managed and charged simultaneously. It is frequently used in warehouse logistics, retail, manufacturing operations, healthcare, public authorities, and service and field organizations. Thanks to its compact design, weighted base, and non-slip feet, the charging station provides a secure stance on desks, workbenches, or central distribution points. Companies benefit from a professional charging and organizational solution that simplifies workflows and sustainably improves the availability of their mobile devices. With its high compatibility, reliable charging performance, and robust design, the 6-bay GDS desktop charging station for tablets with IntelliSkin® is an ideal solution for modern work environments where efficiency, order, and availability are crucial.
